Default Notice anything weird about this ve table?

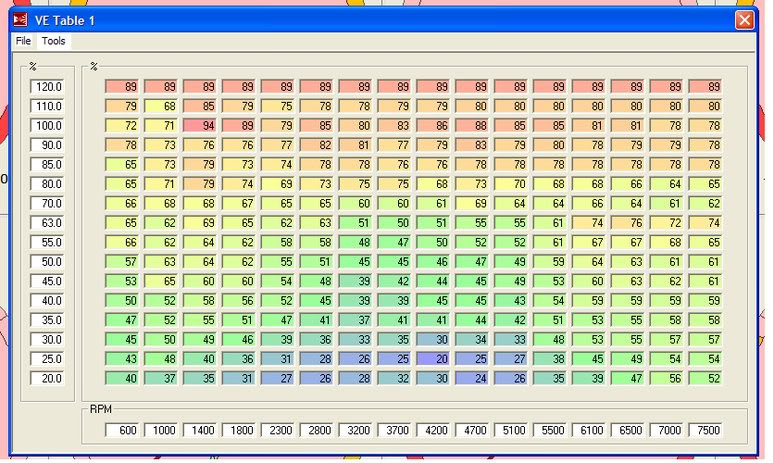

I just noticed today, and I've been running this forever. First to figure it out gets nothing. Only reason I noticed is cause I'm making a new map w/ boost cells.

Name:  vemaplikewhoa.jpg
Views: 11
Size:  116.0 KB
patsmx5 is offline   Reply With Quote
Old 11-02-2008, 01:20 AM   #2
Elite Member
iTrader: (12)

Join Date: Aug 2006
Location: Central-ish VA
Posts: 4,449
Total Cats: 16
Default

Its not in PSI. Welcome to MS2...
neogenesis2004 is offline   Reply With Quote
Old 11-02-2008, 01:22 AM   #3
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

True, but your not seeing the forest so to speak...
patsmx5 is offline   Reply With Quote
Old 11-02-2008, 01:34 AM   #4
Elite Member
iTrader: (12)

Join Date: Aug 2006
Location: Central-ish VA
Posts: 4,449
Total Cats: 16
Default

Please, show me the trees.
neogenesis2004 is offline   Reply With Quote
Old 11-02-2008, 01:41 AM   #5
Elite Member
iTrader: (12)

Join Date: Jan 2007
Location: Hermosa Beach, CA
Posts: 2,575
Total Cats: 11
Default

the 94%?
cardriverx is offline   Reply With Quote
Old 11-02-2008, 01:50 AM   #6
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Nope, you're looking at the trees.
patsmx5 is offline   Reply With Quote
Old 11-02-2008, 11:47 AM   #7
Senior Member
iTrader: (2)

Join Date: Aug 2005
Location: Granbury, TX
Posts: 567
Total Cats: 1
Default

Nvm, my eyes werent focussed
greenday3437 is offline   Reply With Quote
Old 11-02-2008, 12:13 PM   #8
Elite Member
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

I notice that it's 16x16, and mine reads in 12x12... is that a function of MS2?
I also see that my "rows" are read in kPa, and you have a "%" sign.
samnavy is offline   Reply With Quote
Old 11-02-2008, 12:32 PM   #9
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Quote:
Originally Posted by samnavy View Post
I notice that it's 16x16, and mine reads in 12x12...
We have a winner. Since when does MS2 have 16x16 tables? It only has that size for ve. Spark, AFR, etc are all 12x12. I read up on MS2 and all I read about is 12x12 tables. I drew up a ve table based on other's people's and then I went to type it into megatune and that's when I realized there were more boxes. So now my new table goes from 20-110 kPa in 10 kPa increments, then 20kPa increments from there to 230kPa and RPM from 500 to 8000 in 500 RPM increments.
patsmx5 is offline   Reply With Quote
Old 11-02-2008, 02:21 PM   #10
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,327
Total Cats: 1,926
Default

Quote:
Originally Posted by patsmx5 View Post
Since when does MS2 have 16x16 tables?
Since build 2.0 of the MS2Extra code. It is selectable in Megatune under "Basic Setup" -> "General, lags" as follows:



Do I win nothing as well?
Joe Perez is offline   Reply With Quote
Old 11-02-2008, 02:56 PM   #11
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Ah, yeap, I see that now. Had no idea it was a 16x16 table till I drew up a fancy 12x12 and started putting in the numbers to find I had more boxes then numbers. Sorry, but I already gave nothing to samnavy, so you'll have to ask him if he wants to share it with you.

And damnitboy MLV is a gift from the gods. And acceleration enrichments are a pain to get right. Noise is killing me. Joe, I'm going to post a screenshot in a second for you to look at. I get random voltage spikes recorded in datalogs. No idea why, but it causes problems.

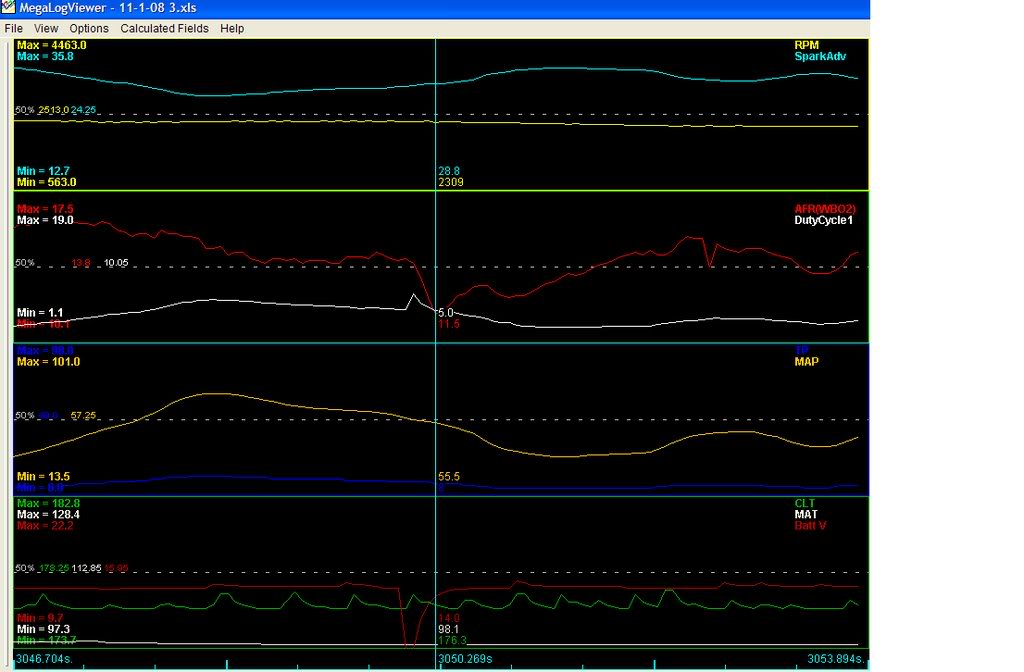

EDIT: here's a pic. This one shows it droping to minimum of 9.7 volts. It also spiked once to 22.2 volts! That can't be good. And note all the noise in the coolant sensor reading. All other sensors read smoothly. pulse width and A/F ratio's are weird sometimes, but that's accel. enrichments kicking in. Working on those.


Name:  picforjoe2.jpg
Views: 3
Size:  73.1 KB
patsmx5 is offline   Reply With Quote
