Quote:
Originally Posted by Oochi View Post
On a different topic, I need to reassure this: In step 22 of westfield's guide it says
Step 22: install a jumper from S12C to JS9. Ignore the rest of the instructions in this step
But in the megamanual, it states that:
DO NOT INSTALL THIS JUMPER FOR NON-MegaSquirt-II APPLICATIONS - IT WILL DESTROY THE PROCESSOR!!
I would think this isn't a problem since nobody has said anything about it and it is in fact in westfield's guide.
You definitely need to install it. It will destroy a MS1 cpu, and is needed on a MS2 or MS3 cpu if you want to use JS0 and JS2 outputs

Quote:
Originally Posted by Oochi View Post
Also with the 90-93 fuel pump circuit, referring to this picture:
the 3rd lead on the transistor is connected to the same spot as that jumper that I just mentioned above. Would it be reccomended to connect both the jumper and the fuel pump circuit to that spot? And if Anyone has any other pictures of their fuel pump mod, i would appreciate seeing those. but other than that mod, there really isnt any other mods I need to worry about right? Not keeping ac
Again, study the schematics.
http://msextra.com/doc/general/pix/v3pcb_4.gif

Finding a 12V source isn't rocket science.
There's several 12V points in the mainboard injector circuit: the non-banded side of D3, pin 2 on Q12, pin 2 onQ9.

Last edited by WestfieldMX5; 02-29-2012 at 11:33 AM.
WestfieldMX5 is offline   Reply With Quote
Old 02-29-2012, 11:37 AM   #42
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

The other option for the 90-93 fuel pump is so much simpler.

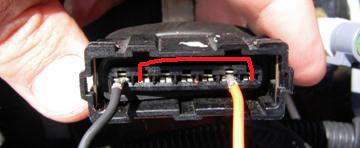

Just run the FP out to the AFM connector through one of the spare wires (once you remove the AFM). I use 2O. Then you'll simply jump the 2O pin, with a small bit of wire, to the pin that normally grounds the fuel pump relay.

Attached Thumbnails
Oochi's MS3X DIY Build-fuel-pump-jump.jpg
Braineack is offline   Reply With Quote
Old 03-08-2012, 06:26 PM   #43
Junior Member
Thread Starter

Join Date: May 2011
Location: Central Kentucky
Posts: 221
Total Cats: 1
Default

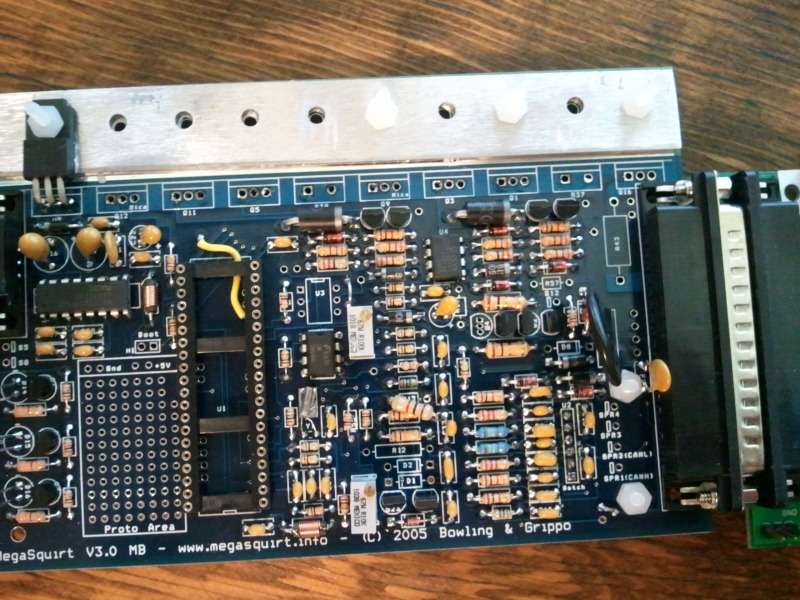

Thanks to Jasonb, I was able to use his stim and finally got to test my mainboard. Plugged it in and turned it on. No smoke or bad smells so all seems good. I adjusted R56 and am now seeing 2.5V at r54 and pin 3 of U7.

Am I missing anything that you all can see?


Permission to add ms3 and expander card and plug her up to my laptop?
I also have to figure out how to use this stim lol

Edit: I also tested step 24 of http://www.msextra.com/doc/ms3/build_manual.html
Attached Thumbnails
Oochi's MS3X DIY Build-2012-03-08171539.jpg

Last edited by Oochi; 03-08-2012 at 07:43 PM.
Oochi is offline   Reply With Quote
Old 03-08-2012, 09:20 PM   #44
Junior Member

Join Date: Mar 2011
Location: Guildford, UK
Posts: 164
Total Cats: 0
Default

Looks okay to me.
Freaky Roadster is offline   Reply With Quote
Old 03-08-2012, 11:24 PM   #45
Junior Member

Join Date: Mar 2010
Location: onion city,ca
Posts: 428
Total Cats: 1
Default

Ur not putting that big *** black thing next to the db37?
I thought that protects the CPU?

Edit: nm, I see it there. Ur good.
jasonb is offline   Reply With Quote
Old 03-16-2012, 01:37 AM   #46
Junior Member
Thread Starter

Join Date: May 2011
Location: Central Kentucky
Posts: 221
Total Cats: 1
Default

I believe I got the ECU itself completed today. Still havent plugged it up to my laptop and tested using the stim. I am having trouble with the harness for some frustrating reason. Don't completely understand what to use with the wiring diagrams, and the whole sequential fuel/spark stuff, due to lack of mental knowledge.

Do I need to have the GM IAT sensor installed before I put megasquirt in my car?
Anyone want to throw me a bone stock 1.6 base map?

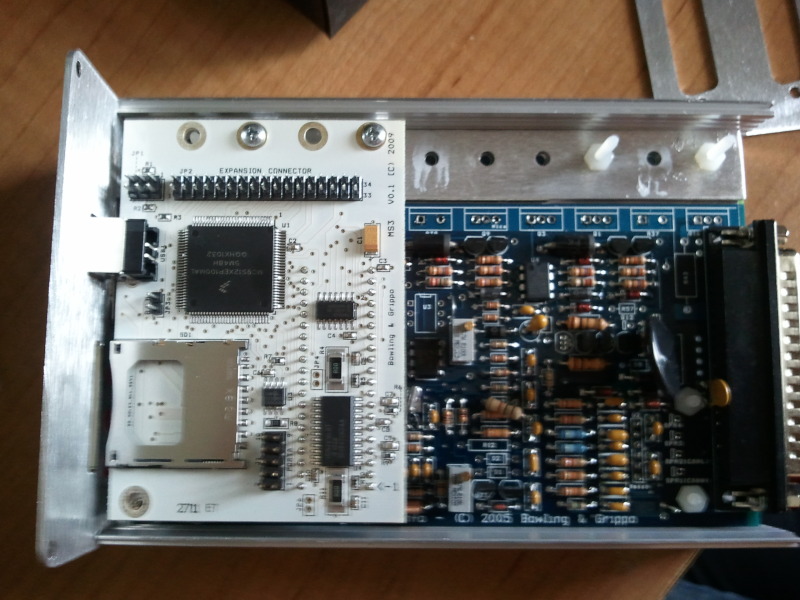

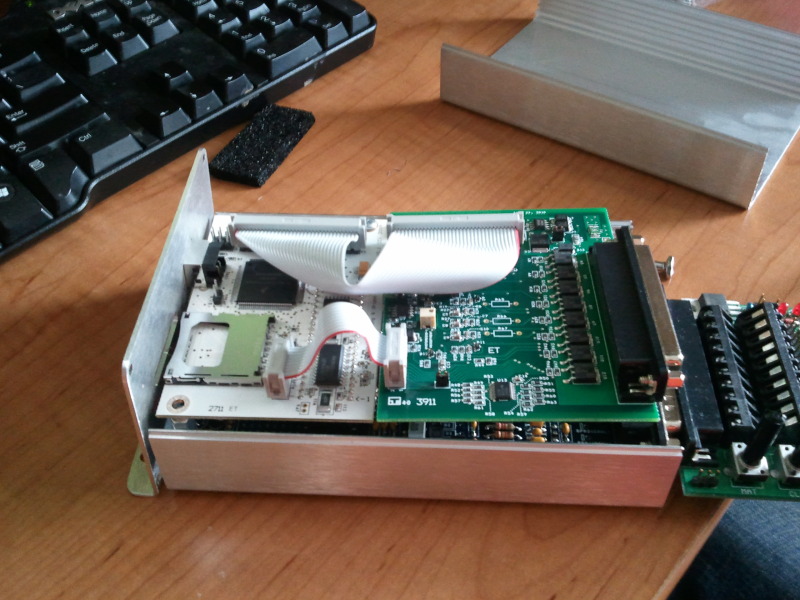

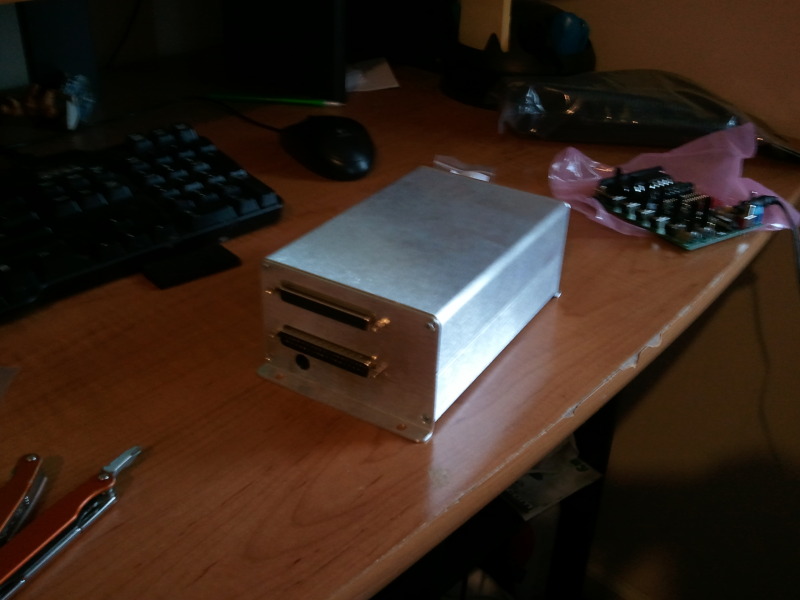

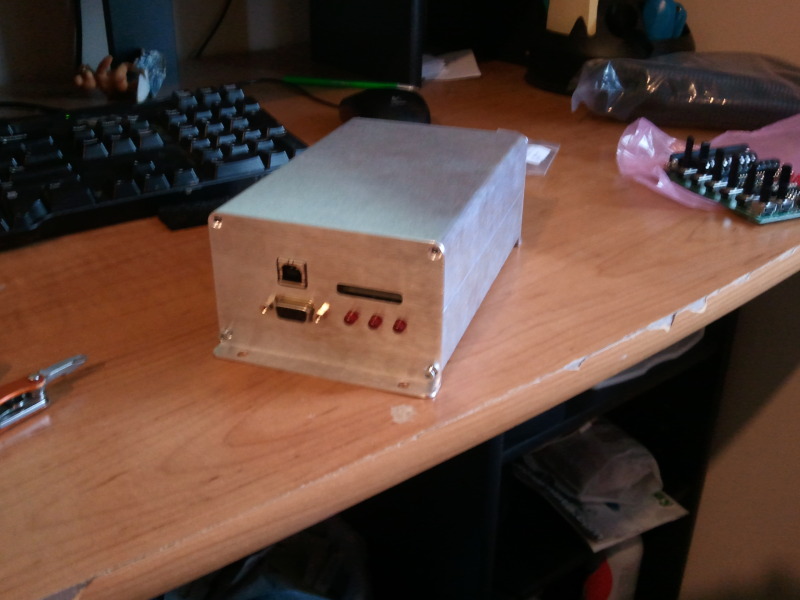

Im super tired, here are some pictures




Attached Thumbnails
Oochi's MS3X DIY Build-2012-03-15162936.jpg   Oochi's MS3X DIY Build-2012-03-15170009.jpg   Oochi's MS3X DIY Build-2012-03-15173847.jpg   Oochi's MS3X DIY Build-2012-03-15173857.jpg
Oochi is offline   Reply With Quote
Old 03-16-2012, 01:49 AM   #47
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,519
Total Cats: 260
Default

yes you need the IAT sensor to run the car.
soviet is offline   Reply With Quote
Old 03-16-2012, 08:59 AM   #48
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

Quote:
Originally Posted by soviet View Post
yes you need the IAT sensor to run the car.
The question was does he need the GM IAT sensor, the answer to that is no, as-long as you use the OEM one instead.
richyvrlimited is offline   Reply With Quote
Old 05-08-2012, 09:51 PM   #49
Junior Member
Thread Starter

Join Date: May 2011
Location: Central Kentucky
Posts: 221
Total Cats: 1
Default

Long time no action, but I was getting my butt kicked by school. Now that I'm done for the semester I started wiring the harness. I got a few done in the ms3 and ms3x connectors, though I am still uneasy about the sequential stuff.
Should I do both seq. fuel and spark? one or the other? The best way to wire them since they aren't in the factory harness, ect.
And idk what all the SPR1/CANH, SPR2/CANL, SPR3 ,SPR4, IAC1A and the all the other IAC stuff is?
Do I use D/log, Launch, EGO, and all that jazz?
Oochi is offline   Reply With Quote
Old 05-10-2012, 05:21 AM   #50
Junior Member

Join Date: Mar 2011
Location: Guildford, UK
Posts: 164
Total Cats: 0
Default

Sequential is a benefit but maybe get it all running first before you re-wire for seq. That way you'll know it works before and can isolate any fault after if it doesn't run.
Neatest way would be to run the new wires to a separate connector, you can get a plug for the middle section of the 64 pin socket.
Freaky Roadster is offline   Reply With Quote
Old 05-10-2012, 09:50 AM   #51
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

Quote:
Originally Posted by Oochi View Post
Should I do both seq. fuel and spark?
all the cool kids do.

Quote:
one or the other?
fule over spark.


Quote:
The best way to wire them since they aren't in the factory harness, ect.
with wires.

Quote:
And idk what all the SPR1/CANH, SPR2/CANL, SPR3 ,SPR4, IAC1A and the all the other IAC stuff is?
nothing.

Quote:
Do I use D/log, Launch, EGO, and all that jazz?
you can and even big band.
Braineack is offline   Reply With Quote
Old 05-10-2012, 12:25 PM   #52
Junior Member
Thread Starter

Join Date: May 2011
Location: Central Kentucky
Posts: 221
Total Cats: 1
Default

Quote:
Originally Posted by Freaky Roadster View Post
Sequential is a benefit but maybe get it all running first before you re-wire for seq. That way you'll know it works before and can isolate any fault after if it doesn't run.
Neatest way would be to run the new wires to a separate connector, you can get a plug for the middle section of the 64 pin socket.
Thanks freaky and brain lol
any idea what that part number is?
I guess I'm just going to try seq. fuel for now since ill be on the stock coils. but it would be a bad idea to start off seq fuel right-off-the-bat?
Since 1 wire goes to inj bank 1 and 1 wire to inj bank 2, would I have to wire 4 new wires or is there a way to wire it to bank 1 and 2 so that they would only fire 1 injector instead of both?
Also, I don't understand what the wires from d/log, launch, or ego (whatever that is) even go to
Oochi is offline   Reply With Quote
Old 05-10-2012, 12:27 PM   #53
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

it wouldn't be bad. but you cant do it on stock coils...
Braineack is offline   Reply With Quote
Old 05-10-2012, 01:14 PM   #54
Junior Member
Thread Starter

Join Date: May 2011
Location: Central Kentucky
Posts: 221
Total Cats: 1
Default

can't do seq. fuel on stock coils?
Oochi is offline   Reply With Quote
Old 05-10-2012, 01:20 PM   #55
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

how could you?
Braineack is offline   Reply With Quote
Old 05-10-2012, 01:29 PM   #56
Junior Member
Thread Starter

Join Date: May 2011
Location: Central Kentucky
Posts: 221
Total Cats: 1
Default

I don't know what I'm talking about lol. I don't really understand it yet, thought it just had to do with spark. So i guess I can't do either of them then.
Oochi is offline   Reply With Quote
Old 05-10-2012, 01:32 PM   #57
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

you only have 2 coils and 4 clyinders, you cant do seq.
Braineack is offline   Reply With Quote
Old 05-10-2012, 04:20 PM   #58
Senior Member

Join Date: Nov 2007
Location: Belgium
Posts: 939
Total Cats: 59
Default

Quote:
Originally Posted by Oochi View Post
can't do seq. fuel on stock coils?
seq fuel yes, seq spark no
WestfieldMX5 is offline   Reply With Quote
Old 05-11-2012, 12:34 AM   #59
Junior Member
Thread Starter

Join Date: May 2011
Location: Central Kentucky
Posts: 221
Total Cats: 1
Default

Im getting two different answers here hah. I understand seq. spark is out, but west says yes for seq fuel on stock coils and brain says no.
Oochi is offline   Reply With Quote
Old 05-11-2012, 01:42 AM   #60
Junior Member
Thread Starter

Join Date: May 2011
Location: Central Kentucky
Posts: 221
Total Cats: 1
Default

Also, could someone help me out understanding the grounding for the MS connectors? According to the diagrams, pins 14-19, 1 &2, and 7-9 are grounds. How exactly do those wire up? Do they all go to the same pin on the yellow harness connector? and same goes for the msx connector for pins 2,3,8,12,17. It would be great if someone had a picture or told me literally where these go. Also for the wideband. Do I run the ground to the ms or straight out to the engine?
Oochi is offline   Reply With Quote
