Is there an optimal AFR during cranking?

I am now at 90% PW and am going to lower it more today. Logs show as low as 6-8afr, and I cheat by the 4th crank using throttle to lean and start.

Are the afr's real during cranking?
94mx5red is offline   Reply With Quote
Old 09-26-2012, 11:34 AM   #22
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

depends on your wbo2, mine takes 25-30 seconds to warmup and show actual results...and it doesn't run during cranking as the voltage drops too low.
Braineack is offline   Reply With Quote
Old 09-27-2012, 02:34 AM   #23
Newb

Join Date: Nov 2011
Location: Niagara Falls, NY
Posts: 34
Total Cats: 0
Default

lol, why do i feel like you set me up with decent prime and crank settings already brain? it seems to do fine but from a "cold" start (lowest it's been is around 40F) i need to crank it once, it will fire and run for less than a second... and turn the key to off, and it will start (very roughly, but still a start) on the second time and keep running...

sounds just like what everyone else says hmm? lol
imperfekt is offline   Reply With Quote
Old 09-27-2012, 05:31 AM   #24
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,196
Total Cats: 260
Default

This is at like 65F. It's worse at 40F. But yeah. Gonna sort it out this weekend hopefully.

Erat is offline   Reply With Quote
Old 09-27-2012, 08:48 AM   #25
Senior Member
iTrader: (14)

Join Date: Oct 2006
Location: South East Florida
Posts: 690
Total Cats: 6
Default

Quote:
Originally Posted by Braineack View Post
depends on your wbo2, mine takes 25-30 seconds to warmup and show actual results...and it doesn't run during cranking as the voltage drops too low.

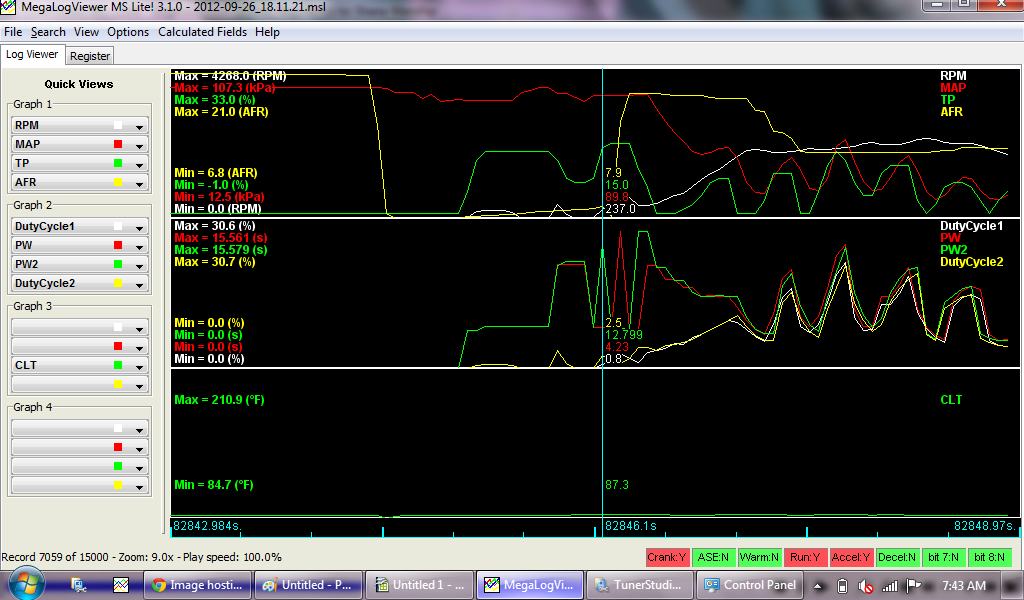

Aem eugo. This is a hot restart cheating with throttle.

Name:  Untitled-19.png
Views: 50
Size:  122.4 KB
94mx5red is offline   Reply With Quote
Old 09-27-2012, 09:12 AM   #26
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

Quote:
Originally Posted by imperfekt View Post
lol, why do i feel like you set me up with decent prime and crank settings already brain? it seems to do fine but from a "cold" start (lowest it's been is around 40F) i need to crank it once, it will fire and run for less than a second... and turn the key to off, and it will start (very roughly, but still a start) on the second time and keep running...

sounds just like what everyone else says hmm? lol

then your cranking values are fine and you need to tune ASE and Warmup enrinchments.


prime > crank > ase > warmup that's the order of enrichments.
Braineack is offline   Reply With Quote
Old 09-27-2012, 09:14 AM   #27
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

Quote:
Originally Posted by Erat View Post
This is at like 65F. It's worse at 40F. But yeah. Gonna sort it out this weekend hopefully.


try it again with a little throttle during cranking. if it starts much better, it's too fat when cranking and you need slightly less fuelz.
Braineack is offline   Reply With Quote
Old 04-27-2013, 10:56 AM   #28
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,196
Total Cats: 260
Default

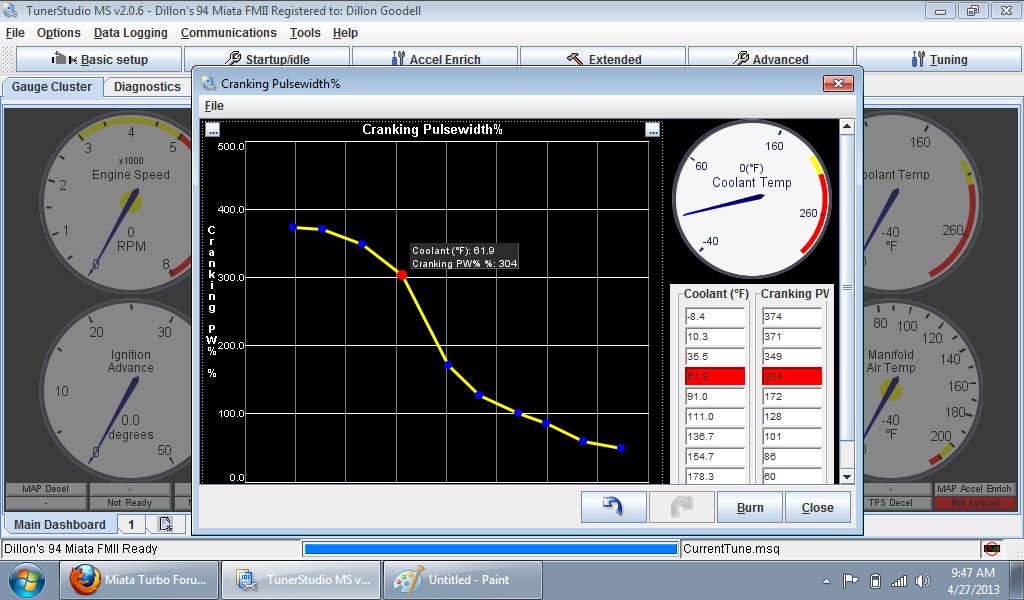

This just seems wayyy to fat to me.
And it's still taking 2 keyovers around 30-40F range to start. But still much much better.



At least it's warming up now.
Erat is offline   Reply With Quote
Old 05-19-2013, 09:31 PM   #29
Junior Member
iTrader: (1)

Join Date: Aug 2011
Posts: 93
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
then your cranking values are fine and you need to tune ASE and Warmup enrinchments.


prime > crank > ase > warmup that's the order of enrichments.
Okay brains your making me learn.
So it goes:
1. Plug in everything WBO, ECU, vacc hose, ect.
2. Turn on laptop, TS, and load up the setting on the paper.
3. Once you're half way with the papers, do timing/cranking.
-if it cranks over, great! if not, you'll hate your life for a while. Not sure what to tell you here, other than have a battery charger charging your batt. and crank. and look at timing. Move in 2* increments til it works.

If not try to get timing close and mess with crank pulse width. And repeat.

Upon starting, you should be getting dandy and play around with Idle fueling. Then let VEAL play around as well. Look at what its doing to get a better sense of how to tune.

Hope this helps, I'm still having trouble starting it, using the accelerator to compensate. So back to cranking pulsewidths for me. Its not done, but driven across town with VEAL and feels great!
silvermazda is offline   Reply With Quote
