Angry Problem nigth before instalation

Well I'm already completed my MS and the harnesses (boomslang)

I also mod tach input, spark output and EBC with no problems at all.

Last nigth (very late) I decided to do three more mods.
1.- Remove R7
2.- Capacitor between JS8 and Ground
3.- Fan Mod

After that, I conected the megastim but I can┤t see diodes ligth up.

I check the conections again then and plug all again, then I see white smoke coming from the IAT potentiometer from the megastim!

I hope my MS is not damaged, but I am concern about it. If the MS fried the potentiometer maybe will be burn someting in my car.

well, any one have a idea what mod can be wrong.?

PD: I use a transformer to bring power to the megastim
macanha is offline   Reply With Quote
Old 02-28-2008, 01:32 PM   #2
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Was the transformer providing too much voltage for the stim and MS to handle? Did you check it's output before using it?
cjernigan is offline   Reply With Quote
Old 02-28-2008, 02:12 PM   #3
Junior Member
Thread Starter

Join Date: Mar 2007
Location: Chile
Posts: 95
Total Cats: 0
Default

Quote:
Originally Posted by cjernigan View Post
Was the transformer providing too much voltage for the stim and MS to handle? Did you check it's output before using it?
Tranformer is set at 9V. I checked many time ago (when start soldering).
I will measuring the output to nigth and post the voltage.
I suspect that maybe one of the last mods could be the cause.
By the way, I remember that when I plug the Megastim to the MS, the ligths eventualy tend stop to blinking. ┐weird not?
macanha is offline   Reply With Quote
Old 02-28-2008, 02:15 PM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

R4 needs to be a 200ohm 1watt resistor. but yeah, iirc, if the MS hasn't been flashed the light will all cut out without firmware.
Braineack is offline   Reply With Quote
Old 02-28-2008, 09:18 PM   #5
Junior Member
Thread Starter

Join Date: Mar 2007
Location: Chile
Posts: 95
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
R4 needs to be a 200ohm 1watt resistor. but yeah, iirc, if the MS hasn't been flashed the light will all cut out without firmware.
1.- What do you mean Braineack?.
Megastim (2.2) have 10k, ╝W resistor , and the megasquirt (V3) 2.49K ╝W resistor?. I have to modify both? which?

2.- Braineack, I found you post after start soldering so I have many "extra" pieces.
U7
Q4, Q20, Q23, Q22
C12, C30, C31, C32
R42, R44, R45, R46, R49, R53, R54, R55, R56, R57.
should I remove them.?

3.-cjernigan, the transformer is rated:
- 6W power
- 3, 4, 5 ,6 ,7.5, 9, 12 V output
- DC 500mA MAX.
- made in china.

Found 13,82V in the 9V with the stim conected so I move to the 6V slot to reach 9,36V.

Got the problem!
I check everything and try to test again, but notice that I conected "not well" MS and stim (every pin are displaced to the rigth so I left two pin unpluged). I guess that is happend yesterday. now plug correctly and all works ok. no smoke .

thanks for your time brianeck and cjernigan.
macanha is offline   Reply With Quote
Old 02-28-2008, 10:27 PM   #6
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

the stim; to show RPMs after the miata tach input mod.

extra stuff is the VR circuit which we don't use, hell 1/2 the board is just the flyback circuit for PWM injectors. leave it. but remove r57.
Braineack is offline   Reply With Quote
Old 02-29-2008, 08:51 AM   #7
Junior Member
Thread Starter

Join Date: Mar 2007
Location: Chile
Posts: 95
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
the stim; to show RPMs after the miata tach input mod.

extra stuff is the VR circuit which we don't use, hell 1/2 the board is just the flyback circuit for PWM injectors. leave it. but remove r57.
ok , removing and changing resitors.
thanks!
macanha is offline   Reply With Quote
Old 03-08-2008, 07:35 PM   #8
Junior Member
Thread Starter

Join Date: Mar 2007
Location: Chile
Posts: 95
Total Cats: 0
Default

Quote:
Originally Posted by macanha View Post
ok , removing and changing resitors.
thanks!
- Remove R57.
- change R4 on megastim (well, put two 470 ohm in parallel so I have 235Ohm).
- take Al Hounos file, burn and change required fuel.

now RPM is zero always. (with megastim)

┐any ideas.?(I have megastim v2.2)
macanha is offline   Reply With Quote
Old 03-09-2008, 01:35 AM   #9
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

well atleast you have It talking agian. Check the miata ignition mods.
magnamx-5 is offline   Reply With Quote
Old 03-09-2008, 01:45 AM   #10
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Don't use Al Hounos file.
Modify the MSPNP files, they are known to be working correctly with the mods you have done to the board.
As for the resistors on the stim, you want 200 ohm not 2 some odd thousand ohms. You should be using two 1 watt 100 ohm resistors in series or one 200 ohm resistor on it's own. With resistance that high that would be why you're not getting any rpm. Once you have the right resistors installed turn on stim for wheel. Just make sure to turn it off before trying the MS in the car.
Can you post pictures of the mods you made to the board?
cjernigan is offline   Reply With Quote
Old 03-10-2008, 09:08 PM   #11
Junior Member
Thread Starter

Join Date: Mar 2007
Location: Chile
Posts: 95
Total Cats: 0
Default

- Sorry is 235 ohm, not 2350 ohm. I need to chage it to 200?.
- I will try with MSPNP file instead of Al Hounos. (al hunos have the same injectors maybe I can use the VE table ┐not?
- Were I can find the easy term values for a 97 miata GM IAT, mazda CLT?
- The only variation of the ignition mods, is one cable of the fan mod. All things are like the picture of braineack.



many thanks
macanha is offline   Reply With Quote
Old 03-10-2008, 09:28 PM   #12
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

235 is probably close enough. Just leave the VE tables alone. Change the req fuel and cranking PWs for your injectors and disable acceleration enrichments right off the bat until you get the car running well.
Use the same resistance curve values that everyone else is using and use like 1540 for the bias resistance value. The IAT sensor bias could be a little tricky depending on how you have the IAT wired. Does it have it's own wire straight to the MS or did you tap it into the stock harness? The bias for that would be determined by how you wired it up. If you ran it's own wire just use 2490.
cjernigan is offline   Reply With Quote
Old 03-11-2008, 12:34 AM   #13
Junior Member
Thread Starter

Join Date: Mar 2007
Location: Chile
Posts: 95
Total Cats: 0
Default

I want to follow braineack manual instructions (harness MAF sensor).
I will use RX-7 + 1450 bias for CLT and GM + ??? bias. which value should I use?
macanha is offline   Reply With Quote
Old 03-11-2008, 12:43 AM   #14
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

try 2490, might be close enough
cjernigan is offline   Reply With Quote
Old 03-16-2008, 03:37 AM   #15
Junior Member
Thread Starter

Join Date: Mar 2007
Location: Chile
Posts: 95
Total Cats: 0
Default

Quote:
Originally Posted by cjernigan View Post
Once you have the right resistors installed turn on stim for wheel. Just make sure to turn it off before trying the MS in the car.
Can you explain this a little "turn on stim for wheel"? and "Just make sure to turn it off before trying the MS "
thank you very much.!

Quote:
Originally Posted by cjernigan View Post
Can you post pictures of the mods you made to the board?
pics.!! (one week late).

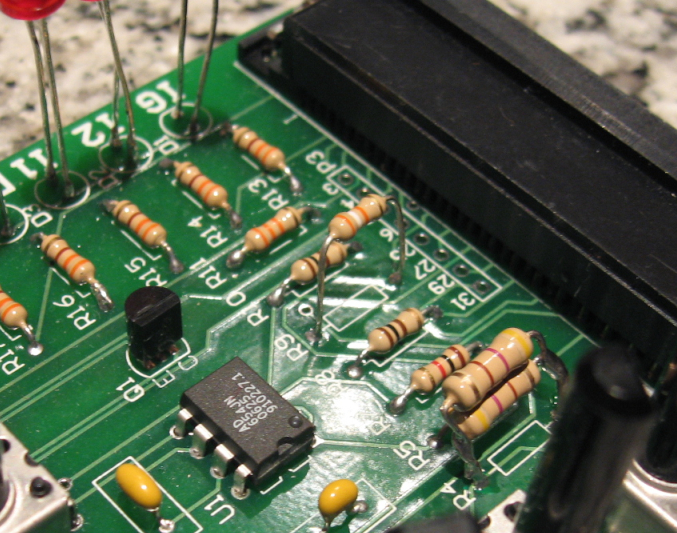

Stim modified. (R4 = 2 x 470 ohm resistor = 235 Ohm)

Problem nigth before instalation-stim.jpg

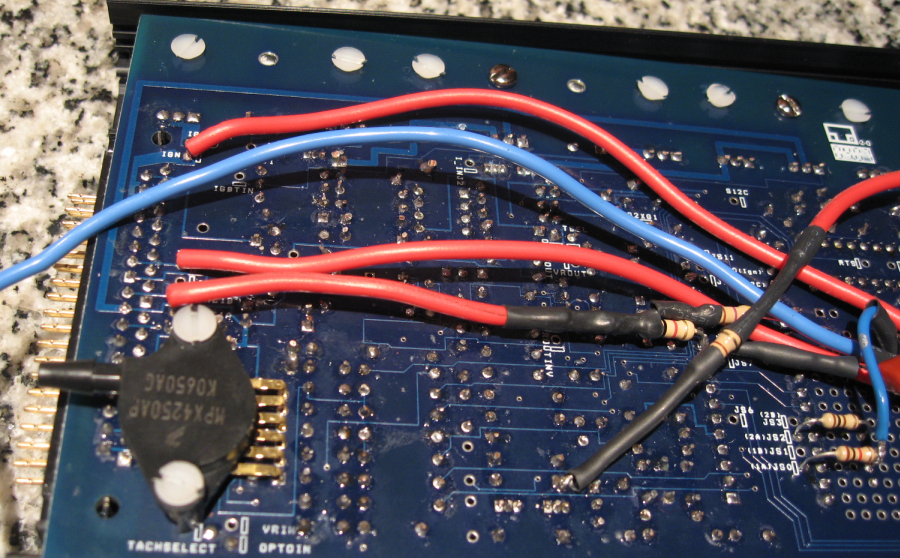

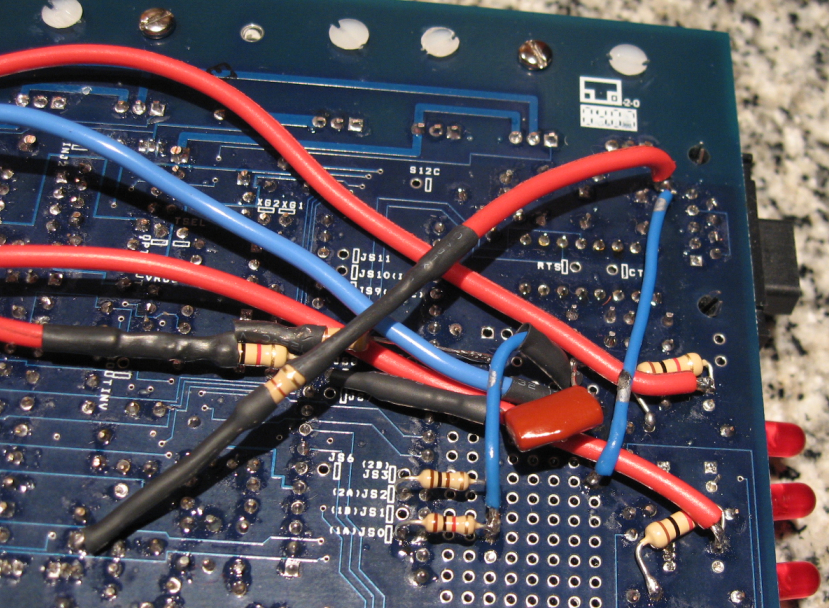

pull up resistors

Problem nigth before instalation-mod1.jpg
Problem nigth before instalation-mod2.jpg

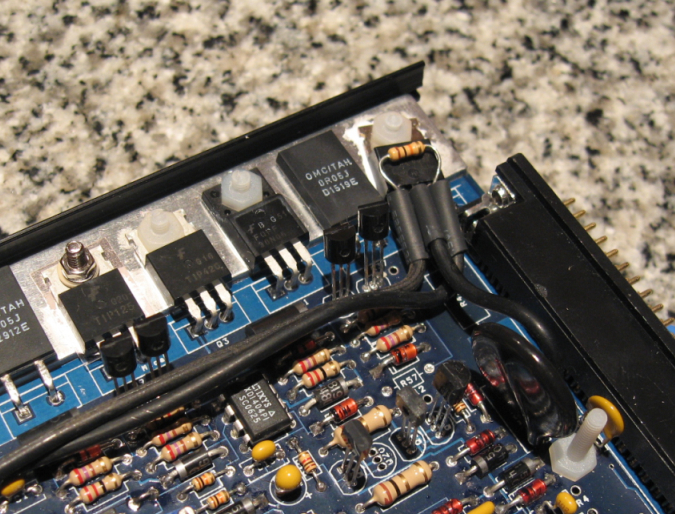

EBC

Problem nigth before instalation-ebc.jpg

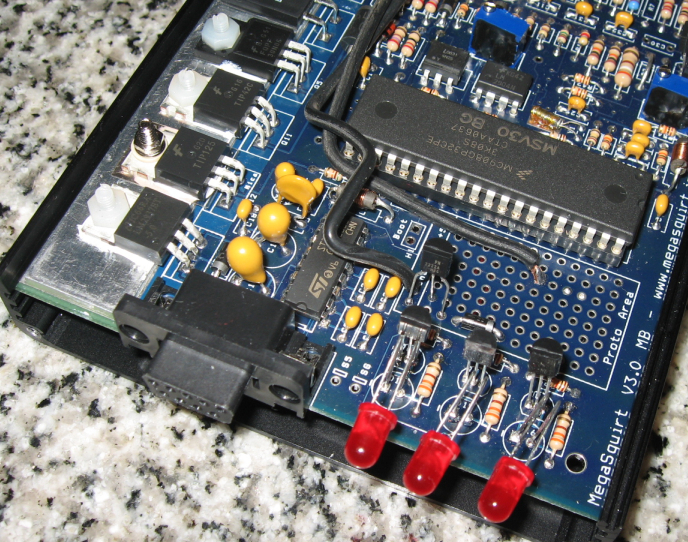

EBC+FAN

Problem nigth before instalation-ebc-fan.jpg
macanha is offline   Reply With Quote
Old 03-16-2008, 03:44 AM   #16
Junior Member
Thread Starter

Join Date: Mar 2007
Location: Chile
Posts: 95
Total Cats: 0
Default

Bonus.!!!

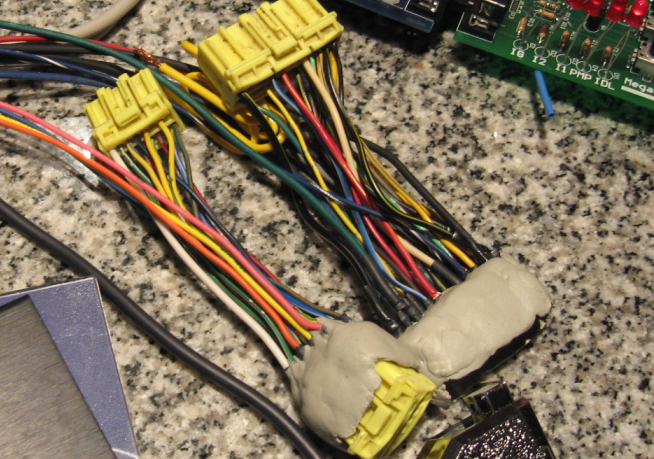

Ghetto boomslang harnesses

Problem nigth before instalation-ghetto.jpg

Still without getting RPM signal with megastim. and no CLT response
- IDL and IG leds on. (megastim)
- Leds 14 and 13 on. (megasquirt).

Is convinient just install and start the car ? or I must replace resistances of R4 (from 235 to 200 ohm) and wait until get RPM from megastim, before try on the car?

Last edited by macanha; 03-16-2008 at 02:13 PM.
macanha is offline   Reply With Quote
Old 03-18-2008, 09:58 AM   #17
Junior Member
Thread Starter

Join Date: Mar 2007
Location: Chile
Posts: 95
Total Cats: 0
Default

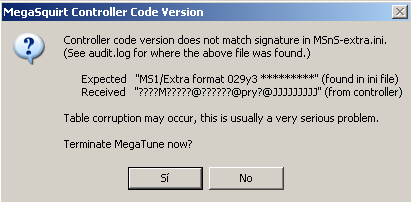

help please. yesterday I tried to install , but after download the easy therm tables I get this menssage.
Attached Thumbnails
Problem nigth before instalation-clipboard01.jpg
macanha is offline   Reply With Quote
Old 03-20-2008, 07:07 PM   #18
Junior Member
Thread Starter

Join Date: Mar 2007
Location: Chile
Posts: 95
Total Cats: 0
Default

Solved most of the problems.
- I can┤t burn from easy therm (program crash) so I change the name of the file and use "download-firmware.bat"
- The RPM is missing because the wheel decoder is activated (when I burn MSPNP msq) on my MS. now I can see RPM.
- I'm setting all to my injector size and only left calibrate LC-1 signal and sensor.


...TONIGHT, I WILL TURN THE KEY ...
macanha is offline   Reply With Quote
Old 03-21-2008, 01:11 AM   #19
Junior Member
Thread Starter

Join Date: Mar 2007
Location: Chile
Posts: 95
Total Cats: 0
Default

I' m squirting.!!!!
Is terrible rich (I folow MSPNP advice and change 14.7 for 13.2). I can start the engine three times!. that┤s imposible with my old configuration (I used to unplug injectors in order to start again (ECU can't control 460cc)).

The only problem... CLT reads 32░C before start engine, with the car one week parked at 14-18░C. I have to re-check easytherm procedure. AIT reads 16░C, I suposed it is rigth.
Any hint about CLT sensor settings will be very apreciated (bias scale etc (I have R7 removed)).

Tanx for everything guys!!

Last edited by macanha; 03-21-2008 at 01:28 AM.
macanha is offline   Reply With Quote
