really need some help guys(can't start coils turning brown) - Miata Turbo Forum - Boost cars, acquire cats.

Welcome to Miataturbo.net   Members



MEGAsquirt A place to collectively sort out this megasquirt gizmo

Reply



LinkBack Thread Tools
Old 03-31-2015, 02:19 PM   #1
Newb
Thread Starter

Join Date: Sep 2014
Location: Santa Cruz
Posts: 32
Total Cats: 0
Default really need some help guys(can't start coils turning brown)

Ok so i got my ms2 in, but i can't get it to start. I am starting to get really frustrated and need some pointers. with this my best attempt reached 950ish and i thought it was going to start. my toyota coils are turning brown like they are getting to hot. I have my settings at 3.5 cranking and 2.1 normal. i am afraid that im going to blow one of the coils. they make a wierd buzzing sound when first turning the key on. any help would be really appreciated at this point

thank you

p.s. included said best attempt
Attached Files
File Type: msl starting.msl (50.5 KB, 31 views)

Last edited by dannymo; 03-31-2015 at 02:48 PM.
dannymo is offline   Reply With Quote
Old 04-01-2015, 02:24 PM   #2
Supporting Vendor

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,266
Total Cats: 51
Default

The coils getting hot suggests something's wrong with the spark output - how is that set up? What voltage does the spark output put out with the key on on and engine off?
Matt Cramer is offline   Reply With Quote
Old 04-01-2015, 04:57 PM   #3
Newb
Thread Starter

Join Date: Sep 2014
Location: Santa Cruz
Posts: 32
Total Cats: 0
Default

ok i have the 4 channel board (jbperf), i have a switch 12v and a ground. i have my tach wires grounded and i have my triggers from the board. i have hooked my spark tester to them and used the test option in TS and i get no spark. spark output? you talking about the trigger?
dannymo is offline   Reply With Quote
Old 04-01-2015, 09:36 PM   #4
Newb
Thread Starter

Join Date: Sep 2014
Location: Santa Cruz
Posts: 32
Total Cats: 0
Default

i think i just fried all my coils :(. idk what i am doing wrong. i have tested all my triggers and they tested fine. they stay at 5v and the drop to zero during the pulse. i have my setting dwell at 2.1 and 3.5 cranking. and have 12 volts going in and a good ground. i have spark output going low
dannymo is offline   Reply With Quote
Old 04-01-2015, 09:48 PM   #5
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Quote:
Originally Posted by dannymo View Post
i think i just fried all my coils :(. idk what i am doing wrong. i have tested all my triggers and they tested fine. they stay at 5v and the drop to zero during the pulse. i have my setting dwell at 2.1 and 3.5 cranking. and have 12 volts going in and a good ground. i have spark output going low
That does NOT test fine. You should not have 5V constant on your ignition coil triggers. Most likely your spark output is inverted from where it should be.
Ben is offline   Reply With Quote
Old 04-01-2015, 09:57 PM   #6
Newb
Thread Starter

Join Date: Sep 2014
Location: Santa Cruz
Posts: 32
Total Cats: 0
Default

well **** that sucks. i have checked my board and everything looks correct. is there a setting in TS?
dannymo is offline   Reply With Quote
Old 04-01-2015, 10:32 PM   #7
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,328
Total Cats: 1,926
Default

Quote:
Originally Posted by dannymo View Post
is there a setting in TS?

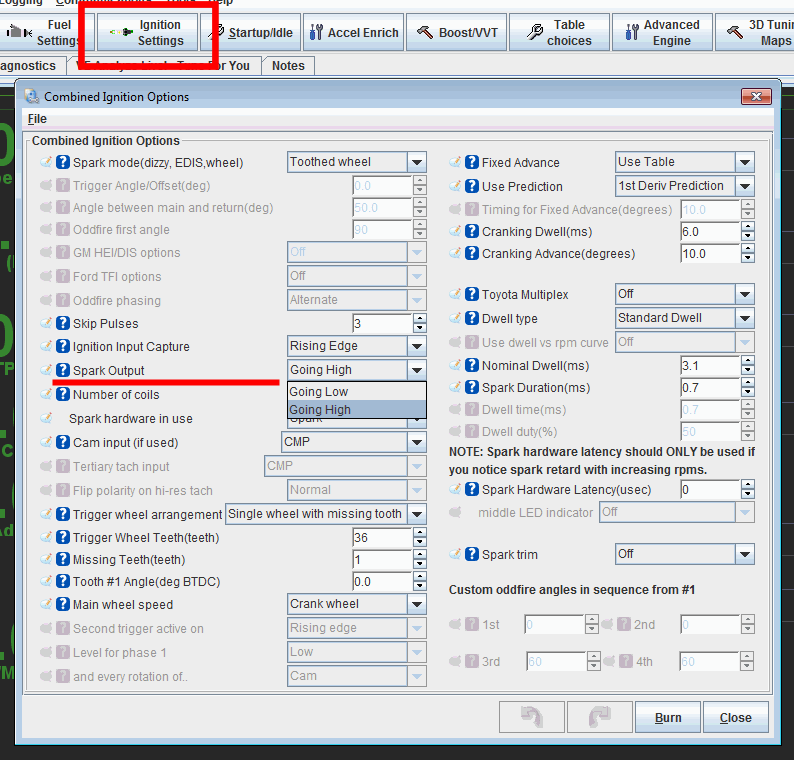

There's one big one, and that's the spark output polarity:



For Megasquirts built to the conventional specification, this setting should be "Going High." This tells it to keep the output low (off) until it's time to dwell the coil.

The only time this should be "Going Low" is if you're using a non-standard spark output circuit which is inverting (technically double-inverting), such as the one I devised several years ago to cure the power-on-pop on the MS1.
Attached Thumbnails
really need some help guys(can't start coils turning brown)-sparkout.gif
Joe Perez is offline   Reply With Quote
Old 04-01-2015, 11:09 PM   #8
Newb
Thread Starter

Join Date: Sep 2014
Location: Santa Cruz
Posts: 32
Total Cats: 0
Default

well that is exactly what is going on. thank you so very much this should be my last piece of the puzzle i need to get this thing running!... well until i get some new coils lol
dannymo is offline   Reply With Quote
Old 04-02-2015, 08:07 AM   #9
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

Quote:
Originally Posted by dannymo View Post
well that is exactly what is going on. thank you so very much this should be my last piece of the puzzle i need to get this thing running!... well until i get some new coils lol
it;s certainly one piece.
Braineack is offline   Reply With Quote
