Default RPM dropping intermittently during warmup

I am having an issue with the rpm signal that is intermittent, but seems more frequent lately. The problem is either there or it is not during the extent of my drive, but significantly worse during warmup when it is. Looking at logs, it is being caused by major rpm drops that make it feel like fuel cut launch control (because it is cutting fuel), except much more harsh. The symptoms seem to suddenly turn on after a certain degree of throttle position or engine load is present.

Today when I got in my car to go home from work, I had to drive between 1000 and 2000 rpm at first because after 2k it would completely cut out fuel and fall on its face. By the end of the drive, I was able to rev it a little over 4k, but only with light throttle. At any time, I could have induced the stumble by pressing the gas moderately hard, regardless of RPM.

Help me to figure out why this is happening, my msq and a datalog are attatched.
Attached Thumbnails

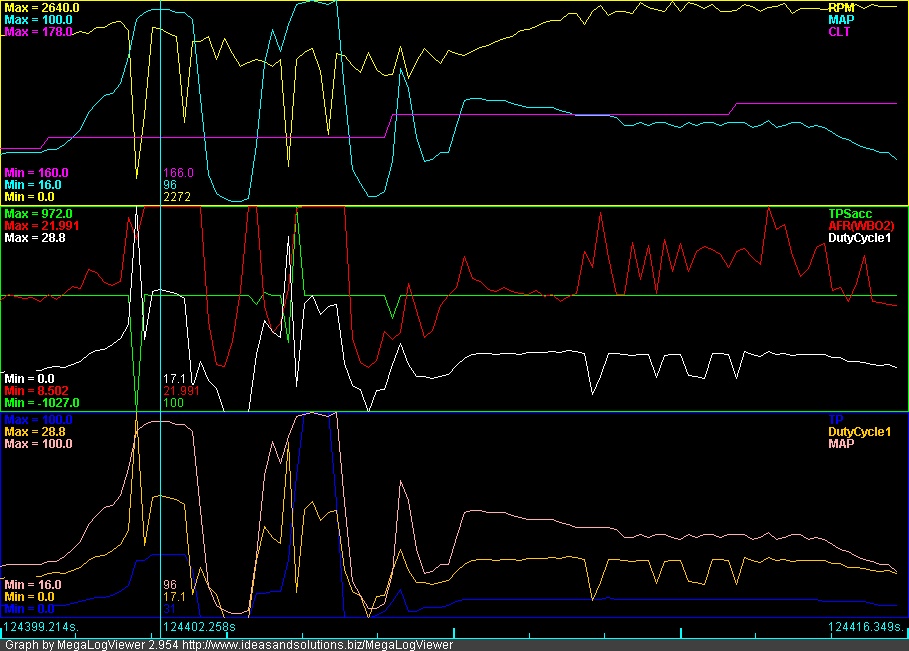

RPM dropping intermittently during warmup-graph.jpg
Attached Files
File Type: msq Ryan 230cc NA.msq (35.2 KB, 62 views)
File Type: xls datalog_stumble.xls (55.5 KB, 45 views)
akaryrye is offline   Reply With Quote
Old 01-26-2009, 08:46 PM   #2
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,796
Total Cats: 248
Default

Dying CAS is my guess. That or the wiring to the CAS is suspect.
patsmx5 is offline   Reply With Quote
Old 01-26-2009, 08:54 PM   #3
Elite Member
Thread Starter
iTrader: (5)

akaryrye's Avatar

Join Date: Jul 2006
Location: Central California
Posts: 2,526
Total Cats: 0
Default

Quote:
Originally Posted by patsmx5 View Post
Dying CAS is my guess. That or the wiring to the CAS is suspect.
Cas was my thought too, ill have to take a look at the wiring, maybe the plug is loose
akaryrye is offline   Reply With Quote
Old 01-26-2009, 09:15 PM   #4
Elite Member
Thread Starter
iTrader: (5)

akaryrye's Avatar

Join Date: Jul 2006
Location: Central California
Posts: 2,526
Total Cats: 0
Default

although, if it was the CAS, why does it seem to turn on and off depending on the load? A dying CAS would be a constant issue right?
akaryrye is offline   Reply With Quote
Old 01-26-2009, 09:49 PM   #5
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,854
Total Cats: 1,788
Default

what firmware? .1uF mod?
Braineack is offline   Reply With Quote
Old 01-26-2009, 10:11 PM   #6
Elite Member
Thread Starter
iTrader: (5)

akaryrye's Avatar

Join Date: Jul 2006
Location: Central California
Posts: 2,526
Total Cats: 0
Default

yes, cap mod is present and I am using 270 ohm resistors for ign pullup.
akaryrye is offline   Reply With Quote
Old 01-26-2009, 10:24 PM   #7
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,854
Total Cats: 1,788
Default

you losing the CAS signal, so it's either the CAS or the wiring.
Braineack is offline   Reply With Quote
Old 01-26-2009, 10:36 PM   #8
Elite Member
Thread Starter
iTrader: (5)

akaryrye's Avatar

Join Date: Jul 2006
Location: Central California
Posts: 2,526
Total Cats: 0
Default

thanks scott, ill have to take a look at the wiring later.
akaryrye is offline   Reply With Quote
Old 02-07-2009, 05:12 PM   #9
Elite Member
Thread Starter
iTrader: (5)

akaryrye's Avatar

Join Date: Jul 2006
Location: Central California
Posts: 2,526
Total Cats: 0
Default

Well i didn't have any problems for a few weeks, but this morning the car wouldnt start and i decided to look at the megasquirt. There was some condensation on the case, and I wouldnt be surprised if there was a bit inside as well. Took the board out, cleaned it with some alcohol and a toothbrush, blow dried it and now it's working fine. I think the problems correlate with periods when it has been raining.

Crossing my fingers
akaryrye is offline   Reply With Quote
Old 02-07-2009, 05:51 PM   #10
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,854
Total Cats: 1,788
Default

my old miata used to leak hardcore at the passenger footwell, I'm surprised it never shorted the ECU.
