Im in the process of installing MSII v3.0 with EDIS in my 90 miata. I am looking for ideas on the best locations for the temp sensor and IAT sensor.
TIA
RdSnake is offline   Reply With Quote
Old 05-14-2007, 06:07 PM   #2
Supporting Vendor
iTrader: (5)

Join Date: Jun 2006
Location: Duluth, GA 30097
Posts: 798
Total Cats: 0
Default

Coolant temp anywhere you can get to flowing coolant... I've always used the stocker.

IAT, just before the throttle body in the intake plumbing.
FoundSoul is offline   Reply With Quote
Old 05-14-2007, 07:02 PM   #3
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

Put my coolant one here:



when stock the IAT was here:



and with the charger it's now here:



HTH
richyvrlimited is offline   Reply With Quote
Old 05-14-2007, 08:46 PM   #4
Junior Member
iTrader: (1)

Join Date: May 2006
Location: Athens, GA
Posts: 247
Total Cats: 0
Default

good pics. I'd like to see where other people put the sensors too.
GTS Miata is offline   Reply With Quote
Old 05-14-2007, 08:57 PM   #5
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,883
Total Cats: 1,790
Default

Braineack is online now   Reply With Quote
Old 05-15-2007, 08:13 AM   #6
Junior Member

Join Date: Feb 2006
Location: Greenville, NC
Posts: 211
Total Cats: 0
Default

I have my CLT in the upper radiator hose (adapters at $20 on Ebay) and the IAT in the Xover tube.

I'll snap a pic tonight.
ecugrad is offline   Reply With Quote
Old 05-15-2007, 02:56 PM   #7
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

Quote:
Originally Posted by ecugrad View Post
I have my CLT in the upper radiator hose (adapters at $20 on Ebay) and the IAT in the Xover tube.

I'll snap a pic tonight.
won't that give an inaccurate reading, due to being after the thermostat not before it
richyvrlimited is offline   Reply With Quote
Old 05-15-2007, 03:40 PM   #8
Junior Member

Join Date: Feb 2006
Location: Greenville, NC
Posts: 211
Total Cats: 0
Default

Quote:
Originally Posted by richyvrlimited View Post
won't that give an inaccurate reading, due to being after the thermostat not before it
Depend on your definition of "inaccurate" is.

This will report the HOTTEST reading possible from how I understand the water flow. The water flowing past the sensor, just came out of the head and hasnt hit the radiator yet. The only problem I have is the car isnt happy running hard until the t-stat opens.

I dont know if there is a right or a wrong answer on this one. This was the easiest for me to tap into.

Anyone else care to chime in?
ecugrad is offline   Reply With Quote
Old 05-15-2007, 04:10 PM   #9
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

Quote:
Originally Posted by ecugrad View Post
Depend on your definition of "inaccurate" is.
err, not accurate, not precise etc.... :P

Quote:
Originally Posted by ecugrad View Post
This will report the HOTTEST reading possible from how I understand the water flow. The water flowing past the sensor, just came out of the head and hasnt hit the radiator yet.
but until the t-stat opens you're not getting a reading of the *actual* engine temp, which is the most important thing as this is one of the sensors the ECU uses to determine how much fuel is required, is it in warmup mode etc

Quote:
Originally Posted by ecugrad View Post
The only problem I have is the car isnt happy running hard until the t-stat opens.
probably cos the ECU thinks the engine is colder than it actually is, see above

Quote:
I dont know if there is a right or a wrong answer on this one. This was the easiest for me to tap into.

Anyone else care to chime in?
there is definately a right and wrong answer and I think the fact that your car tuns like toss until the T-stat opens is evidence of which is correct.
richyvrlimited is offline   Reply With Quote
Old 05-15-2007, 08:31 PM   #10
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Attached Thumbnails

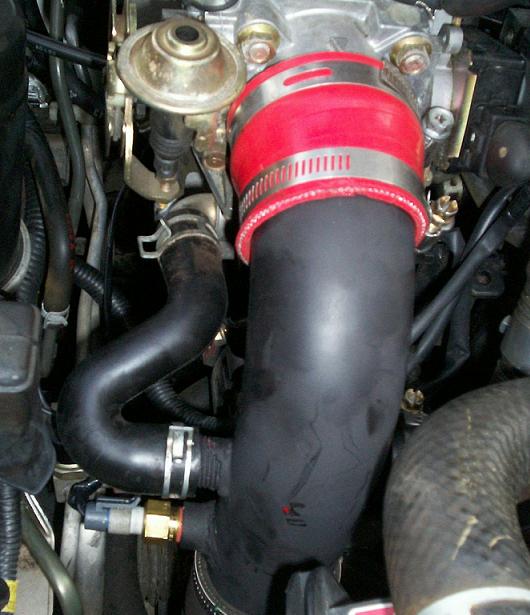

Sensor location-ait.jpg
Ben is offline   Reply With Quote
Old 05-15-2007, 08:38 PM   #11
Senior Member

Join Date: Oct 2005
Location: Knoxville
Posts: 1,168
Total Cats: 0
Default

Al Hounos is offline   Reply With Quote
Old 05-22-2007, 05:55 PM   #12
Junior Member

Join Date: Nov 2005
Location: Las vegas
Posts: 240
Total Cats: 0
Default

whats the coolant sensor for??for knocksense?
castillejos2000 is offline   Reply With Quote
Old 05-22-2007, 05:59 PM   #13
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,883
Total Cats: 1,790
Default

coolant based advance/retard & fueling (cold start enrichment)

and dont you wanna be able to log your coolant temps or anything else you possible can?
Braineack is online now   Reply With Quote
Old 05-22-2007, 05:59 PM   #14
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

very clean Al. Love the heatshield.
Ben is offline   Reply With Quote
Old 05-22-2007, 06:04 PM   #15
Junior Member

Join Date: Nov 2005
Location: Las vegas
Posts: 240
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
coolant based advance/retard & fueling (cold start enrichment)

and dont you wanna be able to log your coolant temps or anything else you possible can?
and this applicable to pnpms?
castillejos2000 is offline   Reply With Quote
Old 05-22-2007, 06:30 PM   #16
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

Quote:
Originally Posted by castillejos2000 View Post
and this applicable to pnpms?
no the PnPMS utilises the stock sensor with an edit of the settings (all automatic)

I fitted the GM sensor to save that hassle
richyvrlimited is offline   Reply With Quote
Old 05-22-2007, 06:30 PM   #17
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

Quote:
Originally Posted by castillejos2000 View Post
whats the coolant sensor for??for knocksense?
errr so the ECU knows how hot/cold the engine is.....
richyvrlimited is offline   Reply With Quote
