Old 04-10-2012, 02:01 PM   #21
Newb
Thread Starter

Join Date: Apr 2012
Posts: 25
Total Cats: 0
Default

ok ive posted this on another forum i got this reply for what way should it be exactly wired=http://www.boostedmi..._MS_pinouts.jpg

i wired it that way and nothing.

this is the way it was wired on the car it cam from and im told this is how it ran!

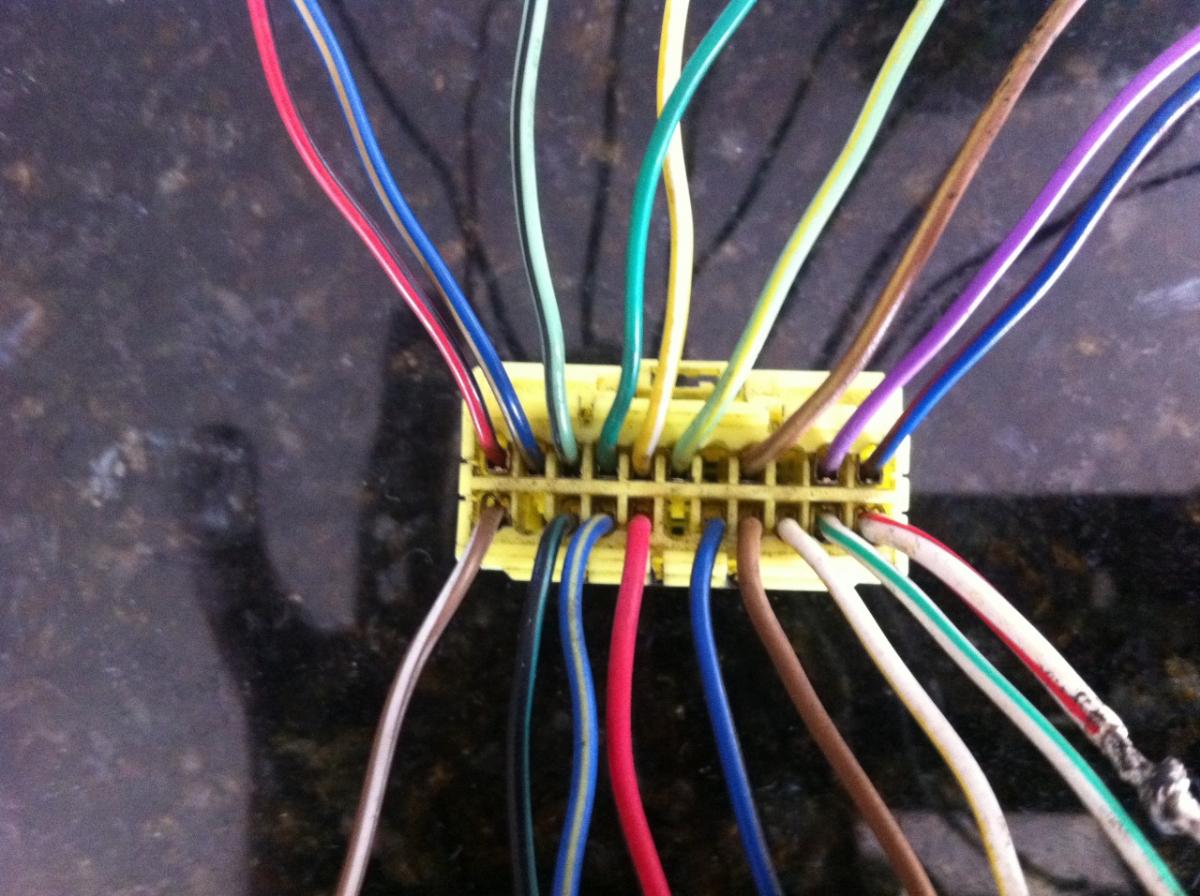

pic 1

wires at the top as in pic, red/black , blue,yellow, light green/black ,green, yellow/white, light green/yellow, space ,brown /yellow, space ,violet, blue/red

bottom of the plug in pic 1, brown/white, black/green , blue/yellow ,red , space , blue/black, brown , white/yellow , white/green ,white/red

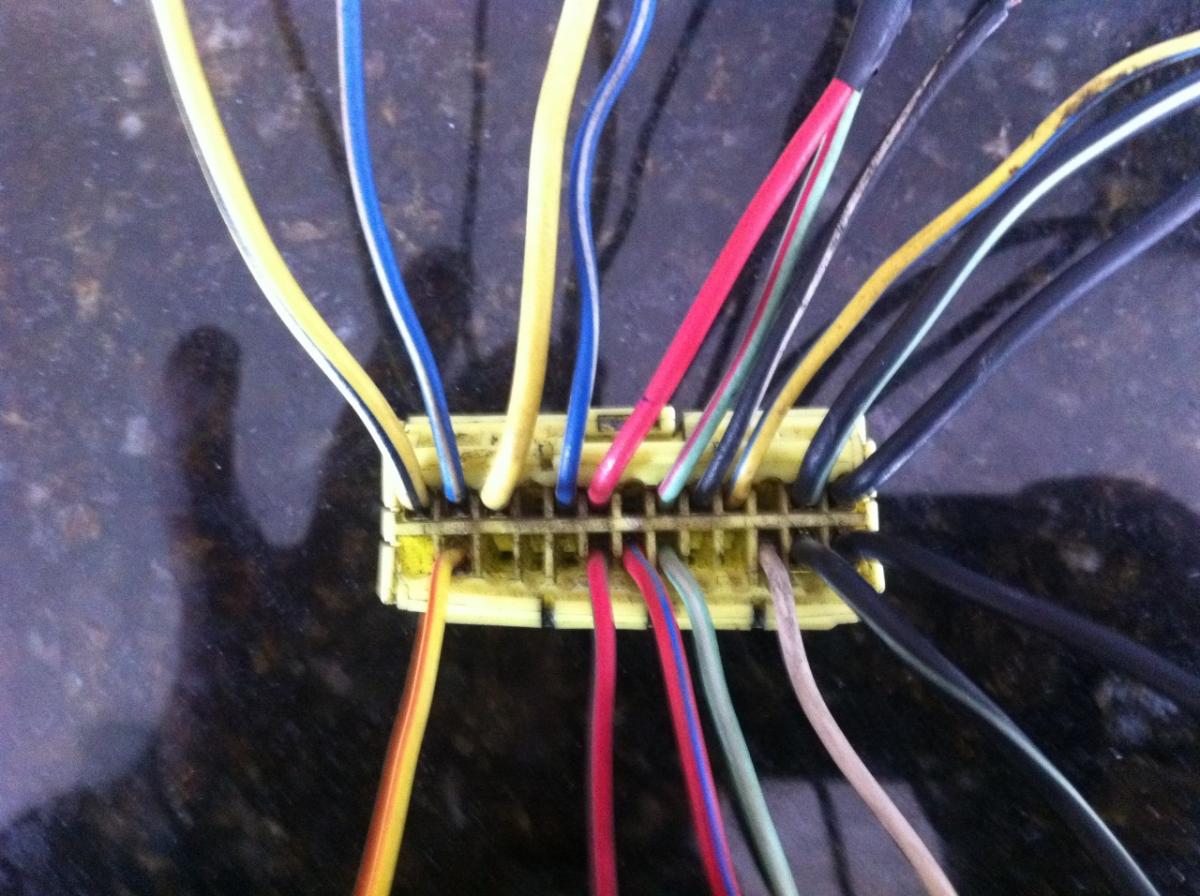

plug2

top as in pic= yellow/black , blue/yellow, yellow , space, blue/white , red , space , light green/red , black/white , yellow/blue ,space , black green , black

bottom row = space , yellow/red , space , space , space , red/green , red/blue , light green/white , space , space , white , black/green , black

i dont know what way i should have it wired at the minute
Attached Thumbnails
some wire identification need to get the mega squirt sparking-img_02091.jpg   some wire identification need to get the mega squirt sparking-img_02101.jpg
haydn itr is offline   Reply With Quote
Old 04-10-2012, 02:03 PM   #22
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,877
Total Cats: 1,790
Default

are the above pics the car it wont run on?
Braineack is online now   Reply With Quote
Old 04-10-2012, 02:08 PM   #23
Newb
Thread Starter

Join Date: Apr 2012
Posts: 25
Total Cats: 0
Default

the above pics is how i exactly i have the loom wired in my car , these plugs came with the ecu so i could replicate exactly how it needed to be,

i then changed the pins around to match the link above and it didnt start that way either
haydn itr is offline   Reply With Quote
Old 04-10-2012, 02:25 PM   #24
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,877
Total Cats: 1,790
Default

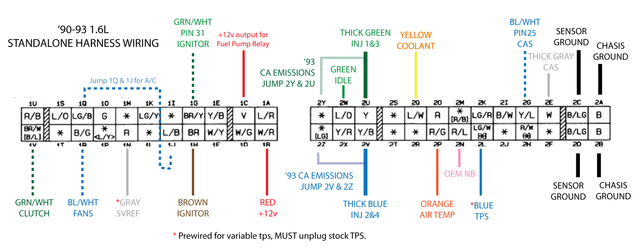

then I'd wire it like this:




so going by your pinout:


1:
[blank] [blank] [1Q to 1J] [blank] [blank] [blank] [blank] [Pin 31 - spark output] [blank] [blank] [blank]

[clutch input (js7)] [blank] [fan control] [blank] [blank] [blank] [1J to 1Q] [IGN PIN] [blank] [blank] [12v]


2:

[blank] [IDLE] [INJ 1&3] [blank] [COOLANT] [blank] [blank] [blank] [blank] [CAS - pin 25] [CAS] [GRND] [GRND]

[blank] [blank] [INJ 2&4] [blank] [blank] [AIT] [O2] [blank] [blank] [blank] [blank] [GRND] [GRND]


db37 needs to match this:








you need to ignore the TPS wiring and the wire on 1C. the wire on 1C is after you build a special circuit for the fuel pump. I thought you said you had a diypnp????
Attached Thumbnails
some wire identification need to get the mega squirt sparking-9093_standalone_harness.jpg
Braineack is online now   Reply With Quote
Old 04-10-2012, 02:52 PM   #25
Newb
Thread Starter

Join Date: Apr 2012
Posts: 25
Total Cats: 0
Default

this is the post by the orignal owner of the ecu and engine etc, will tus help u guys more???

https://www.miataturbo.net/megasquirt-18/megasquirt-problem-no-spark-no-fuel-cant-connect-pc-more-help-please-55795/
haydn itr is offline   Reply With Quote
Old 04-10-2012, 03:07 PM   #26
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,877
Total Cats: 1,790
Default

so this is a reverant unit?
Braineack is online now   Reply With Quote
Old 04-10-2012, 03:20 PM   #27
Newb
Thread Starter

Join Date: Apr 2012
Posts: 25
Total Cats: 0
Default

Ye must be sorry he just said mega squirt to me and I'm a noob to the mx5
haydn itr is offline   Reply With Quote
Old 04-11-2012, 04:03 AM   #28
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

First thing to check - can you connect to the ECU with your laptop?
Reverant is offline   Reply With Quote
Old 04-12-2012, 11:35 AM   #29
Newb
Thread Starter

Join Date: Apr 2012
Posts: 25
Total Cats: 0
Default

it wont let me connect it says

com 1 is not currently a valid port , this is usually because the virtual serial device such as a usb to serial cable or bluetooth dongle is not currently connected to ur computer.montoring an invalid serial port can cause stability issues on some systems
haydn itr is offline   Reply With Quote
Old 04-12-2012, 08:29 PM   #30
Junior Member

Join Date: Mar 2011
Location: Guildford, UK
Posts: 164
Total Cats: 0
Default

Tried test/detect comm port? Under communications- settings.
Freaky Roadster is offline   Reply With Quote
Old 05-04-2012, 09:19 AM   #31
Newb
Thread Starter

Join Date: Apr 2012
Posts: 25
Total Cats: 0
Default

Ok ecu has being back to reverant and he checked it all out and fixd any problems ( super guy to deal with ) but sadly still not startn I'm out ideas any body cast a thought ?
haydn itr is offline   Reply With Quote
Old 05-04-2012, 09:50 AM   #32
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,877
Total Cats: 1,790
Default

start on stock ecu?
Braineack is online now   Reply With Quote
Old 05-04-2012, 10:09 AM   #33
Newb
Thread Starter

Join Date: Apr 2012
Posts: 25
Total Cats: 0
Default

Ye it ran before on stock ecu and today it wouldn't car has me puzzled
haydn itr is offline   Reply With Quote
