Default splicing ms piggy

greetings everyone, im putting together a harness for my megasquirt, and im currently trying to splice in some wires to my boomslang.

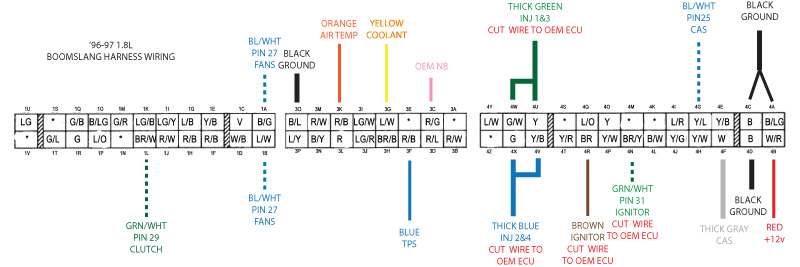

the picture below shows that i should be using the blue/white wire labeled "FANS", but my Ms piggy has a blue/white wire labeled IAC1A. (or perhaps the wire is purple, im a tad colorblind.

should i be using this wire, or is there some information on this wiring change?

thanks,

bob

Attached Thumbnails
splicing ms piggy-9697_boomslang_harness.jpg
mellowout is offline   Reply With Quote
Old 12-15-2011, 09:10 PM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

you'd run your fan circuit to IAC1A
Braineack is offline   Reply With Quote
Old 12-16-2011, 12:16 AM   #3
Junior Member
Thread Starter
iTrader: (2)

Join Date: May 2011
Location: AL
Posts: 233
Total Cats: 10
Default

thanks! i may be being a little pedantic but id rather do it right the first time than wonder what went wrong!
