Old 01-06-2009, 09:26 AM
  #21
Boost Czar
iTrader: (62)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 79,493
Total Cats: 4,080
Default

Originally Posted by 92Miata
Thanks alot for that diagram though helped alot in wiring my car.

you should be thanking me....all he did was take my two diagrams and connect the lines.


follow the DIY MS link....
Braineack is offline
Old 01-06-2009, 01:34 PM
  #22
Junior Member
iTrader: (1)

miatamoxie's Avatar

Join Date: Apr 2008
Location: Springfield Oregon
Posts: 174
Total Cats: 0
Default

'tis true....it is just an easier to read version of Braineack's diagrams....so thanks Brain!
miatamoxie is offline
Old 01-06-2009, 02:25 PM
  #23
Junior Member
iTrader: (3)

92Miata's Avatar

Join Date: Jul 2008
Location: Pinellas park Fl
Posts: 308
Total Cats: 1
Default

Originally Posted by Braineack
you should be thanking me....all he did was take my two diagrams and connect the lines.


follow the DIY MS link....

Well i will thank you for the DIY thread because i followed that for the fan and spark mods. Thanks alot for that!
92Miata is offline
Old 01-19-2009, 04:47 AM
  #24
Junior Member
Thread Starter
iTrader: (6)

ogwazza's Avatar

Join Date: Aug 2008
Location: New Zealand
Posts: 248
Total Cats: 3
Default

Alright, Just adding this extra diagram, even tho the threads been Jackd- Dam newbs!

I did this so I knew relative wiring lengths

[IMG][/IMG]
ogwazza is offline
Old 03-19-2009, 12:05 AM
  #25
Newb

557795's Avatar

Join Date: May 2008
Location: New Zealand
Posts: 19
Total Cats: 0
Default

will this diagram work with ms2?

cheers
557795
557795 is offline
Old 03-19-2009, 05:27 PM
  #26
Junior Member
Thread Starter
iTrader: (6)

ogwazza's Avatar

Join Date: Aug 2008
Location: New Zealand
Posts: 248
Total Cats: 3
Default

Im going to assume it would be pretty close. Although if you just use universal relays, it is much cleaner and easier (which is what I ended up doing)
ogwazza is offline
Old 03-29-2009, 04:43 AM
  #27
Junior Member
Thread Starter
iTrader: (6)

ogwazza's Avatar

Join Date: Aug 2008
Location: New Zealand
Posts: 248
Total Cats: 3
Default

(Slight Update)
My diagram is still a bit of a work in progress. What I didn't put into the diagram and according to Joe Perez (people who know a S#!T load more than me -see the link below), is that if you are using a 90-93 TPS you dont connect pin 22 and pin 26. I didn't know this at the time, but have left the wires in anyways, for later, if I end up wanting to update my TPS to a proper position sensor rather than the on/off switch the 90-93's come out with.


90-93 db37 Standalone pinout
ogwazza is offline
Old 12-29-2009, 04:31 AM
  #28
Junior Member
Thread Starter
iTrader: (6)

ogwazza's Avatar

Join Date: Aug 2008
Location: New Zealand
Posts: 248
Total Cats: 3
Default

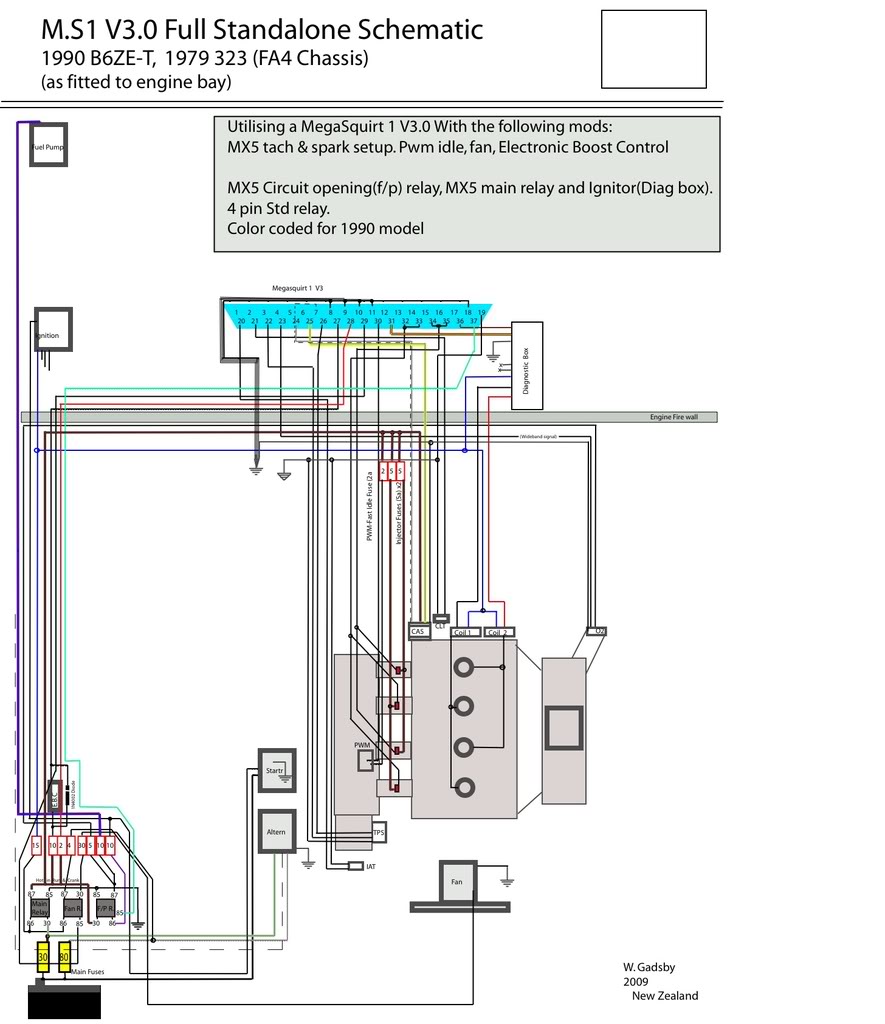

Name:  B6ZET323WiringSchematic.jpg
Views: 2951
Size:  113.7 KB

update for the above pic
ogwazza is offline
