Default Two timing marks 01+ engine

Maybe all of the 1.8s but I know my 04 engine has two marks on the pulley 10 degrees apart. Which one do I use to line up with to set my base timing?
engled is offline   Reply With Quote
Old 02-22-2012, 06:58 PM   #2
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

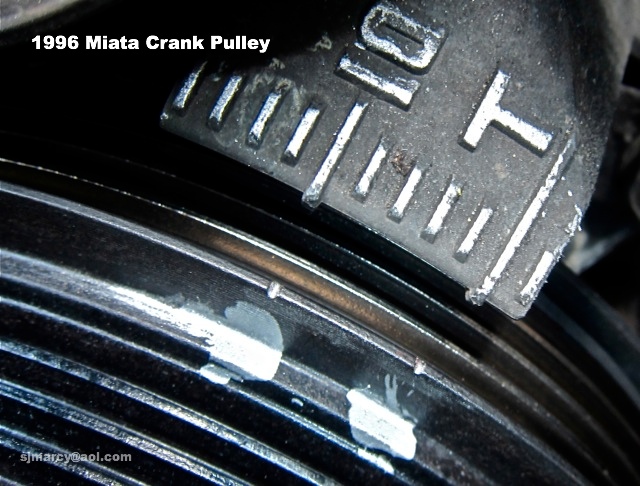

This is properly timed:
Attached Thumbnails
Two timing marks 01+ engine-126890498.jpg
hustler is offline   Reply With Quote
Old 02-22-2012, 07:10 PM   #3
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

good pic, still 'd at watermark
EO2K is offline   Reply With Quote
Old 02-22-2012, 07:11 PM   #4
Junior Member
Thread Starter

Join Date: Nov 2009
Posts: 82
Total Cats: 0
Default

Thanks Hustler, that is exactly what I wanted to know.
engled is offline   Reply With Quote
Old 02-23-2012, 10:32 AM   #5
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by EO2K View Post
good pic, still 'd at watermark
You should email him.
hustler is offline   Reply With Quote
Old 02-23-2012, 01:23 PM   #6
Newb

Join Date: Apr 2009
Posts: 25
Total Cats: 0
Default

Quote:
Originally Posted by hustler View Post
This is properly timed:


So in Megasquirt when you set the fixed timing does this photo represent
-10 degrees or TDC?


(wondering why 2 lines are needed on the crank pulley when 1 line will do it?)
JohnW8 is offline   Reply With Quote
Old 02-23-2012, 05:34 PM   #7
Junior Member

Join Date: Feb 2011
Posts: 51
Total Cats: 2
Default

When setting the fixed timing angle in MS (10* BTDC) this is what you should see.

On my car the two timing lines have two different paint marks, white and yellow. No idea why they decided to put two marks on the pulley.
QWKDTSN is offline   Reply With Quote
