Default Upgrade from MS1 to MS2 FAIL.

Hi, I Just upgraded my MS. uploaded the firmware, loaded the base tune from mspnp.
The car can't start.
Seems it having problem getting the tach signal.
Can someone please give me some advise on it?

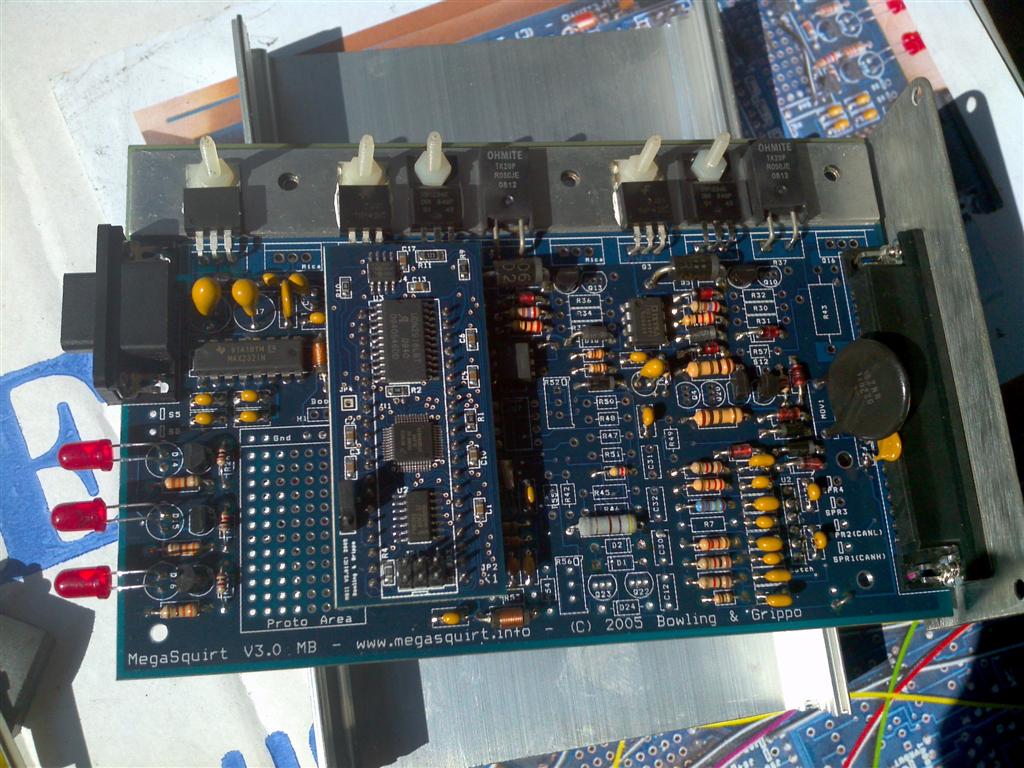

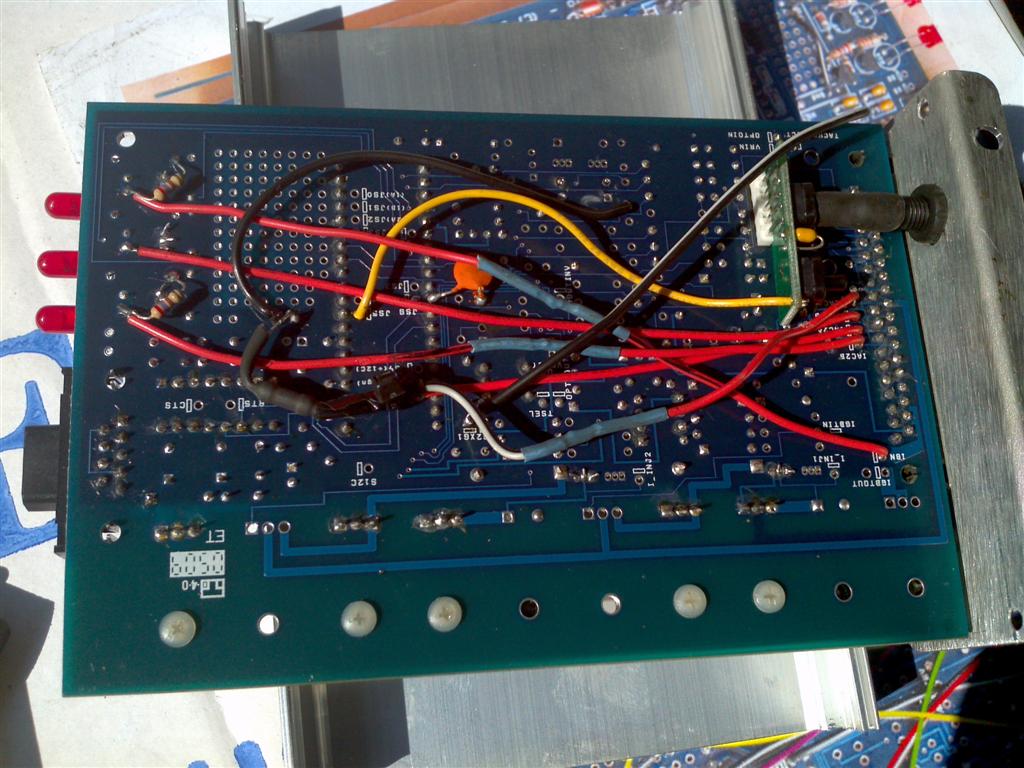

Attached Thumbnails
Upgrade from MS1 to MS2 FAIL.-img_20111202_120029-large-.jpg   Upgrade from MS1 to MS2 FAIL.-img_20111202_120045-large-.jpg
oprso is offline   Reply With Quote
Old 12-02-2011, 11:45 PM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

you cant use a ms1 basemap. try the attached.

remove the capacitor on the map-daddy.


nice to see one of my old builds still in service.
Attached Files
File Type: msq 2011-12-02_22.46.57.msq (53.8 KB, 181 views)
Braineack is offline   Reply With Quote
Old 12-03-2011, 12:00 AM   #3
Junior Member
Thread Starter

Join Date: Sep 2009
Posts: 65
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
you cant use a ms1 basemap. try the attached.

remove the capacitor on the map-daddy.


nice to see one of my old builds still in service.
thanks for your reply.

it was the ms2 base map.

and what is the map-daddy?
oprso is offline   Reply With Quote
Old 12-03-2011, 12:04 AM   #4
Junior Member
Thread Starter

Join Date: Sep 2009
Posts: 65
Total Cats: 0
Default

the rpm keep jumping 0 and 65535 rpm when i first load the base map.
and it stay at 0 rpm when i try to start up.
oprso is offline   Reply With Quote
Old 12-03-2011, 12:47 AM   #5
Elite Member
iTrader: (2)

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

mapdaddy is your MAP sensor... its the thing with the vacuum hose connected.
240_to_miata is offline   Reply With Quote
Old 12-03-2011, 12:13 PM   #6
Senior Member

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

Quote:
Originally Posted by oprso View Post
the rpm keep jumping 0 and 65535 rpm when i first load the base map.
and it stay at 0 rpm when i try to start up.
The jumping RPM means you have an configuration error.
Zaphod is offline   Reply With Quote
Old 12-03-2011, 12:18 PM   #7
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

you have a conflict error. disable the EBC output.

pretty sure the diypnp basemap has that as an issue.



the map-daddy is your dual 4-bar map sensors thing.
Braineack is offline   Reply With Quote
Old 12-03-2011, 01:31 PM   #8
Junior Member
Thread Starter

Join Date: Sep 2009
Posts: 65
Total Cats: 0
Default

Thanks.
So you think it's the software problem instead of the hardware or the new jumper problem?
oprso is offline   Reply With Quote
Old 12-03-2011, 01:57 PM   #9
Junior Member
Thread Starter

Join Date: Sep 2009
Posts: 65
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
you cant use a ms1 basemap. try the attached.

remove the capacitor on the map-daddy.


nice to see one of my old builds still in service.
Which firmware should I use for this tune?
oprso is offline   Reply With Quote
Old 12-03-2011, 02:06 PM   #10
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

(Sent from phone via capitalism)

whatever u have loaded. That was older 2.1.1 iirc
Braineack is offline   Reply With Quote
Old 12-04-2011, 10:43 AM   #11
Junior Member
Thread Starter

Join Date: Sep 2009
Posts: 65
Total Cats: 0
Default

Thanks. I will try it tomorrow.

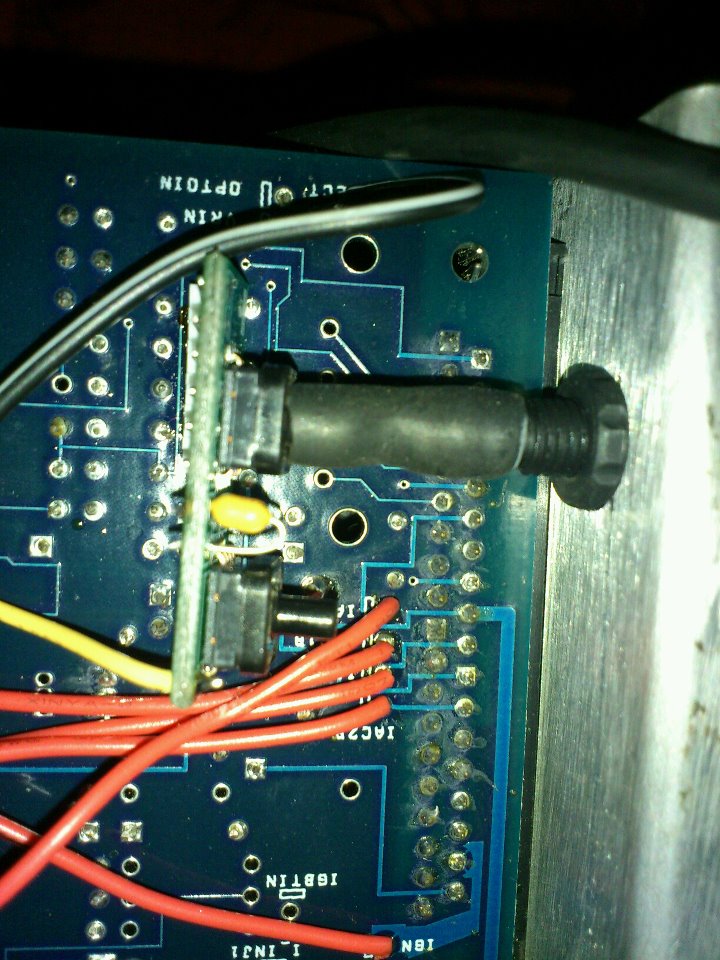

Attached Thumbnails
Upgrade from MS1 to MS2 FAIL.-capacitor.jpg
oprso is offline   Reply With Quote
Old 12-04-2011, 12:17 PM   #12
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

yes that. not needed on m2 setups.
Braineack is offline   Reply With Quote
Old 12-05-2011, 12:42 AM   #13
Junior Member
Thread Starter

Join Date: Sep 2009
Posts: 65
Total Cats: 0
Default

Still no luck.

I got a conflict with boost control pins from the Mini terminal
And some warning saying the Afr and map value error which I may be able to fix them.
oprso is offline   Reply With Quote
Old 12-05-2011, 09:31 AM   #14
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

disable the Boost Controller like I said.

did you not calibrate your MAT, CLT, AFR, and TPS from the top menu?
Braineack is offline   Reply With Quote
Old 12-05-2011, 10:18 AM   #15
Junior Member
Thread Starter

Join Date: Sep 2009
Posts: 65
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
disable the Boost Controller like I said.

did you not calibrate your MAT, CLT, AFR, and TPS from the top menu?
I did the tps but not the other because I never need to do that on MS1.
I will do it and try .
Thanks.
oprso is offline   Reply With Quote
Old 12-05-2011, 10:26 AM   #16
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

for MAT use GM or rx7 AFM - Gm AIT or AFM respectivetly.
for CLT use RX7 CLT (s4 &s5)
Braineack is offline   Reply With Quote
Old 12-05-2011, 10:34 AM   #17
Junior Member
Thread Starter

Join Date: Sep 2009
Posts: 65
Total Cats: 0
Default

How can I get those resistance data when I am having problem to start the car. The temperature stay the same and the Afr too.
oprso is offline   Reply With Quote
Old 12-05-2011, 10:37 AM   #18
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

??? just use the settings I told you to. It's already known, plus you wouldn't test resistance on the car, or with it running.
Braineack is offline   Reply With Quote
Old 12-05-2011, 10:42 AM   #19
Junior Member
Thread Starter

Join Date: Sep 2009
Posts: 65
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
??? just use the settings I told you to. It's already known, plus you wouldn't test resistance on the car, or with it running.
OK OK. I will try it.
oprso is offline   Reply With Quote
Old 12-05-2011, 11:48 AM   #20
Junior Member
Thread Starter

Join Date: Sep 2009
Posts: 65
Total Cats: 0
Default

No signal on my cop.
Making it no spark.

Is there anything I need to do for cop?
The coil is from Toyota Mcr30
oprso is offline   Reply With Quote
