Old 12-05-2011, 12:00 PM   #21
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

does the coil have a built in ignitor?

are you syncing?
Braineack is offline   Reply With Quote
Old 12-05-2011, 12:05 PM   #22
Junior Member
Thread Starter

Join Date: Sep 2009
Posts: 65
Total Cats: 0
Default

and the ' not cranking' indicator didn't change when I was cranking the car. Is it suppose to change?
oprso is offline   Reply With Quote
Old 12-05-2011, 12:15 PM   #23
Junior Member
Thread Starter

Join Date: Sep 2009
Posts: 65
Total Cats: 0
Default

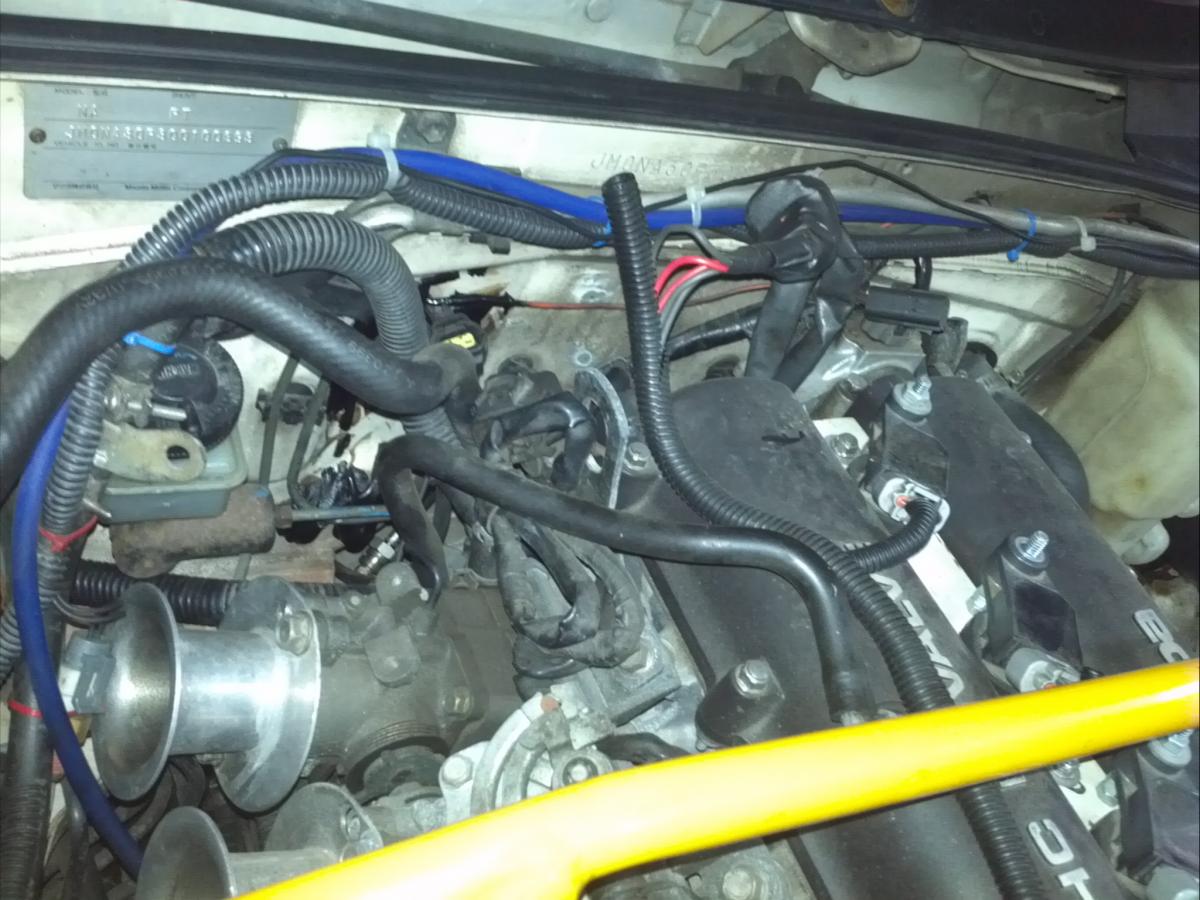

I am not sure what they called.
It work fine on my MS1 without changing any setting.
Attached Thumbnails
Upgrade from MS1 to MS2 FAIL.-img_20111206_001159.jpg
oprso is offline   Reply With Quote
Old 12-05-2011, 12:45 PM   #24
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

it's not that the coils are firing, its the the MS still isn't getting the RPM signal inputted correctly yet.

go to the diagnosis tab, and capture the composite log. Crank for about 10-15 so you get something to show up. Screenshot the results.
Braineack is offline   Reply With Quote
Old 12-05-2011, 12:54 PM   #25
Junior Member
Thread Starter

Join Date: Sep 2009
Posts: 65
Total Cats: 0
Default

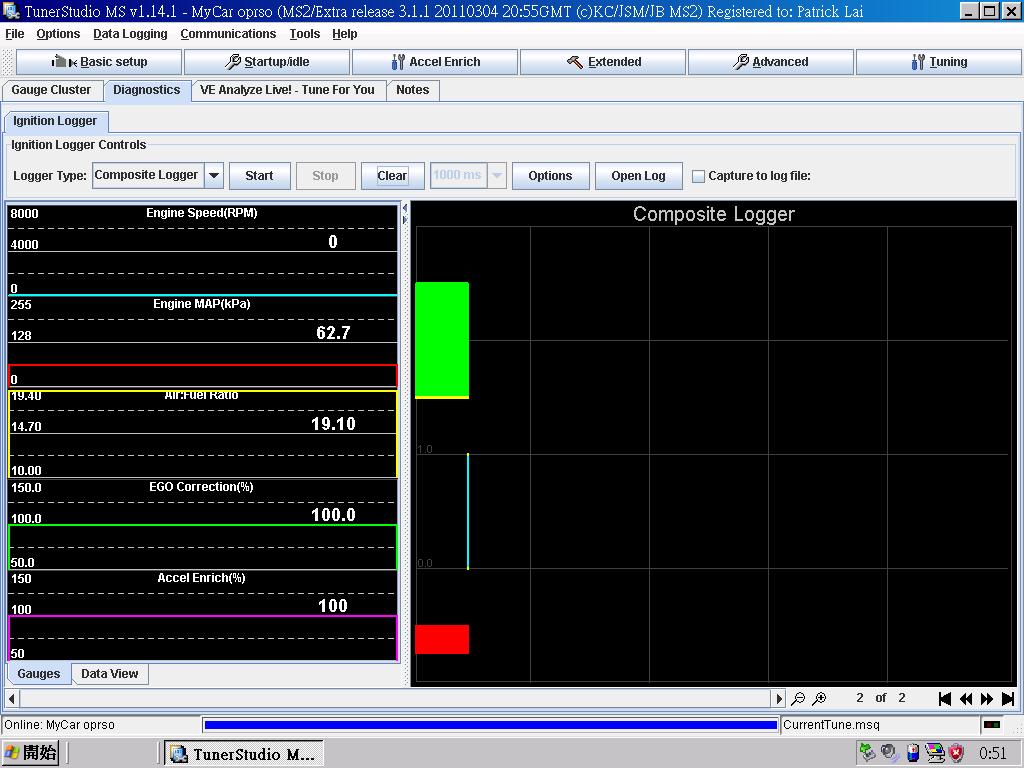

something like this?
Attached Thumbnails
Upgrade from MS1 to MS2 FAIL.-log.jpg
oprso is offline   Reply With Quote
Old 12-05-2011, 12:57 PM   #26
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

doens't look like it's getting your Crank signal.

this is the green and purple wires on that document of mine. your black/white wire to XG1, in your picture it doesn't look installed, is that going to the correct place?

The resistor on r12 you replaced is 470ohms?
Braineack is offline   Reply With Quote
Old 12-05-2011, 12:58 PM   #27
Junior Member
Thread Starter

Join Date: Sep 2009
Posts: 65
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
doens't look like it's getting your Crank signal.

this is
Something wrong with my wiring?
oprso is offline   Reply With Quote
Old 12-05-2011, 01:07 PM   #28
Junior Member
Thread Starter

Join Date: Sep 2009
Posts: 65
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
doens't look like it's getting your Crank signal.

this is the green and purple wires on that document of mine. your black/white wire to XG1, in your picture it doesn't look installed, is that going to the correct place?

The resistor on r12 you replaced is 470ohms?
R12 is 470 ohms
My black and white wire is connected correctly .(tachselect to xg1, c30 to 5v)


Is the 5v at the top of the proto area need to connect from Iac1a?
oprso is offline   Reply With Quote
Old 12-05-2011, 01:14 PM   #29
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

you conntect 5v through a 470 to js10, and iac1a goes directly to js10.

but it seems youre getting that input, its the main crank youre not getting.
Braineack is offline   Reply With Quote
Old 12-05-2011, 01:16 PM   #30
Junior Member
Thread Starter

Join Date: Sep 2009
Posts: 65
Total Cats: 0
Default

This is a better image
Attached Thumbnails
Upgrade from MS1 to MS2 FAIL.-img_20111206_010853.jpg
oprso is offline   Reply With Quote
Old 12-05-2011, 01:18 PM   #31
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

it looks correct so far as i can tell, you loaded the msq i sent and did the calibrations?
Braineack is offline   Reply With Quote
Old 12-05-2011, 01:21 PM   #32
Junior Member
Thread Starter

Join Date: Sep 2009
Posts: 65
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
you conntect 5v through a 470 to js10, and iac1a goes directly to js10.
I got this correct.
oprso is offline   Reply With Quote
Old 12-05-2011, 01:23 PM   #33
Junior Member
Thread Starter

Join Date: Sep 2009
Posts: 65
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
it looks correct so far as i can tell, you loaded the msq i sent and did the calibrations?
Yes . Loaded your MSq , disabled the boost control, did the calibration, all the error message gone, crank it, the ' not cranking ' indicator stay.
And not firing
oprso is offline   Reply With Quote
Old 12-05-2011, 01:25 PM   #34
Junior Member
Thread Starter

Join Date: Sep 2009
Posts: 65
Total Cats: 0
Default

Is there any jumper I need to do on s12c to js9 ?
oprso is offline   Reply With Quote
Old 12-05-2011, 01:48 PM   #35
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

no, since you're not using js0-4
Braineack is offline   Reply With Quote
Old 12-05-2011, 01:49 PM   #36
Junior Member
Thread Starter

Join Date: Sep 2009
Posts: 65
Total Cats: 0
Default

So any other thing I can try?
oprso is offline   Reply With Quote
Old 12-05-2011, 02:23 PM   #37
Junior Member
Thread Starter

Join Date: Sep 2009
Posts: 65
Total Cats: 0
Default

The resistor from js10 to 5v is only 450ohms . Will this cause problem?
oprso is offline   Reply With Quote
Old 12-05-2011, 02:28 PM   #38
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

no. its just a pullup, that's fine.

since you have the Green inpu ton your composite log, it appears the JS10 input is good.

It's the blue signal youre missing, which is the crank, and that comes in the tachselect to XG1 circuit.
Braineack is offline   Reply With Quote
Old 12-05-2011, 02:31 PM   #39
Junior Member
Thread Starter

Join Date: Sep 2009
Posts: 65
Total Cats: 0
Default

Is xg1 connectedto xg2?
oprso is offline   Reply With Quote
Old 12-05-2011, 02:33 PM   #40
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

no. XG1 to tachselect, but not jumped to XG2 anymore.
Braineack is offline   Reply With Quote
