Old 04-19-2014, 08:17 PM   #21
Elite Member

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 2,158
Total Cats: 131
Default

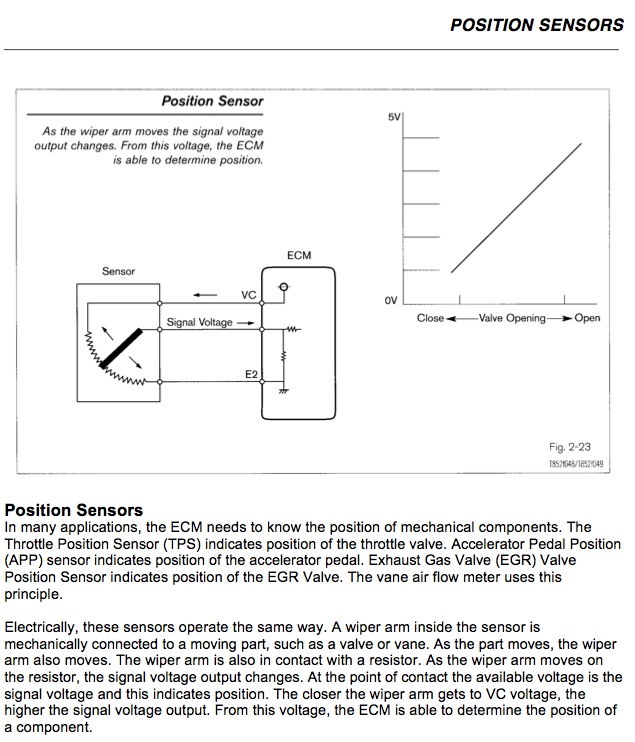

No offense Mike, but I don't have a car sitting in front of me to look at to know which is top or bottom. I gave you a screenshot of the wiring diagram that shows a picture of the connector (with positions) and even gave you the colors.

That said, I think we are 99% sure that you are getting 5v to the TPS.

What is interesting though is the .5v that you are getting on the top wire.


According to that, the wire you are getting .5v from SHOULD be a ground. Instead of metering voltage, check resistance to ground. I am guessing this has something to do with your problem.
Attached Thumbnails
Variation in TPS each time I look-screen-shot-2014-04-19-6.15.50-pm.jpg
Chiburbian is offline   Reply With Quote
Old 04-19-2014, 10:13 PM   #22
Junior Member
Thread Starter

Join Date: Feb 2012
Location: Johnson City, Tn
Posts: 70
Total Cats: 1
Default

I will double check in the morning when I have better light but those are different colors than I have. It looks like mine are B/LG = 5v, B/R = Ground, G/B = .5v

I will verify everything tomorrow to be sure. But I wired the VRef to the B/LG, Ground to B/R and TP Signal to G/B

Thank you for your help (sorry, I was out to dinner earlier)
theemike is offline   Reply With Quote
Old 04-19-2014, 10:23 PM   #23
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

you wired it wrong.

b/lg is always a sensor ground.
Braineack is offline   Reply With Quote
Old 04-20-2014, 01:10 AM   #24
Elite Member

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 2,158
Total Cats: 131
Default

You sure brain? That's not the way it looks in the wiring diagram.

B/R = Black with Red stripe = sensor ground
G/B = Green with Black stripe = signal
LG/R = Light-Green with Red stripe = vref

I am confused though because black/light green doesn't show up as a throttle related wire. Mind you, my wiring diagrams aren't for a 2003 but I have one for both a 2000 and a 2001 and they both agree with the colors and signals I posted here.

EDIT:

Rather than argue about it I just went outside and metered my own.

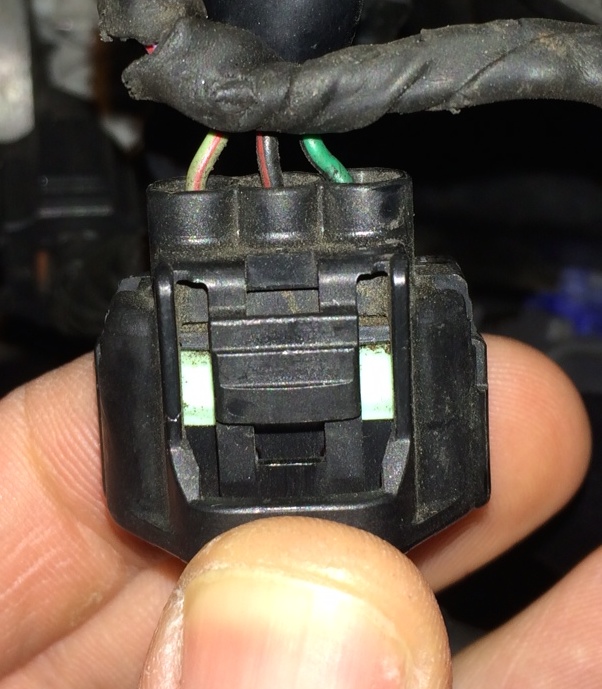

My wires meter out as:
B/R = Black with Red stripe = sensor ground (ground)
G/B = Green with Black stripe = signal (happens to be just under 5v at the moment for some reason)
LG/R = Light-Green with Red stripe = vref (5v)
Attached Thumbnails
Variation in TPS each time I look-throttle_plug.jpeg

Last edited by Chiburbian; 04-20-2014 at 01:28 AM.
Chiburbian is offline   Reply With Quote
Old 04-20-2014, 01:35 AM   #25
Elite Member

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 2,158
Total Cats: 131
Default

Attached Thumbnails
Variation in TPS each time I look-potato_head_style.jpg
Chiburbian is offline   Reply With Quote
Old 04-20-2014, 08:16 AM   #26
Junior Member
Thread Starter

Join Date: Feb 2012
Location: Johnson City, Tn
Posts: 70
Total Cats: 1
Default

I will try swapping the outer wires first as I am confident that the middle is ground.

May not be able to do it today as it is my wife's birthday so she is priority today.
theemike is offline   Reply With Quote
Old 04-20-2014, 08:37 AM   #27
Junior Member
Thread Starter

Join Date: Feb 2012
Location: Johnson City, Tn
Posts: 70
Total Cats: 1
Default

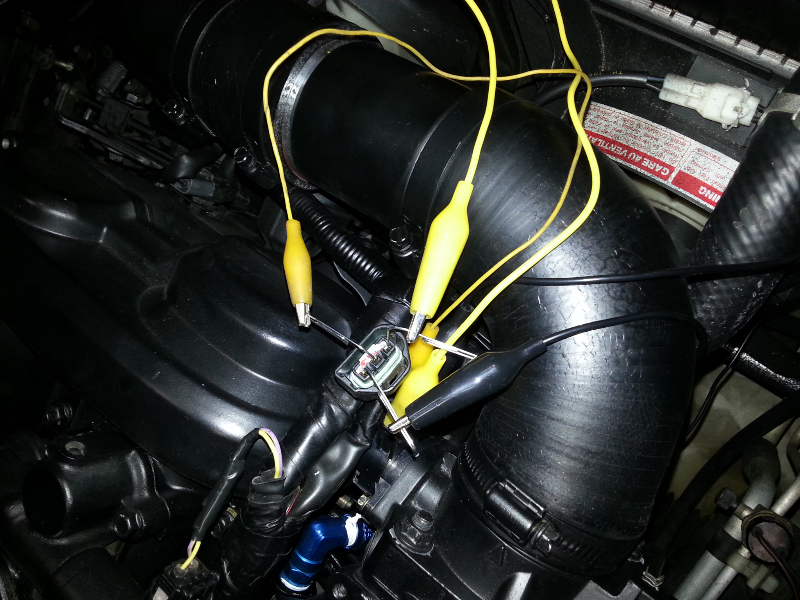

So far so good. I ran downstairs while she is asleep and reversed the wires. It is much more stable (although the adc numbers are very high, 700+).

I can't check out the TPS with the car started yet because it will wake her :-)

I really do appreciate everyone's help as always

Variation in TPS each time I look-forumrunner_20140420_073730.png
theemike is offline   Reply With Quote
Old 04-20-2014, 09:37 AM   #28
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

okay, sorry B/LG is different than G/B.
Braineack is offline   Reply With Quote
Old 04-20-2014, 10:50 AM   #29
Elite Member

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 2,158
Total Cats: 131
Default

That's not what confused me Brain.

I was trying to fugure out if you had a typo and you meant LG/R or if you meant G/B. Either way, my references had neither of them as sensor ground.
Chiburbian is offline   Reply With Quote
Old 04-20-2014, 10:54 AM   #30
Junior Member
Thread Starter

Join Date: Feb 2012
Location: Johnson City, Tn
Posts: 70
Total Cats: 1
Default

I reversed the outer 2 wires and all is great now!

Thanks for all the help. I learn something new every day
theemike is offline   Reply With Quote
Old 04-20-2014, 11:08 AM   #31
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

Quote:
Originally Posted by Chiburbian View Post
Either way, my references had neither of them as sensor ground.
I wasn't looking to be honest. All 90-97s use b/lg as a sensor ground wire and that went out the window in 99. so when I saw the reference to that I was like well there's an issue.

Looks like I was still correct about the wiring issue, lol.

Last edited by Braineack; 04-21-2014 at 09:15 AM.
Braineack is offline   Reply With Quote
Old 04-20-2014, 11:53 AM   #32
Elite Member

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 2,158
Total Cats: 131
Default

Ahh, ok that makes sense. I wonder when they made that change. (Seems strange to do it after a year of NBs with no other major changes)
Chiburbian is offline   Reply With Quote
Old 08-12-2014, 08:16 AM   #33
Junior Member
Thread Starter

Join Date: Feb 2012
Location: Johnson City, Tn
Posts: 70
Total Cats: 1
Default

Just to follow up...I sent the MS to Peter Florance at PFTuning to check my soldering.Turned out that I had a bad joint at R9. He fixed that and now the TPS is stable and where it should be.

Thanks to everyone for your help
theemike is offline   Reply With Quote
