Default VSS on a MK2.5

Does anyone know where the VSS output that goes to the stock ECU is on a MK2.5, it behind the instrument cluster?

I want to hook it up to my MS3!
richyvrlimited is offline   Reply With Quote
Old 02-16-2013, 05:30 AM   #2
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Your ECU is already receiving the VSS signal from the gauge cluster, on the Flex input, so its a matter of configuring it in TunerStudio.
Reverant is offline   Reply With Quote
Old 02-16-2013, 06:50 AM   #3
Elite Member
Thread Starter
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

Sorry I knew that, but I was looking for it's location then I might be able to figure out it's settings
richyvrlimited is offline   Reply With Quote
Old 02-18-2013, 05:10 AM   #4
Elite Member
Thread Starter
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

No-one? I was hoping to remove it and count it's teeth

Does no-one use VSS on their ECU?
richyvrlimited is offline   Reply With Quote
Old 02-24-2013, 11:51 AM   #5
Elite Member
Thread Starter
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

To answer myself, 5 teeth seems to give the most accurate MPH output.

I had the entire car up on chassis stands and put the car in 5th gear to work it out, it's an irritating setting to work out as you have to power cycle the ECU to see changes.
richyvrlimited is offline   Reply With Quote
Old 02-24-2013, 12:56 PM   #6
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

What tyre diameter did you use?
Reverant is offline   Reply With Quote
Old 02-24-2013, 01:43 PM   #7
Elite Member
Thread Starter
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

Uhhh whatever was already I there, which now I've looked is way out. 0.656m

Oops. Still it seems pretty accurate, go figure.
richyvrlimited is offline   Reply With Quote
Old 02-24-2013, 01:47 PM   #8
Senior Member

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

Quote:
Originally Posted by richyvrlimited View Post
No-one? I was hoping to remove it and count it's teeth

Does no-one use VSS on their ECU?
I use it - and I think I have set it as 4000 ppm (pulses per mile), after reading Frank's speedo thread speed conversion | My Westfield MX5 speed conversion | & Megasquirt site

I'll look up the setting tomorrow.
Zaphod is offline   Reply With Quote
Old 02-25-2013, 04:54 AM   #9
Senior Member

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

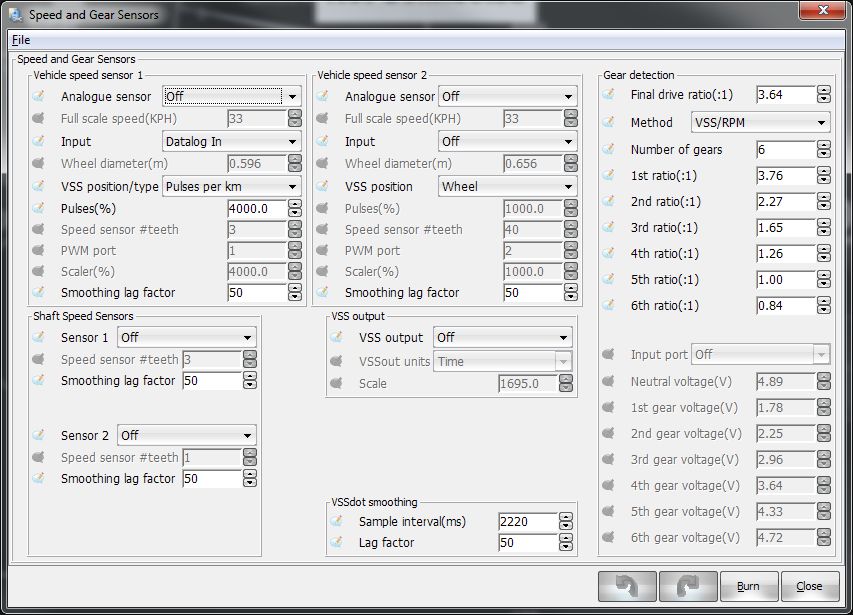

Here is my 99-00 VSS settings - 6-speed from a 2001.



Works perfekt for me...
Attached Thumbnails
VSS on a MK2.5-vss.jpg
Zaphod is offline   Reply With Quote
Old 02-25-2013, 11:53 AM   #10
Elite Member
Thread Starter
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

Ahh Mine uses PE2 Flex as it's input. It's VSS Position/type is wheel.

Reading again I've no idea how mine is accurate or works, but hey it does!
richyvrlimited is offline   Reply With Quote
Old 02-25-2013, 12:17 PM   #11
Senior Member

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

Whatever works - is the correct solution...
