Old 04-16-2013, 04:03 PM   #41
Senior Member
Thread Starter
iTrader: (1)

gorillazfan1023's Avatar

Join Date: May 2010
Location: Harrisburg, Pa
Posts: 582
Total Cats: 8
Default

Yes I can take pics. Yes 01 with factory vvt.
It goes crank sensor (ckp) to pin 4. Then pin 2 wired to 3Y. Not tapped. I removed the taps because diy told me to, to be sure I had a viable signal. I have the cam sensor (cmp) to pin 3 and pin 1 to 3V
gorillazfan1023 is online now   Reply With Quote
Old 04-16-2013, 04:11 PM   #42
Senior Member
Thread Starter
iTrader: (1)

gorillazfan1023's Avatar

Join Date: May 2010
Location: Harrisburg, Pa
Posts: 582
Total Cats: 8
Default

http://m.flickr.com/#/photos/[email protected]/8655093857/

That's a link to a drawing of my setup
gorillazfan1023 is online now   Reply With Quote
Old 04-16-2013, 04:18 PM   #43
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Rather than a diagram of what you did, can we instead see a pic of what you actually did?
Reverant is offline   Reply With Quote
Old 04-16-2013, 04:18 PM   #44
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,846
Total Cats: 1,787
Default

mobile link not wokring here.
Braineack is online now   Reply With Quote
Old 04-16-2013, 04:22 PM   #45
Senior Member
Thread Starter
iTrader: (1)

gorillazfan1023's Avatar

Join Date: May 2010
Location: Harrisburg, Pa
Posts: 582
Total Cats: 8
Default

Quote:
Originally Posted by Reverant View Post
Rather than a diagram of what you did, can we instead see a pic of what you actually did?
Yes but I won't be home for another hour. I'm posting from my phone now and I will get better links
gorillazfan1023 is online now   Reply With Quote
Old 04-16-2013, 04:25 PM   #46
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,846
Total Cats: 1,787
Default

yeah you will! if you know whats good for you.
Braineack is online now   Reply With Quote
Old 04-16-2013, 06:16 PM   #47
Senior Member
Thread Starter
iTrader: (1)

gorillazfan1023's Avatar

Join Date: May 2010
Location: Harrisburg, Pa
Posts: 582
Total Cats: 8
Default

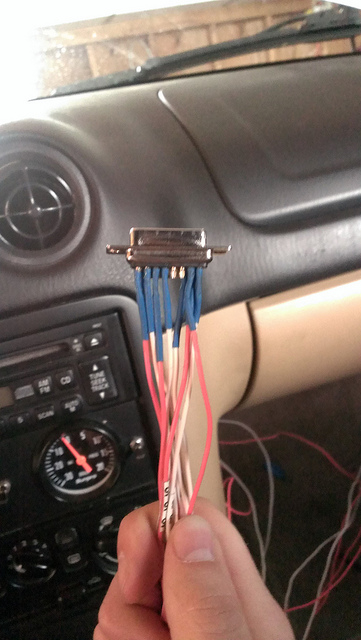

Ok here is the crank signal (purple white to white), OCV 12v in (yellow w/blue heat shrink), and OCV input (white to purple yellow)

IMAG0579 by Gorillazfan, on Flickr

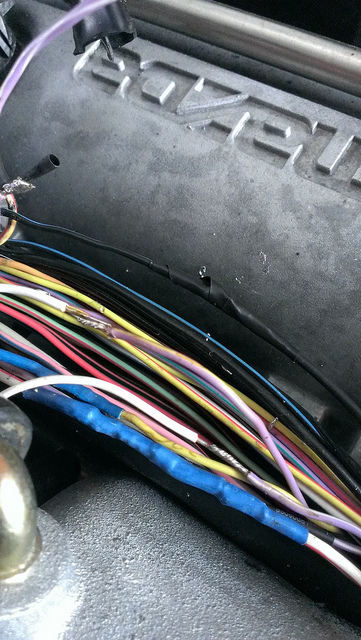

Here is the cam shaft signal

IMAG0576_BURST002_COVER by Gorillazfan, on Flickr

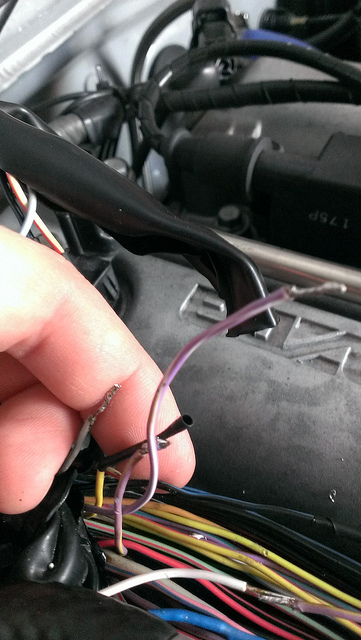

Here is all the garbage I disconnected (cmp, ckp to ecu, 12v into OCV, OCV input)

IMAG0577 by Gorillazfan, on Flickr

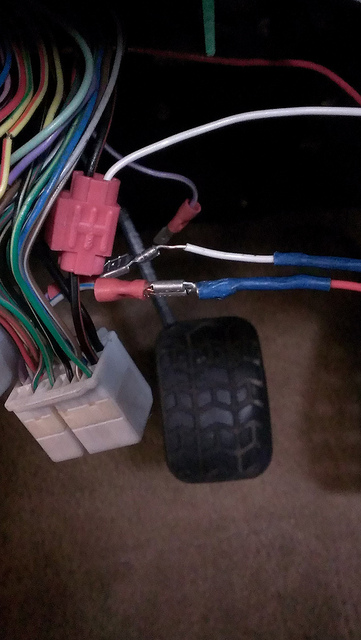

Here is my connector

IMAG0583 by Gorillazfan, on Flickr

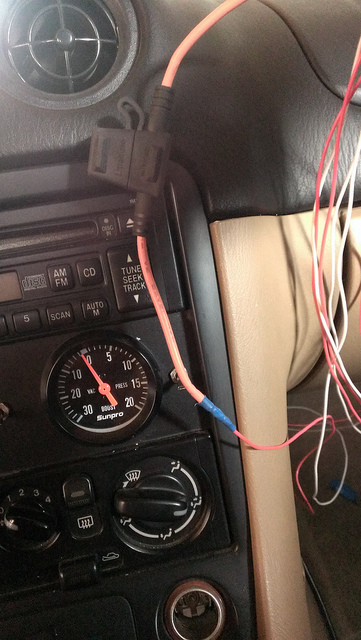

5amp fuse in my power line

IMAG0584 by Gorillazfan, on Flickr

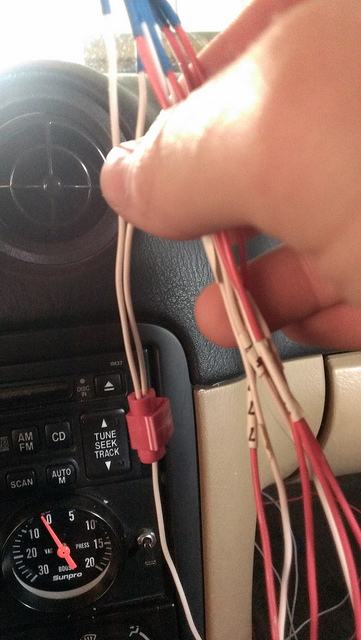

Grounds tied together

IMAG0585 by Gorillazfan, on Flickr

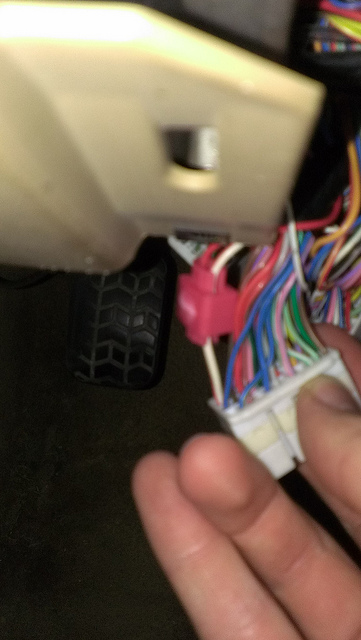

Power

IMAG0588 by Gorillazfan, on Flickr

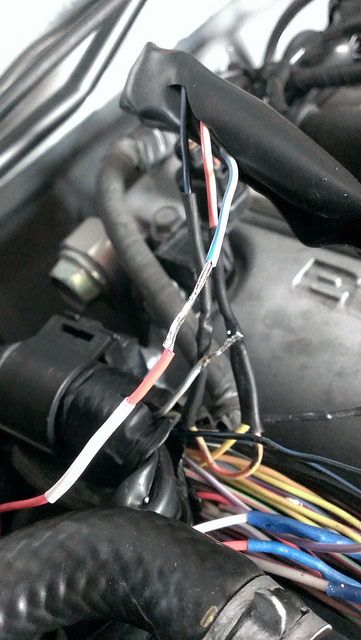

Ground and ckp and cmp back into the ecu

IMAG0590 by Gorillazfan, on Flickr
Attached Thumbnails
vvt tuner wiring help!-8656497292_878995d274_z.jpg   vvt tuner wiring help!-8655394703_e99591d8a1_z.jpg   vvt tuner wiring help!-8656495130_fb5a1be51b_z.jpg   vvt tuner wiring help!-8656493416_b4b89aebc1_z.jpg   vvt tuner wiring help!-8655388441_1eb5f00e72_z.jpg

vvt tuner wiring help!-8655387579_984a6d0176_z.jpg   vvt tuner wiring help!-8656490742_341c331286_z.jpg   vvt tuner wiring help!-8655385725_826e3f507b_z.jpg
gorillazfan1023 is online now   Reply With Quote
Old 04-16-2013, 06:42 PM   #48
Senior Member
Thread Starter
iTrader: (1)

gorillazfan1023's Avatar

Join Date: May 2010
Location: Harrisburg, Pa
Posts: 582
Total Cats: 8
Default

Here's a megalog because it wont composite log during cranking with vvt's attached

Edity edit:

In my one picture you can see my quick connect crap things. I did this because I was hoping to leave the wires soldered together so I can switch and unplug, which I will have to do once a year for emissions. Thats also why I originally just tapped the wires and hoped I could share the signal.
Attached Files
File Type: msl vvt.msl (43.6 KB, 83 views)
gorillazfan1023 is online now   Reply With Quote
Old 04-16-2013, 10:33 PM   #49
Senior Member
Thread Starter
iTrader: (1)

gorillazfan1023's Avatar

Join Date: May 2010
Location: Harrisburg, Pa
Posts: 582
Total Cats: 8
Default

I took a video for you fellas. I didn't realize how awful my phone quality was.

gorillazfan1023 is online now   Reply With Quote
Old 04-17-2013, 04:38 PM   #50
Senior Member
Thread Starter
iTrader: (1)

gorillazfan1023's Avatar

Join Date: May 2010
Location: Harrisburg, Pa
Posts: 582
Total Cats: 8
Default

I put the car back to a drivable state last night (where I have the sensors shared). I tried starting it and it of course did not start(with vvt attached). Is it possible that something is internally damaged despite still powering up and connecting with my pc?
gorillazfan1023 is online now   Reply With Quote
Old 04-17-2013, 08:44 PM   #51
Senior Member
Thread Starter
iTrader: (1)

gorillazfan1023's Avatar

Join Date: May 2010
Location: Harrisburg, Pa
Posts: 582
Total Cats: 8
Default

I have more questions like did I fubar my OCV. So Ben told me to measure voltage at pin 8 and 15. With the ocv unplugged I got 1.25-1.75v at pin 8. At pin 15 I got 12.3v.

When I plugged it in I got no volts from either.

I then tested resistance across the ocv. I swear I saw it change but could not get it to do it again. Does no resistance mean I broke it?

Edity edit: I'm not sure my ammeter goes low enough to measure resistance. Or there is an issue with it. It never drops below one and the lowest setting for measuring ohm's is 200

Last edited by gorillazfan1023; 04-17-2013 at 10:17 PM.
gorillazfan1023 is online now   Reply With Quote
Old 04-19-2013, 08:39 AM   #52
Senior Member
Thread Starter
iTrader: (1)

gorillazfan1023's Avatar

Join Date: May 2010
Location: Harrisburg, Pa
Posts: 582
Total Cats: 8
Default

Yeah I'm going to try another multimeter today because last night I hooked power up to the ocv and it opened and closed just fine.
gorillazfan1023 is online now   Reply With Quote
Old 04-19-2013, 05:33 PM   #53
Senior Member
Thread Starter
iTrader: (1)

gorillazfan1023's Avatar

Join Date: May 2010
Location: Harrisburg, Pa
Posts: 582
Total Cats: 8
Default

Ok I'm back to thinking the box is broke or something. I measured resistance on the OCV today with a different multimeter and it was around 8.0 ohms and I believe its supposes to be ~7.5ohms
gorillazfan1023 is online now   Reply With Quote
Old 04-19-2013, 05:46 PM   #54
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,846
Total Cats: 1,787
Default

i think it's your wiring.
Braineack is online now   Reply With Quote
Old 04-19-2013, 05:47 PM   #55
Senior Member
Thread Starter
iTrader: (1)

gorillazfan1023's Avatar

Join Date: May 2010
Location: Harrisburg, Pa
Posts: 582
Total Cats: 8
Default

Quote:
Originally Posted by Braineack View Post
i think it's your wiring.
I will redo it again this weekend. With hopes of being as cool as you.
gorillazfan1023 is online now   Reply With Quote
Old 04-19-2013, 06:11 PM   #56
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,846
Total Cats: 1,787
Default

i could like draw exactly how where to hook it up.
Braineack is online now   Reply With Quote
Old 04-19-2013, 06:14 PM   #57
Senior Member
Thread Starter
iTrader: (1)

gorillazfan1023's Avatar

Join Date: May 2010
Location: Harrisburg, Pa
Posts: 582
Total Cats: 8
Default

You could, because you're brain. You're drawing was much more professional looking then my whiteboard attempt.
gorillazfan1023 is online now   Reply With Quote
Old 04-20-2013, 03:59 PM   #58
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,846
Total Cats: 1,787
Default

Here bro.



Pin 1 - CUT from OEM Harness, GY/L wire, 3V
Pin 2 - CUT from OEM Harness, V/W wire, 3Y
Pin 3 - Wire to the ECU side of the cut wire, GY/L, 3V
Pin 4 - Wire to the ECU side of the cut wire, V/W, 3Y

Pin 8 - To V/R wire, 4R
Pin 15 - To Y wire, 4D

Pins 14 & 9, to B wire, 3A
Attached Thumbnails
vvt tuner wiring help!-01-05-ecu-vvtuner.jpg
Braineack is online now   Reply With Quote
Old 04-20-2013, 10:13 PM   #59
Senior Member
Thread Starter
iTrader: (1)

gorillazfan1023's Avatar

Join Date: May 2010
Location: Harrisburg, Pa
Posts: 582
Total Cats: 8
Default

Quote:
Originally Posted by Braineack View Post
Here bro.



Pin 1 - CUT from OEM Harness, GY/L wire, 3V
Pin 2 - CUT from OEM Harness, V/W wire, 3Y
Pin 3 - Wire to the ECU side of the cut wire, GY/L, 3V
Pin 4 - Wire to the ECU side of the cut wire, V/W, 3Y

Pin 8 - To V/R wire, 4R
Pin 15 - To Y wire, 4D

Pins 14 & 9, to B wire, 3A
You sir are a gentleman and a scholar. If you're ever in central PA and need anything I'm your man...
gorillazfan1023 is online now   Reply With Quote
Old 04-20-2013, 11:11 PM   #60
Senior Member
Thread Starter
iTrader: (1)

gorillazfan1023's Avatar

Join Date: May 2010
Location: Harrisburg, Pa
Posts: 582
Total Cats: 8
Default

Here's a really stupid question. On you're drawing you have pin 1 oriented so it's at the right side. Is that just how you drew it? Because looking at my connector, from the side the wires go into. Its number 1-8. 1 being on the very left. I assumed the numbers corresponded to the numbers on the connector. However looking at diy's drawing they also have it oriented the same way you do.

Also my unit is plug and play so I'm not sure whats mean by to MS. because my plugs to my oem ecu are the same as the MS. And by "from OEM harness" do you mean from the sensor end of the oem harness or from the ecu of the oem wiring harness.

Clearly the issue is megasquirt isn't getting a crank or cam signal and therefore will not fire when cranking.

If I understand this correctly it should be.
3Y cut in half. The sensor half to pin 4, the ecu half to pin 2
3V cut in half. The sensor half to pin 3, the ecu half to pin 1

That's assuming I have all of the other wires correct. ( I know I do) I get proper voltages across pins 8 and 15 and good resistance across the OCV.

Heres what I've tried;

Sensors shared:
pin 4 tapped to 3Y
pin 3 tapped to 3V

I haven't tried flipping these wires yet, but I will. Though I'm under the impression that I have to change a resistor pull up on the megasquirt.

Pass through:
CKP sensor signal wire direct to pin 4
CMP sensor signal wire direct to pin 3
Pin 2 directly into 3Y
Pin 1 directly into 3V

In pass through I've also tried switching pin 2 into 3V and pin 1 into 3Y to be sure I didn't have it flipped.

In pass through I've also tried
switching CKP sensor directly into pin 2
switching CMP sensor directly into pin 1
Pin 4 directly to 3Y
Pin 3 directly to 3V

I also tried switching pin 4 directly to 3V and pin 3 directly to 3Y

Last edited by gorillazfan1023; 04-21-2013 at 12:22 AM.
gorillazfan1023 is online now   Reply With Quote
