Default Wiring in Wideband (MTX-L)

Anyone know which wire(s) to connect my MTX-L to on this Rev built harness? I've PM'd Rev but I don't know what time it is in Greece and thought someone here might have the answer sooner. The MTX-L instructions say the brown and yellow wires on it's harness can be connected to an ECU.

Thanks in advance.

Attached Thumbnails

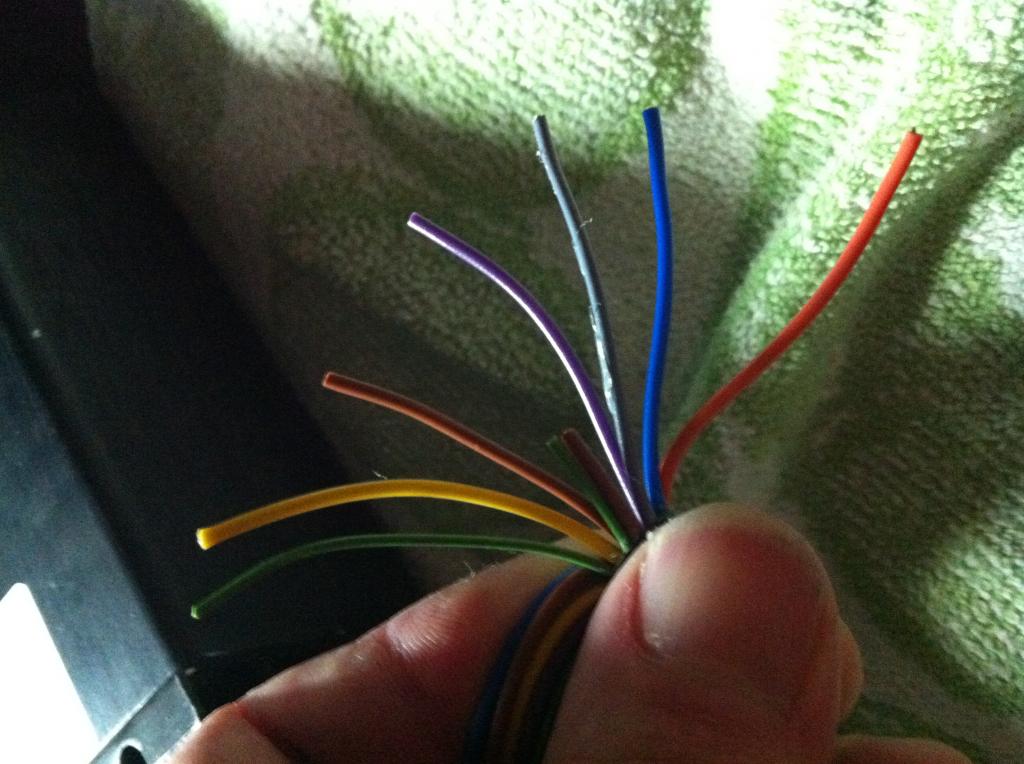

Wiring in Wideband (MTX-L)-photo1.jpg
MINI-P is offline   Reply With Quote
Old 11-23-2012, 12:32 AM   #2
Junior Member
Thread Starter

Join Date: Jan 2009
Location: Sachse, TX
Posts: 103
Total Cats: 3
Default

Alright, I went back and found an attachment that I'd missed with wiring instructions. Makes it much easier with the instructions.
MINI-P is offline   Reply With Quote
Old 11-29-2012, 09:16 PM   #3
Junior Member
iTrader: (3)

Join Date: Jun 2011
Location: Charlotte, NC
Posts: 277
Total Cats: 24
Default

What did you end up doing?

Rev's instructions label the yellow wire as the wideband. Innovative's instruction label their yellow wire as the wideband (0V-5V) as well. Was it just connecting the yellow wires?
RussellT94 is offline   Reply With Quote
Old 11-29-2012, 09:31 PM   #4
Junior Member
Thread Starter

Join Date: Jan 2009
Location: Sachse, TX
Posts: 103
Total Cats: 3
Default

My instructions from Innovative said use either the yellow or brown wire but they had different voltages. I finally found a FAQ that said the yellow wire for MTX-L and brown wire for the LC-1. So, yes, it ended up being as easy as yellow to yellow. Just confusing for a noob to get there.
MINI-P is offline   Reply With Quote
Old 11-29-2012, 09:38 PM   #5
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Btw Greece is like 7 hours ahead from where i'm posting. Tx is i think 2 hrs behind chicago so thats 9 hours ahead for u.
