Default Garrett/Air research T3 Turbo

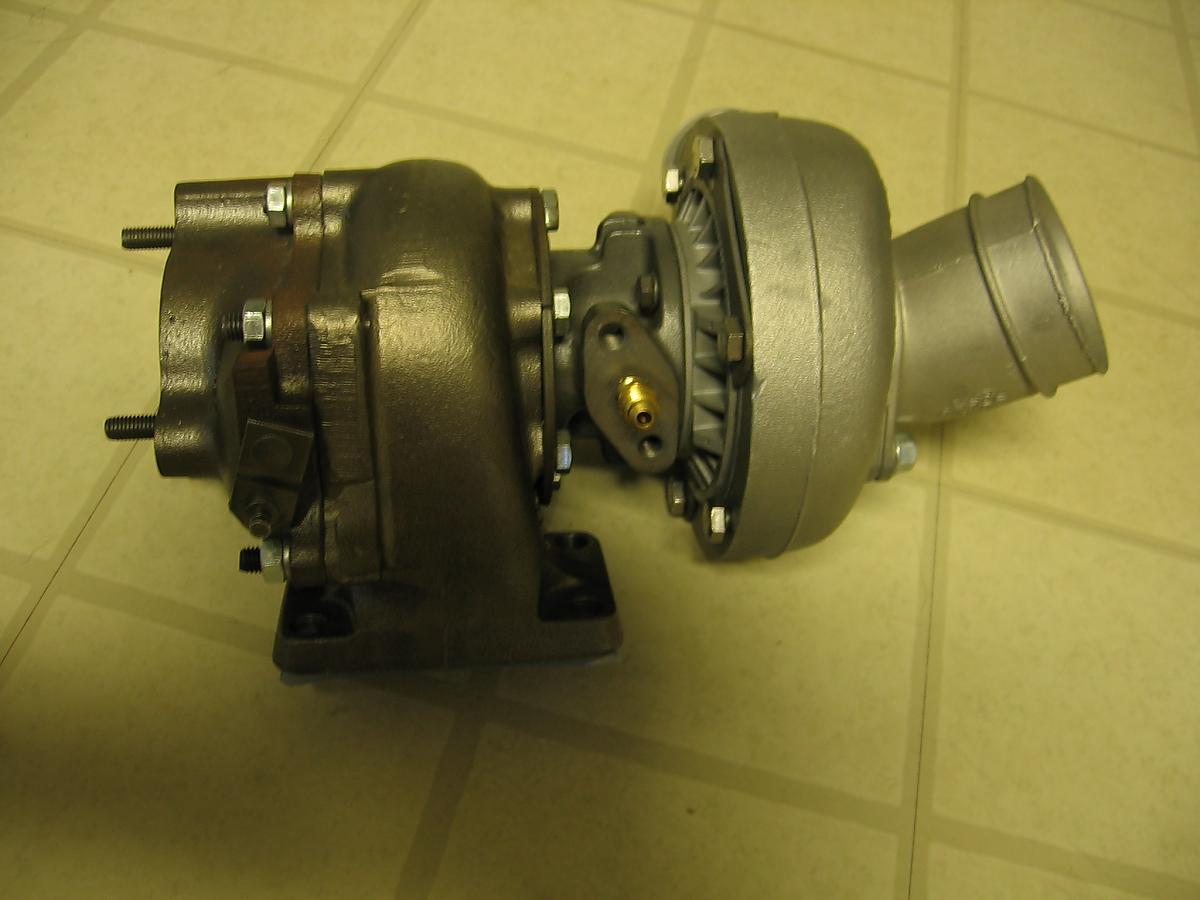

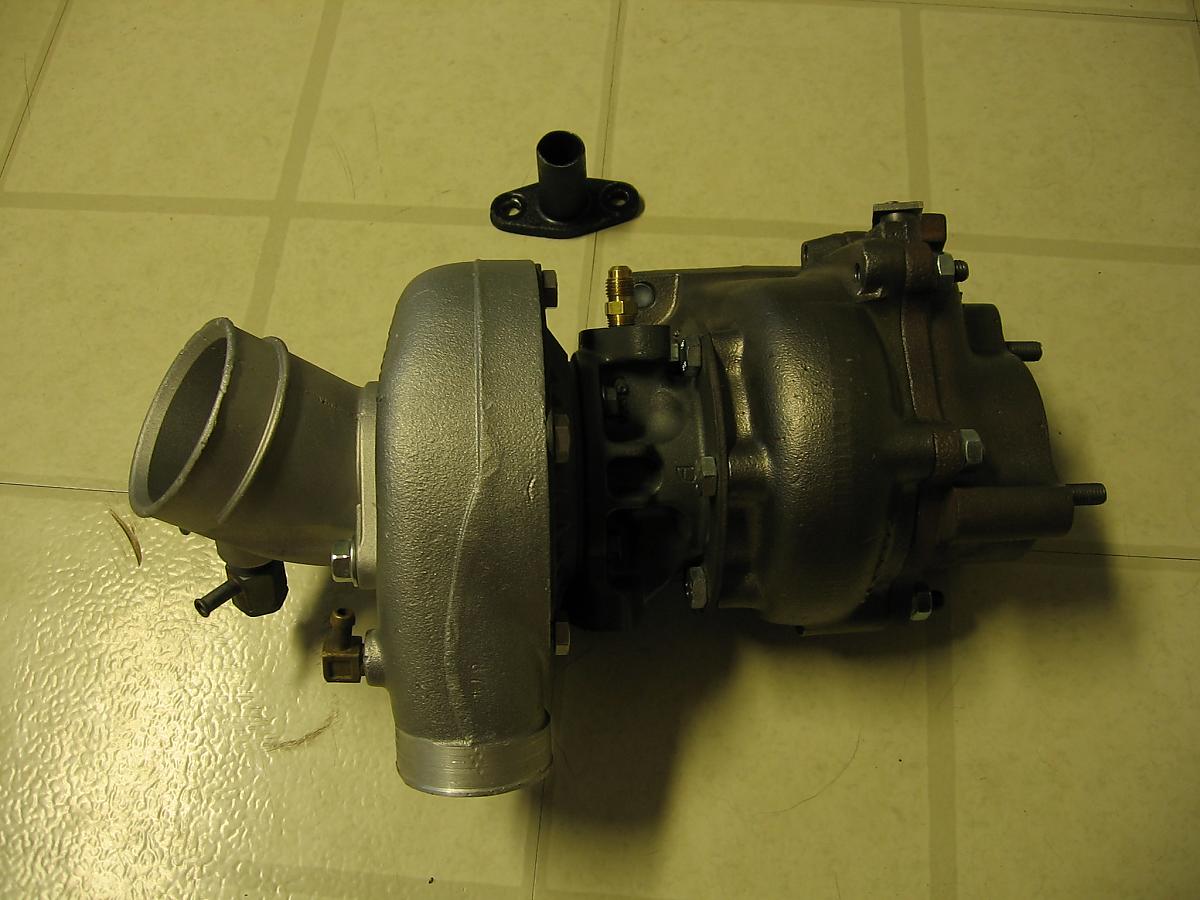

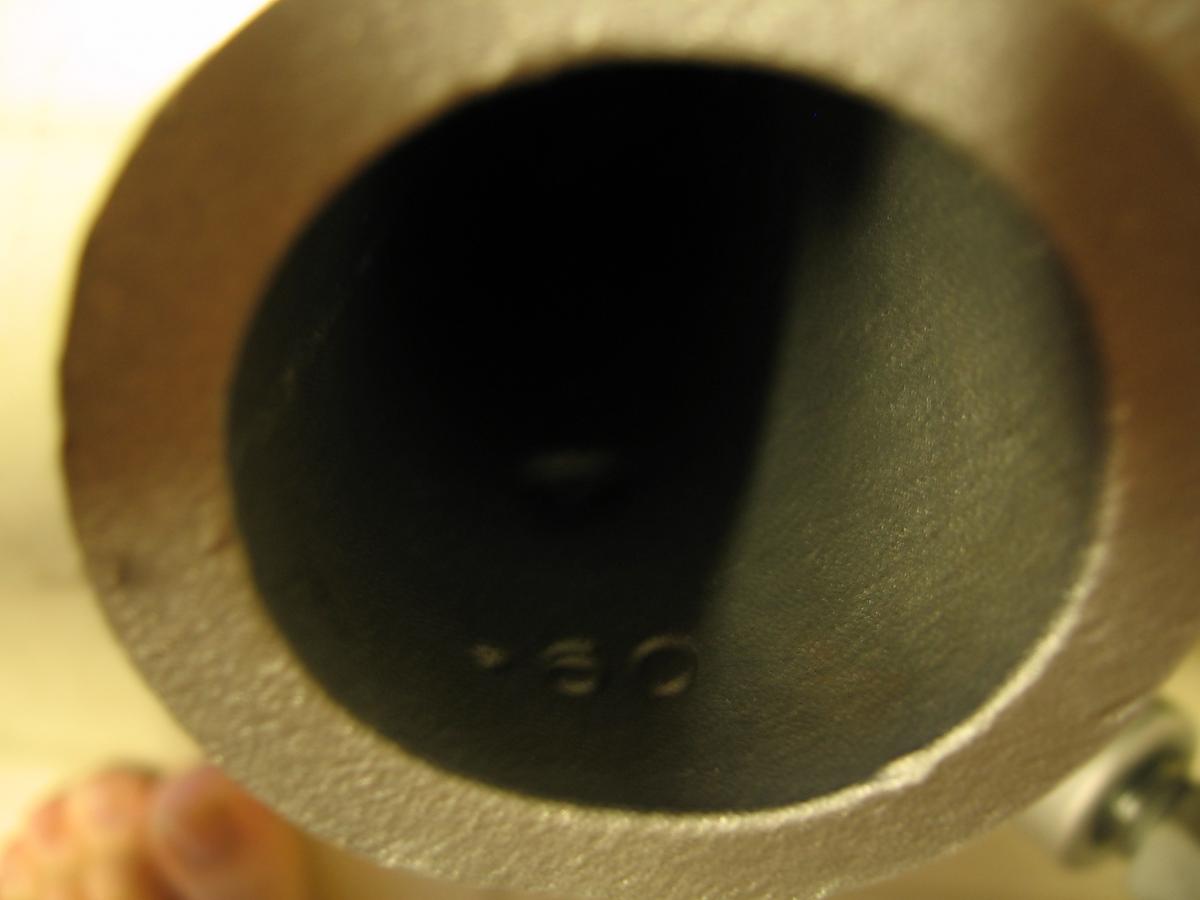

Hello all, got a new T3 turbo with 0.60 Compressor and 0.48 Turbine.

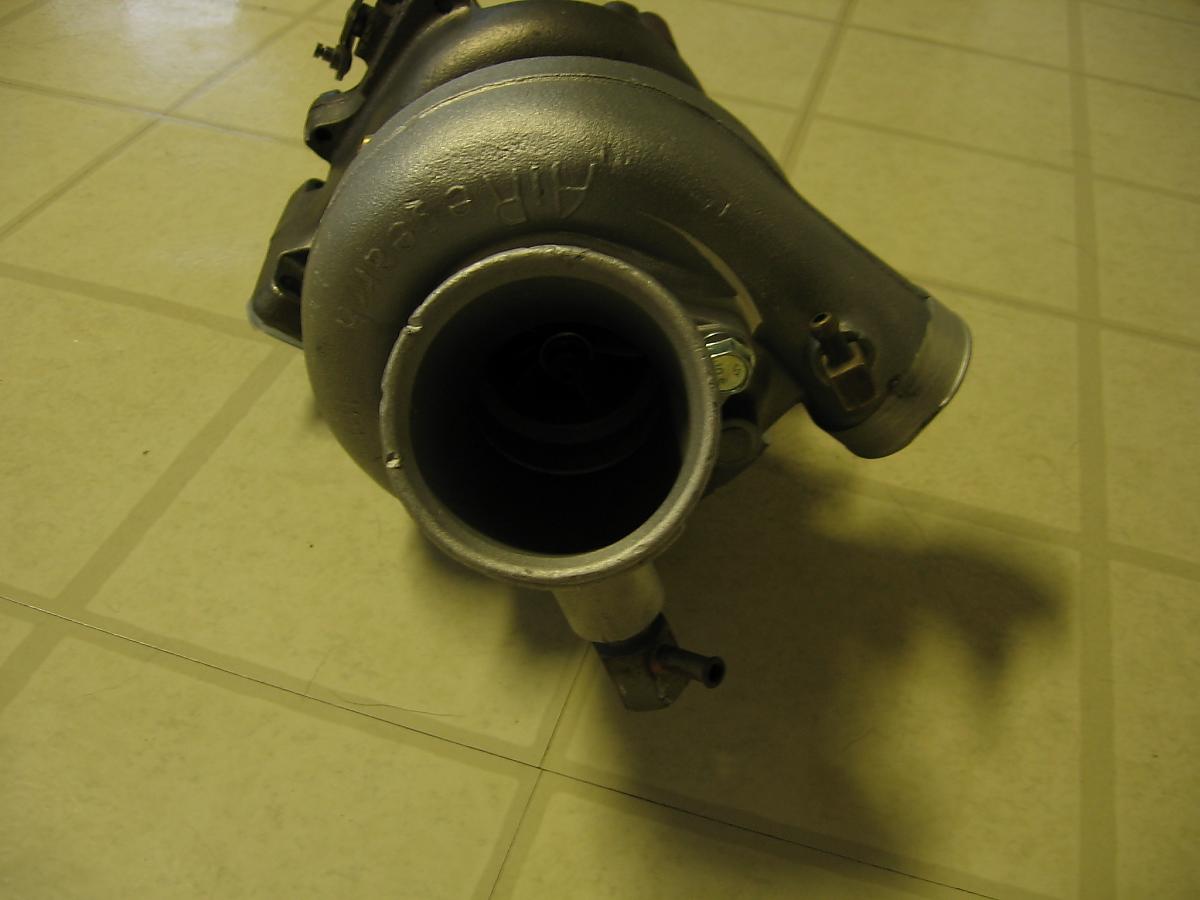

2.75" air inlet
2" air outlet

I bought this about 4 months ago hoping to use it but it won't fit because I think this one is from a Mercedes or Chrysler. It came with an internal wastegate adaptor kit with a larger 3 bolt pattern for the exhaust. I already purchased a BEGI mani and dp to use for a standard 5 bolt t3 turbo. A friend of mines modifed the wastegate housing to accept the small 3 bolt flange from the BEGI DP, but I had clearence issues since the housing is about an inch larger than your standard 5 bolt T3 internal wastegate housing. Fits on the mani no problem. Instead of modifying the DP to work with what I had, I just bought a new turbo.

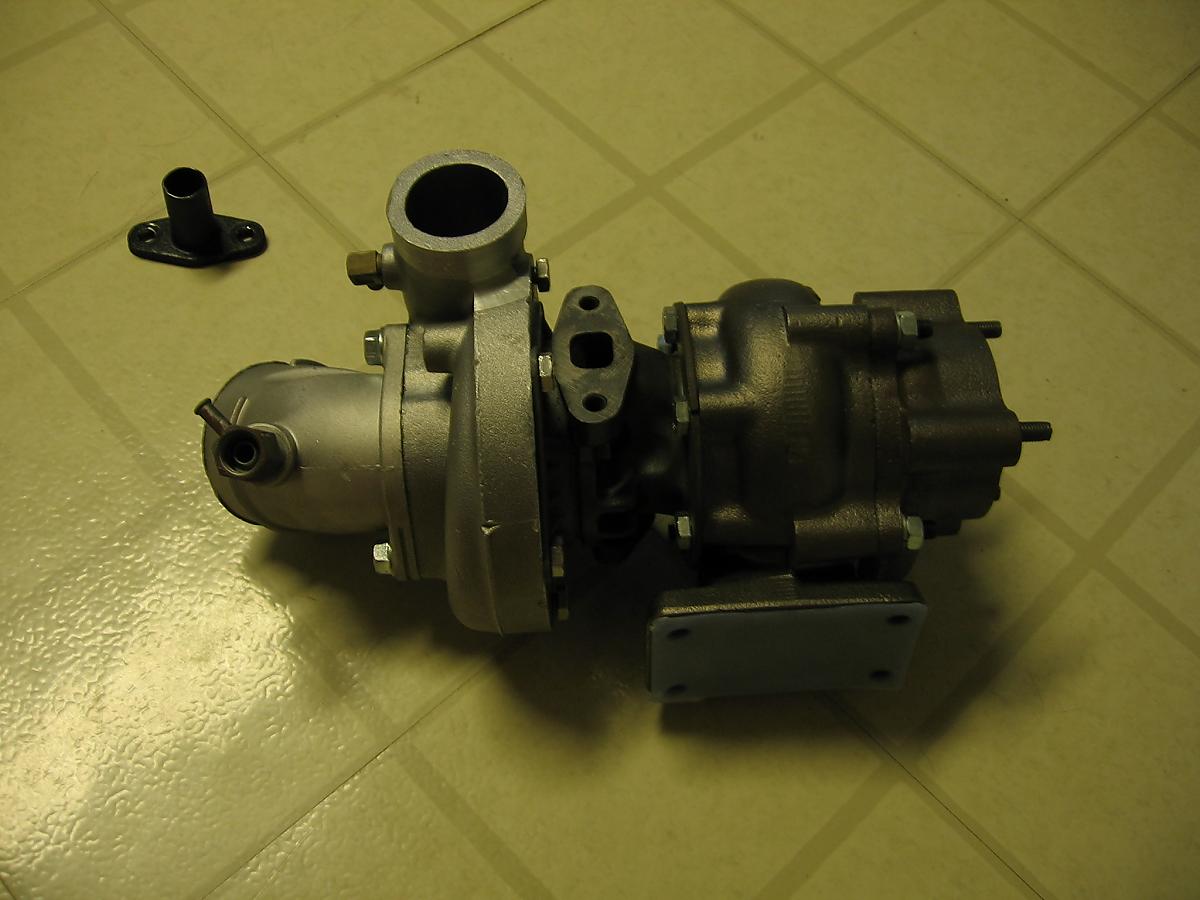

Included in this sale is the T3 turbo, the internal wastegate housing, adaptor for the air inlet, 1/2" oil return fitting, and -4 AN oil inlet fitting. No wastegate actuator included. GET YOUR OWN!!

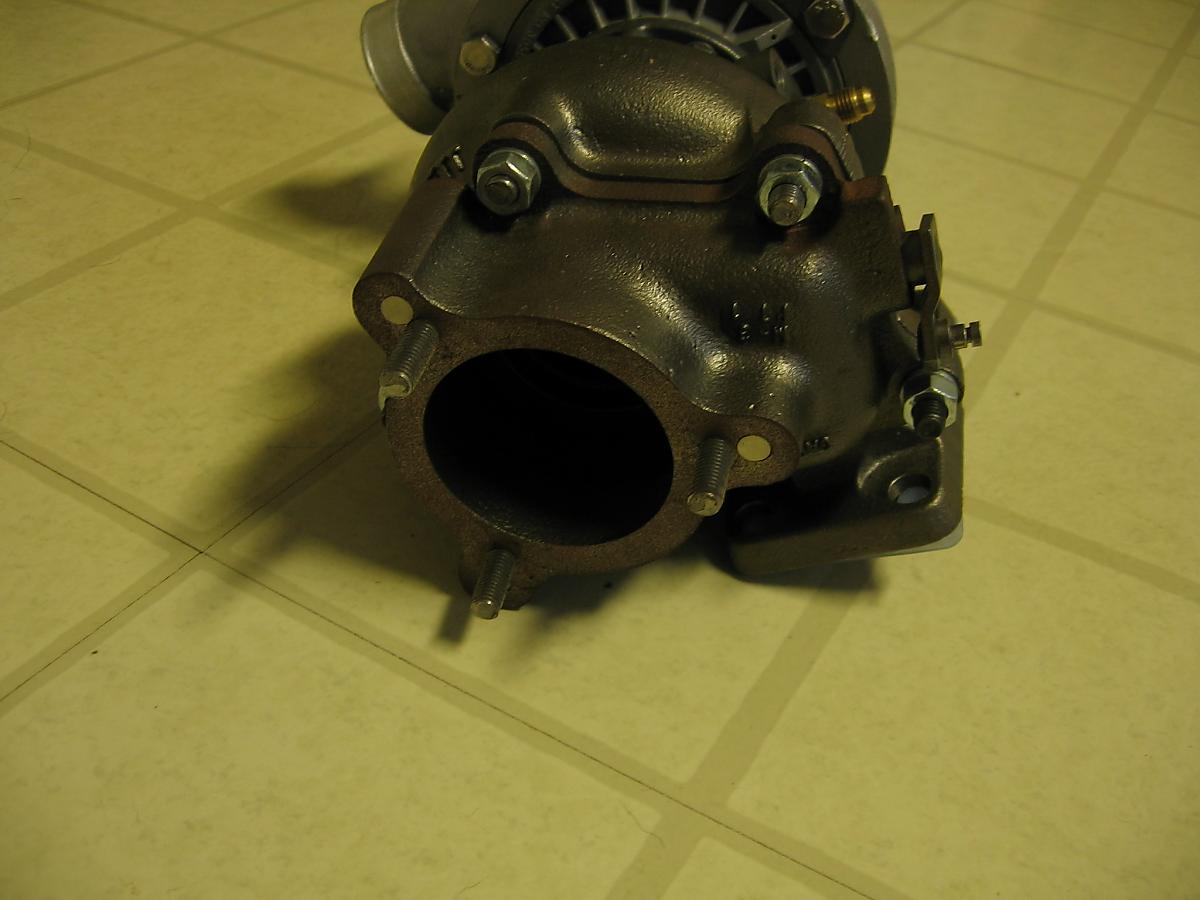

Note: The internal wastegate housing has been modified to accept the smaller 3 bolt exhaust flange.

$300 shipped in the US

Just trying to recoup some of the money I invested.
Attached Thumbnails
Garrett/Air research T3 Turbo-img_0240.jpg   Garrett/Air research T3 Turbo-img_0241.jpg   Garrett/Air research T3 Turbo-img_0242.jpg   Garrett/Air research T3 Turbo-img_0243.jpg   Garrett/Air research T3 Turbo-img_0244.jpg

Garrett/Air research T3 Turbo-img_0245.jpg   Garrett/Air research T3 Turbo-img_0246.jpg   Garrett/Air research T3 Turbo-img_0247.jpg   Garrett/Air research T3 Turbo-img_0248.jpg
supersuk is offline
Old 05-02-2008, 02:54 AM   #2
I'm Miserable!
iTrader: (5)

Join Date: Sep 2005
Location: SLC, Utah
Posts: 1,591
Total Cats: 0
Default

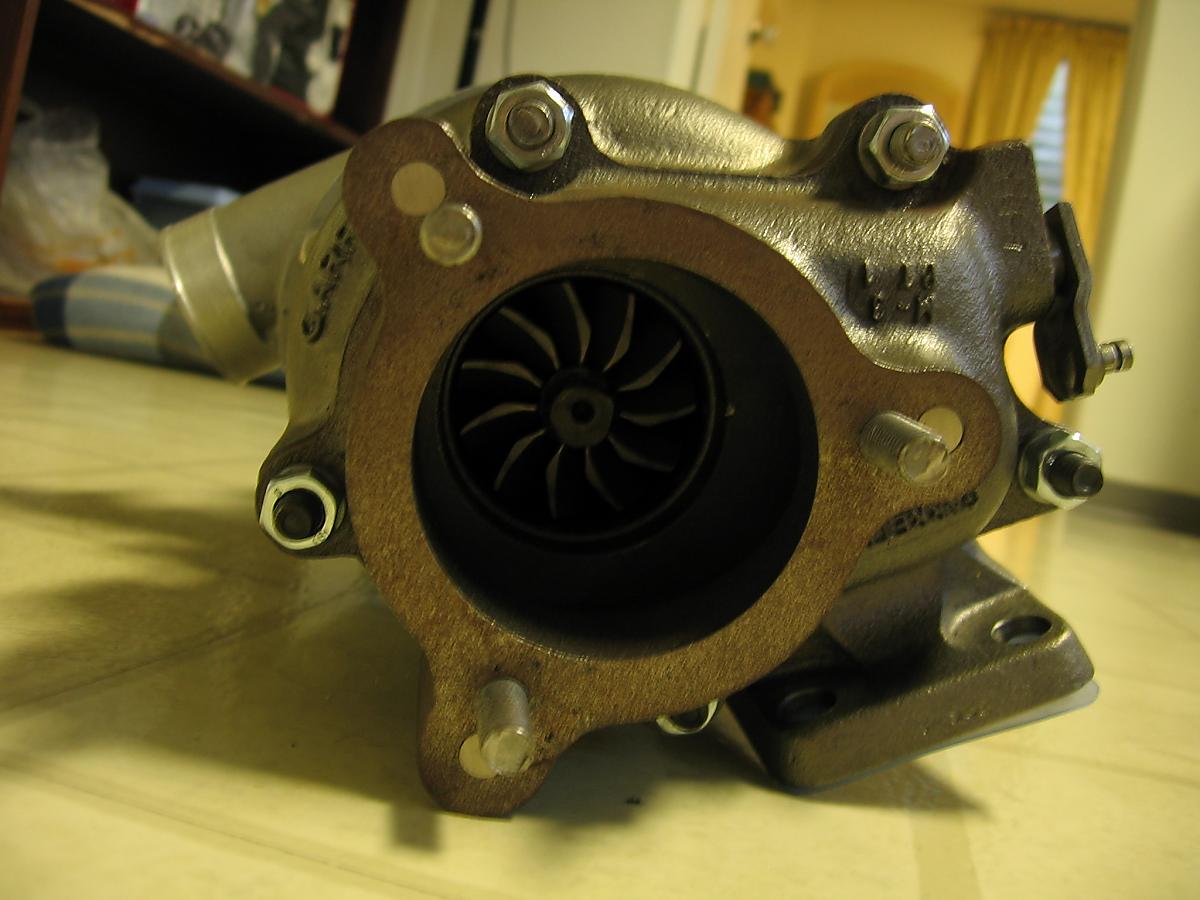

the exhaust blades almost look like they hit something.
zoom2zoom is offline
Old 05-02-2008, 03:58 AM   #3
Junior Member
Thread Starter
iTrader: (5)

Join Date: Jan 2006
Posts: 294
Total Cats: 0
Default

Turbo wasn't even used. No bent fins. Spins freely
supersuk is offline
Old 05-02-2008, 05:17 AM   #4
Junior Member
iTrader: (1)

Join Date: Jul 2007
Location: Monrovia CA
Posts: 238
Total Cats: 0
Default

um, I think I want to buy this,.

just pm'd you.
Zarniwoop42 is offline
Old 05-02-2008, 07:29 AM   #5
Junior Member
Thread Starter
iTrader: (5)

Join Date: Jan 2006
Posts: 294
Total Cats: 0
Default

PM replied!!
supersuk is offline
Old 05-02-2008, 09:59 AM   #6
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,867
Total Cats: 1,790
Default

Quote:
Originally Posted by zoom2zoom View Post
the exhaust blades almost look like they hit something.

looks more like they aren't a standard t3 wheel, like stage II maybe.


super, can you remove the wastegate and measure the wheel for me?
Braineack is online now
Old 05-02-2008, 10:47 AM   #7
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,241
Total Cats: 290
Default

Figure out what size the wheel is and get a true "ford" style five bolt housing to fit.
m2cupcar is offline
Old 05-02-2008, 10:55 AM   #8
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,867
Total Cats: 1,790
Default

oh yeah, and take the compressor housing off and measure the inducer while you are at it.
Braineack is online now
Old 05-02-2008, 03:23 PM   #9
Junior Member
Thread Starter
iTrader: (5)

Join Date: Jan 2006
Posts: 294
Total Cats: 0
Default

Ok i'll measure everything when I get home. Just started the day here in Hawaii. Frackin 8:30 and i'm grouchy. Got plopped with this unexpected business trip to Maui tomorrow so hopefully i'll remember to do it. Is there anything special that I also should measure? like the smaller part of the turbine/compressor wheel?
supersuk is offline
Old 05-02-2008, 03:30 PM   #10
Junior Member
iTrader: (1)

Join Date: Apr 2008
Location: Springfield Oregon
Posts: 174
Total Cats: 0
Default

PM sent
miatamoxie is offline
Old 05-02-2008, 03:36 PM   #11
Elite Member
iTrader: (39)

Zabac's Avatar

Join Date: Sep 2007
Location: High Point NC
Posts: 4,854
Total Cats: 8
Default

wow, friggin great turbo for someone...
Do what M2 says, just get a cheap used housing to elliminate the funky flange ans IWG...that looks like an upgraded wheel.
If you decide to keep that flange on there, cut those bolts of and weld a Vband there...
good price
Zabac is offline
Old 05-02-2008, 06:32 PM   #12
Junior Member
Thread Starter
iTrader: (5)

Join Date: Jan 2006
Posts: 294
Total Cats: 0
Default

Ha ha, too bad I already bought another T3 with the standard turbine housing. New one has the same specs but the turbine wheel looks to be smaller than this one.

Whats good about those "bolts" is that its studs that are on loose. The new owner can just remove them and have a v-band welded on no problem.
supersuk is offline
Old 05-02-2008, 08:01 PM   #13
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,867
Total Cats: 1,790
Default

depending on the size of the turbine I might want it.
Braineack is online now
Old 05-02-2008, 09:52 PM   #14
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,241
Total Cats: 290
Default

I heard somewhere that Mercedes OE turbines were uniquely sized - large than a stage one and small than a two. Of course that makes the exhaust side completely proprietary. You might be able to send begi the turbine housing and just have them drill the flange to fit the merc bolt pattern too.
m2cupcar is offline
Old 05-02-2008, 11:28 PM   #15
Junior Member
Thread Starter
iTrader: (5)

Join Date: Jan 2006
Posts: 294
Total Cats: 0
Default

I've thought about redrilling the holes to match the standard 5 bolt but didn't know how to approach that. Maybe somehow fill the holes with either plugs or welding it and then redrilling it. I just thought that this would be a costly option which I didn't wanna pursue. Better just to buy one that fits and sell this one. Someone could fab their own dp to fit since mines was already made. I don't know how to weld and if I were to source it out it would be pretty darn expensive. Machine shops could prolly do it, but they charge an arm and a leg.
supersuk is offline
Old 05-03-2008, 12:54 AM   #16
Junior Member
Thread Starter
iTrader: (5)

Join Date: Jan 2006
Posts: 294
Total Cats: 0
Default

Ok, just got home and took some measurements.

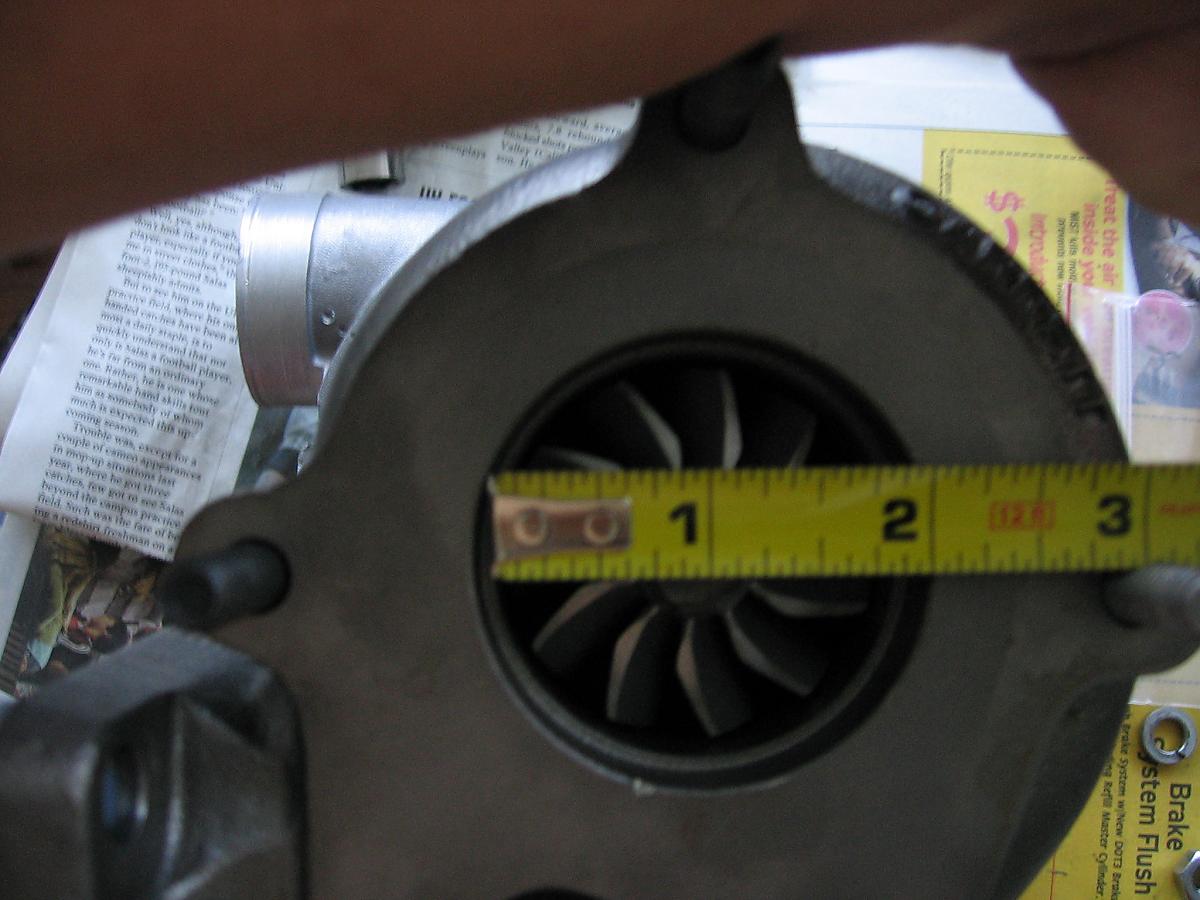

The turbine measures 1.875"

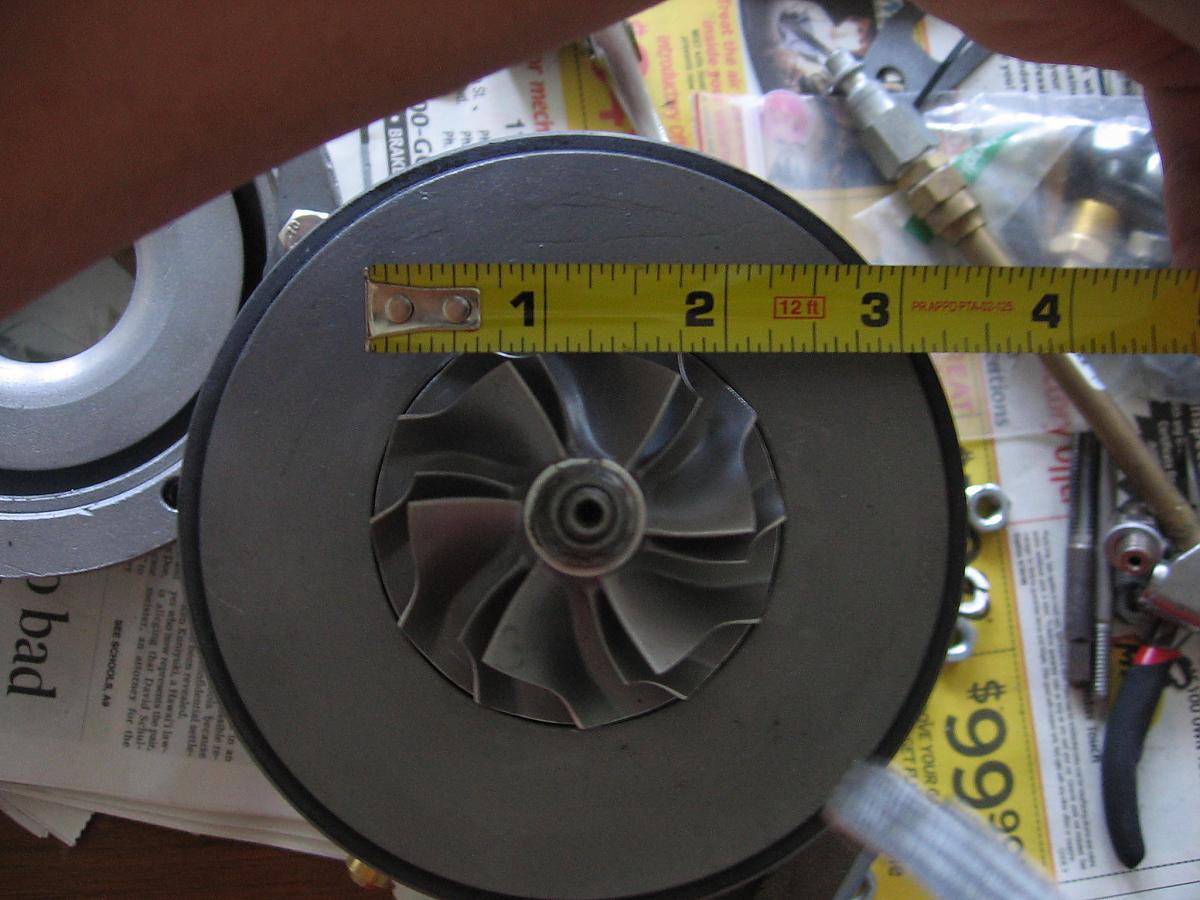

The compressor measures 2.375" for the larger blades and 1.875" for the smaller ones.
Attached Thumbnails
Garrett/Air research T3 Turbo-img_0250.jpg   Garrett/Air research T3 Turbo-img_0251.jpg
supersuk is offline
Old 05-03-2008, 12:44 PM   #17
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,867
Total Cats: 1,790
Default

measures up to be a super60 trim compressor wheel. 47.6mm^2/60mm^2 = .63

turbine is most likely a Mercedes Stage 1.5, the inducer is larger and the blades are spaced, but the exducer is the same size as a standard stage I (1.89).

Can you measure the turbine inlet for me?
Braineack is online now
Old 05-03-2008, 03:25 PM   #18
Junior Member
Thread Starter
iTrader: (5)

Join Date: Jan 2006
Posts: 294
Total Cats: 0
Default

Darn, sorry, but I already packed this bitch. I have a gasket that is kinda similar in size to the turbine inlet, but it might not be that accurate cause I really don't remember. I don't wanna open the box cause I taped it up pretty well.
supersuk is offline
Old 05-03-2008, 10:06 PM   #19
Junior Member
Thread Starter
iTrader: (5)

Join Date: Jan 2006
Posts: 294
Total Cats: 0
Default

Mods, please close this thread. The turbo has been sold. Mahalos
supersuk is offline
Old 05-04-2008, 02:17 PM   #20
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,867
Total Cats: 1,790
Default

aw :(
