Default Enhanced Megasquirt - now with more features!

I would like to announce an important update to my Enhanced Megasquirt line of ECUs.

I have changed the design of the expansion board, which means that compared to the previous version, the new version has:

- Standard sequential ignition
- 2 free programmable outputs
- 2 free digital inputs (optional, on request)
- VSS (speed) input
- 5 more analog inputs. Two prewired for oil temperature and pressure, one for EGT (with onboard circuit, just connect the sensor) and two free inputs for datalogging (ie pre-intercooler air temp, gearbox temp, etc - optional, on request).

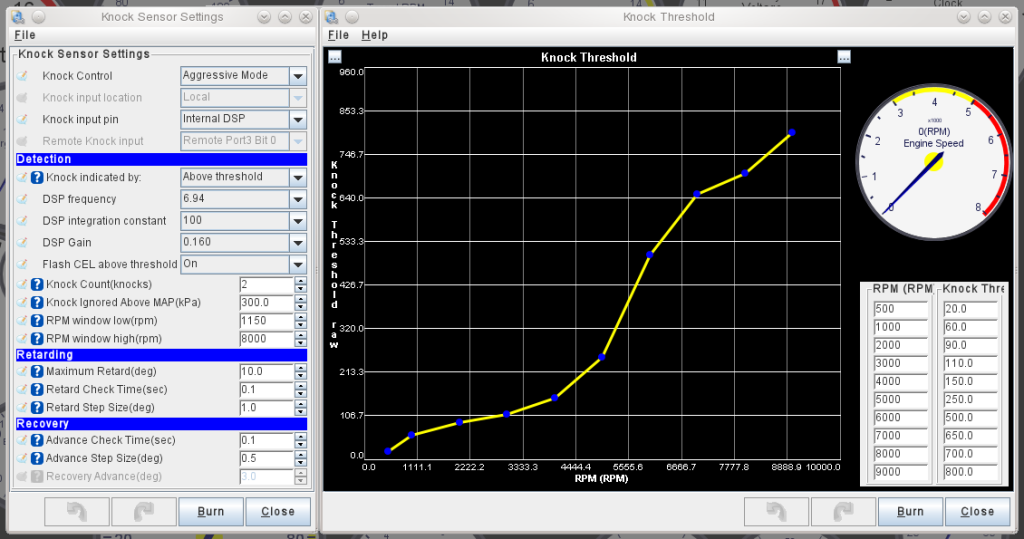

- Fully configurable knocking sensing using the TPIC8101 DSP chip:

Name:  ems2_knock_settings.png
Views: 327
Size:  169.0 KB

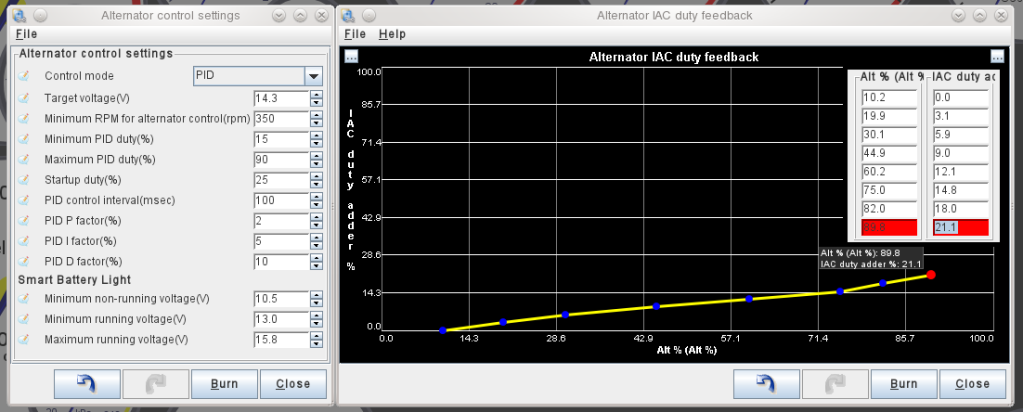

- Fully configurable alternator control and battery light:

Name:  ems2_alternator.png
Views: 243
Size:  115.2 KB

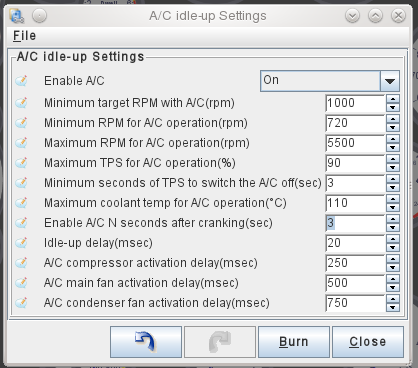

- Fully configurable A/C settings:

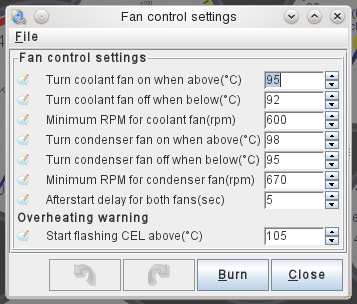

- Fully configurable cooling fan control:

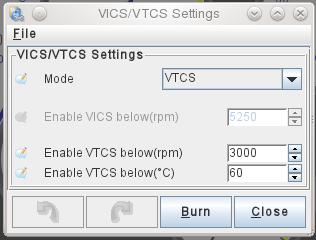

- Fully configurable VICS/VTCS control:



To sum it up, here is the full feature list of this ECU:

- Direct fit, no cutting or splicing required, connects directly to the stock ECU connectors
- 23 inputs
- 20 outputs
- Sequential injection with individual cylinder trimming
- Sequential ignition
- Excellent knock control with DSP, adjustable
- Electronic boost control with 2 seperate boost levels, selectable with an external switch, and/or boost by gear
- Digital alternator control, adjustable
- Smart battery light warns you of overcharging/undercharging, adjustable
- CEL is used for progressive overheating warning, knock warning, low/high oil pressure, high oil temp, adjustable
- A/C control (switches off below 600rpm. above 5500rpm, on 90% TPS or more, all completely adjustable)
- A/C idle-up, adjustable
- P/S idle-up, adjustable
- VICS/VTCS control, adjustable
- Sequential cooling fan control, adjustable
- Clutch and neutral switch input (these are used on several occasions, like for idle control, overrun fuel cut, etc)
- Two seperate fuel/timing maps, selectable with an external switch (ie regular pump gas or race gas or E85)
- Launch control
- Speed input from OEM sensor, current gear calculation
- Two free programmable outputs
- Oil temperature input
- Oil pressure input
- Optional EGT sensor input
- Optional flex fuel sensor input
- Optional free analog input
- All of the features above available at the same time due to the vast number of inputs and outputs


And of course:

- Basemap for YOUR application, not just a generic basemap
- Absolutely brilliant support, nothing less will do.

Please note: this is an update to the current Enhanced MS2 ECU, this is not the new generation ECU that has been discussed in this thread: https://www.miataturbo.net/ms-labs-m...er-pics-66880/

As usual, if you have any questions or comments, I will be more than glad to answer them.

Dimitris
Attached Thumbnails
Enhanced Megasquirt - now with more features!-ems2_ac_settings.png   Enhanced Megasquirt - now with more features!-ems2_cooling_settings.png   Enhanced Megasquirt - now with more features!-ems2_vics_vtcs.png

Last edited by Reverant; 10-15-2012 at 03:51 PM.
Reverant is offline   Reply With Quote
Old 08-17-2012, 11:26 AM   #2
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

+1 on brilliant support.
+1 on everything else
hustler is offline   Reply With Quote
Old 08-17-2012, 11:43 AM   #3
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

Great work Reverant!

Now get back to the new Gen, I want one pronto
richyvrlimited is offline   Reply With Quote
Old 08-17-2012, 11:48 AM   #4
Supporting Vendor
Thread Starter
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

While the next gen unit is so awesome I want to cry, many Miata owners will still like the more affordable updated current gen model, which will easily provide more features and at less cost than any other MS2 ECU (or non MS ECU) right now.
Reverant is offline   Reply With Quote
Old 08-17-2012, 01:59 PM   #5
I haz no trubo
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

Sweet. How close are you to finalizing my mega awesome ms3x? I'll shoot you an email later tonight.
Oscar is offline   Reply With Quote
Old 08-17-2012, 02:03 PM   #6
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,185
Total Cats: 2,582
Default

It just keeps getting better
18psi is offline   Reply With Quote
Old 08-17-2012, 11:54 PM   #7
Senior Member
iTrader: (8)

paNX2K&SE-R's Avatar

Join Date: Dec 2007
Location: Mocksville, NC
Posts: 676
Total Cats: 11
Default

More great innovations for an awesome vendor with incredible customer service/support.
paNX2K&SE-R is offline   Reply With Quote
Old 08-18-2012, 12:07 PM   #8
Elite Member
iTrader: (2)

Join Date: Jun 2009
Location: Istanbul, Turkey
Posts: 2,050
Total Cats: 433
Default

Speaking of features, I think I might have messed up the "homing" function in Tunerstudio...

I started the car in my driveway a couple days ago, and next thing I know I was in Athens...
Rev was kind enough to explain how to turn it off over dinner last night, so we can find our way back to Istanbul in a few days.
Godless Commie is offline   Reply With Quote
Old 08-18-2012, 01:10 PM   #9
Supporting Vendor
Thread Starter
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

You do understand that I didn't just reprogram it like that...so you would have to see me again.
Reverant is offline   Reply With Quote
Old 08-18-2012, 01:29 PM   #10
Elite Member
iTrader: (2)

Join Date: Jun 2009
Location: Istanbul, Turkey
Posts: 2,050
Total Cats: 433
Default

Bring it on...
Godless Commie is offline   Reply With Quote
Old 08-19-2012, 04:03 PM   #11
Senior Member

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

Do I have to come to you the make you finish the new enhanced MS3 for my 99-00... (I can't wait to get this thing...) Please don't tell me I have to wait until Christmas...
Zaphod is offline   Reply With Quote
Old 08-19-2012, 05:00 PM   #12
Supporting Vendor
Thread Starter
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Nope, it will certainly be sooner than that.
Reverant is offline   Reply With Quote
Old 08-19-2012, 06:43 PM   #13
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

But not as soon as an 01+ one for me
richyvrlimited is offline   Reply With Quote
Old 08-19-2012, 07:27 PM   #14
Junior Member
iTrader: (1)

Join Date: Nov 2011
Location: Independence Mo
Posts: 109
Total Cats: 1
Default

Oil logging sounds awesome. Find out possible problems before it causes a major problem.

But could I run a pressure or temp gauge ( autometer senders and gauges if it matters ) and have it log with the ecu also? Or, would I have to add a second sensor for the ecu?

Would it be a simple vampire tap to get the signal to the ecu?

I'm pretty much a noob when it comes to the electrical side of things.
AkaZero is offline   Reply With Quote
Old 08-20-2012, 04:10 AM   #15
Supporting Vendor
Thread Starter
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

You need a second sensor for temps, which would be either the same as the OEM coolant temp sensor or the GM coolant temp sensor. Your choice.

As for the oil pressure sensor, you can use whichever one you want.
Reverant is offline   Reply With Quote
Old 08-20-2012, 10:25 AM   #16
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,185
Total Cats: 2,582
Default

Wait, so in addition to the enhanced ms2 and "regular" ms3 you will soon be making an "enhanced ms3"?



Also, probably another silly question but: will tapping into the stock o2 wiring with a wideband output be available on these units like the 99+ MSPNP that diy offers?

At least that's what I got out of one of the recent MS threads: that you don't have to run a seperate wire from wideband to MS unit, but simply run it to primary or secondary o2 sensor wiring and set it up in MS to read from said wiring.

Don't know if that makes sense (its really early and I'm on my 1st cup of coffee lol)
18psi is offline   Reply With Quote
Old 08-20-2012, 10:32 AM   #17
Supporting Vendor
Thread Starter
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

The current gen (gen 1) of the Enhanced MS2 is MS2 only.

The new gen (gen 2) will be MS2 or MS3. And yes, Enhanced.
Reverant is offline   Reply With Quote
Old 08-22-2012, 02:35 PM   #18
Supporting Vendor
Thread Starter
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

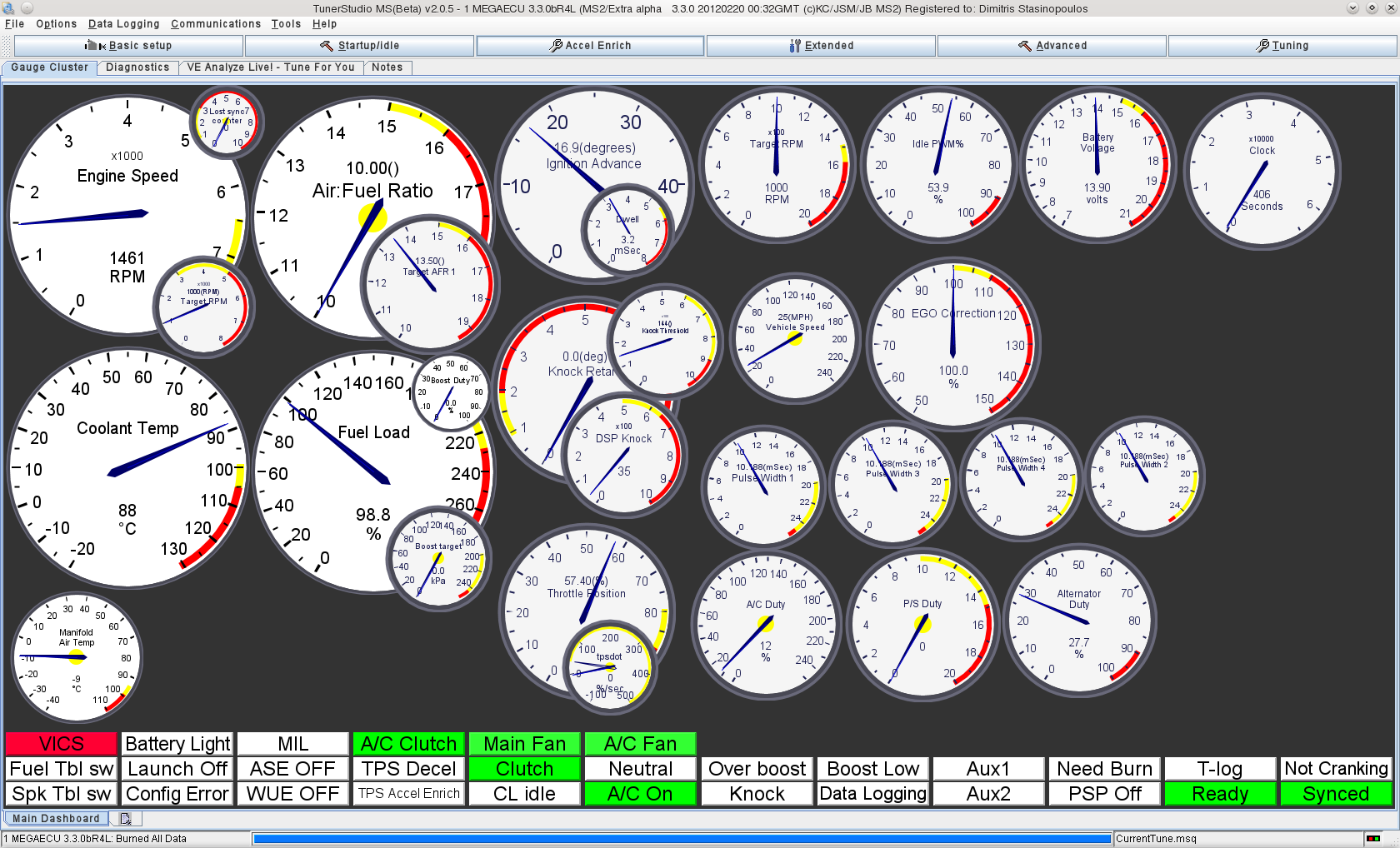

Added indicators for all inputs AND outputs:

Name:  ems2_output_indicators.png
Views: 242
Size:  490.5 KB
Reverant is offline   Reply With Quote
Old 08-22-2012, 02:46 PM   #19
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,185
Total Cats: 2,582
Default

any ETA on the gen2? I'm not in a hurry, just curious
18psi is offline   Reply With Quote
Old 08-22-2012, 02:50 PM   #20
Supporting Vendor
Thread Starter
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

No ETA yet, I'm trying to make it as solid as possible, due to the complexity of this ECU. Also, whatever work I am doing in gen 1.5 will make it to gen 2, so its not time lost.
Reverant is offline   Reply With Quote
