Old 08-22-2012, 02:53 PM   #21
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

I'm in a hurry, hurry up Reverant :-P

I jest I can wait for the awesomeness, its just been a long time without boost now.

Though if you want someone to run as a test mule... ;-)
richyvrlimited is offline   Reply With Quote
Old 08-22-2012, 03:53 PM   #22
Supporting Vendor
Thread Starter
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Trust me, I'm "in a hurry" as well, I want this on my car more than you can think of.
Reverant is offline   Reply With Quote
Old 08-22-2012, 03:55 PM   #23
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

+1
18psi is offline   Reply With Quote
Old 08-22-2012, 04:40 PM   #24
Supporting Vendor
Thread Starter
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

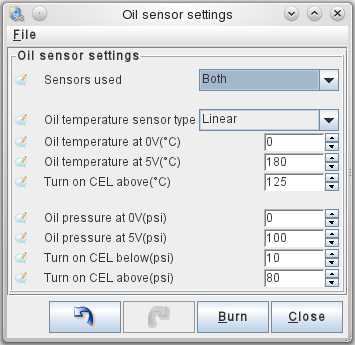

Oil temperature and pressure configuration settings:



Sensors used: Temperature, pressure, both
Oil temp sensor type: Same as coolant, same as IAT, linear

The CEL is used again to warn of possible problems.
Attached Thumbnails
Enhanced Megasquirt - now with more features!-ems2_oil_sensor_settings.png
Reverant is offline   Reply With Quote
Old 08-23-2012, 04:46 PM   #25
Senior Member

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

How do you get 5v out of the oil pressure and oil temp sensors...?
Zaphod is offline   Reply With Quote
Old 08-23-2012, 04:48 PM   #26
Elite Member
iTrader: (2)

Join Date: Jun 2009
Location: Istanbul, Turkey
Posts: 2,050
Total Cats: 433
Default

Quote:
Originally Posted by Zaphod View Post
How do you get 5v out of the oil pressure and oil temp sensors...?
By feeding said sensors with 5V for reference.
Godless Commie is offline   Reply With Quote
Old 08-23-2012, 06:15 PM   #27
Supporting Vendor
Thread Starter
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

What he said.
Reverant is offline   Reply With Quote
Old 08-24-2012, 04:37 AM   #28
Senior Member

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

O.K. this is where my electronic knowledge craps out...
Zaphod is offline   Reply With Quote
Old 08-24-2012, 08:18 AM   #29
Supporting Vendor
Thread Starter
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

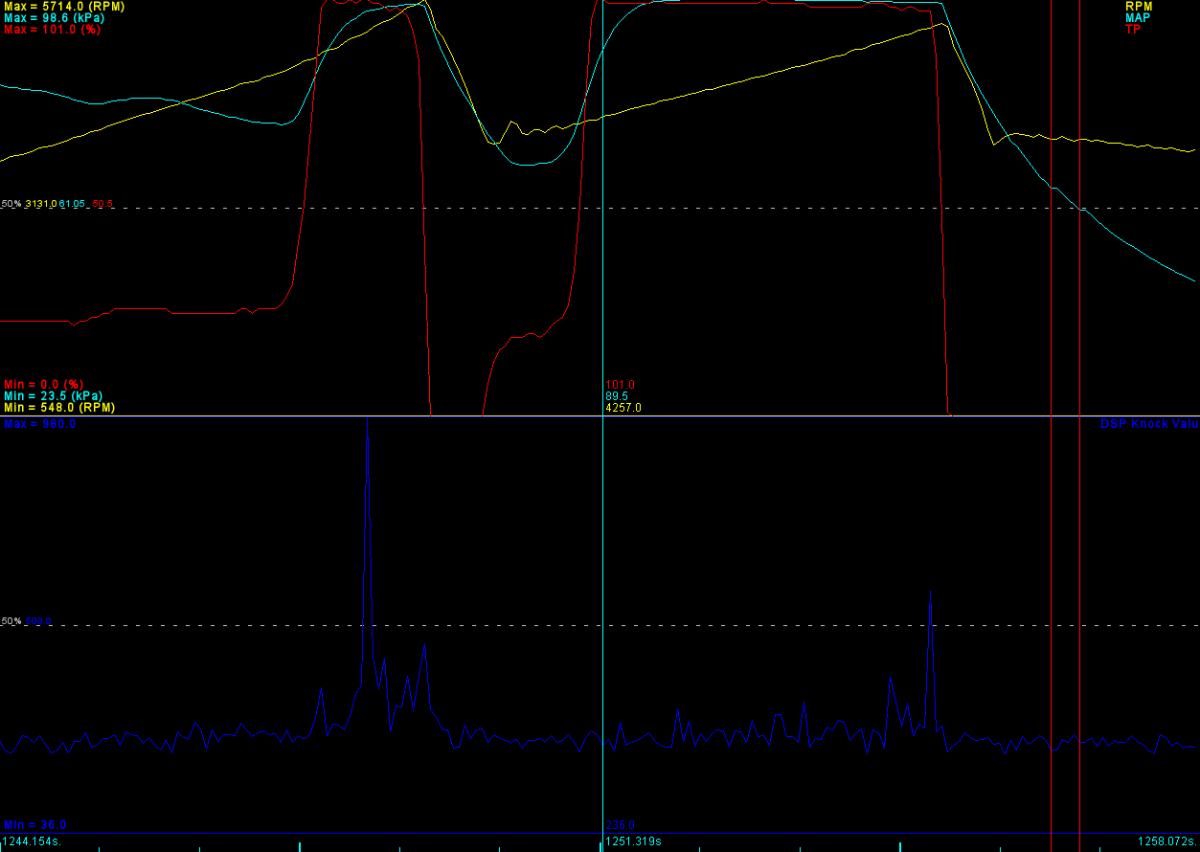

Went for a test drive on the second prototype of the "Lite" line. Knock sensing is AWESOME. Look below, each time I was hearing knock, I was automatically backing off the throttle. Datalog confirms there was severe knock, and the CEL was lighting up as expected:



Settings for this:



I need to increase the threshold between 4000rpm and 6000rpm though.
Attached Thumbnails
Enhanced Megasquirt - now with more features!-ems2_knocking_detected.jpg
Reverant is offline   Reply With Quote
Old 08-24-2012, 09:53 AM   #30
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,833
Total Cats: 1,786
Default

Oh i do like indicators. I always want to know when outputs have triggered and such, like the a/c clutch.
Braineack is offline   Reply With Quote
Old 08-24-2012, 03:52 PM   #31
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,191
Total Cats: 260
Default

This is 3.2.1??

All of this can be had with a firmware update & reinstall current tune?
Erat is offline   Reply With Quote
Old 08-24-2012, 03:54 PM   #32
Supporting Vendor
Thread Starter
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

No. It requires on of my own Megasquirts, that include a special expansion board that adds all these features.
Reverant is offline   Reply With Quote
Old 08-24-2012, 04:20 PM   #33
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,191
Total Cats: 260
Default

Quote:
Originally Posted by Reverant View Post
No. It requires on of my own Megasquirts, that include a special expansion board that adds all these features.
Hmm bummer. Sounds like you need to build me a real MS. This busted hacked up POS is useless.
Erat is offline   Reply With Quote
Old 08-25-2012, 08:44 AM   #34
Junior Member
iTrader: (1)

Join Date: Nov 2011
Location: Independence Mo
Posts: 109
Total Cats: 1
Default

I can't wait to get one of these installed.

Going laptop shopping this next week I think.
Should I go for the Intel Atom netbook, or something a little more powerful?
AkaZero is offline   Reply With Quote
Old 08-25-2012, 09:00 AM   #35
Elite Member
iTrader: (2)

Join Date: Jun 2009
Location: Istanbul, Turkey
Posts: 2,050
Total Cats: 433
Default

Quote:
Originally Posted by AkaZero View Post
I can't wait to get one of these installed.

Going laptop shopping this next week I think.
Should I go for the Intel Atom netbook, or something a little more powerful?
I am interested in this, too.

Thinking about switching to an atom from my current 15.4 laptop. Too big for the seat.
Godless Commie is offline   Reply With Quote
Old 08-25-2012, 09:30 AM   #36
Supporting Vendor
Thread Starter
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

I would recommend a smallish core i3 or i5 notebook instead. I have the HP2540p for tuning and I love it.
Reverant is offline   Reply With Quote
Old 08-26-2012, 02:19 PM   #37
Supporting Vendor
Thread Starter
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

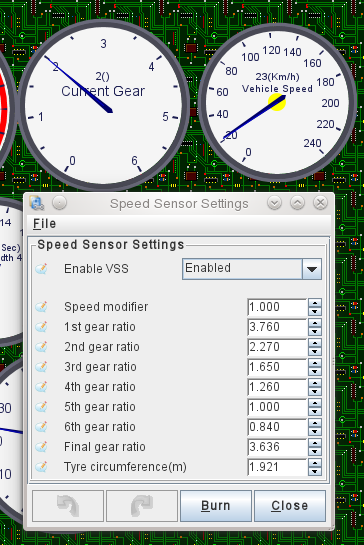

Added VSS (vehicle speed sensor) configuration and gear detection:

Attached Thumbnails
Enhanced Megasquirt - now with more features!-ems2_vss_settings.png
Reverant is offline   Reply With Quote
Old 08-26-2012, 08:49 PM   #38
Junior Member
iTrader: (1)

Join Date: Nov 2011
Location: Independence Mo
Posts: 109
Total Cats: 1
Default

Does speed sensor work with the analog speedo cabled cars?
Somehow magically reading from the gauge cluster.
AkaZero is offline   Reply With Quote
Old 08-26-2012, 09:39 PM   #39
Senior Member

Join Date: Aug 2008
Location: Baton Rouge
Posts: 700
Total Cats: 17
Default

When will these be available? looking to buy a MS in the next week, or at least place the order for one.
golftdibrad is offline   Reply With Quote
Old 08-26-2012, 10:04 PM   #40
Junior Member

Join Date: Jul 2012
Location: Campbell, CA
Posts: 65
Total Cats: 0
Default

It would be great to have Alternator constrained by TPS too. Ideally you'd want the alternator only working under light or no-load (engine) conditions.
Ski_Lover is offline   Reply With Quote
