Default 9093MSPNP Tach output

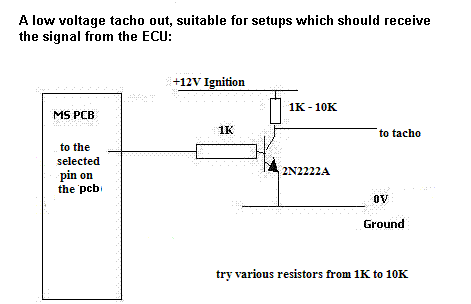

So ive decided to go with a IGN-4 Coil setup with Diyautotune's Quad spark coil driver, But i have a question about the Tach output. I built the circuit linked below, but for the input do i just tie both ignition outputs together into it? or do i need to make a separate circuit for each ignition output? Thanks for the help guys!
Attached Thumbnails
9093MSPNP Tach output-lowvtacho.gif
hochkis is offline   Reply With Quote
Old 03-08-2012, 02:53 PM   #2
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,318
Total Cats: 1,916
Default

That circuit is designed to be driven via a dedicated "tach out" pin of the Megasquirt, unrelated to the actual ignition wires. I'll have to do some digging to see if the MSPnP supports this on the 1.6 model. (Or the folks from DIY will hopefully chime in shortly.)
Joe Perez is online now   Reply With Quote
Old 03-08-2012, 03:17 PM   #3
Junior Member
Thread Starter

Join Date: Oct 2010
Location: las vegas
Posts: 244
Total Cats: 4
Default

Would the "tach out" pin not be the same as the combined output of the two ignition outputs? It should just be a 5v pulse every time there is a spark right?
hochkis is offline   Reply With Quote
Old 03-08-2012, 04:20 PM   #4
Supporting Vendor

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,266
Total Cats: 51
Default

The Gen 2 has a tach output, the original MSPNP doesn't.

Combining the two 5 volt spark outputs would mean you lose the tach signal once the dwell starts to overlap.
Matt Cramer is offline   Reply With Quote
Old 03-08-2012, 08:32 PM   #5
Junior Member
Thread Starter

Join Date: Oct 2010
Location: las vegas
Posts: 244
Total Cats: 4
Default

Now I'm sad.... Anyway I could add the tach out circuit? Or is my only real option an aftermarket inductive tach?
Could I run the tach off the cas or a trigger wheel? Completely seperate from the ecu?
hochkis is offline   Reply With Quote
Old 03-09-2012, 10:38 AM   #6
Supporting Vendor

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,266
Total Cats: 51
Default

You might be able to run the tach off the CKP pin, but I can't promise it will work.

It is possible, but difficult, to make a tach output circuit and put it in the MSPNP case.
Matt Cramer is offline   Reply With Quote
Old 03-09-2012, 11:10 AM   #7
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,868
Total Cats: 1,790
Default

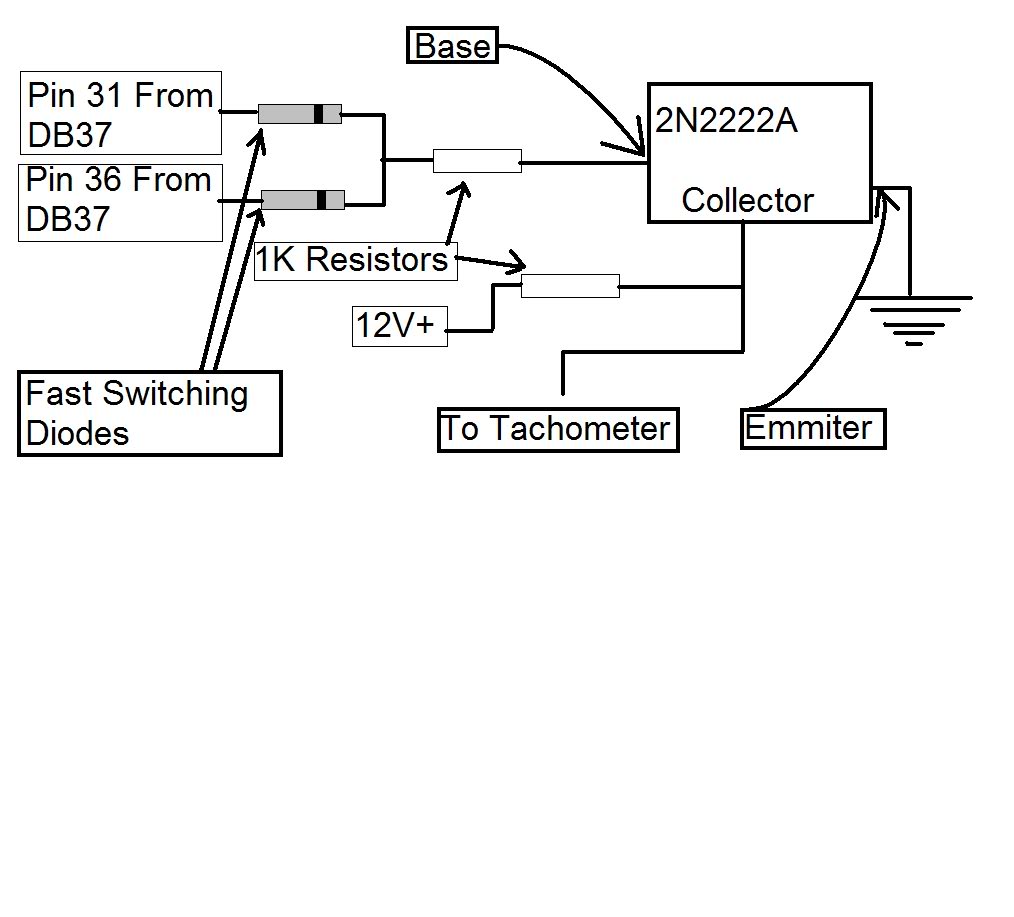

this will work:

Attached Thumbnails
9093MSPNP Tach output-richardspic.jpg
Braineack is online now   Reply With Quote
Old 03-09-2012, 12:01 PM   #8
Junior Member
Thread Starter

Join Date: Oct 2010
Location: las vegas
Posts: 244
Total Cats: 4
Default

Thanks Brain! I'll have to give that one a try.
hochkis is offline   Reply With Quote
Old 03-09-2012, 02:32 PM   #9
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

I'm not sure if that will work, as like Matt said, when dwell periods overlap. I would build the circuit shown in the 1st post.
Ben is offline   Reply With Quote
Old 03-09-2012, 03:32 PM   #10
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,868
Total Cats: 1,790
Default

Quote:
Originally Posted by Ben View Post
I'm not sure if that will work, as like Matt said, when dwell periods overlap. I would build the circuit shown in the 1st post.

yeah the first will work, this was just another option.

pretty sure both magnamx-5 and patmx5 are running the one i posted.
Braineack is online now   Reply With Quote
Old 03-09-2012, 06:46 PM   #11
Junior Member
Thread Starter

Join Date: Oct 2010
Location: las vegas
Posts: 244
Total Cats: 4
Default

They are pretty much the same other than the diodes.

Brain, the inputs there (pins 31 and 36) are the standard 5v ignition outputs right?
hochkis is offline   Reply With Quote
