Old 06-15-2011, 02:13 PM   #1
Newb
Thread Starter

Join Date: Apr 2011
Location: kw, FL
Posts: 34
Total Cats: 0
Default Megasquirt I v3. questions

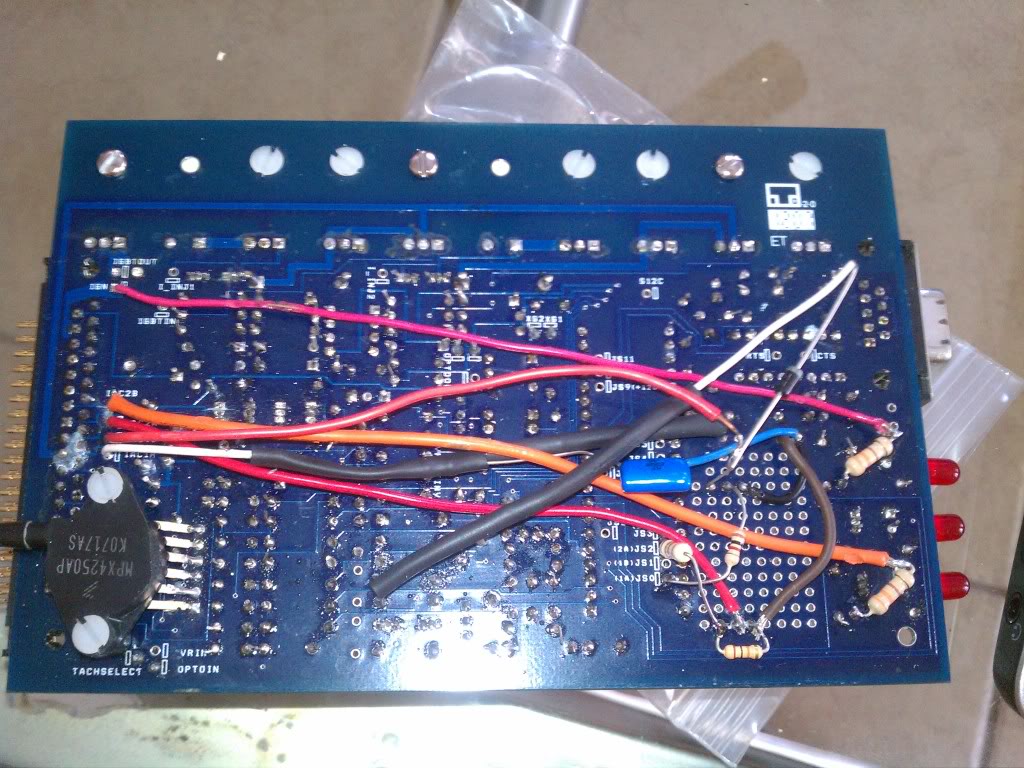

Name:  IMG_20110615_124751.jpg
Views: 3
Size:  174.0 KB

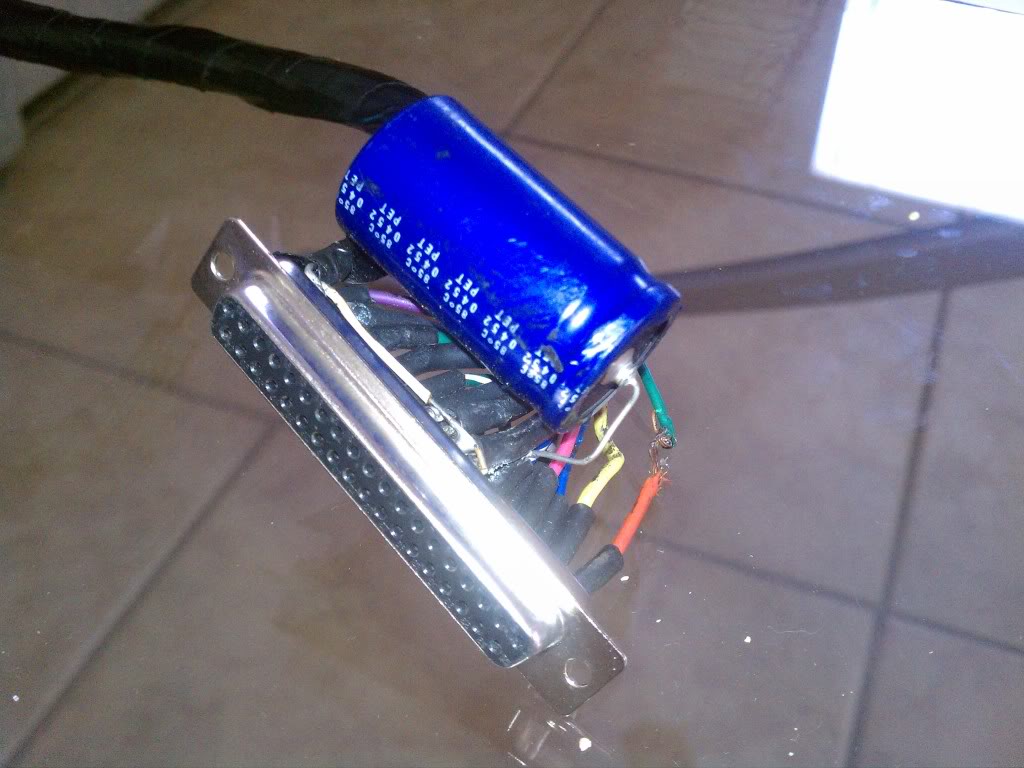

Name:  IMG_20110615_130359.jpg
Views: 2
Size:  97.9 KB

Got It from another person. He said thats megasquirt I v3 board (boost control, fan control and Ign2)
So here is the picture of it and harness.
He told me that it has old configuration of fuel pump and I need to wire it to fuel relay. any other way to do it??
and how is it looks, can I install it or I need to do some mods???
and im on my way ordering neew harness.

And what about capacitor on harness. it looks like it jumped to.....
850808 is offline   Reply With Quote
Old 06-16-2011, 05:42 PM   #2
Newb
Thread Starter

Join Date: Apr 2011
Location: kw, FL
Posts: 34
Total Cats: 0
Default

Very helpful. Forum, thanx ...
850808 is offline   Reply With Quote
Old 06-16-2011, 06:19 PM   #3
Senior Member
iTrader: (13)

Join Date: Sep 2006
Location: San Diego
Posts: 606
Total Cats: 0
Default

You post a single picture of your board with no real details and expect us to tell you that everything's OK? Then when we don't you, you get all butthurt. Help us to help you. Take a pic of the other side of the board. Or better yet, go to the saved post on building an MS and compare your setup to the pics there.
jasonrobo02 is offline   Reply With Quote
Old 06-16-2011, 06:25 PM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

looks sort done correct. harness is lol. i can look at it for you, im just bad at responding to PMs.
Braineack is offline   Reply With Quote
Old 06-16-2011, 06:35 PM   #5
Junior Member

Join Date: Nov 2009
Location: Jax Fl
Posts: 469
Total Cats: 30
Default

Orange wire to the far right of the plug looks fubar.
Tw34k is offline   Reply With Quote
Old 06-16-2011, 06:55 PM   #6
Newb
Thread Starter

Join Date: Apr 2011
Location: kw, FL
Posts: 34
Total Cats: 0
Default

I never deal before with Ecu, its really not to hard say hey dude make more pictures and post them. As I told there are 3 mods made like fan,boost control and ign2. Thanx brain. I just ordered new harness, may I send them to you to make pnp to stock Ecu harness? Will pay for sure and I need a base map for 550cc injcectors, 190hp fuel pump??
850808 is offline   Reply With Quote
Old 06-16-2011, 07:40 PM   #7
Newb
Thread Starter

Join Date: Apr 2011
Location: kw, FL
Posts: 34
Total Cats: 0
Default

Or will be better if I send you Ms and harness and you can do it pnp? Braineack. If so I need address, PayPal and amount to be send?
850808 is offline   Reply With Quote
Old 06-17-2011, 10:31 AM   #8
Supporting Vendor

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,266
Total Cats: 51
Default

Quote:
Originally Posted by jasonrobo02 View Post
You post a single picture of your board with no real details and expect us to tell you that everything's OK? Then when we don't you, you get all butthurt. Help us to help you. Take a pic of the other side of the board. Or better yet, go to the saved post on building an MS and compare your setup to the pics there.
And this is not an MSPNP, either; it is a home-built V3.0. From the pictures you posted, it doesn't seem to have anything blatantly wrong with it, but information about the MSPNP (which is a purpose built device from us) will not always be correct for what you've got since we did a couple things differently.
Matt Cramer is offline   Reply With Quote
