MSPNP1 - Pin confirmation


Old 08-04-2015, 11:13 AM
  #1
Junior Member
Thread Starter

Join Date: May 2011
Location: Signal Hill, CA
Posts: 255
Total Cats: 12
Default MSPNP1 - Pin confirmation

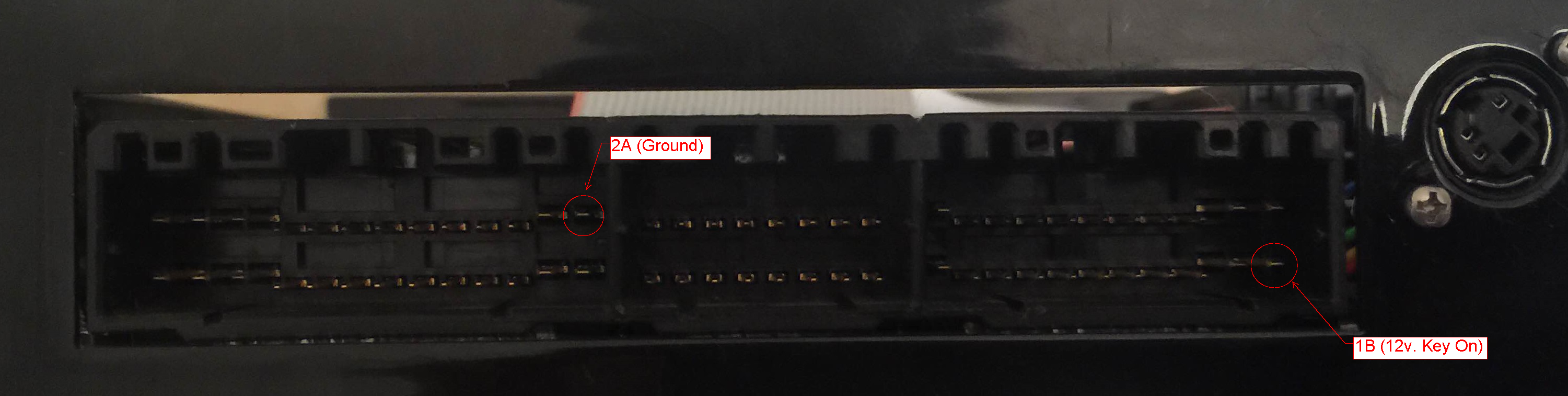

Trying to power the mspnp1 unit outside the car, to test out some serial connection issues that I am having.

Just wanted to confirm that these are the pins.
Attached Thumbnails MSPNP1 - Pin confirmation-o6ow2tn.png
.one lane is offline
Old 08-04-2015, 12:10 PM
  #2
Boost Czar
iTrader: (62)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 76,372
Total Cats: 2,294
Default

correct.
Braineack is offline
Old 08-04-2015, 12:22 PM
  #3
Junior Member
Thread Starter

Join Date: May 2011
Location: Signal Hill, CA
Posts: 255
Total Cats: 12
Default

Thank you!
.one lane is offline
Old 08-08-2015, 08:50 PM
  #4
Junior Member
Thread Starter

Join Date: May 2011
Location: Signal Hill, CA
Posts: 255
Total Cats: 12
Default

Been having issues with connection, tried to flash a new firmware and I kept getting an error. This wasn't an issue before, but my car was put in storage for awhile and now nothing works lol

Info:
Windows 7 64bit
FTDI chipset USB to serial cable
Did the boot jumper thingy
MSPNP is out of the car

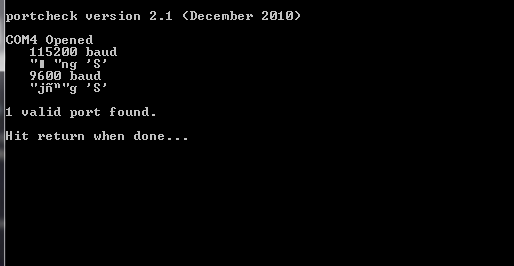

Port check:

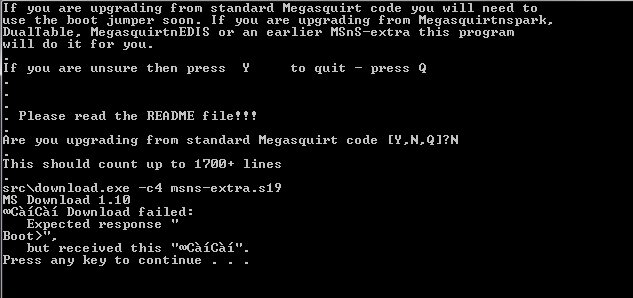

Flash
Attached Thumbnails MSPNP1 - Pin confirmation-iqcg8qs.png   MSPNP1 - Pin confirmation-vbf64b0.png
.one lane is offline
Old 08-08-2015, 09:30 PM
  #5
Boost Czar
iTrader: (62)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 76,372
Total Cats: 2,294
Default

email that to [email protected] for support.
Braineack is offline
Old 08-09-2015, 09:41 AM
  #6
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,651
Total Cats: 111
Default

<p>Was the boot jumper installed?&nbsp; What brand USB adapter?</p><p>Your serial comms appear to be garbage.&nbsp; If the boot jumper was installed, you need to replace your tuning cable and/or USB adapter.</p>
__________________
DIYAutoTune.com Tech Support
10AE-T|BEGi S4|MSPNP-Pro EMS|Enthuza Duals|6UL|Etc
Track Rat|2001|VVT|MS3-Pro EMS|Enthuza|Exocet in Progress

Originally Posted by concealer404 View Post
Buy an MSPNP Pro, you'll feel better.
Ben is offline
Old 08-09-2015, 12:48 PM
  #7
Junior Member
Thread Starter

Join Date: May 2011
Location: Signal Hill, CA
Posts: 255
Total Cats: 12
Default

I used a piece of wire to short the boot, as for USB adapter, I originally was using this with no issues: TRENDnet | Products | TU-S9 | USB to Serial Converter which is a prolific chipset. After getting tired of trying to make it work, I browsed the msextra forums, and many recommended a ftdi base chipset for the USB adapter.

So I went out and bought this thing: SABRENT Model SBT-FTDI - Newegg.com

and still no luck. I considered the tuning cable to be bad, so I opened up the serial connector but I didn't see anything out of the ordinary.
.one lane is offline
Old 08-09-2015, 04:11 PM
  #8
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,651
Total Cats: 111
Default

<p>It looks like symptoms of a bad cable.&nbsp; The other option is that the bad cable screwed comms up so bad, the monitor on the MS1 chip is toast.&nbsp; If that's the case, the easiest solution is to purchase a new MS1 chip.&nbsp; They're cheap.</p>
__________________
DIYAutoTune.com Tech Support
10AE-T|BEGi S4|MSPNP-Pro EMS|Enthuza Duals|6UL|Etc
Track Rat|2001|VVT|MS3-Pro EMS|Enthuza|Exocet in Progress

Originally Posted by concealer404 View Post
Buy an MSPNP Pro, you'll feel better.
Ben is offline
Old 08-09-2015, 05:30 PM
  #9
Junior Member
Thread Starter

Join Date: May 2011
Location: Signal Hill, CA
Posts: 255
Total Cats: 12
Default

Guessing there's no way to test if it's a bad cable or the monitor on the ms1 is toast?

I just want to make absolutely sure that my mspnp took a dump on me before purchasing another one.
.one lane is offline
Old 08-23-2015, 04:04 AM
  #10
Junior Member

Join Date: Sep 2007
Posts: 56
Total Cats: 0
Default

Sorry to hijack, but this doesn't really seem worthy of a new thread. Is there any way to find out which pin is which? I bought a DIYPNP already built and I can't find a pinout anywhere. I mean I can probably figure it out if I look at a stock ECU harness pinout and then look at the board and all the documentation, but I figure someone HAS to have already done this. My car is a 96 manual with a blue board (3.0) DIYPNP.
Mikel is offline
Old 08-24-2015, 10:55 AM
  #11
Junior Member
Thread Starter

Join Date: May 2011
Location: Signal Hill, CA
Posts: 255
Total Cats: 12
Default

.one lane is offline
Old 08-24-2015, 12:09 PM
  #12
Boost Czar
iTrader: (62)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 76,372
Total Cats: 2,294
Default

Originally Posted by Mikel View Post
Sorry to hijack, but this doesn't really seem worthy of a new thread. Is there any way to find out which pin is which? I bought a DIYPNP already built and I can't find a pinout anywhere. I mean I can probably figure it out if I look at a stock ECU harness pinout and then look at the board and all the documentation, but I figure someone HAS to have already done this. My car is a 96 manual with a blue board (3.0) DIYPNP.
I was going to write some pissy-mean comment, but it was actually just easier to link what you needed:

How to jumper and configure your DIYPNP to get your car fired up on the first try

1996-1997 Mazda Miata USDM 1.8L BP MT
Braineack is offline
Old 08-24-2015, 12:56 PM
  #13
Junior Member

Join Date: Sep 2007
Posts: 56
Total Cats: 0
Default

Originally Posted by Braineack View Post
I was going to write some pissy-mean comment, but it was actually just easier to link what you needed:

How to jumper and configure your DIYPNP to get your car fired up on the first try

1996-1997 Mazda Miata USDM 1.8L BP MT
I swear to black baby jesus I searched their site, oh well, thanks.
Mikel is offline
Old 09-12-2015, 05:45 PM
  #14
Junior Member
Thread Starter

Join Date: May 2011
Location: Signal Hill, CA
Posts: 255
Total Cats: 12
Default

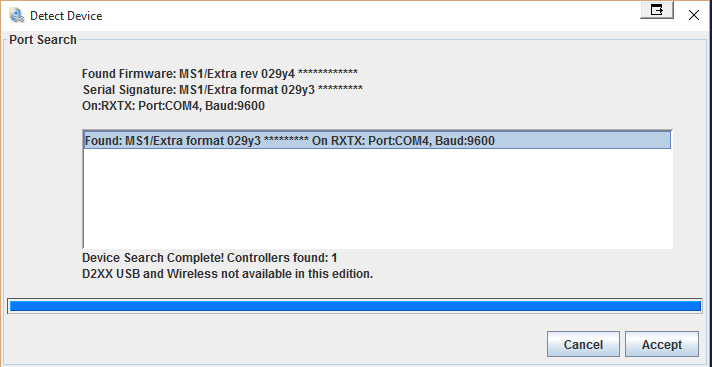

Update: Issue resolved

For whatever reason the mspnp's cpu was toast. Replaced it, and now the unit works flawlessly.

Attached Thumbnails MSPNP1 - Pin confirmation-ot0t6mg.png

Last edited by .one lane; 09-12-2015 at 08:22 PM.
.one lane is offline
