Default mspnp2 failure from diyautotune?

Hey guys finally broke down and got a megasquirt and wow I was blown away how well my car ran even on the base tune. However after 300 miles something went terribly wrong. I set out on a road trip and about 80 miles in, injectors 1 and 3 were stuck wide open. I reloaded the base tune and nothing. A buddy at the shop i hang out at said it might be a injector driver. Diyautotune has been helpful, but has anyone else had a bad pnp? Were they willing to fix the mistake? Anyways I also checked my entire harness for shorts and it runs ok on the stock ecu. Just a little disappointed for 820 dollars... I guess it could happen
with anything. Also on a side note diyautotune needs a phone number haha!
claurence42 is offline   Reply With Quote
Old 11-25-2013, 11:17 AM   #2
Supporting Vendor

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,266
Total Cats: 51
Default

We had a supplier change transistors on us without warning to ones that had a slightly different package size. These could contact the case and short out. As soon as we found out about the problem, we came up with a way to fix it, but a couple slipped out before we realized what's going on. Sounds like you got one from that batch. We can get these repaired and turned around in a few days; it's an easy fix. Sorry for the inconvenience.
Matt Cramer is offline   Reply With Quote
Old 11-25-2013, 07:33 PM   #3
Newb
Thread Starter

Join Date: Jul 2013
Posts: 36
Total Cats: 0
Default

No problem I appreciate the fast response. I'll test it out of the casing, and keep you guys updated. I've been working with Stephen a little bit on the issue. Can't wait to get off work and be able to drive the miata again!
claurence42 is offline   Reply With Quote
Old 11-27-2013, 03:20 PM   #4
Newb
Thread Starter

Join Date: Jul 2013
Posts: 36
Total Cats: 0
Default

Hey just following up I took it out of the case and set it on a antistatic mat. Injectors still stuck. Where should I go from here?
Thanks!
Chase
claurence42 is offline   Reply With Quote
Old 12-12-2013, 01:15 PM   #5
Newb
Thread Starter

Join Date: Jul 2013
Posts: 36
Total Cats: 0
Default

Hey Matt, are you guys closed for the holidays? Ive sent 3 emails with no response. Hoping to get back on the road soon. Thanks!
claurence42 is offline   Reply With Quote
Old 12-13-2013, 02:25 PM   #6
Junior Member

Join Date: Sep 2012
Location: Cranston, RI
Posts: 276
Total Cats: 10
Default

Quote:
Originally Posted by claurence42 View Post
Hey Matt, are you guys closed for the holidays? Ive sent 3 emails with no response. Hoping to get back on the road soon. Thanks!
I also had not heard anything from Matt since Monday. I got a response today after leaving a voicemail yesterday. I guess one of the techs was on the road all week and the other was dealing with some urgent issues.
Leach0789 is offline   Reply With Quote
Old 12-18-2013, 12:03 PM   #7
Supporting Vendor

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,266
Total Cats: 51
Default

Quote:
Originally Posted by Leach0789 View Post
I also had not heard anything from Matt since Monday. I got a response today after leaving a voicemail yesterday. I guess one of the techs was on the road all week and the other was dealing with some urgent issues.
Pretty much - most of our techs were at PRI. Things are back to normal now.
Matt Cramer is offline   Reply With Quote
Old 01-06-2014, 12:49 AM   #8
Newb
Thread Starter

Join Date: Jul 2013
Posts: 36
Total Cats: 0
Default

Just wanted to say that Matt and his team were very helpful and got everything cleared up, even shipped it two day air to CA. Thanks guys!
claurence42 is offline   Reply With Quote
Old 07-17-2014, 07:04 PM   #9
Tweaking Enginerd
iTrader: (2)

Join Date: Mar 2013
Location: Boulder, CO
Posts: 480
Total Cats: 37
Default

Hacksaw worked for me
Ted75zcar is offline   Reply With Quote
Old 07-18-2014, 10:51 AM   #10
Supporting Vendor

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,266
Total Cats: 51
Default

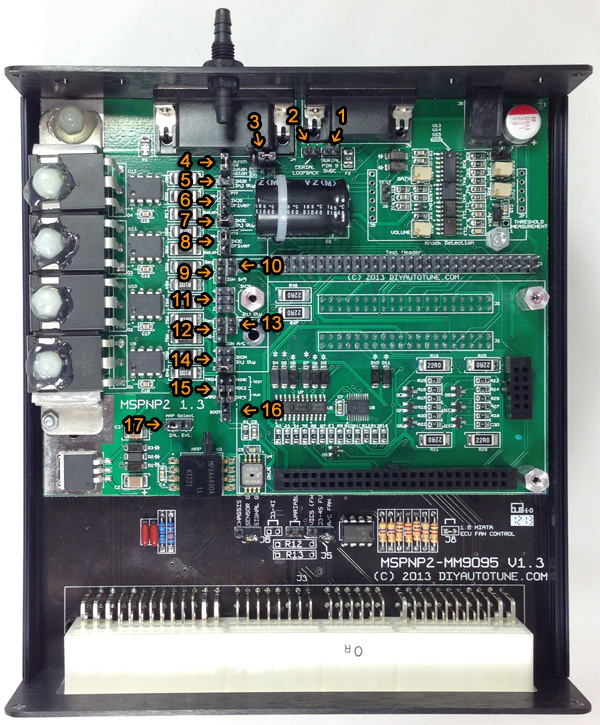

That was about what the fix was, until we could get a new board spin out.



You can see the new design uses an internal heat sink (at left) designed for the new packaging.
Attached Thumbnails
mspnp2 failure from diyautotune?-jumpers13.jpg
Matt Cramer is offline   Reply With Quote
Old 07-18-2014, 03:24 PM   #11
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

curious about this hacksaw fix...
Braineack is offline   Reply With Quote
Old 07-18-2014, 03:41 PM   #12
Tweaking Enginerd
iTrader: (2)

Join Date: Mar 2013
Location: Boulder, CO
Posts: 480
Total Cats: 37
Default

Sorry, should have been more descriptive ....

So basically I came across a situation where the MSPNP worked great when not in the enclosure, but as soon as I buttoned it up the car would behave very strangely. This includes rough idle, rich AFR, poor starting, and operational changes with connections/disconnections of the USB cable. I discovered that we were getting battery voltage into the case, which was creating various shorting paths (through the USB cable for example). This is measurable by using a DMM between any of the connector shells to the GND reference. You will see a non-zero voltage.

The cause is a TO package mounted to the connector panel (presumably for heat dissipation) shorting the TAB connection to the enclosure close to the screw from the connector panel into the extrusion. I simply used a hack-saw to cut the tab back (on a diagonal) such that the tab no longer made contact with the enclosure when closed. The hacksaw fix damaged the insulation pad under the TO package, so I used electrical tape to provide electrical insulation.

It should be noted that I doubt this unit was DOA. It was given to me by a miata buddy who has gone Hydra. I am pretty sure he picked it up pre-owned, so I have to think somebody used it before, with good results.

So if your car starts running super rich, and showing operational changes with USB connect/disconnect events, I would look here first. I do not have a picture handy, but if I were to describe the location; it is on the baro sensor side, MS connector panel (not the car side), last TO package in the bank of 4.
