Default Really strange power issue with MTX-L

Here's a wierd one. Last night, I shut my car off and when I went to restart it the MTX-L would not power up. I checked the connections and everything is fine. As soon as I connected the USB cable from my DIYPNP to the computer, the MTX-L came on. Unplug the cable, it shuts off. I have not changed any wiring, and this just started at random. The MTX-L is getting power from the unused acc wire from the headlight buzzer, and the ground and signals are coming in through the db15 port on the PNP.

Any ideas as to why the MTX-L only comes on when the PNP is connected to the computer?
dieselmiata is offline   Reply With Quote
Old 07-17-2013, 04:29 PM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,840
Total Cats: 1,786
Default

cause you wired it wrong?
Braineack is offline   Reply With Quote
Old 07-17-2013, 04:32 PM   #3
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

why the heck would you not ground it to the car?
also why would you not source a switched power source from the fusebox or cigarette lighter or something that's not a buzzer?
I don't get it
18psi is offline   Reply With Quote
Old 07-17-2013, 04:35 PM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,840
Total Cats: 1,786
Default

so you used the black/yellow wire?
Braineack is offline   Reply With Quote
Old 07-17-2013, 04:38 PM   #5
Senior Member
Thread Starter
iTrader: (3)

Join Date: Apr 2011
Location: Volo, IL
Posts: 1,247
Total Cats: 140
Default

Yes, it's worked fine for over a year now. I grounded it through the PNP per recommendation from Reverant, and as far as I know the power just needs to come from any switched source, and that one was unused.

At any rate, it's worked fine for quite some time and began having issues for an unknown reason last night.

Edit: Ben, not Reverant.
dieselmiata is offline   Reply With Quote
Old 07-17-2013, 06:40 PM   #6
Senior Member
Thread Starter
iTrader: (3)

Join Date: Apr 2011
Location: Volo, IL
Posts: 1,247
Total Cats: 140
Default Found the problem

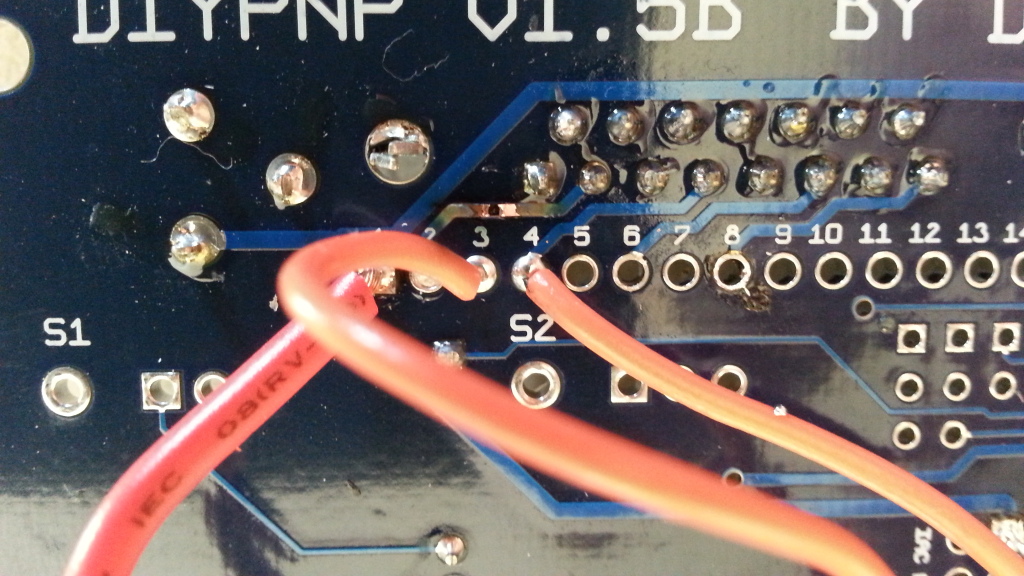

Burned ground wire (wire 2). Now the question is, why did it burn up?
Attached Thumbnails
Really strange power issue with MTX-L-20130717_163828_zps41d65308.jpg
dieselmiata is offline   Reply With Quote
Old 07-17-2013, 06:58 PM   #7
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,840
Total Cats: 1,786
Default

what's pin 1? looks like pin 1 and 2 touch.
Braineack is offline   Reply With Quote
Old 07-17-2013, 07:22 PM   #8
Senior Member
Thread Starter
iTrader: (3)

Join Date: Apr 2011
Location: Volo, IL
Posts: 1,247
Total Cats: 140
Default

Pin one was actually nothing before. I just moved the ground wire (pin 2) to pin 1.

Edit: Doesn't appear that I fixed anything. I resoldered the joints and still have the same problem. The MTX-L only comes on when I plug the usb cable into the computer.
dieselmiata is offline   Reply With Quote
Old 07-17-2013, 08:09 PM   #9
Senior Member
Thread Starter
iTrader: (3)

Join Date: Apr 2011
Location: Volo, IL
Posts: 1,247
Total Cats: 140
Default

Sometimes I should not be allowed to work on my car. In my haste to get it put back together, after I finished moving wires and soldering connections in the PNP, I forgot to move the ground wire to the no.1 pin on the connector. It works fine now, and has a much closer reading than before which is good, but I still need to figure out why the ground wire burned up.

******* rookie mistakes...
dieselmiata is offline   Reply With Quote
Old 07-18-2013, 10:29 AM   #10
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,840
Total Cats: 1,786
Default

ground traces don't usually heat up and break apart like that unless 12v is being dumped into them...

are you jumping SG or GND?
Braineack is offline   Reply With Quote
Old 07-18-2013, 12:37 PM   #11
Senior Member
Thread Starter
iTrader: (3)

Join Date: Apr 2011
Location: Volo, IL
Posts: 1,247
Total Cats: 140
Default

Gnd. I was told not to use sg for the wideband.
dieselmiata is offline   Reply With Quote
Old 07-18-2013, 01:07 PM   #12
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,840
Total Cats: 1,786
Default

yeah dunno. does your serial port have the 5v jumped over to it?
Braineack is offline   Reply With Quote
Old 07-18-2013, 01:17 PM   #13
Senior Member
Thread Starter
iTrader: (3)

Join Date: Apr 2011
Location: Volo, IL
Posts: 1,247
Total Cats: 140
Default

Nope. Didn't see any reason to bring it over.
