Default Tunerstudio not recognizing WB signal

Just got a MSPNP installed on a 97, trying to use a MTX-L but TS is either not calibrated or recognizing the signal. The gauge on TS will change if I un-plug the o2 sensor, but when it is plugged in the gauge in TS reads 14.6 regardless of what the actual is doing.


I understand the gauge needs to be calibrated in TS, but I'm not seeing where- I've got everything set to Wideband, but I'm not finding the screen where to set the specific device (MTX-L).

I found these instructions, but I don't get the options list in TS to select specific WB sensors. Did I screw up setting up the project? or am I just not looking in the right menu?


Attached Thumbnails

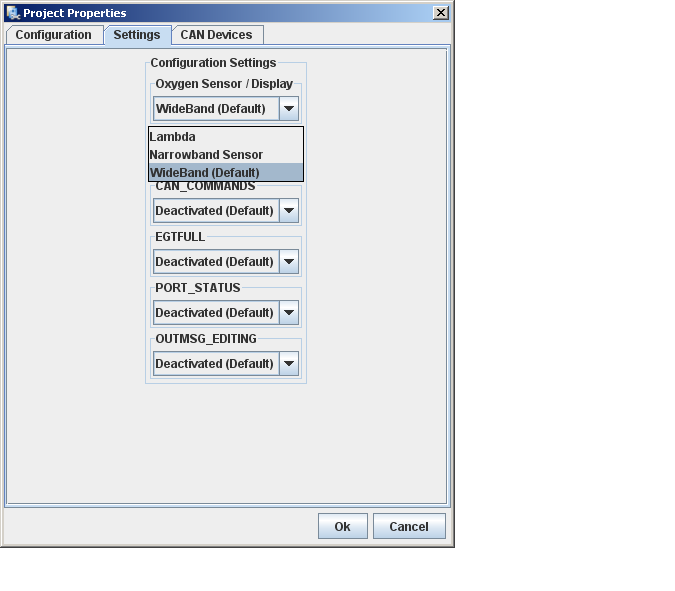

Tunerstudio not recognizing WB signal-settingsts.png
dcamp2 is offline   Reply With Quote
Old 02-14-2014, 09:53 AM   #2
Elite Member
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,791
Total Cats: 130
Default

In the main tunerstudio page mine has: "tools" > "calibrate AFR table" > "ego sensor" and it will allow you to pick your wideband or manually calibrate the sensor.
pdexta is offline   Reply With Quote
Old 02-14-2014, 09:53 AM   #3
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

The sensor calibrations exist under the Tools menu. So in the case Tools > Calibrate AFR
Ben is offline   Reply With Quote
Old 02-14-2014, 09:11 PM   #4
Senior Member
Thread Starter
iTrader: (4)

Join Date: Nov 2012
Location: Colorado
Posts: 744
Total Cats: 46
Default

Got it. thank you both.


I'm an idiot.
dcamp2 is offline   Reply With Quote
Old 02-14-2014, 09:30 PM   #5
Newb

Join Date: Feb 2014
Location: Gator Country
Posts: 7
Total Cats: 1
Default

And be sure you wired the MTX-L analog output #1 (yellow wire), not AO #2 (brown wire) to the ECU. And you've checked your ground.

Set to factory defaults, AO #1 is for wideband output and AO #2 simulates narrow band output.

Dave
