Old 07-31-2010, 09:22 AM   #101
Junior Member
iTrader: (7)

Join Date: Jun 2005
Location: Texas
Posts: 376
Total Cats: 16
Default

Quote:
Originally Posted by hustler View Post
good, you're on the right track. I don't know what spacing the heat exchangers does if its already ducted...but hopefully it works.
The spacing allows more air to bypass(go around - path of least resistance) the restrictive intercooler core and increase total airflow through the radiator. It's the same reason the V mount works so well, which is extreme spacing of the stack.
dvcn is offline   Reply With Quote
Old 07-31-2010, 10:08 AM   #102
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by dvcn View Post
The spacing allows more air to bypass(go around - path of least resistance) the restrictive intercooler core and increase total airflow through the radiator. It's the same reason the V mount works so well, which is extreme spacing of the stack.
Its nothing like a v-mount because it reduces the efficiency of the first heat exchanger. A V-mount doesn't work "so well" because the radiator and intercooler are so far apart. Its works well because the exchangers don't share the same air, using lower ambient air tempt for both the rad and FMIC. You can stack them and segregate the airflow and get the same effect, like myself, Savington, and the local super-Miata RLTA car.

I'm not posting in this thread anymore because everyone here tried to help by suggesting ducting, and two people denied this logic every time.
hustler is offline   Reply With Quote
Old 07-31-2010, 10:26 AM   #103
Junior Member
iTrader: (7)

Join Date: Jun 2005
Location: Texas
Posts: 376
Total Cats: 16
Default

I didn't mean to be a jerk about it.

Yes, I totally agree with what you are saying about ducting and sealing the airflow path. However, in some cases there is just way too much restriction in that path for things to work properly. That is what happened in this case. Sealing, ducting, scooping did not fix the problem.

You are right, separation is not the same as a V mount provded that the V mount has a divider between the IC and radiator.

In a conventional configuration, the point of the separation is to increase airflow through the radiator core, at the expense of less airflow through the IC.

Again, I totally agree that you can't have air spilling out all over the place. Sealing and ducting is crucial. It's just that sometimes there needs to be more airflow to the radiator than what can go through the IC core.

I'm invested in this only because he is a local and a good guy. I apologize for pushing the point and will get off my high and beaten horse now.
dvcn is offline   Reply With Quote
Old 07-31-2010, 10:43 AM   #104
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

I'm not offended.

Look at all this restriction:


noes!!!

he should run the car NA, without the belt, and see if it overheats. The intercooler is not making this car overheat.
hustler is offline   Reply With Quote
Old 07-31-2010, 06:44 PM   #105
Junior Member
Thread Starter
iTrader: (3)

Join Date: Apr 2010
Location: San Antonio, TX
Posts: 411
Total Cats: 1
Default

Stephanie said it should be ready Monday. Tests will be run!
RavynX is offline   Reply With Quote
Old 08-01-2010, 09:51 AM   #106
Elite Member
iTrader: (2)

fooger03's Avatar

Join Date: Jan 2009
Location: Columbus, OH
Posts: 4,132
Total Cats: 187
Default

Quote:
Originally Posted by RavynX View Post

Put duct tape over those slots; they're not helping you AT ALL
fooger03 is offline   Reply With Quote
Old 08-01-2010, 12:38 PM   #107
Junior Member
Thread Starter
iTrader: (3)

Join Date: Apr 2010
Location: San Antonio, TX
Posts: 411
Total Cats: 1
Default

Quote:
Originally Posted by fooger03 View Post
Put duct tape over those slots; they're not helping you AT ALL
It's already been suggested, so we know. Thanks though.
RavynX is offline   Reply With Quote
Old 08-03-2010, 11:46 AM   #108
Junior Member
Thread Starter
iTrader: (3)

Join Date: Apr 2010
Location: San Antonio, TX
Posts: 411
Total Cats: 1
Default

Alright, I got the Miata back from BEGi last night. I wasn't able to overheat it on the drive home, but then again it was at night. More driving soon! It took 5-6 minutes this morning driving to work for the car to get up to operating temperature.

Thermostat was Removed
Restrictor plate was added to the front Coolant Port which was t-junctioned in to the re-route line
AC Condensor and Radiator Spaced a little further apart
Supercharger Mount Fixed
Supercharger Pulley Machined (had knicks in it)
Intercooler height cut down a couple of inches







RavynX is offline   Reply With Quote
Old 08-03-2010, 12:13 PM   #109
Elite Member
iTrader: (24)

chriscar's Avatar

Join Date: Dec 2007
Location: Carrollton TX
Posts: 1,702
Total Cats: 13
Default

That aluminum tape is good stuff.

C
chriscar is offline   Reply With Quote
Old 08-05-2010, 03:54 AM   #110
Junior Member
iTrader: (1)

Join Date: Aug 2007
Posts: 387
Total Cats: 10
Default

I don't quite understand how your reroute worked. it doesn't look like a standard reroute I've seen.
bellwilliam is offline   Reply With Quote
Old 08-06-2010, 03:09 AM   #111
Junior Member
Thread Starter
iTrader: (3)

Join Date: Apr 2010
Location: San Antonio, TX
Posts: 411
Total Cats: 1
Default

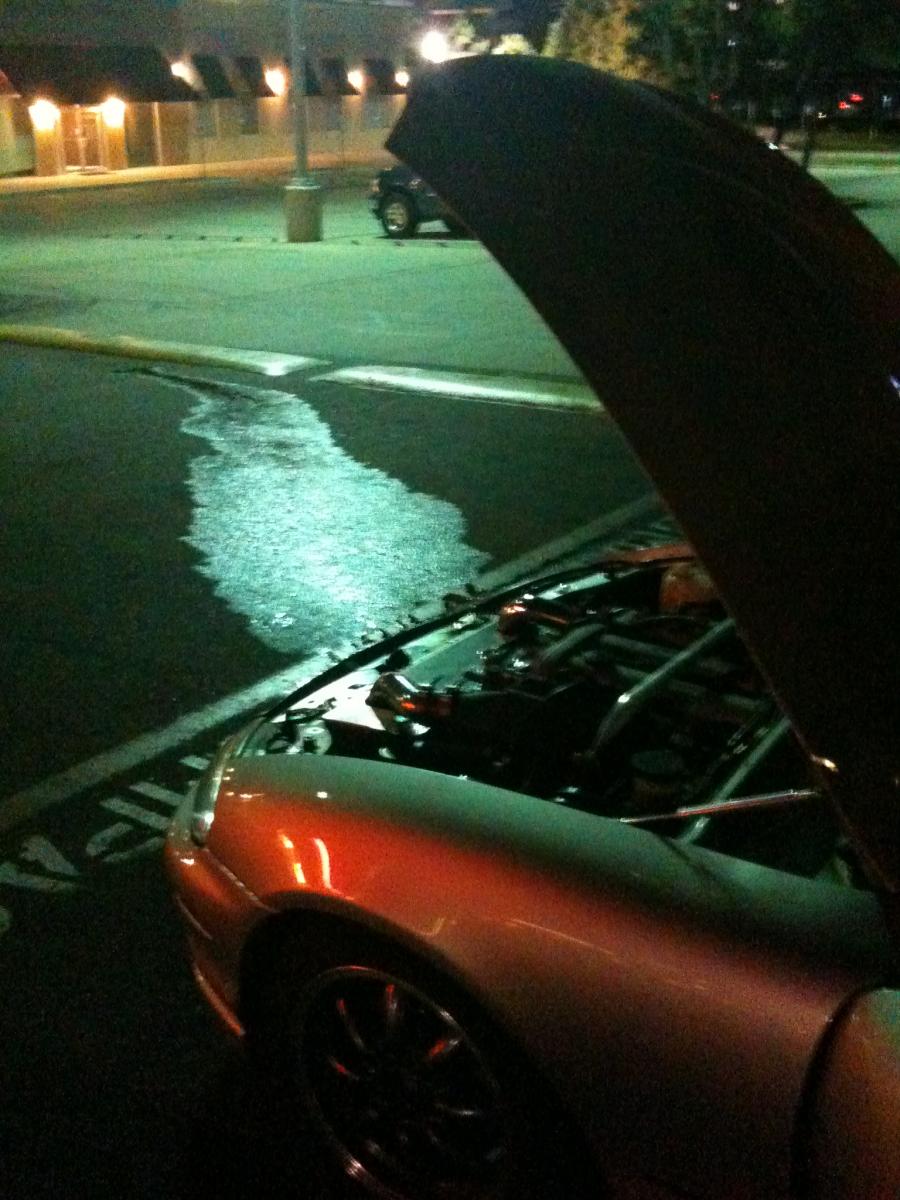

She sprung a big leak tonight. Was driving around, parked it to meet a friend and there was white smoke, hissing, and then coolant running from underneath. After letting it cool, topping it off with 1 gallon of water and rolling her down the hill to home I found there was a stream of coolant coming out of the inlet hose to the heater core. This car is becoming a pain in the ***. It was running great all week until this.

I will be ordering a real water temp gauge tomorrow. Any suggestions?
RavynX is offline   Reply With Quote
Old 08-06-2010, 08:56 AM   #112
Elite Member
iTrader: (2)

fooger03's Avatar

Join Date: Jan 2009
Location: Columbus, OH
Posts: 4,132
Total Cats: 187
Default

I haven't been able to fully enjoy my car since September 2008. I suggest you not take your good luck for granted.
fooger03 is offline   Reply With Quote
Old 08-06-2010, 10:56 AM   #113
Junior Member
Thread Starter
iTrader: (3)

Join Date: Apr 2010
Location: San Antonio, TX
Posts: 411
Total Cats: 1
Default

Quote:
Originally Posted by fooger03 View Post
I haven't been able to fully enjoy my car since September 2008. I suggest you not take your good luck for granted.
I know, I've read your build thread. I am not taking it for granted. I was lucky I found this issue out just up the street from my apartment instead of it popping on the highway. And also that, currently, it's only a coolant leak and not a blown motor.
RavynX is offline   Reply With Quote
Old 08-06-2010, 12:11 PM   #114
Elite Member
iTrader: (2)

fooger03's Avatar

Join Date: Jan 2009
Location: Columbus, OH
Posts: 4,132
Total Cats: 187
Default

Quote:
Originally Posted by fooger03 View Post
I haven't been able to fully enjoy my car since September 2008. I suggest you not take your good luck for granted.
I forgot to add a smiley to the end, to identify that it wasn't a mean-spirited comment, here you go:

fooger03 is offline   Reply With Quote
Old 08-06-2010, 12:13 PM   #115
Junior Member
Thread Starter
iTrader: (3)

Join Date: Apr 2010
Location: San Antonio, TX
Posts: 411
Total Cats: 1
Default

Quote:
Originally Posted by fooger03 View Post
I forgot to add a smiley to the end, to identify that it wasn't a mean-spirited comment, here you go:

hehe
RavynX is offline   Reply With Quote
Old 08-07-2010, 07:04 PM   #116
Junior Member
Thread Starter
iTrader: (3)

Join Date: Apr 2010
Location: San Antonio, TX
Posts: 411
Total Cats: 1
Default

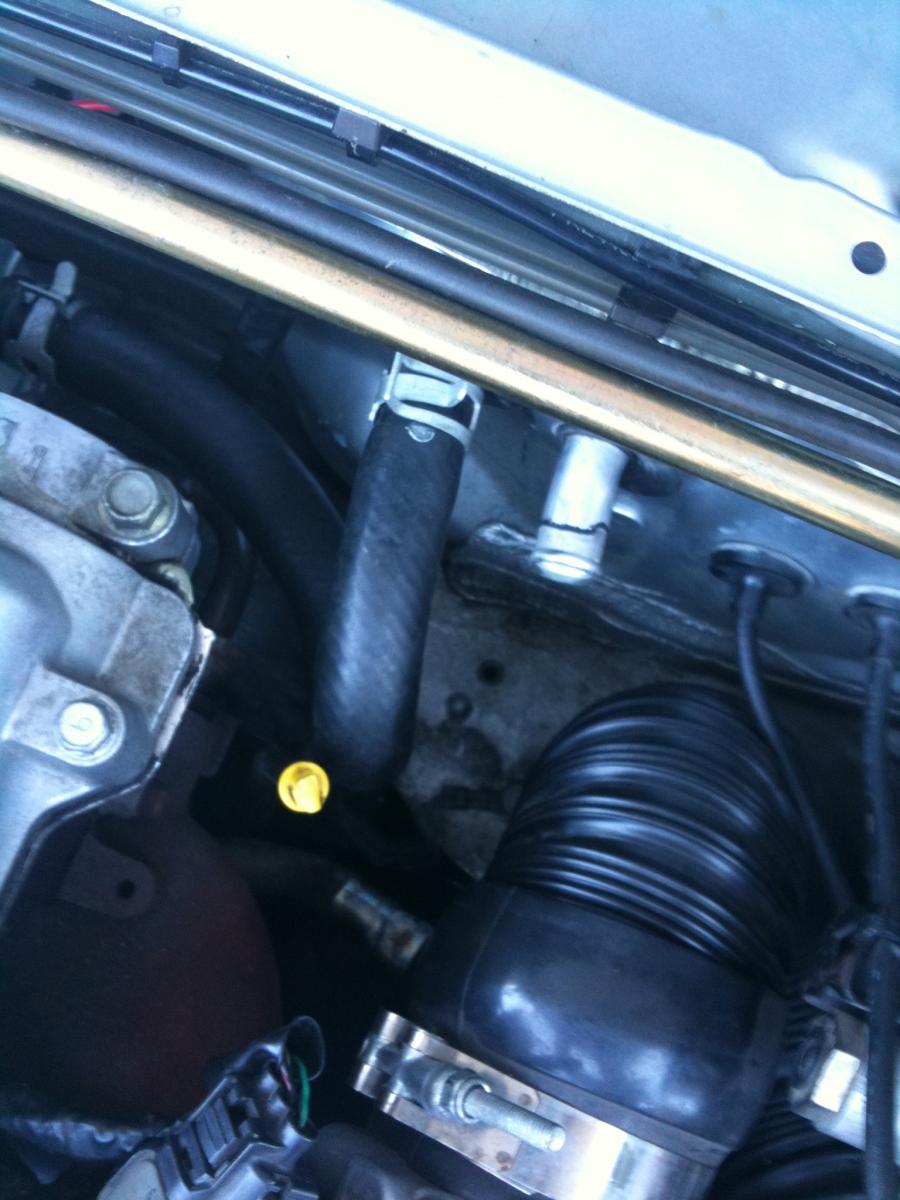

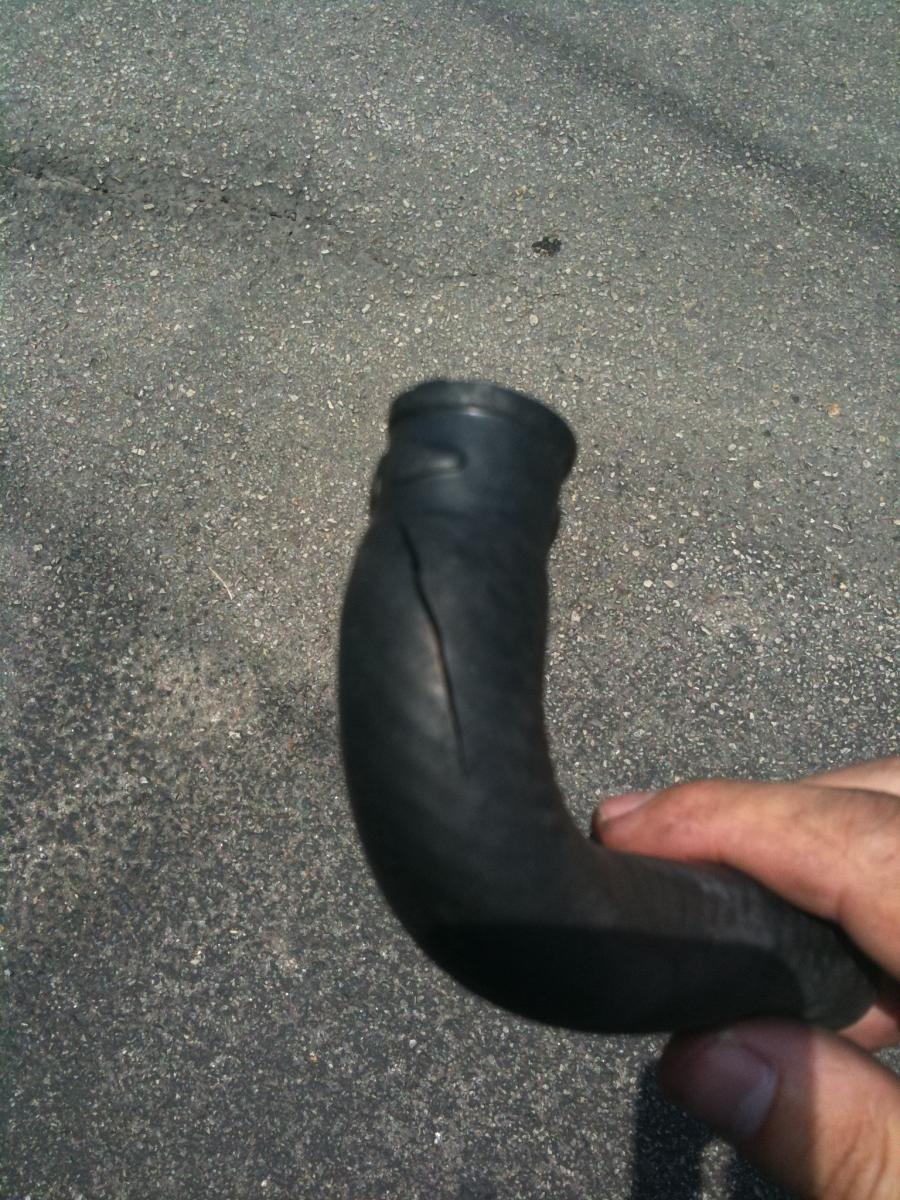

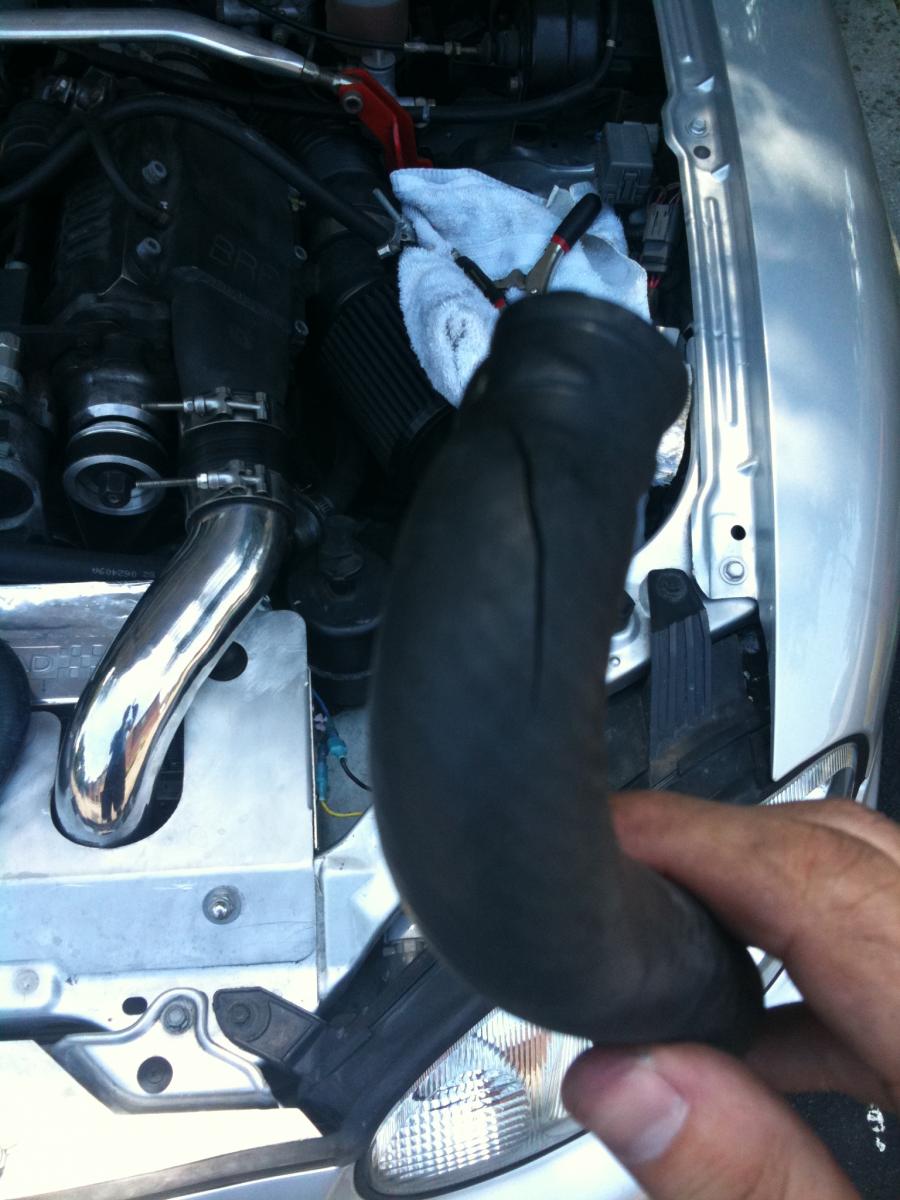

It ended up being an easy fix. Photos attached...
Attached Thumbnails
[NB] Overheating issue with AC-photo-1-.jpg   [NB] Overheating issue with AC-photo-2-.jpg   [NB] Overheating issue with AC-photo.jpg   [NB] Overheating issue with AC-photo-3-.jpg
RavynX is offline   Reply With Quote
Old 08-08-2010, 11:41 AM   #117
Elite Member
iTrader: (2)

fooger03's Avatar

Join Date: Jan 2009
Location: Columbus, OH
Posts: 4,132
Total Cats: 187
Default

[insert some whack **** here about ravyn changing the CAS O-ring because I wasn't paying attention to it being an NB.]

Last edited by fooger03; 08-08-2010 at 07:01 PM.
fooger03 is offline   Reply With Quote
Old 08-08-2010, 01:36 PM   #118
Newb

Join Date: Jul 2010
Location: Waller Tx
Posts: 43
Total Cats: 0
Default

fooger he has a 2000, no CAS oring.
Smustang1234 is offline   Reply With Quote
Old 08-08-2010, 07:00 PM   #119
Elite Member
iTrader: (2)

fooger03's Avatar

Join Date: Jan 2009
Location: Columbus, OH
Posts: 4,132
Total Cats: 187
Default

look, over there, a hippopotamus!!!
fooger03 is offline   Reply With Quote
Old 09-11-2010, 03:16 AM   #120
Junior Member
Thread Starter
iTrader: (3)

Join Date: Apr 2010
Location: San Antonio, TX
Posts: 411
Total Cats: 1
Default

So I've returned from SCCA Solo Nationals in my s2000. Was a lot of fun, first time. Anyway, I got the water temp gauge installed today. FINALLY! I drove around and found some interesting readings.

3:30pm. Ambient temp in mid 90's. Cruising at 80mph
A/C is Off. 200* F - 204* F
A/C is On. Within 1-2 miles it was at 220* F and still climbing. I shut the A/C off and evacuated the heat.

8:30pm. Ambient temp is low 80's. Cruising around 65-75mph
A/C is Off. 194* F - 200* F
A/C is On. Stayed at 214* F

9:00pm. Idling in a parking lot with A/C on. Temp got to 240* F and was still climbing; I shut it off then. The stock dash gauge was still sitting at the "nominal" position (just under 12 o'clock).
RavynX is offline   Reply With Quote
