Default best place to pick up switched power under the dash

I'm not used to the whole relay under the hood deal and it was getting late so when I started looking. the car has a much of stuff hooked so I can splice in im sure but I would rather take it from stock location with out cutting any more wires.
psreynol is offline   Reply With Quote
Old 04-06-2012, 05:18 AM   #2
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

I use the "add a fuse" from the local autoparts store, works every time.
hustler is offline   Reply With Quote
Old 04-06-2012, 10:34 AM   #3
Senior Member
iTrader: (3)

Join Date: May 2005
Location: Mass.
Posts: 816
Total Cats: 41
Default

Quote:
Originally Posted by hustler View Post
I use the "add a fuse" from the local autoparts store, works every time.
This. I've never had any issues using them on my miata ... I think I've got 3 of them stuck in there now.

-Zach
thasac is offline   Reply With Quote
Old 04-06-2012, 11:59 AM   #4
Senior Member
Thread Starter

Join Date: Feb 2012
Location: chicago
Posts: 665
Total Cats: -35
Default

I want the power under the dash
psreynol is offline   Reply With Quote
Old 04-06-2012, 12:01 PM   #5
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

Quote:
Originally Posted by psreynol View Post
I want the power under the dash

there's a fuse box under the dash...add a fuse to the "engine" fuse.
Braineack is offline   Reply With Quote
Old 04-06-2012, 03:18 PM   #6
Senior Member
Thread Starter

Join Date: Feb 2012
Location: chicago
Posts: 665
Total Cats: -35
Default

Quote:
Originally Posted by Braineack View Post
there's a fuse box under the dash...add a fuse to the "engine" fuse.
Ha I remembered this after I posted, I was was tired, fighting with a seat install and it was late. thanks will do.
psreynol is offline   Reply With Quote
Old 04-06-2012, 05:01 PM   #7
Senior Member
iTrader: (1)

Join Date: Jun 2006
Location: Sweden
Posts: 1,391
Total Cats: 58
Default

Not "under the dash" but I piggy on the connector for the cig lighter for e.g. WB.
NiklasFalk is offline   Reply With Quote
Old 04-06-2012, 09:08 PM   #8
Senior Member
Thread Starter

Join Date: Feb 2012
Location: chicago
Posts: 665
Total Cats: -35
Default

that is a good idea. I way running out of time so I think I will use the add a fuse for now. I was hoping for a screw terminal somewhere but guess these cars dont have that. makes a clean install easy, thanks AUDI
psreynol is offline   Reply With Quote
Old 04-07-2012, 12:15 AM   #9
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Add a fuse is baller as fukk!!!
Faeflora is offline   Reply With Quote
Old 04-09-2012, 02:17 PM   #10
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

+1 to add a fuse. Used them many times with no issues.
ZX-Tex is offline   Reply With Quote
Old 04-09-2012, 02:51 PM   #11
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Make sure to find a fuse that's hot whilst cranking to power the wideband.
hustler is offline   Reply With Quote
Old 04-09-2012, 04:11 PM   #12
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

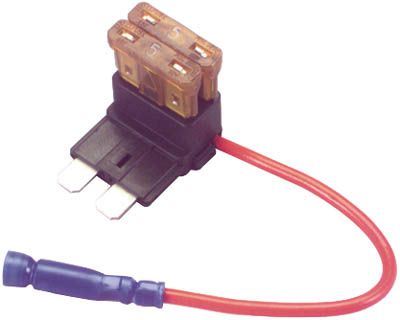

BTW what we are talking about is actually called "Add-A-Circuit" (made by Littelfuse) and looks like this
Attached Thumbnails
best place to pick up switched power under the dash-071-580_l.jpg
ZX-Tex is offline   Reply With Quote
Old 04-09-2012, 04:27 PM   #13
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Quote:
Originally Posted by ZX-Tex View Post
BTW what we are talking about is actually called "Add-A-Circuit" (made by Littelfuse) and looks like this
Faeflora is offline   Reply With Quote
Old 04-09-2012, 04:52 PM   #14
Senior Member
iTrader: (1)

Join Date: Jun 2006
Location: Sweden
Posts: 1,391
Total Cats: 58
Default

Quote:
Originally Posted by hustler View Post
Make sure to find a fuse that's hot whilst cranking to power the wideband.
I'd say that depends on the WB.
Some don't like low voltage (10V or so) and are better served with power that's off while cranking.
I had problems with my LC1, loosing settings etc, before choosing a run only (like the lighter).
NiklasFalk is offline   Reply With Quote
Old 04-09-2012, 05:48 PM   #15
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by NiklasFalk View Post
I'd say that depends on the WB.
Some don't like low voltage (10V or so) and are better served with power that's off while cranking.
I had problems with my LC1, loosing settings etc, before choosing a run only (like the lighter).
Good to know. I had an old firmware version that would "Schiavo-out) when I hot started the car and it would sit at 15.0:1 until I power cycled without using the starter (coast and pop the clutch).
hustler is offline   Reply With Quote
Old 04-09-2012, 06:24 PM   #16
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

it doesnt even matter where I put mine. when i crank i go below 10v, and the lc-1 craps out at around 11.3v or so.
