Old 10-20-2012, 06:10 AM   #101
Supporting Vendor
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,865
Total Cats: 493
Default

Quote:
Originally Posted by Boost93 View Post
I new to the ducting thing,what material do u guys use, and where can I get it...would love to see pics of someone who has properly done ducting...these tsi were on the car already... but no ducting.....
Aluminum, alumalite, fiberglass, ABS, PVC, MDF, carbon fiber, cardboard, duct tape, expanding foam, lexan, rivets, riv-nuts, weld-nuts, etc. etc.

The important thing is to understand the function and concepts behind the ducting. Then you apply whatever materials you want to use / can afford to achieve it.

-Ryan
ThePass is offline   Reply With Quote
Old 10-20-2012, 11:58 PM   #102
Junior Member

Join Date: Oct 2012
Posts: 55
Total Cats: -69
Default

Thanks^^^^Still down for pics...Ive searched and cant find Nada....And since this is about Carbon fiber hoods...What company has the best one for our cars right now?(functional hood,lightweight with vents in proper location etc...tnx)
Boost93 is offline   Reply With Quote
Old 10-21-2012, 12:00 AM   #103
Junior Member

Join Date: Oct 2012
Posts: 55
Total Cats: -69
Default

Quote:
Originally Posted by jmann View Post
I agree most carbon things are expensive, but this was 499 which was cheaper then the fiberglass top I bought for 550 plus hardware was extra. The hood has internal bracing like the stock and is very rigid. I did have to readhesive the bracing to the hood though but that was no big deal. I was going to use hood pins but am going to try the stock latch as it is very well installed and constructed. It weighed one half pound more then the stock hood without the rain guards installed and adding anything to the stock hood well probably make up that difference. I really like where the vents are and their design and size, should move lots of air through the rad.
How has this hood held up?did u ever get hood latches?
Boost93 is offline   Reply With Quote
Old 10-21-2012, 12:05 AM   #104
Elite Member
iTrader: (10)

rccote's Avatar

Join Date: Jan 2008
Location: Buffalo NY
Posts: 1,595
Total Cats: 17
Default

Quote:
Originally Posted by Boost93 View Post
Thanks^^^^Still down for pics...Ive searched and cant find Nada....And since this is about Carbon fiber hoods...What company has the best one for our cars right now?(functional hood,lightweight with vents in proper location etc...tnx)
I wouldn't bother with any of that. Just do whats proven and free:

Quote:
Originally Posted by emilio700 View Post
Best Miata track hoods I have seen are OEM Miata with some ducts grafted on in the right spot. Everything else I have seen is either heavier, more fragile and much less rigid or all three.
rccote is offline   Reply With Quote
Old 10-21-2012, 12:23 AM   #105
Junior Member

Join Date: Oct 2012
Posts: 55
Total Cats: -69
Default

What did u use to cut,and what about water getting in engine?
Boost93 is offline   Reply With Quote
Old 10-21-2012, 01:40 AM   #106
Junior Member

Join Date: Oct 2012
Posts: 55
Total Cats: -69
Default

Another thing is... I have a cf duck tail trunk on the way.. will be removing stripe...wanted to match up front with lightest most func cf hood
Boost93 is offline   Reply With Quote
Old 10-21-2012, 01:54 AM   #107
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Boost93 View Post
I new to the ducting thing,what material do u guys use, and where can I get it...would love to see pics of someone who has properly done ducting...these tsi were on the car already... but no ducting.....
TSIs are bad, we are trying to get air out of the hood, not in it. You basically want a vent in front of the hood-hump, slightly raised.
hustler is offline   Reply With Quote
Old 10-21-2012, 03:00 PM   #108
Junior Member
Thread Starter

Join Date: May 2008
Location: Grants Pass, OR.
Posts: 449
Total Cats: 14
Default

Boost93 The hood is still the same as the day it was installed and I am using the stock hood latch with absolutely no issues and it has seen 10 track days this season so far. As far as function is concerned I think it is perfect, the car runs cooler and it has more down force up front. It is a little narrow on the fit so if you are after a perfect fit for a DD it might not be up to par, but my car is strictly a track car so it is exactly what I wanted. As for rain, it comes with rain panels that screw in underneath the vent openings but since I don't drive it on the stree in the rain I don't use them. If it rains at the track I just lay a piece of plastic tarp over the K&N filter on the drivers side when the car is sitting so the rain doesn't get on it, other then that the rain just runs down off of the other areas.
jmann is offline   Reply With Quote
Old 10-21-2012, 03:29 PM   #109
Junior Member

Join Date: Oct 2012
Posts: 55
Total Cats: -69
Default

Been looking at the ones from autokonexion, where I purchased the trunk...not sure on the looks thou....tnx jmann

Last edited by Boost93; 10-23-2012 at 12:22 AM.
Boost93 is offline   Reply With Quote
Old 10-23-2012, 12:21 AM   #110
Junior Member

Join Date: Oct 2012
Posts: 55
Total Cats: -69
Default

Quote:
Originally Posted by hustler View Post
TSIs are bad, we are trying to get air out of the hood, not in it. You basically want a vent in front of the hood-hump, slightly raised.
Ordering regular smoked turn signals...will be looking into cutting stock hood vents......lol
Boost93 is offline   Reply With Quote
Old 10-23-2012, 01:31 PM   #111
Junior Member

Join Date: Feb 2009
Location: The Woodlands, TX
Posts: 328
Total Cats: 12
Default

Quote:
Originally Posted by Boost93 View Post
Still down for pics...Ive searched and cant find Nada....And since this is about Carbon fiber hoods...What company has the best one for our cars right now?(functional hood,lightweight with vents in proper location etc...tnx)
Go back and read post 27
Double O 86 is offline   Reply With Quote
Old 10-23-2012, 11:53 PM   #112
Junior Member

Join Date: Oct 2012
Posts: 55
Total Cats: -69
Default

That hood is crazy expensive,and vent looks to far back..Should be closer to radiator...
Boost93 is offline   Reply With Quote
Old 10-24-2012, 12:44 AM   #113
Supporting Vendor
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 5,323
Total Cats: 1,344
Default

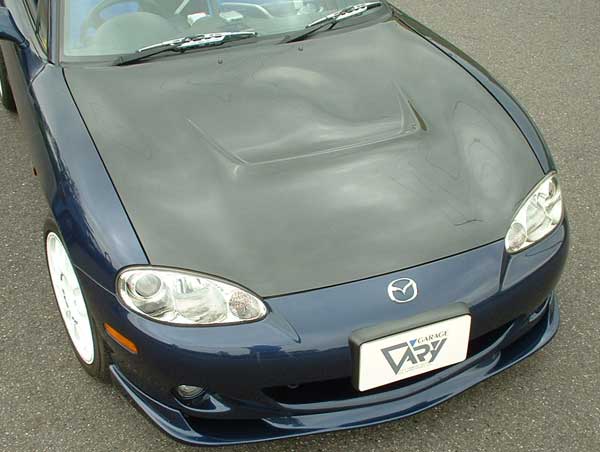

Quote:
Originally Posted by Boost93 View Post
That hood is crazy expensive,and vent looks to far back..Should be closer to radiator...
+1

Vent location fail

Attached Thumbnails
Carbon fiber hood-2b.jpg
emilio700 is offline   Reply With Quote
Old 01-11-2013, 04:17 PM   #114
Junior Member

Join Date: Feb 2009
Location: The Woodlands, TX
Posts: 328
Total Cats: 12
Default

Okay, I found another one. Sorry, this is as big as the photo gets.
Attached Thumbnails
Carbon fiber hood-aero-bonnet.jpg
Double O 86 is offline   Reply With Quote
Old 01-11-2013, 06:18 PM   #115
qax
Junior Member
iTrader: (1)

Join Date: Nov 2010
Location: SoCal 626
Posts: 94
Total Cats: 0
Default

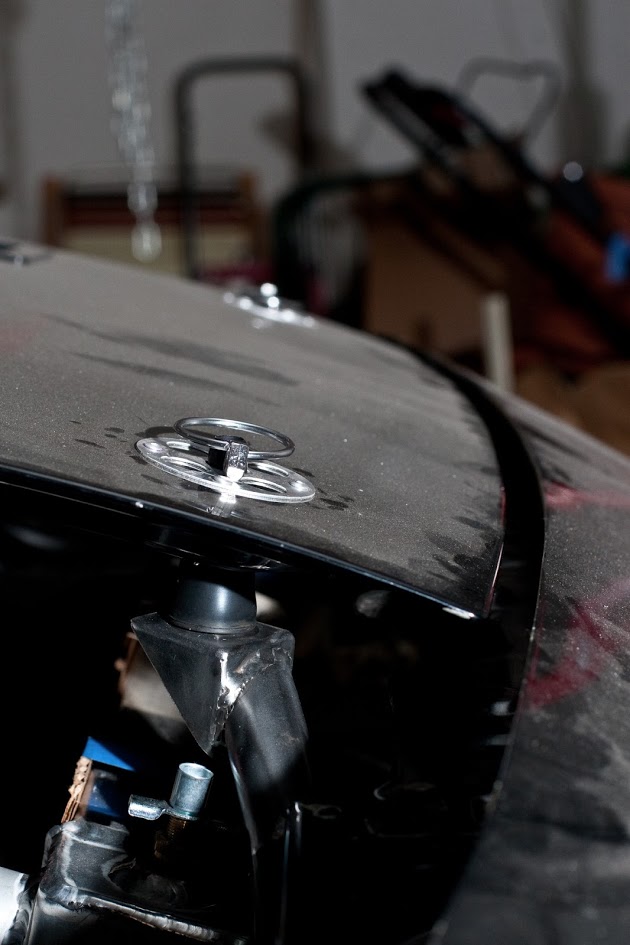

Attached Thumbnails
Carbon fiber hood-_mg_2020.jpg
qax is offline   Reply With Quote
Old 01-12-2013, 12:08 PM   #116
Senior Member
iTrader: (1)

Join Date: Dec 2008
Location: Manassas, Virginia
Posts: 1,247
Total Cats: 57
Default

Pretty sure that is too far forward as it is in front of the rad.
mx5autoxer is offline   Reply With Quote
Old 01-12-2013, 12:37 PM   #117
Junior Member
Thread Starter

Join Date: May 2008
Location: Grants Pass, OR.
Posts: 449
Total Cats: 14
Default

Its hard to tell from that little pic, but looks to be about where it should be to me, just behind the rad..
jmann is offline   Reply With Quote
Old 01-12-2013, 12:44 PM   #118
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Awe come on now it looks cool

Quote:
Originally Posted by emilio700 View Post
+1

Vent location fail

Quote:
Originally Posted by qax View Post
Do you guys think if this mod is effective?
I doubt the force behind the radiator is higher than the force on top of the hood there. Might be a worthy experiment.
triple88a is offline   Reply With Quote
Old 01-12-2013, 02:32 PM   #119
Junior Member
Thread Starter

Join Date: May 2008
Location: Grants Pass, OR.
Posts: 449
Total Cats: 14
Default

The lip on that hood outlet should make a big low presure area, is it in the ideal spot, probably not, does it help?, sure should.
jmann is offline   Reply With Quote
Old 01-12-2013, 03:21 PM   #120
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

According to a a pressure map of the nb hood someone did a while back. The best spots for vents are around the sides near where the overflow bottle is and the other side where the filter is at. Now of course that's kinda far out of the way to route the radiator air to. It gets worse as you get towards the center so technically the best reasonable spots are where the chaser kits have their vents. That way your vent passages don't get in the way of the intake.
triple88a is offline   Reply With Quote
