Old 01-21-2013, 02:38 PM   #141
Senior Member
iTrader: (4)

mr_hyde's Avatar

Join Date: Jul 2009
Location: Seattle
Posts: 799
Total Cats: 25
Default

The raised parts increase the low pressure above the opening. The Vette is overkill but the correct concept.
mr_hyde is offline   Reply With Quote
Old 01-21-2013, 04:35 PM   #142
Senior Member
iTrader: (1)

Join Date: Dec 2008
Location: Manassas, Virginia
Posts: 1,247
Total Cats: 57
Default

So which would be optimal: 1) Cut a couple of "H" shapes into the hood with the cross-bar of the "H" closer to the nose of the car. Bend the shorter tab up above the line of the hood and bend the longer tab down into the engine bay. or 2) Cut slim rectangles transversely into the hood without cutting a half inch in the middle which would make the downward plane of one louver the upward plane of the next (I think this is what genesplicer did). I guess I'm wondering whether a big opening is better than a few little ones. It's probably not that big a deal, but I was wondering.
mx5autoxer is offline   Reply With Quote
Old 01-21-2013, 05:06 PM   #143
Junior Member

Join Date: Jan 2010
Location: Renton, WA
Posts: 63
Total Cats: 0
Default

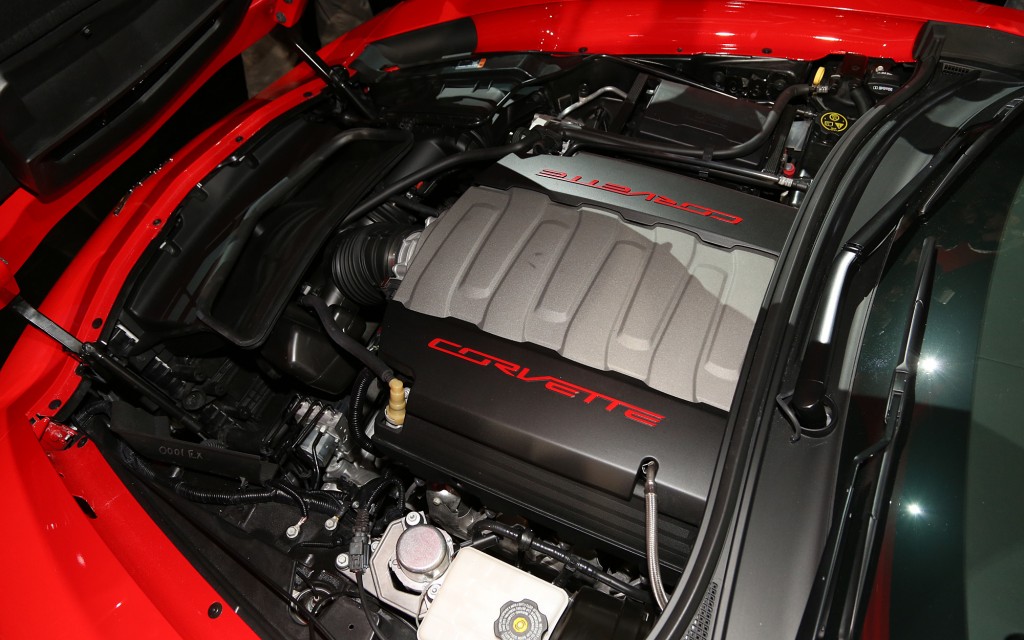

If I did ducting, I would do something like this from the new C7. Chevy claims they stole it from the C6.R

How feasible is this with the miata?

Attached Thumbnails
Carbon fiber hood-2014-chevrolet-corvette-live-reveal-engine-1024x640_zpsba1a5de2.jpg
Joe Mauch is offline   Reply With Quote
Old 01-22-2013, 12:41 PM   #144
Senior Member
iTrader: (4)

mr_hyde's Avatar

Join Date: Jul 2009
Location: Seattle
Posts: 799
Total Cats: 25
Default

Quote:
Originally Posted by Joe Mauch View Post
How feasible is this with the miata?
With the radiator in an OEM position, almost impossible. If you start cutting sheetmetal at the front and move the radiator, it would work great.
mr_hyde is offline   Reply With Quote
Old 01-22-2013, 07:26 PM   #145
Senior Member
iTrader: (1)

Join Date: Nov 2010
Posts: 951
Total Cats: -252
Default

Angle the radiator at maybe a 35 degree angle back toward the engine-just an idea.
wannafbody is offline   Reply With Quote
Old 01-22-2013, 09:49 PM   #146
Senior Member
iTrader: (1)

Join Date: Dec 2008
Location: Manassas, Virginia
Posts: 1,247
Total Cats: 57
Default

Wouldn't that make it even more difficult?
mx5autoxer is offline   Reply With Quote
Old 01-23-2013, 02:01 AM   #147
Junior Member
Thread Starter

Join Date: May 2008
Location: Grants Pass, OR.
Posts: 449
Total Cats: 14
Default

The rad. would need to be angeled foreward at the top.
jmann is offline   Reply With Quote
Old 01-23-2013, 02:15 AM   #148
Junior Member
iTrader: (1)

Join Date: Apr 2012
Posts: 187
Total Cats: 3
Default

Quote:
Originally Posted by mx5autoxer View Post
So which would be optimal: 1) Cut a couple of "H" shapes into the hood with the cross-bar of the "H" closer to the nose of the car. Bend the shorter tab up above the line of the hood and bend the longer tab down into the engine bay. or 2) Cut slim rectangles transversely into the hood without cutting a half inch in the middle which would make the downward plane of one louver the upward plane of the next (I think this is what genesplicer did). I guess I'm wondering whether a big opening is better than a few little ones. It's probably not that big a deal, but I was wondering.
both of those should work well.
motormechanic is offline   Reply With Quote
Old 01-23-2013, 02:48 AM   #149
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 3,178
Total Cats: 267
Default

Quote:
Originally Posted by jmann View Post
The rad. would need to be angeled foreward at the top.
This. The back of the radiator needs to be ducted to the vent(s) in the hood. Leaning the radiator back would make this impossible.
Mobius is offline   Reply With Quote
Old 01-24-2013, 06:00 PM   #150
573
Junior Member
iTrader: (2)

573's Avatar

Join Date: Nov 2011
Location: Troy, Michigan
Posts: 252
Total Cats: 16
Default

Quote:
Originally Posted by qax View Post

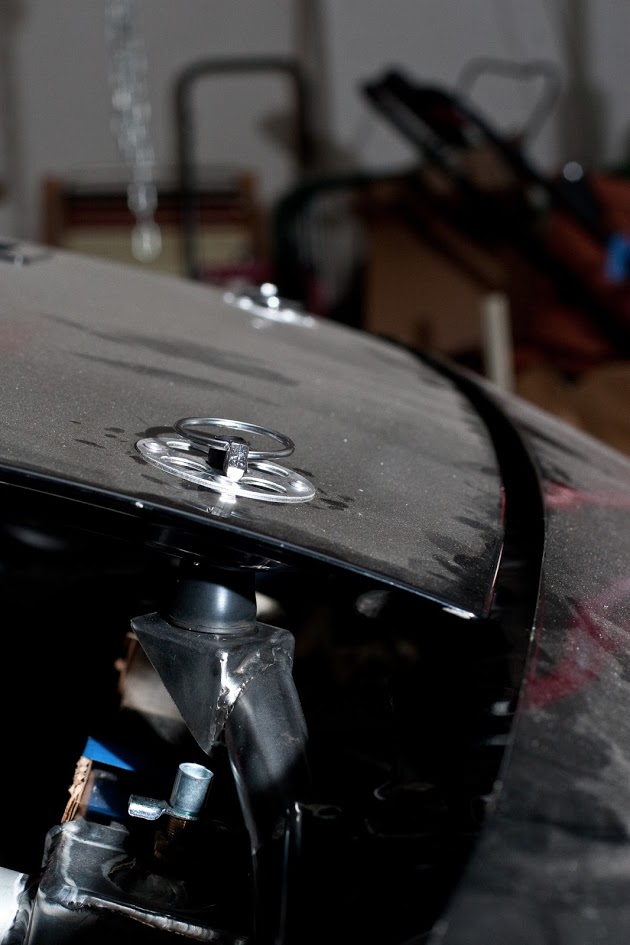

This is my car. It's still a work in progress so I have not been able to test whether or not this gap works as intended. That said, all I had to do to make that gap was loosen the bolts on the hood and hinges and slide the hood back as far as it will go. It would be really easy for somebody to try this and do some tuft testing if they were so inclined. The positioning of the gap relative to the radiator, I expect, would have minimal impact on performance. The engine bay, as mentioned in the thread previously, is essentially a uniformly pressurized box. If that box has a hole in it, and the hole opens to a region of lower pressure, air will flow through that hole.
573 is offline   Reply With Quote
Old 07-08-2015, 01:32 AM   #151
Newb

Join Date: Feb 2015
Posts: 2
Total Cats: 0
Default Old thread revival

Anyone have observations on the heat rejection hood from Carbonmiata.com? I may buy a couple which would save on shipping. I hear that their quality is very good.

Full carbon variant. Looks like the vents are forward enough.
braveheart is offline   Reply With Quote
Old 07-08-2015, 03:30 AM   #152
Supporting Vendor
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,865
Total Cats: 493
Default

Quote:
Originally Posted by braveheart View Post
Anyone have observations on the heat rejection hood from Carbonmiata.com? I may buy a couple which would save on shipping. I hear that their quality is very good.

Full carbon variant. Looks like the vents are forward enough.

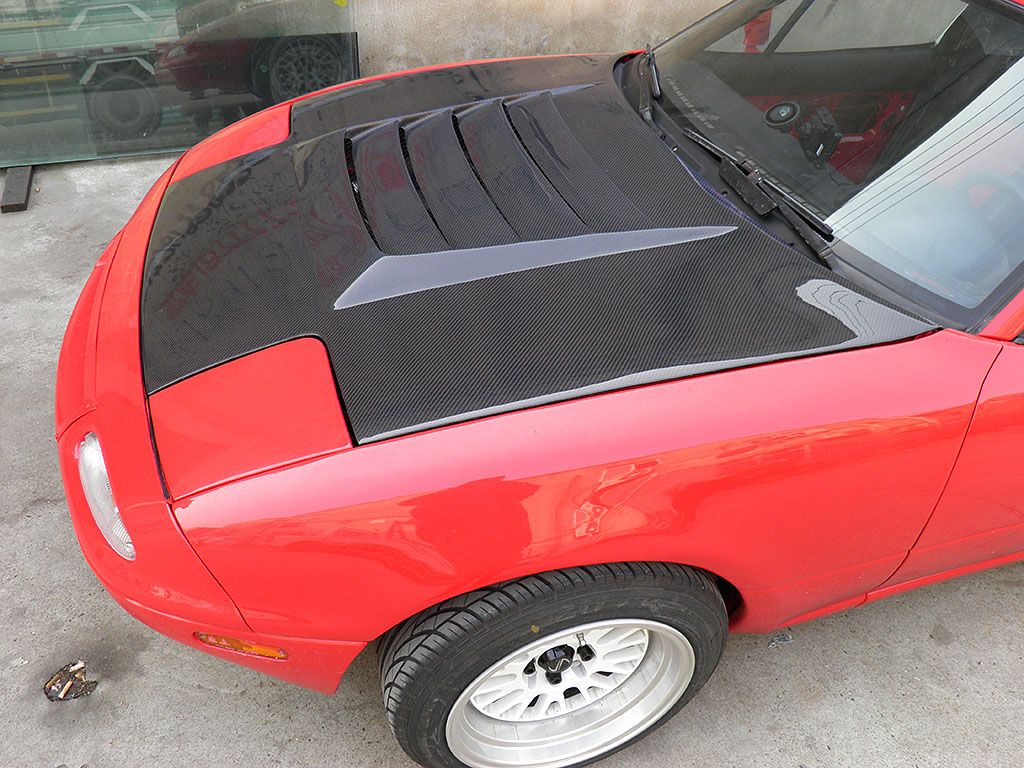

This one?



Total opening area on that hood is only ~50% of ideal. Placement of the vents is OK for the front two slots, not so great for the rear two - figure the rear two slots will only be marginally effective, reducing overall performance further below that 50%. That will also dump water on top of the valve cover when it rains.

Carbon Miata parts are nicely made though, good fit and finish.

-Ryan
Attached Thumbnails
Carbon fiber hood-80-795515pc1914981024_7560345d1a0cecceca80c58aee094738a9224093.jpg
ThePass is offline   Reply With Quote
Old 07-08-2015, 09:29 AM   #153
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,687
Total Cats: 1,562
Default Carbon fiber hood

I don't want water in my spark plug holes.
-guy who lives where it rains every day in the summer.
sixshooter is offline   Reply With Quote
Old 07-08-2015, 10:23 AM   #154
Newb

Join Date: Feb 2015
Posts: 2
Total Cats: 0
Default The NB one

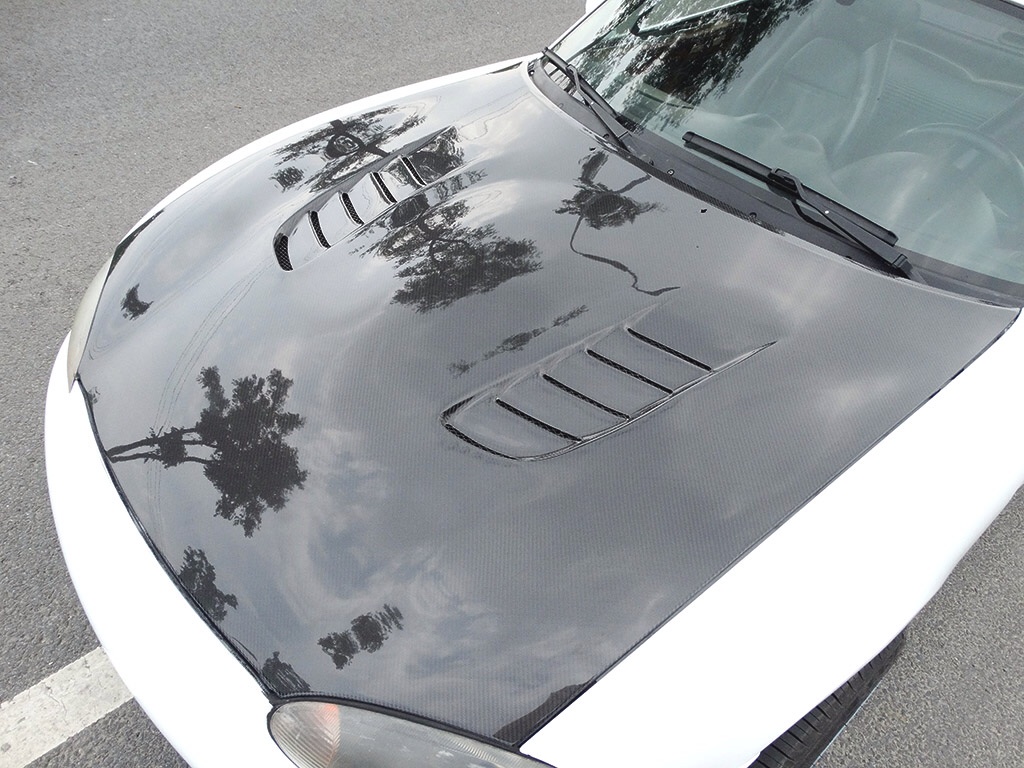

This should belay concerns about the valve cover. I think placement is good, but overall area may be small.

Carbon fiber hood-image.jpg
braveheart is offline   Reply With Quote
Old 07-08-2015, 12:11 PM   #155
Supporting Vendor
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,865
Total Cats: 493
Default

^ That NB version is safe from water, but correct on the opening area being minuscule.

-Ryan
ThePass is offline   Reply With Quote
Old 07-08-2015, 12:54 PM   #156
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,687
Total Cats: 1,562
Default

Quote:
Originally Posted by ThePass View Post
^ That NB version is safe from water, but correct on the opening area being minuscule.
But better than not having an opening, for sure! Massaging the openings might help if they don't prove effective enough.
sixshooter is offline   Reply With Quote
Old 07-08-2015, 01:01 PM   #157
Supporting Vendor
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 5,326
Total Cats: 1,345
Default

Quote:
Originally Posted by sixshooter View Post
But better than not having an opening, for sure! Massaging the openings might help if they don't prove effective enough.
Not necessarily. The rear openings will see positive pressure, potentially negating any gains from the front two. TBH it sounds like you're rationalizing the poor vent configuration because it's pretty. OEM hoods are really light. Only lighter hood I've ever seen are teh two vacuum formed dry carbon skins I got from Lightyear. Anything clamshell, wet layup like this one tends to be about the same weight as OEM or usually heavier.
emilio700 is offline   Reply With Quote
Old 07-08-2015, 05:05 PM   #158
Junior Member
iTrader: (1)

Join Date: Apr 2012
Posts: 187
Total Cats: 3
Default

everyone should just get singular hood louvers and be done with it
motormechanic is offline   Reply With Quote
Old 07-10-2015, 01:51 AM   #159
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,133
Total Cats: 599
Default

Evo vents?
triple88a is offline   Reply With Quote
Old 07-10-2015, 02:42 AM   #160
Supporting Vendor
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,865
Total Cats: 493
Default

Quote:
Originally Posted by triple88a View Post
Evo vents?
OE vents are usually full of compromise, and it gets worse when they are grafted onto a car which has different airflow than the car they were intended for. The Ford GT500 vent in a Miata hood we tested? Our hood louvers doubled the performance over those. The Mini Cooper scoop in a Miata hood, same story.

We have an Evo coming in soon for venting improvements. Even the C7 Corvette - a car with some very good function-focused development behind it - we've improved the main hood vent by 30% on that car.



-Ryan
ThePass is offline   Reply With Quote
