Default Carbontrix extractor scoop

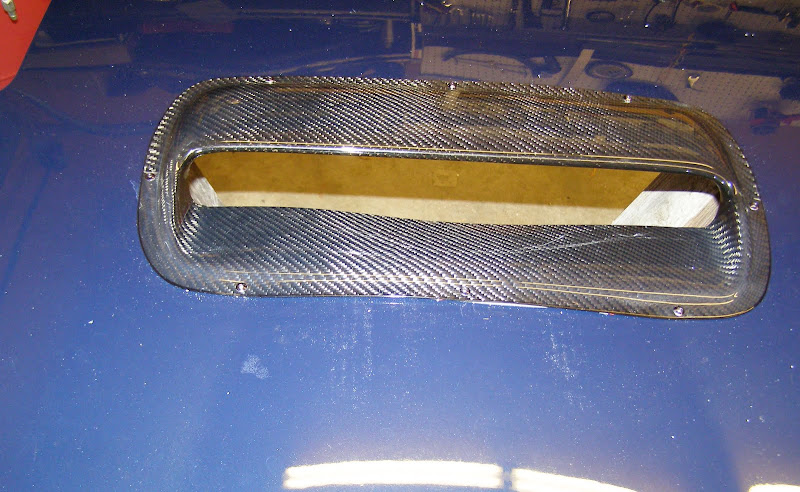

So I just added one of these this weekend in preparation for the inevitable South Texas summer heat. This is the Carbontrix 18x10 Hood Scoop
http://www.carbontrix.com/store/inde...products_id=91

There was a thread about this way back when
https://www.miataturbo.net/showthrea...highlight=hood

It only took about two hours start to finish so it is a pretty easy job. I am going to add a few more rivets eventually but it will work fine as-is. The part that take the longest is taping and measuring everything very carefully to make sure it goes on straight and centered. I also made a pattern from cardboard to mark the hole in the hood where I would be cutting. I used a sabre saw and a fine tooth (32 TPI) Bosch metal cutting blade. Pretty easy overall.




Last edited by ZX-Tex; 04-12-2010 at 09:13 PM.
ZX-Tex is offline   Reply With Quote
Old 04-12-2010, 10:39 AM   #2
Elite Member
iTrader: (5)

Join Date: Apr 2007
Location: Wellford, SC
Posts: 1,704
Total Cats: 1
Default

Looks pretty good... Make sure to report temperature differences upon running it at the track.
thagr81 us is offline   Reply With Quote
Old 04-12-2010, 10:50 AM   #3
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

Don't you wish somebody just sold a normal flat miata hood w/o that bubble?
m2cupcar is offline   Reply With Quote
Old 04-12-2010, 10:54 AM   #4
Elite Member
iTrader: (5)

Join Date: Apr 2007
Location: Wellford, SC
Posts: 1,704
Total Cats: 1
Default

I think the main thing about this is that it is proven to be functional and is quite cheap. Ideally I would want a wider vent with a small raised lip at the front. Similar to what Matt was running on his car... But for the money, you can't beat this setup.
thagr81 us is offline   Reply With Quote
Old 04-12-2010, 11:11 AM   #5
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Don't park your hood next to my hood, lol.
hustler is offline   Reply With Quote
Old 04-12-2010, 11:26 AM   #6
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

Quote:
Originally Posted by thagr81 us View Post
I think the main thing about this is that it is proven to be functional and is quite cheap.
Given the dramatic improvements I saw with the mini cooper scoop, I can't imagine this one won't exceed that. Cheap? I think you're get better performance and carbonfiber for the cost over fiberglass/plastic.
m2cupcar is offline   Reply With Quote
Old 04-12-2010, 11:32 AM   #7
Elite Member
iTrader: (5)

Join Date: Apr 2007
Location: Wellford, SC
Posts: 1,704
Total Cats: 1
Default

True... This should perform as well as the Mini scoop since it is basically a composite replica of the same part IIRC.
thagr81 us is offline   Reply With Quote
Old 04-12-2010, 12:13 PM   #8
Elite Member
Thread Starter
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Quote:
Originally Posted by thagr81 us View Post
Looks pretty good... Make sure to report temperature differences upon running it at the track.
I'll try to do that. As usual though there are a lot of variables involved here that will also impact the coolant/oil temperatures: Addition of a splitter, weather may be a few degrees warmer, new radiator (old one had a leak), etc. etc.

Quote:
Originally Posted by m2cupcar View Post
Don't you wish somebody just sold a normal flat miata hood w/o that bubble?
Word. That hump really gets in the way sometimes. I like a good hump as much as the next guy but not in this case.

Quote:
Originally Posted by thagr81 us View Post
I think the main thing about this is that it is proven to be functional and is quite cheap. Ideally I would want a wider vent with a small raised lip at the front. Similar to what Matt was running on his car... But for the money, you can't beat this setup.
Yes it will certainly improve radiator air flow and should drop the pressure under the car a bit.

Quote:
Originally Posted by hustler View Post
Don't park your hood next to my hood, lol.
Maybe mine will impregnate yours and they will have babies. Cheap extractor hoods for everyone.

Quote:
Originally Posted by thagr81 us View Post
True... This should perform as well as the Mini scoop since it is basically a composite replica of the same part IIRC.
I think it is actually bigger than the cooper scoop.
ZX-Tex is offline   Reply With Quote
Old 04-12-2010, 12:17 PM   #9
Elite Member
iTrader: (5)

Join Date: Apr 2007
Location: Wellford, SC
Posts: 1,704
Total Cats: 1
Default

Quote:
Originally Posted by ZX-Tex View Post
I think it is actually bigger than the cooper scoop.
Actually you are correct... I was going from memory of the thread about this a LONG time ago.
thagr81 us is offline   Reply With Quote
Old 04-12-2010, 12:27 PM   #10
Junior Member
iTrader: (3)

Join Date: Nov 2007
Location: Boston / '90 Mariner Blue
Posts: 310
Total Cats: 14
Default

Quote:
Originally Posted by hustler View Post
Don't park your hood IN my hood, lol.
ftfy
alik is offline   Reply With Quote
Old 04-12-2010, 12:34 PM   #11
Elite Member
iTrader: (7)

Join Date: Jul 2009
Location: Gainesville,Fl
Posts: 3,354
Total Cats: 7
Default

Quote:
Originally Posted by ZX-Tex View Post
Yes it will certainly improve radiator air flow and should drop the pressure under the car a bit.
Thats what I was thinking when I saw the scoops location. I want this now.

I want a bunch of ****. No money.
turotufas is offline   Reply With Quote
Old 04-12-2010, 01:06 PM   #12
Elite Member
iTrader: (12)

Join Date: Apr 2008
Location: Springfield IL
Posts: 2,750
Total Cats: 24
Default

Can you post a picture of the underside? As you know, we are kind of limited on room, and I'm even more so with the taurus fan.

I have this scoop sitting here with the hood in the loft.
chpmnsws6 is offline   Reply With Quote
Old 04-12-2010, 01:26 PM   #13
Elite Member
Thread Starter
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

I'll snap some pictures this evening and post them up. I looked at that clearance briefly and the underside of the scoop only protrudes down just a bit below the hood braces, like less than 1/2" IIRC.
ZX-Tex is offline   Reply With Quote
Old 04-12-2010, 09:16 PM   #14
Elite Member
Thread Starter
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

So I looked at it this evening. The bottom edge of the scoop, the part that protrudes into the engine bay, is no deeper than the ribs on the hood frame.
ZX-Tex is offline   Reply With Quote
Old 04-18-2010, 02:21 AM   #15
Elite Member

Join Date: Jul 2007
Location: Little Rock, AR
Posts: 3,110
Total Cats: 127
Default

We have 3 on the way here in Corpus. Might try to do a write up, but its pretty easy IMO.
jacob300zx is offline   Reply With Quote
Old 04-18-2010, 09:11 AM   #16
Elite Member
Thread Starter
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Yes not bad at all. I think the big tip on this one is, if you use a sabre saw, to be sure to get a fine tooth metal cutting blade. A wood blade will not work well at all and would probably just trash your hood. Obvious, but worth mentioning.
ZX-Tex is offline   Reply With Quote
Old 04-18-2010, 12:46 PM   #17
Elite Member
iTrader: (11)

chicksdigmiatas's Avatar

Join Date: Apr 2008
Location: Texas, 'Murica
Posts: 2,505
Total Cats: 7
Default

I might be doing this... Good post.
chicksdigmiatas is offline   Reply With Quote
Old 04-18-2010, 05:55 PM   #18
Senior Member
iTrader: (6)

tyson87's Avatar

Join Date: Aug 2008
Location: West Palm Beach, FL
Posts: 1,023
Total Cats: 1
Default

this is what phil had and gave me
tyson87 is offline   Reply With Quote
Old 04-20-2010, 02:13 PM   #19
Elite Member

Join Date: Jul 2007
Location: Little Rock, AR
Posts: 3,110
Total Cats: 127
Default

Mine is for sale here on the board for a loss. My hood is coming in for TWS and I don't need it now.
jacob300zx is offline   Reply With Quote
