Observations - Looking at the FRS transmission shop manual (see post 461 by Bob Bundy):

(Warning long post… apologies – too verbose)

FRS transmission is very similar in basic configuration to the Miata 6 speed (e.g. location of each gear within the transmission including the unique use of single synchro hub for 5th & Reverse with the 6th gear set in the extension housing). The Honda variant of this family of transmissions is very different and appears to have little in common with the Miata or FRS 6 speed.

The internal 5 –6 gear interlock/gear change linkage has moved from the main housing into the extension housing. On the Miata 6 speed, it is the removal of the pivot bolt (located in the middle housing top right) that forces a transmission disassembly to repair. It looks like interlock/gear change linkage in the FRS design eliminates this potential issue but requires more volume in the extension housing… Other drawings of the shift mechanism look similar to the Miata but, any small evolution in the design can prevent easily moving parts from one transmission version into the other.

Disassembly of both transmissions would be needed to confirm. External shifter linkage is totally changed so this may impact the ability to use the Miata extension housing.

Other FRS 6 speed differences: bolt pattern on bell housing, location of clutch fork pivot and arm hole in bell housing, rear mounted / reverse rotation starter, longer clutch shaft (first motion), no power frame mount, use of a remote shifter, … also noted by others, increased input and output shaft diameters.

One option is to install the FRS transmission as a complete assembly using an engine to transmission adapter plate. The longer clutch shaft and deeper bell housing may allow room for a relocated or custom clutch release fork and throw out bearing. A clutch release cylinder mount would also have to be fabricated (mounted to the adapter plate?). The adapter plate would also provide something the Miata starter to bolt to.


Now for some arm chair engineering… Comparing the FRS to Miata 6 speeds:

If the high torque failures in the Miata 6 speed are related to transmission shaft bending (see “another 6 speed bites the dust” post # 305 page 16 – gear pressure angle), then an increase in shaft diameter will reduce the amount of counter shaft and 3rd motion shaft deflection and “may reduce” this deflection and the resulting gear tooth failure. Increasing the shaft diameter about 5% would reduce the deflection about 21% (increasing stiffness is on the order of R^4). Any increase in shaft diameter is a good thing…

A reduction in gear helix angle would reduce the drive gear to driven gear contact pressure and also reduce the axial thrust (end) loading on the shafts and transmission case bearings. Lower helix angle is a good thing…

Wider gears also help but may not be achievable if the center housing is the same or similar dimension. Any % increase in active gear width would increase the strength to the same % amount. Wider gears are a good thing…
As was already pointed out (Bob Bundy), the main and counter shaft distances are believed to be unchanged between the FRS and Miata transmissions so, there is no opportunity to improve that factor… we are SOL on this one...


Things to compare and measure between FRS and Miata 6 speeds:

Shaft diameter on the 3rd motion shaft (shaft diameter inside the bearings for – the end of the shaft that fits into the bearing in the 1st motion shaft, reverse, 4th, 3rd, 2nd and 1st)

Shaft diameter on the counter shaft (2nd motion shaft) for 3rd and 4th
Helix angle for each gear pair – Counter shaft drive pair, 4th, 3rd, 2nd and 1st gears.

Transmission housing bearings supporting the 1st, 2nd and 3rd motion shafts will likely be larger also… It’s good to know what the new sizes are, but likely not as critical as the others.

I assume 5th gear (direct 1:1) and 6th do not fail…



How to break a transmission (especially gear teeth), drive shaft, CV joint, Diff, axle? … Torsional shock loading is one failure mode. The main issue is moving from a low load to very high torque spike as the tire spins up (when air born) then rapidly slows down to road speed once it finds traction. Wider sticky tires make it worse as the increased grip increase the height of the torque peak.

Torque spikes may be caused by axle hop, spinning up an unloaded drive wheel when jumping from curbs at the track, dumping the clutch (e.g. a drag race start), … etc. Axle hop is likely worse (lots of high torque peaks in a very short time) but torque spikes for any reason can cause damage.
99Racer is offline   Reply With Quote
Old 11-20-2014, 01:45 AM   #482
Free Moustache Rides
iTrader: (8)

matthewdesigns's Avatar

Join Date: Jun 2008
Location: Colorado Springs
Posts: 1,656
Total Cats: 47
Default

Quote:
Originally Posted by emilio700 View Post
Very fast FR-S at Super lap last Friday. Definitely not a stock gearbox. I wonder what it was.
This Evasive Motorsports blog entry prior to the PPIHC says it is a Hewland. Link: ? frs

Quote:
We have been working hard the past few weeks to get the Evasive Scion FR-S ready for Pikes Peak International Hill Climb in Colorado! Last year we had a completion time of 10:59 driven by Rob Walker aka MaxRev. We have been preparing all day and night with major new upgrades to the FR-S such as HKS 2.1 Stroker Kit, HKS camshafts 260/266, Hewland Transmission, Motec M150, and lightened aero including carbon doors, revised carbon splitter, fender louvers, and Varis carbon hood.
matthewdesigns is offline   Reply With Quote
Old 11-20-2014, 01:51 AM   #483
Free Moustache Rides
iTrader: (8)

matthewdesigns's Avatar

Join Date: Jun 2008
Location: Colorado Springs
Posts: 1,656
Total Cats: 47
Default

Quote:
Originally Posted by 99Racer View Post
Observations - Looking at the FRS transmission shop manual (see post 461 by Bob Bundy):

(Warning long post… apologies – too verbose)

etc
Once the trans is apart I will measure all of this. Surely someone else here has a 6spd that is opened up and can get some numbers. I'm not terribly inclined to pull apart my (known good) 6spd to make comparative measurements, but if that's the only way to crack this nut I'll consider doing it.
matthewdesigns is offline   Reply With Quote
Old 12-19-2014, 08:45 PM   #484
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 8,924
Total Cats: 93
Default

so how doe these ratios look with the 4.3? http://www.summitracing.com/parts/fm...6266/overview/ 6th gear with the 4.3 is about the same as the stock tranny would be with the 3.3.
Leafy is offline   Reply With Quote
Old 12-19-2014, 09:16 PM   #485
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 13,905
Total Cats: 1,077
Default

With a 4.3, the drops are a little long, but it's workable.
Savington is online now   Reply With Quote
Old 12-20-2014, 06:08 AM   #486
Supporting Vendor
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,706
Total Cats: 357
Default

Assuming shifts around 7100rpm..
2-3 shift drops to ~5200rpm
3-4 shift drops to ~5500rpm
4-5 shift drops to ~5700rpm

Low power or really peaky motor may need a tad shorter, and on the other end of the spectrum I'd probably want a longer 2-3 drop for something with gobs of torque (non-BP) but for most turbo/rotrex miata setups with 200+whp I'd think that would work pretty well.

-Ryan

Last edited by ThePass; 12-20-2014 at 06:19 AM.
ThePass is online now   Reply With Quote
Old 12-20-2014, 08:43 AM   #487
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 14,405
Total Cats: 1,259
Default

The first gear combination is just a little taller than a 5-speed and a 4.10 first gear, which is probably great.

The trans is large and a bit heavy, but if it can fit in the tunnel and have decent shifter placement, it would be bulletproof.
sixshooter is offline   Reply With Quote
Old 12-20-2014, 11:03 AM   #488
Senior Member
iTrader: (8)

paNX2K&SE-R's Avatar

Join Date: Dec 2007
Location: Mocksville, NC
Posts: 659
Total Cats: 11
Default

Quote:
Originally Posted by sixshooter View Post
The trans is large and a bit heavy, but if it can fit in the tunnel and have decent shifter placement, it would be bulletproof.
That's a T56, basically the same tranny used in the typical LS V8 swaps. The tunnel has to be widened for those applications but they fit fine after that. That would be sick if someone made a kit to adapt one for BP engines.
paNX2K&SE-R is offline   Reply With Quote
Old 12-20-2014, 02:57 PM   #489
Junior Member
iTrader: (1)

Join Date: Apr 2008
Location: Phx, AZ
Posts: 357
Total Cats: 0
Default

I'm still running a TII box with no problems. Running a shorter rear end would make it better. I'm making around 350whp and drifting on 245/17's and I haven't had any problems in a year and a half
theshdwconspracy is offline   Reply With Quote
Old 12-20-2014, 06:06 PM   #490
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 8,924
Total Cats: 93
Default

I believe its actually a T6060, which is more or less an upgraded version of the t56. I seem to have mixed up the parts I was looking at though, I had been looking at trannys with the same bellhousing pattern as TKO500 which should bolt to the lakewood housing and didnt realize I'd moved over to things using the t56 pattern.
Leafy is offline   Reply With Quote
Old 01-12-2015, 05:40 PM   #491
Free Moustache Rides
iTrader: (8)

matthewdesigns's Avatar

Join Date: Jun 2008
Location: Colorado Springs
Posts: 1,656
Total Cats: 47
Default

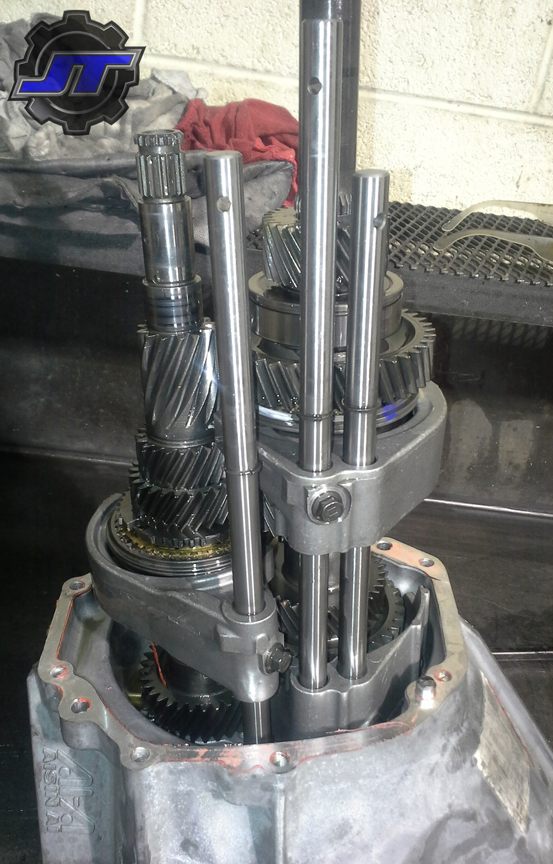

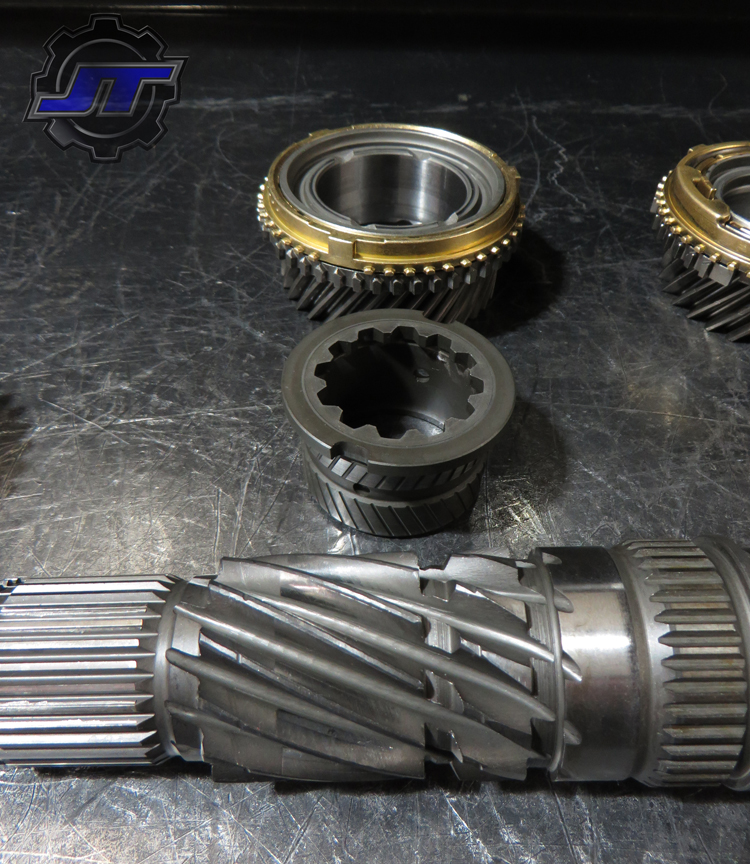

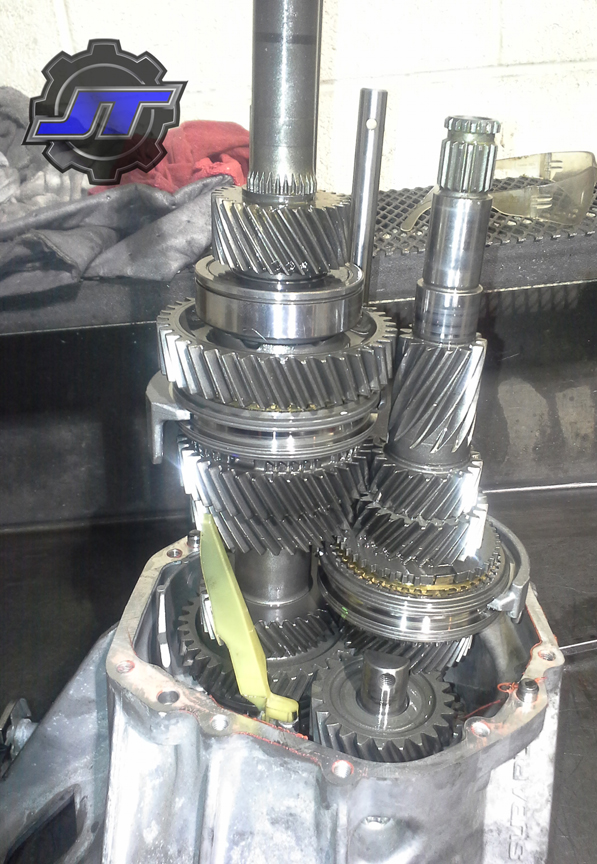

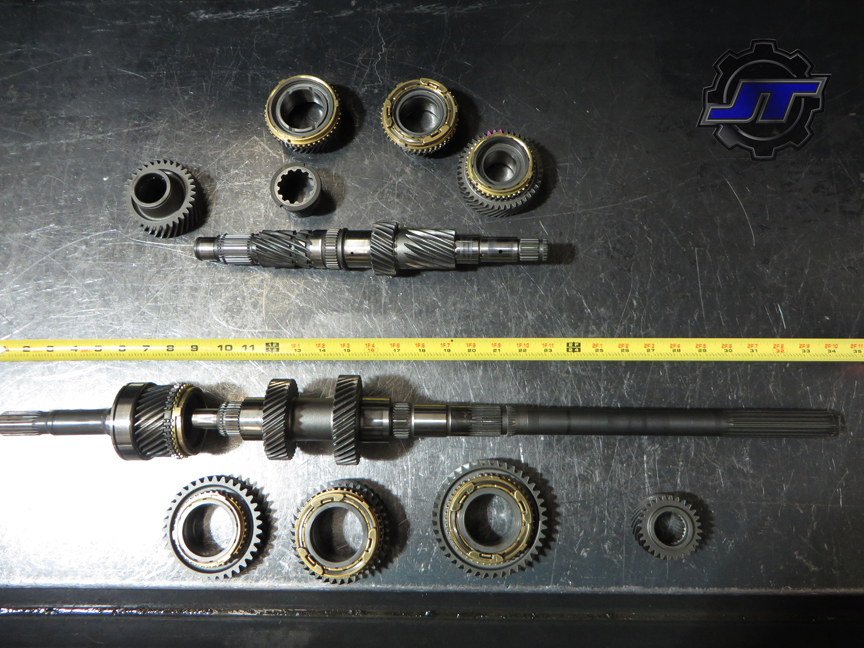

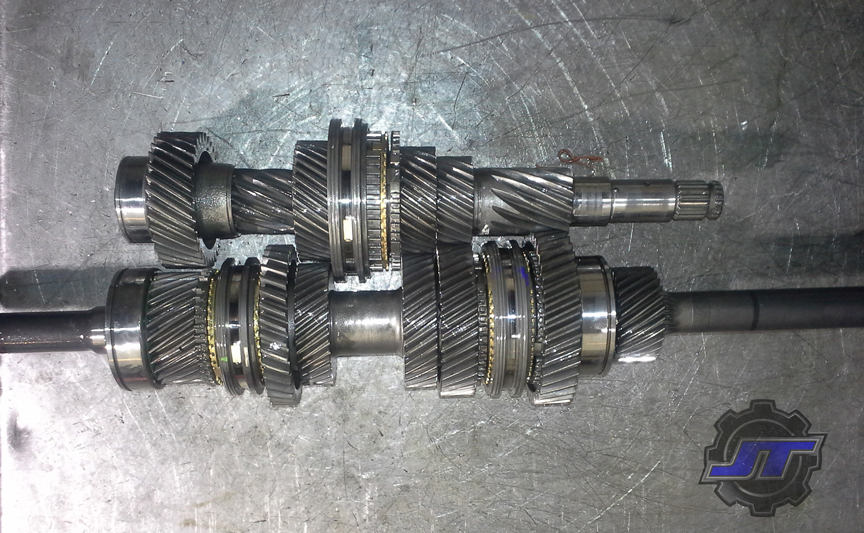

BRZ trans came apart last week. I grabbed a few pics and some measurements. There are full res versions in the Dropbox link.
