Old 08-14-2015, 12:33 PM   #541
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,915
Total Cats: 1,433
Default

<p>Wow, an integrated PPF mount? Does he have the same thing for the 8.8? Thats actually a pretty good solution. I will keep an eye on it.</p>
aidandj is offline   Reply With Quote
Old 08-14-2015, 01:04 PM   #542
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,204
Total Cats: 1,226
Default

I am a little put off by anyone claiming 340+wtq and full boost at 2400rpm from a 2560R car. $1200 is also kind of nuts for two welded adapter brackets and a 5-speed bellhousing. I'll build my own.
Savington is offline   Reply With Quote
Old 08-14-2015, 01:54 PM   #543
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,915
Total Cats: 1,433
Default

<p>So basically its a chopped bellhousing somehow bolted onto the T5? Seems pretty simple. All you need is a clutch to match the input shaft?</p>
aidandj is offline   Reply With Quote
Old 08-14-2015, 02:11 PM   #544
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,230
Total Cats: 1,475
Default

Quote:
Originally Posted by Savington View Post
I'll build my own.
Well? We're still waitiiiinnngggg!
sixshooter is offline   Reply With Quote
Old 08-14-2015, 06:56 PM   #545
Senior Member
iTrader: (2)

Join Date: Nov 2007
Location: Saint Paul, MN
Posts: 1,293
Total Cats: 22
Default

Might copy that myself when I start breaking transmissions on the regular next year. Those numbers don't sound TOO high, 85% of 348 gives us 296, I was making 296/270 on a dynojet with my 2560 at 17psi.
Der_Idiot is offline   Reply With Quote
Old 08-15-2015, 03:35 AM   #546
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,204
Total Cats: 1,226
Default

Quote:
Originally Posted by sixshooter View Post
Well? We're still waitiiiinnngggg!
Don't hold your breath. The truth is that I have half a dozen higher volume, more profitable products to focus on. The T5 is a pet project and I'll sell maybe 20 units over 3 years. It will happen because I'm going to need a gearbox for my 400whp street car project, but the timeline is going to be dictated by how much time I'm able to tear away from the projects I need to focus on.
Savington is offline   Reply With Quote
Old 08-15-2015, 11:06 AM   #547
Senior Member
iTrader: (4)

2manyhobyz's Avatar

Join Date: Feb 2011
Location: Joliet, IL
Posts: 622
Total Cats: 16
Default

Here is the trans I would start looking for, " under the Ford Motorsport/For Racing and through some auto specialty shops. It's called the T5Z because it was originally tagged M-7003-Z 1352-249 (Tremec number under the World Class designation) This is the identical unit, when marketed outside of motorsport is tagged 1352-251 (Borg Warner number)"
^ Thanks to Stan Peace, Pro-Force Performance; Specializing in Rebuilt Mustang Manual Transmissions in Atlanta, GA for compiling all the T-5 info that I found.

I would like to go forward with this. I need a couple of bell housings, if you have one and would like to contribute to this I will pay for shipping. Then find a T5Z, or at least a T5 that has the correct shaft length as there are differences. The person with the kit for sale says there is an off the shelf pilot bearing solution.
2manyhobyz is offline   Reply With Quote
Old 08-15-2015, 07:32 PM   #548
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,204
Total Cats: 1,226
Default

IMO, spending for a T5Z is kind of silly. It's not substantially stronger than a standard T5 box. The box I have is out of a 3.8L V6 Mustang, and I'll put a V8 input shaft in it since that's the input shaft that all the aftermarket gearsets use. I think I paid $200 for the box. By the time you spend $1k for a brand new FoMoCo T5Z, you're most of the way to a V6 box with a G-Force gearset which has better ratios, and the G-Force guys say that the V6 boxes are the way to go anyway (it's impossible to find a V8 box that's not beat to hell).
Savington is offline   Reply With Quote
Old 08-17-2015, 12:45 PM   #549
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,457
Total Cats: 240
Default

I paid just under $1200 for my T5z a few years ago.

4th to 5th shift sucks.

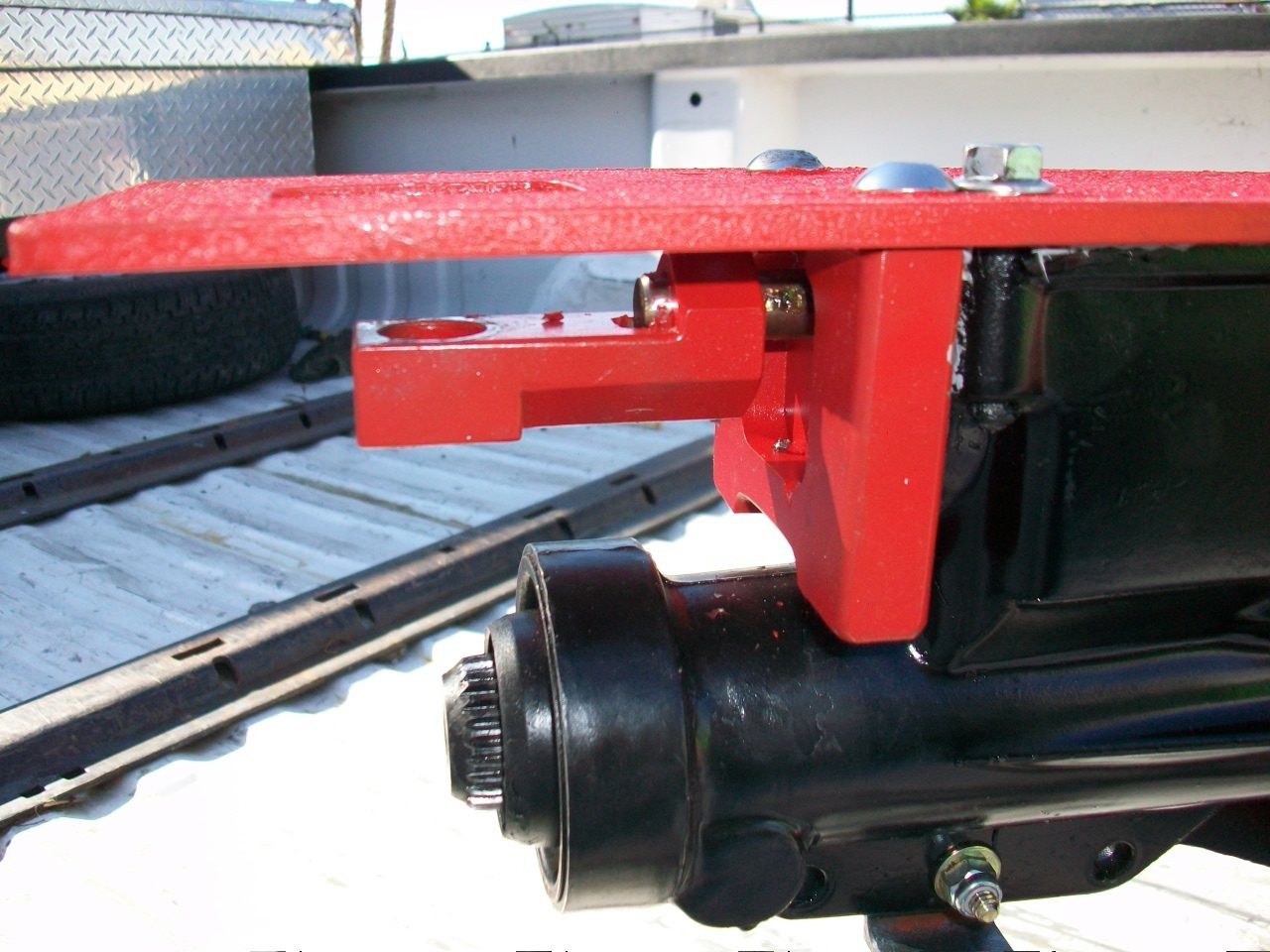

With the above T5 to miata swap kit (or BEGI's), I still can't figure out how they get the external shifter to seal against the turret and interact with the notched lever inside. Shaft has to rotate (easy seal) and slide in & out (a boot of some sort?)

This:


to this:


You can't just remove it as it is what supplies the gate pattern to the shifter.




I guess if you are completely disassembling the trans to replace the gearset, you can have a longer shaft made up that goes thru the freeze plug and out the back. I'd think you'd want some sort of support back there for the shaft...and you'll still need to interact with the gate pattern.
Attached Thumbnails
Gearbox options/experiences-%24_57.jpg
TurboTim is offline   Reply With Quote
Old 08-17-2015, 07:25 PM   #550
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,037
Total Cats: 99
Default

Didnt the begi shifter modifier go above the tranny? Like every other shifter relocator ever?

Why dont you guys just use the camaro tailhousing and shifter assembly? Besides that ford t5 ppf adapter wont fit it and the speedo gear is in a different spot on the output shaft so you'd either need to get speed from a wheel or use a camaro output shaft.
Leafy is offline   Reply With Quote
Old 08-17-2015, 07:25 PM   #551
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,037
Total Cats: 99
Default

Didnt the begi shifter modifier go above the tranny? Like every other shifter relocator ever?

Why dont you guys just use the camaro tailhousing and shifter assembly? Besides that ford t5 ppf adapter wont fit it and the speedo gear is in a different spot on the output shaft so you'd either need to get speed from a wheel or use a camaro output shaft.
Leafy is offline   Reply With Quote
Old 08-18-2015, 12:30 AM   #552
Senior Member
iTrader: (4)

2manyhobyz's Avatar

Join Date: Feb 2011
Location: Joliet, IL
Posts: 622
Total Cats: 16
Default

Quote:
Originally Posted by Savington View Post
IMO, spending for a T5Z is kind of silly. It's not substantially stronger than a standard T5 box. The box I have is out of a 3.8L V6 Mustang, and I'll put a V8 input shaft in it since that's the input shaft that all the aftermarket gearsets use. I think I paid $200 for the box. By the time you spend $1k for a brand new FoMoCo T5Z, you're most of the way to a V6 box with a G-Force gearset which has better ratios, and the G-Force guys say that the V6 boxes are the way to go anyway (it's impossible to find a V8 box that's not beat to hell).
Andrew, it looks like you've been screwing around with this idea for a few years.
https://www.miataturbo.net/general-m...lopment-63002/
(I like post 18) The 3.8L V6 could be the way to go. For some reason I thought I heard the T5Z was suppose to shift smoother, but if you're going for custom internals, probably not an issue. Did you find out what pilot bearing would work with the T5 into BP?
2manyhobyz is offline   Reply With Quote
Old 08-18-2015, 12:38 AM   #553
Senior Member
iTrader: (4)

2manyhobyz's Avatar

Join Date: Feb 2011
Location: Joliet, IL
Posts: 622
Total Cats: 16
Default

I found a chart for the different versions of the T5 but can't get it over here.
Google T5 transmission dimension chart and find the one from Transmission Technologies, its the forth one in the images section, sorry and thanks.
2manyhobyz is offline   Reply With Quote
Old 08-18-2015, 12:38 AM   #554
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,204
Total Cats: 1,226
Default

Quote:
Originally Posted by 2manyhobyz View Post
Did you find out what pilot bearing would work with the T5 into BP?

Yes, I did.
Savington is offline   Reply With Quote
Old 08-18-2015, 08:35 AM   #555
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,457
Total Cats: 240
Default

Quote:
Originally Posted by Leafy View Post
Didnt the begi shifter modifier go above the tranny? Like every other shifter relocator ever?
No, BEGI's was out the rear freeze plug thing. Everything's simple except this.

TurboTim is offline   Reply With Quote
Old 03-11-2016, 09:08 PM   #556
Supporting Vendor
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 5,139
Total Cats: 1,137
Default

FYI

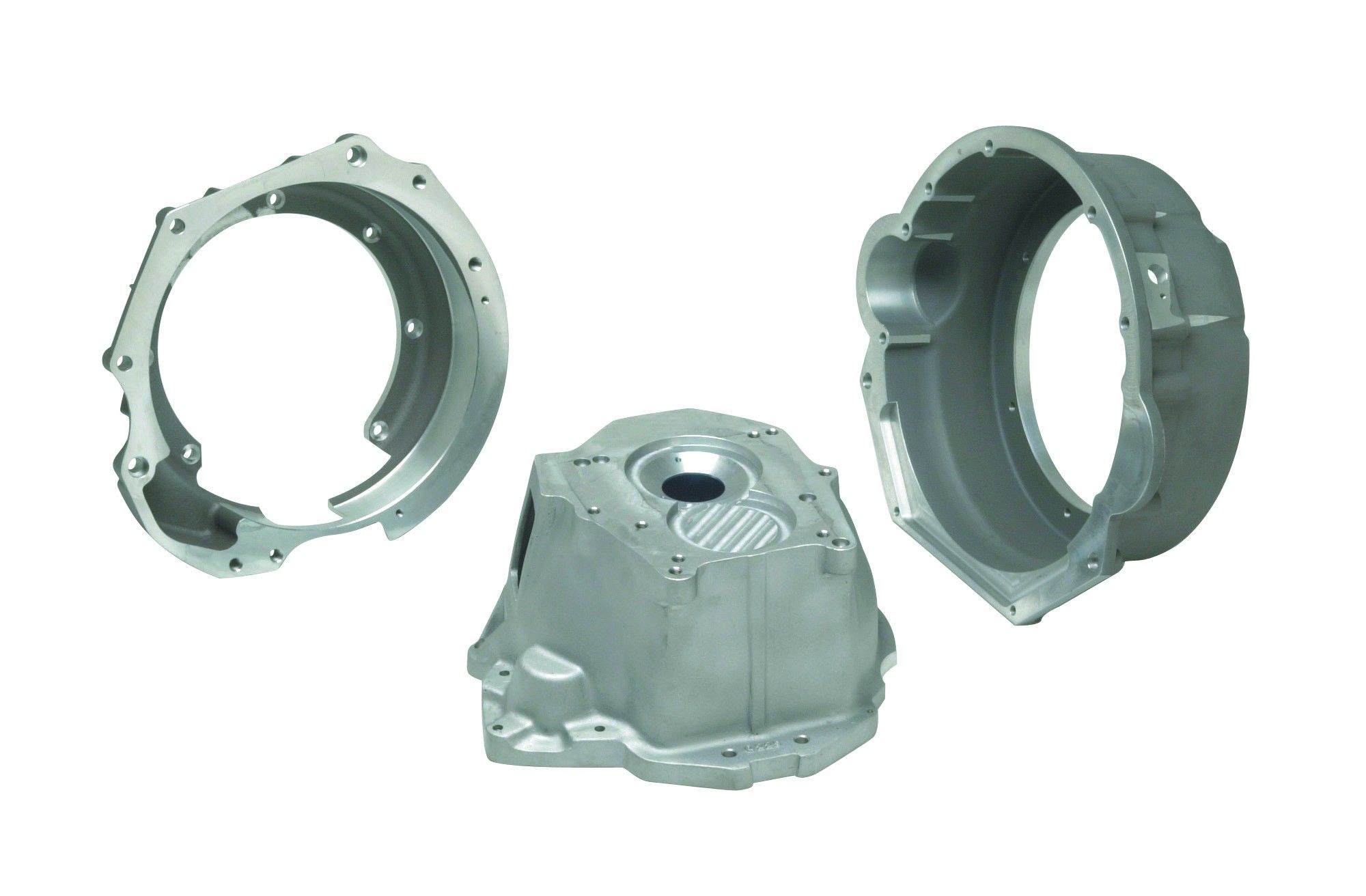

Quaife bell housing is available separately. Might be a handy starting point for other box conversions. $750 USD. I have no info on it. Contact Quaffle for that.

Ignore the hyperlink name, it's the right one.
https://shop.quaife.co.uk/bell-housi...inder-n47-1357

schematic http://shop.quaife.co.uk/downloads/p...-01-MX5-01.pdf

Attached Thumbnails
Gearbox options/experiences-80-page_16_bellhousing_4_31b312b636d054311afc4801a139f0e934a6676e.jpg
emilio700 is online now   Reply With Quote
Old 06-06-2016, 03:40 PM   #557
Junior Member
iTrader: (1)

Join Date: Feb 2011
Location: Richmond, VA
Posts: 320
Total Cats: 20
Default

Quote:
Originally Posted by Savington View Post
Yes, I did.
How goes the T5 project?

Trying to put together a transmission resource here:
https://docs.google.com/spreadsheets...it?usp=sharing

Has anyone put the Sky/Solstice AR5 in a Miata?

Last edited by vtjballeng; 06-08-2016 at 01:15 PM.
vtjballeng is offline   Reply With Quote
Old 06-21-2016, 02:43 AM   #558
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,473
Total Cats: 114
Default

Thought I would Add, Quaife gear set in 5 speed box, 1.5 years broke second gear teeth. ~330 ft-lbs 275 Hoosier A7s
bbundy is offline   Reply With Quote
Old 06-21-2016, 02:45 AM   #559
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,204
Total Cats: 1,226
Default

Quote:
Originally Posted by vtjballeng View Post
How goes the T5 project?
Still in progress, but taking a backseat to turbo kit development.
Savington is offline   Reply With Quote
Old 06-21-2016, 09:38 AM   #560
A living god
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,031
Total Cats: 240
Default

The 1.6 kit is taking a little longer than expected, huh?
viperormiata is online now   Reply With Quote
