Old 09-25-2014, 12:01 PM   #401
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,473
Total Cats: 114
Default

Quote:
Originally Posted by TNTUBA View Post
None of those online retailers have them in stock either. They will have to get it shipped from the UK. Assuming Quaife actually has the gearset ready to ship today it will still be a while before you get it. I paid for mine in middle January and the first event I ran with it was the Wilmington Pro Solo in July.

And David is right. You need to order several hundred dollars worth of parts from MazdaComp($860) AND you will need to have the case Machined. On mine, buy the time I bought the gears, paid for shipping, ordered everything from MazdaComp and paid someone who is experienced installing Quaife gears in Miata gear boxes to do the machine work and install($560)...the total bill was $4,393.96

The Quaife install is not a "drop in" and IMHO it would be pretty stupid to put used shift forks which wear out VERY quickly, used syncro rings which wear and crack, used syncro springs which snap and used bearings out of a gear box which suffered a catastrophic failure like most all of yours have into a transmission you are building to last for several years.

I wouldn't let mine go for what David is asking for his....supply and demand..... I would be willing to bet David's is the only complete gear box WITH verifiable records as to the quality of the install....for sale in the US right now.
End of race season I have like zero cash on hand actually scrounging lunch money to pay shipping on Hoosier tires I won in contingencies right now. I probably would of bought davids if I had money on hand.
bbundy is offline   Reply With Quote
Old 09-25-2014, 12:26 PM   #402
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,203
Total Cats: 1,225
Default

I'm going to jump down the T5 rabbit hole with the G-Force gearset that Steven linked to. With any luck I can get it into a car for <$3k and have a much stronger gearset than the Quaife. Win-win.
Savington is online now   Reply With Quote
Old 09-25-2014, 12:39 PM   #403
Senior Member
iTrader: (3)

Join Date: Nov 2011
Location: Beaverton, OR
Posts: 721
Total Cats: 29
Default

^in for results on this.
greddygalant is offline   Reply With Quote
Old 09-25-2014, 01:28 PM   #404
Junior Member

Join Date: May 2008
Location: Canada
Posts: 486
Total Cats: 89
Default

Quote:
Originally Posted by matthewdesigns View Post
Most of what can be seen in your pics is the coasting side of the teeth. The arrow I've added points to the drive side, and it looks pretty rough, at least in this glimpse. If the teeth on it look like this all the way around, and across, then that gear is iffy. It's a surface roughness that is making the gear engagement grabby as opposed to slippery, which is adding to the stress on the teeth. Do all of the gears look like that on he drive side? It is possible that only 4th looks like that, which helped lead to it failing.

Look for pitting as well. It will appear near the root of the tooth, and if there's more than a spot or two it will appear as a broken line of pits/dots across the width of the tooth.

I'd probably run the gearbox even if all the gears look a little smeared like that, but replace 4th as a set, not just the single one on the layshaft. And turn the power down a little, since you've already found the limit

Edit: What does your builder think about it? He's got a better feel for it than anyone else since it's on his bench.
Thanks Matthew. I've asked my mechanic to take some pictures of the other side of the gear facing and check for the pitting you describe. I'll post what I get.

I'll have to look into whether Quaife will sell individual gear pairs. If so, unless other problems are discovered, I'll likely rebuild it to resell. Yes, I'll definitely be turning down the boost for track days.

Quote:
Originally Posted by Savington View Post
I'm going to jump down the T5 rabbit hole with the G-Force gearset that Steven linked to. With any luck I can get it into a car for <$3k and have a much stronger gearset than the Quaife. Win-win.
I was beginning to feel a little like Cassandra, since no-one (until now) said anything about that gearset option. Please keep us abreast of how it goes. Better still, develop a kit and I'll upgrade so that I can run "allofit".
DeerHunter is offline   Reply With Quote
Old 09-25-2014, 01:36 PM   #405
Junior Member

Join Date: Mar 2012
Posts: 56
Total Cats: 8
Default

If you're ECU can handle it why not trim the boost at peak torque in 4th - that's where it's weak so pulling the boost back at that point might be enough to save another box and still have all the go you need in the other gears….

Just a thought….
ardler_dan is offline   Reply With Quote
Old 09-25-2014, 01:38 PM   #406
Junior Member

Join Date: May 2008
Location: Canada
Posts: 486
Total Cats: 89
Default

Quote:
Originally Posted by ardler_dan View Post
If you're ECU can handle it why not trim the boost at peak torque in 4th - that's where it's weak so pulling the boost back at that point might be enough to save another box and still have all the go you need in the other gears….

Just a thought….
Not a bad idea. I'll have to hook up the speedo signal to the Hydra and use gear-dependent boost trims. The first part is the hard part on a '93, but the second should be doable.
DeerHunter is offline   Reply With Quote
Old 09-25-2014, 01:45 PM   #407
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,037
Total Cats: 99
Default

The 93 should already have a speedo signal wired to the ecu connector coming from the hobb switch in the cluster.
Leafy is offline   Reply With Quote
Old 09-25-2014, 01:52 PM   #408
Junior Member
iTrader: (2)

Join Date: Apr 2011
Posts: 360
Total Cats: 10
Default

My 91 even had it already. It's used for the cruise control, so I just ran a wire from that harness over to the Hydra.
codingparadox is offline   Reply With Quote
Old 09-25-2014, 02:51 PM   #409
Junior Member

Join Date: Mar 2012
Posts: 56
Total Cats: 8
Default

Does the hydra have a full table per gear or is just a single trim per gear?
ardler_dan is offline   Reply With Quote
Old 09-25-2014, 03:43 PM   #410
Junior Member

Join Date: May 2008
Location: Canada
Posts: 486
Total Cats: 89
Default

Quote:
Originally Posted by ardler_dan View Post
Does the hydra have a full table per gear or is just a single trim per gear?
Poking around, you can set boost trim for several rpm segments and/or one setting per gear. A full table might be a feature request for a future update.
DeerHunter is offline   Reply With Quote
Old 09-25-2014, 04:32 PM   #411
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,229
Total Cats: 1,475
Default

In for T-5 kit being more of a priority than the TSE turbo kit if you can pry yourself away from developing it for a little bit.
sixshooter is online now   Reply With Quote
Old 09-25-2014, 04:45 PM   #412
Elite Member

Join Date: Oct 2011
Location: OKC, OK
Posts: 2,531
Total Cats: 71
Default

TSE T-5 kit, coming 2024.
z31maniac is offline   Reply With Quote
Old 09-25-2014, 05:01 PM   #413
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,229
Total Cats: 1,475
Default

Quote:
Originally Posted by z31maniac View Post
TSE T-5 kit, coming 2024.
Hey now, I wasn't actually being facetious. I figured he was spending all of his free R&D time on the turbo kit and I'd rather have a bullet proof transmission.
sixshooter is online now   Reply With Quote
Old 09-25-2014, 05:31 PM   #414
Supporting Vendor
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 5,139
Total Cats: 1,137
Default

Quote:
Originally Posted by sixshooter View Post
Hey now, I wasn't actually being facetious. I figured he was spending all of his free R&D time on the turbo kit and I'd rather have a bullet proof transmission.
Turbo kit rocks BTW. I love mine.
emilio700 is offline   Reply With Quote
Old 09-25-2014, 05:36 PM   #415
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,203
Total Cats: 1,225
Default

Parallel development. I'm parting with one of the race cars (Thumper) in order to fund a development car (NB2) for our upcoming parts. Stuff like an AEM Infinity-6 PnP setup and EFR cast manifold/downpipe. In order to highlight the Infinity's flex-fuel and traction control capabilities, I need a transmission that will cope with ~400wtq, so it makes sense. I bought a Quaife box when it appeared to be the only option on the market, but sold it when I parted Theseus out. Now that we know the Quaife boxes don't hold up, I have a distinct motivation to come up with something. I'm still doing research but it seems like a stock-case T5 with a G-Force gearset and adapter bits could be assembled for <$3k. There are case upgrades and a few other internal upgrades that may be worth doing but they do drive the price up a bit. I'll start with a stock 87-93 box, see if it breaks, and go from there.


Now, here ye, here ye, the only words I've spoken publicly about turbo kits in months:
I have renderings of the manifold, a few people at MRLS saw them. Typical response was "Holy ****." SLA protos are pending. There is progress but I've been extremely tight-lipped because everyone wants to know "when" and I just don't have a good answer for that question. I'm not saying/showing **** until I have a better idea of when the foundry will have parts done for us. No timeline because I want them to be done correctly and still be affordable. I could have put a $1200 tubular version on the market 8 months ago, but I'm not a stupid man.

Last edited by Savington; 09-25-2014 at 05:46 PM.
Savington is online now   Reply With Quote
Old 09-25-2014, 06:36 PM   #416
Junior Member

Join Date: May 2008
Location: Canada
Posts: 486
Total Cats: 89
Default

Quote:
Originally Posted by matthewdesigns View Post
Most of what can be seen in your pics is the coasting side of the teeth. The arrow I've added points to the drive side, and it looks pretty rough, at least in this glimpse. If the teeth on it look like this all the way around, and across, then that gear is iffy. It's a surface roughness that is making the gear engagement grabby as opposed to slippery, which is adding to the stress on the teeth. Do all of the gears look like that on he drive side? It is possible that only 4th looks like that, which helped lead to it failing.

Look for pitting as well. It will appear near the root of the tooth, and if there's more than a spot or two it will appear as a broken line of pits/dots across the width of the tooth.

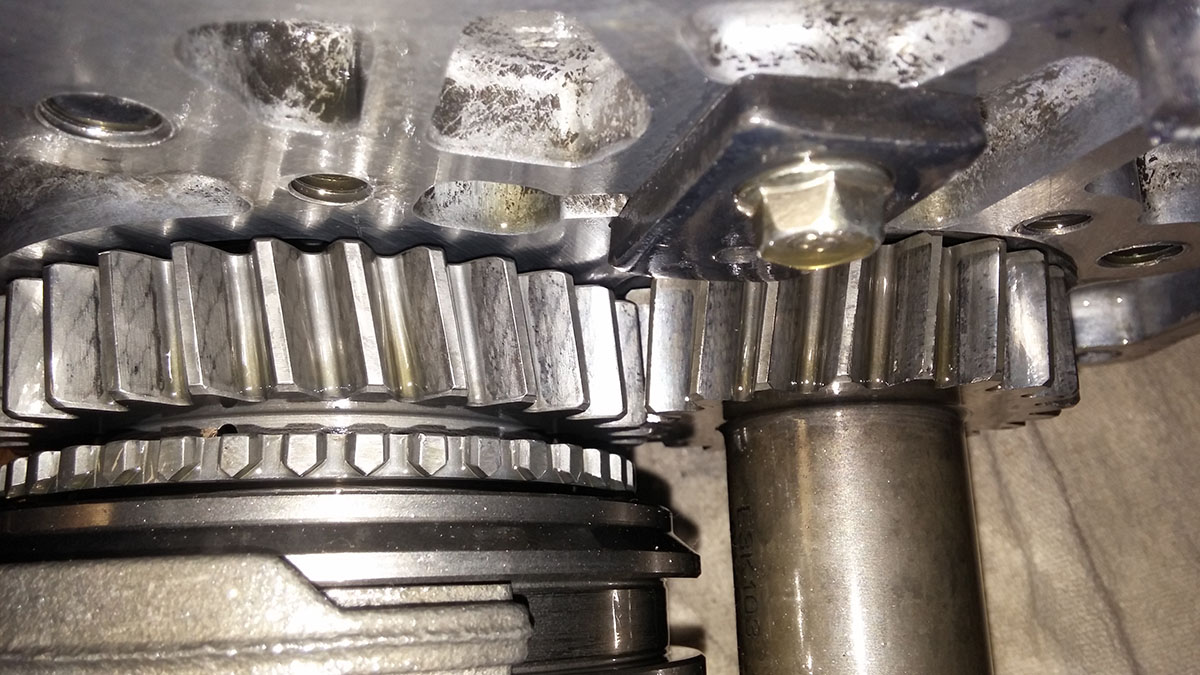

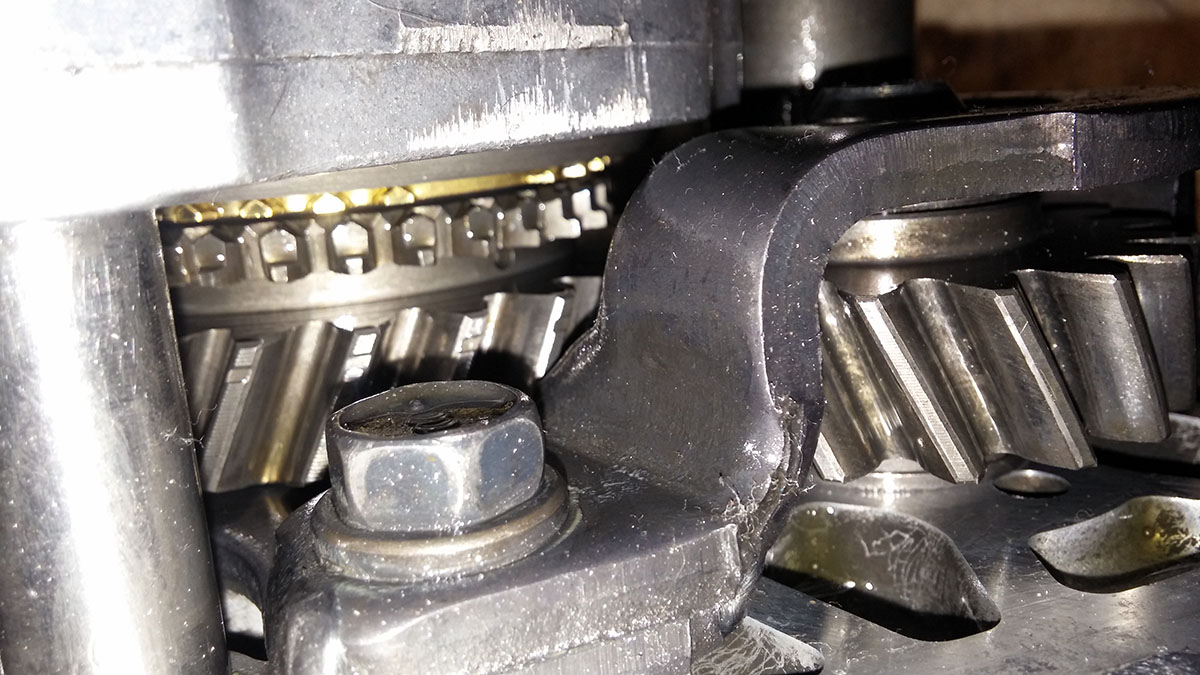

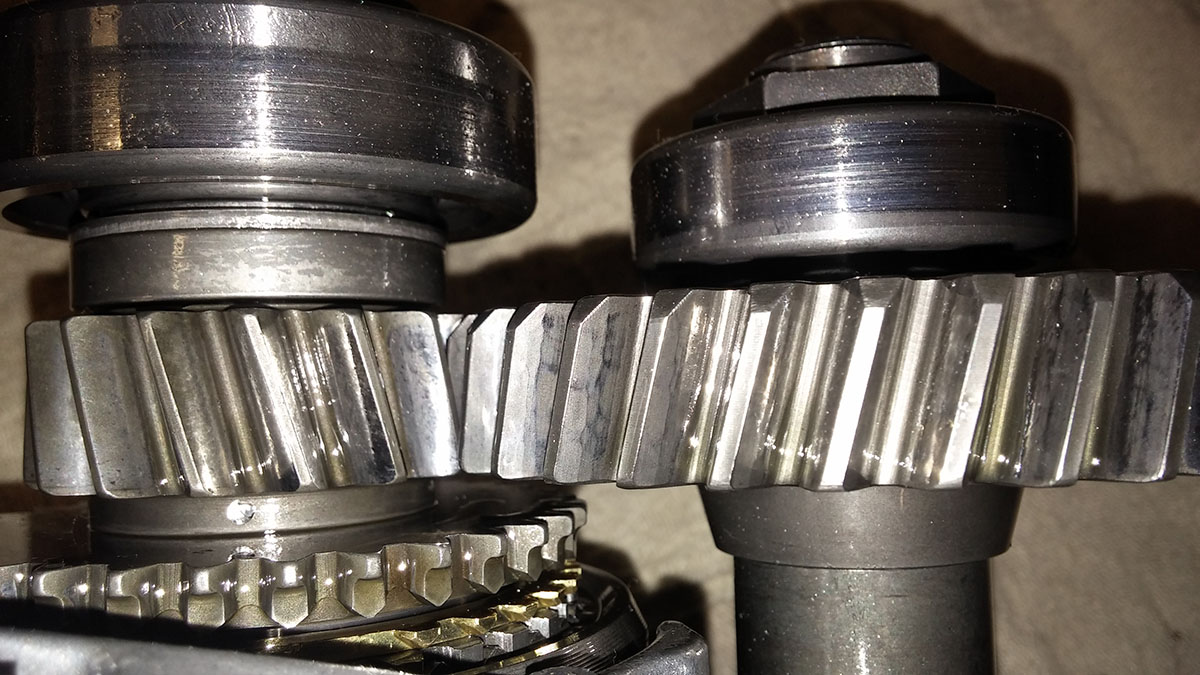

I haven't spoken to my mek-ah-neek about this, but I did ask him to take some better photos. I don't see any pitting or roughness, especially on the non-affected gears. Just a clean break. I guess 4th is indeed the weak gear.







Any further thoughts/observations?
Attached Thumbnails

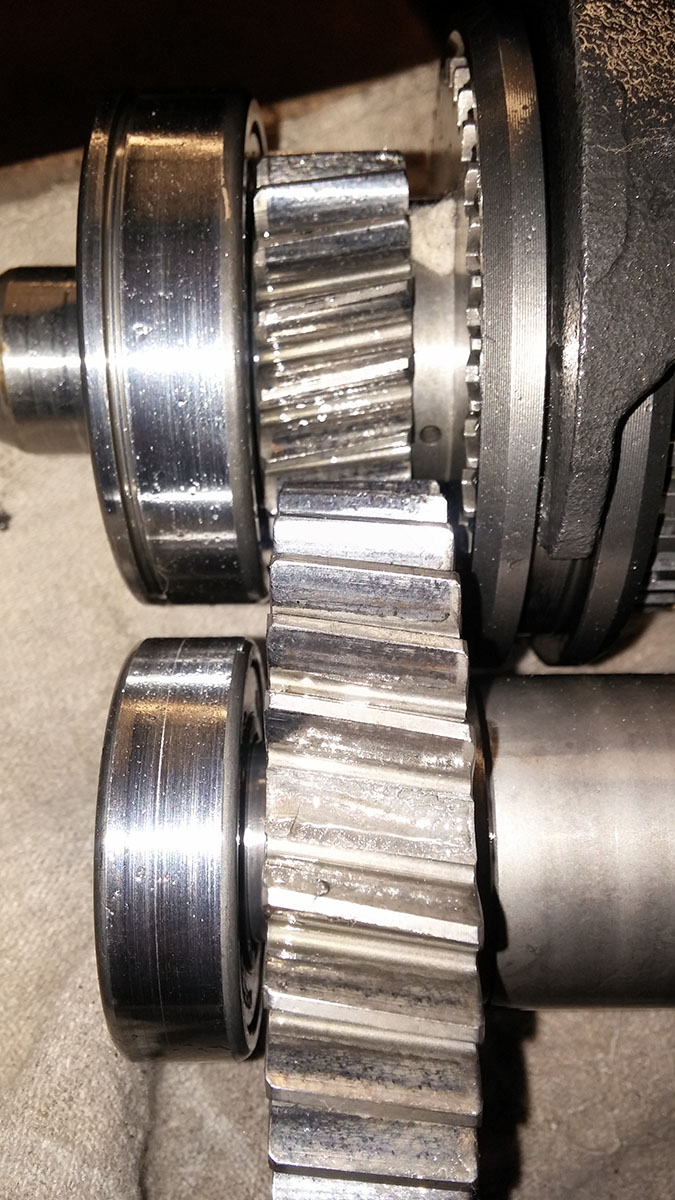

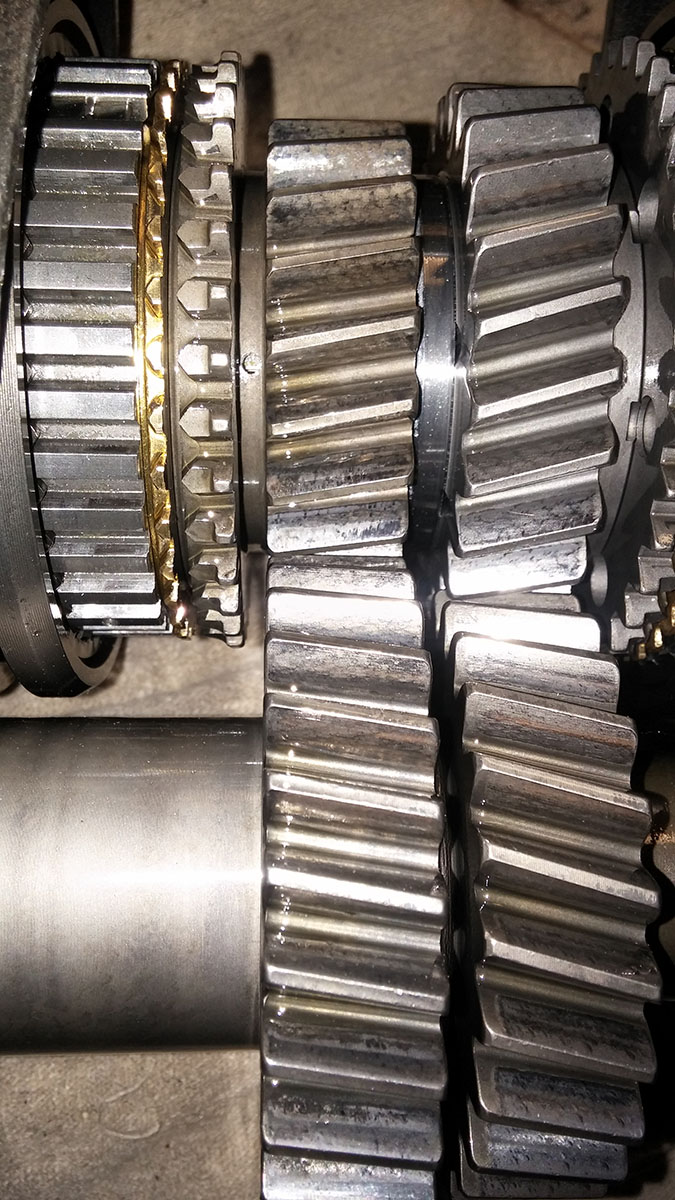

Gearbox options/experiences-broken-gear.jpg   Gearbox options/experiences-gear-1.jpg   Gearbox options/experiences-gear-2.jpg   Gearbox options/experiences-gear-3.jpg   Gearbox options/experiences-gear-4.jpg

DeerHunter is offline   Reply With Quote
Old 09-25-2014, 09:08 PM   #417
Senior Member
iTrader: (6)

Join Date: Jun 2010
Location: San Rafael, CA
Posts: 1,083
Total Cats: 35
Default

I toy with the idea of bumping up the power on my car but I have to ask at what power level do 6 speeds become a problem? Is it just the turbo guys with the massive torque hit or do the SC guys have issues too?

Most feel stock rods are good for 250tq. Is the same true for the 6 speed?
k24madness is offline   Reply With Quote
Old 09-25-2014, 09:57 PM   #418
Elite Member
iTrader: (12)

GeneSplicer's Avatar

Join Date: Sep 2009
Location: Birmingham, AL
Posts: 2,006
Total Cats: 147
Default

Quote:
Originally Posted by Savington View Post
I'm going to jump down the T5 rabbit hole with the G-Force gearset that Steven linked to. With any luck I can get it into a car for <$3k and have a much stronger gearset than the Quaife. Win-win.
I noticed the G force sets to while shopping for a T101a last night - T5 on the outside, win in the middle.
GeneSplicer is offline   Reply With Quote
Old 09-25-2014, 10:41 PM   #419
Supporting Vendor
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 5,139
Total Cats: 1,137
Default

Quote:
Originally Posted by k24madness View Post
I toy with the idea of bumping up the power on my car but I have to ask at what power level do 6 speeds become a problem? Is it just the turbo guys with the massive torque hit or do the SC guys have issues too?

Most feel stock rods are good for 250tq. Is the same true for the 6 speed?
WHP doesn't seem to be what kills them. Seems like north of 350tq the lifespan is measured in minutes. 320tq it's maybe a few hours. Below 300tq maybe a season. Lots turbo guys in the 250tq range have never broken an AZ6. I believe they are rated at around 200tq as implemented in the FRS.

Bob, what's your histogram or tq vs life?
emilio700 is offline   Reply With Quote
Old 09-25-2014, 10:57 PM   #420
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,473
Total Cats: 114
Default

Quote:
Originally Posted by DeerHunter View Post
I haven't spoken to my mek-ah-neek about this, but I did ask him to take some better photos. I don't see any pitting or roughness, especially on the non-affected gears. Just a clean break. I guess 4th is indeed the weak gear.


Any further thoughts/observations?
That's not 4th that's the primary drive gear set that broke. Drives the secondary shaft and every gear except 4th. 4th gear in the 5 speed just locks the input and output shaft together so no load actually goes through any gear teeth at all in 4th for a 1:1 ratio and the secondary shaft just spins freely with no drive load. Cant break 4th. The six speed does that in 5th.
bbundy is offline   Reply With Quote
