Old 02-02-2015, 03:02 PM   #41
Supporting Vendor
Thread Starter
iTrader: (1)

OGRacing's Avatar

Join Date: May 2014
Posts: 1,764
Total Cats: 46
Default

Quote:
Originally Posted by 1cockyz View Post
I have the snap off hub. There are 3 dowels on the face that slide into corresponding holes in the back of the "hub" much the same way a pressure plate aligns to a flywheel. The 2 pins then secure the 2 pieces together. If the 2 retaining pins fail then just keep the hub pushed forward and it will ride on the 3 dowel pins. This is the same hub used on some factory Lambo race car and also Lotus Exige Cup factory race cars. The use by OEMs of that stature kind of sold me. The only issue I have found is the use of the hub on very cold days there is a very small bit of play due to the dowels being steel and the hub being aluminum. I have the street version of it and was able to use a common horn push with the contact bent out a little and the horn works as well. I also "lubed" the retaining pins with key cylinder graphite dry lube and it works incredibly smooth.
excellent information. i might pick one up when my momo qr wears out.


all,
Word of warning on those ebay wheels. They are generally made from steel. the spokes have a tendency to snap off. causing a knife like object in a crash. The guys at mazmart can vouch. one of their employees was in a wreck. the ebay nardi knockoff wheel broke and stabbed him twice. He lost a lot of blood. i want to say 2 qt's, but don't quote me on the exact amount. he did almost die but they where able to get him to the hospital fast enough.
Aluminum wheel is a safer option as they will bend out of the way. Aluminum wheels are the only ones we carry because of that reason.


Danny George shared this on fb. Thought it was funny and on topic.



http://www.facebook.com/l.php?u=http...zA&h=CAQF0jo8F

Last edited by OGRacing; 02-03-2015 at 10:53 AM.
OGRacing is offline   Reply With Quote
Old 02-03-2015, 09:59 AM   #42
Senior Member
iTrader: (3)

Join Date: Oct 2008
Location: Indianapolis
Posts: 613
Total Cats: 12
Default

I always thought that steel has a higher tensile strength than aluminum. What I mean is that steel will bend more than aluminum before snapping. Now, the steel from eBay wheels may be a garbage alloy with low tensile strength.
btabor is offline   Reply With Quote
Old 02-03-2015, 10:05 AM   #43
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Quote:
Originally Posted by btabor View Post
I always thought that steel has a higher tensile strength than aluminum. What I mean is that steel will bend more than aluminum before snapping. Now, the steel from eBay wheels may be a garbage alloy with low tensile strength.
Correct. Typically steel will bend into a pretzel without breaking but most aluminum will crack and/or tear at the bend. Some aluminum alloys are much better at this than others. The problem I normally have with ebay wheels is that it feels like there is no metal core in the rim of the wheel, that its solely the injection molded foam rubber with no metal core like the name brand wheels. I've never cut one up to see, but I have folded one in half (by accident) and had it spring back to shape before.
Leafy is offline   Reply With Quote
Old 02-03-2015, 02:17 PM   #44
Junior Member
iTrader: (2)

Join Date: May 2014
Location: Arlington, TX
Posts: 328
Total Cats: 40
Default

Quote:
Originally Posted by btabor View Post
I always thought that steel has a higher tensile strength than aluminum. What I mean is that steel will bend more than aluminum before snapping. Now, the steel from eBay wheels may be a garbage alloy with low tensile strength.
In reality, tensile strength is not an indicator of how much something bends before it breaks.

A good indicator of that is ductility. The property to look for is the % elongation, or elongation before break. This will be expressed as a %.

Steel and aluminum both have alloys that are very ductile, or quite brittle, so a blanket statement that steel will bend more before breaking isn't exactly accurate. Kinda like 10psi ≠ 10psi when comparing different turbos. For example, 1050-O aluminum will elongate about 40% before breaking, most steels will be below half that number.

The eBay wheels are probably some ultra-cheap steel with nonuniform properties, and probably has porosity or is full of contaminates.
Dustin1824 is offline   Reply With Quote
Old 02-03-2015, 05:09 PM   #45
Senior Member
iTrader: (3)

Join Date: Oct 2008
Location: Indianapolis
Posts: 613
Total Cats: 12
Default

Quote:
Originally Posted by Dustin1824 View Post
In reality, tensile strength is not an indicator of how much something bends before it breaks.

A good indicator of that is ductility. The property to look for is the % elongation, or elongation before break. This will be expressed as a %.

Steel and aluminum both have alloys that are very ductile, or quite brittle, so a blanket statement that steel will bend more before breaking isn't exactly accurate. Kinda like 10psi ≠ 10psi when comparing different turbos. For example, 1050-O aluminum will elongate about 40% before breaking, most steels will be below half that number.

The eBay wheels are probably some ultra-cheap steel with nonuniform properties, and probably has porosity or is full of contaminates.
I agree but what I was trying to say is that most inexpensive mild steel is more ductile than cheap aluminum. Either way, Ebay "steel" is probably not really ductile steel but a bunch of scrap metals blended together and lots of contaminates.
btabor is offline   Reply With Quote
Old 02-03-2015, 07:06 PM   #46
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Quote:
Originally Posted by btabor View Post
I agree but what I was trying to say is that most inexpensive mild steel is more ductile than cheap aluminum. Either way, Ebay "steel" is probably not really ductile steel but a bunch of scrap metals blended together and lots of contaminates.
Want to know for sure, bust out the geiger counter. The cheapest of the cheap china steel will sometimes have some radioactive medical waste mixed in. Steel mills have geiger counters in their receiving offices for a reason. (For sure as in, if it is noticeably radioactive its the cheapest of the cheap, not being radioactive doesnt vindicate.)
Leafy is offline   Reply With Quote
Old 02-16-2015, 10:27 AM   #47
Junior Member

Join Date: May 2014
Location: North St Paul, MN
Posts: 397
Total Cats: 23
Default

Ok, onto the next item for spring. I need to get rid of my 91' air bag of death and swap out wheels. Does anyone here own, or have hands on experiance with the Momo Nero? I would love an all Alcantara wheel, but I know it will just turn to crap after a summer of use so I am trying to stick with something mostly leather.

ofspunk7 is offline   Reply With Quote
Old 02-16-2015, 11:32 AM   #48
Supporting Vendor
Thread Starter
iTrader: (1)

OGRacing's Avatar

Join Date: May 2014
Posts: 1,764
Total Cats: 46
Default

Call our warehouse. we have those in stock, and can aswer your questions. If your worried about quality you don't need to. Momo has very good quality or we wouldn't sell them. this wheel will give you a long service life.

1800-934-9112
OGRacing is offline   Reply With Quote
Old 02-16-2015, 11:36 AM   #49
Junior Member

Join Date: May 2014
Location: North St Paul, MN
Posts: 397
Total Cats: 23
Default

Quote:
Originally Posted by OGRacing View Post
Call our warehouse. we have those in stock, and can aswer your questions. If your worried about quality you don't need to. Momo has very good quality or we wouldn't sell them. this wheel will give you a long service life.

1800-934-9112
Yeah no worries about that. I already spoke to you about this wheel. Just seeing if anyone else has actually run it in their Miata or had used a Nero before. There is actually very little in any forum about this wheel. I did some google searching this weekend and didn't come up with much besides, "looks nice".
ofspunk7 is offline   Reply With Quote
Old 03-05-2015, 02:23 PM   #50
Junior Member

Join Date: May 2014
Location: North St Paul, MN
Posts: 397
Total Cats: 23
Default

So I am still wheel shopping, hope to be picking something soon. Anyone run any of these MOMO wheels?

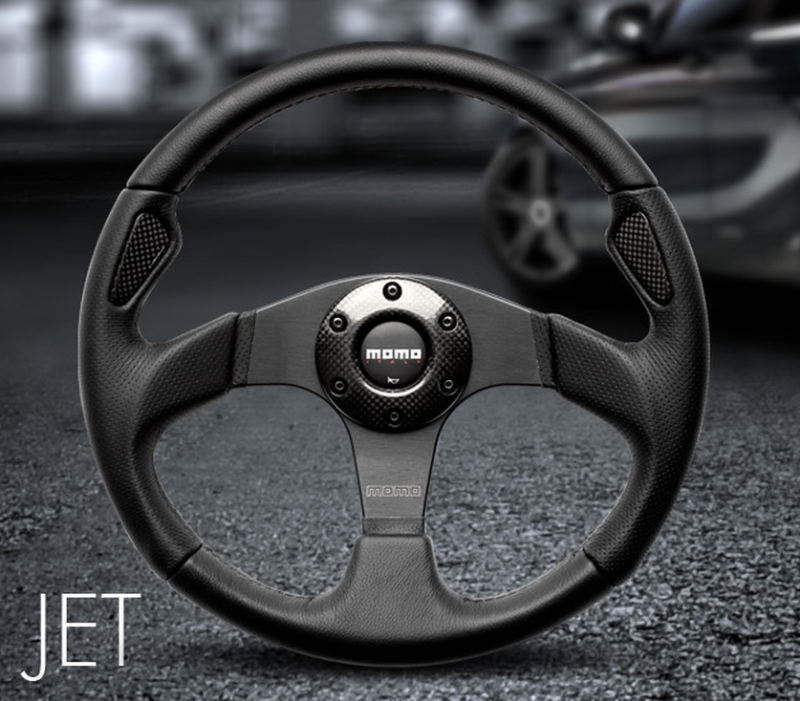

Jet

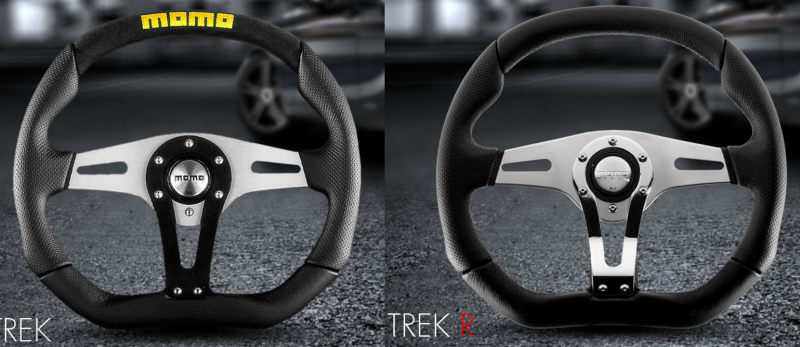

Trek Black or Trek R


Also I am planning on picking up a Nero QR 2.8 or 3.0 to keep my horn. Anyone have any likes or dislikes about either. (besides the crazy wings on the 3.0).
Attached Thumbnails
Lets Discuss Steering: Wheels, Hubs, Quick release, ect... Also a race wheel DIY.-jet_zpsjvkdo8fn.png   Lets Discuss Steering: Wheels, Hubs, Quick release, ect... Also a race wheel DIY.-trek%2520duo_zpsoq2or2ue.png
ofspunk7 is offline   Reply With Quote
Old 03-06-2015, 12:17 AM   #51
Senior Member

Join Date: May 2011
Posts: 549
Total Cats: 56
Default

ofspunk7 those are straight rice.

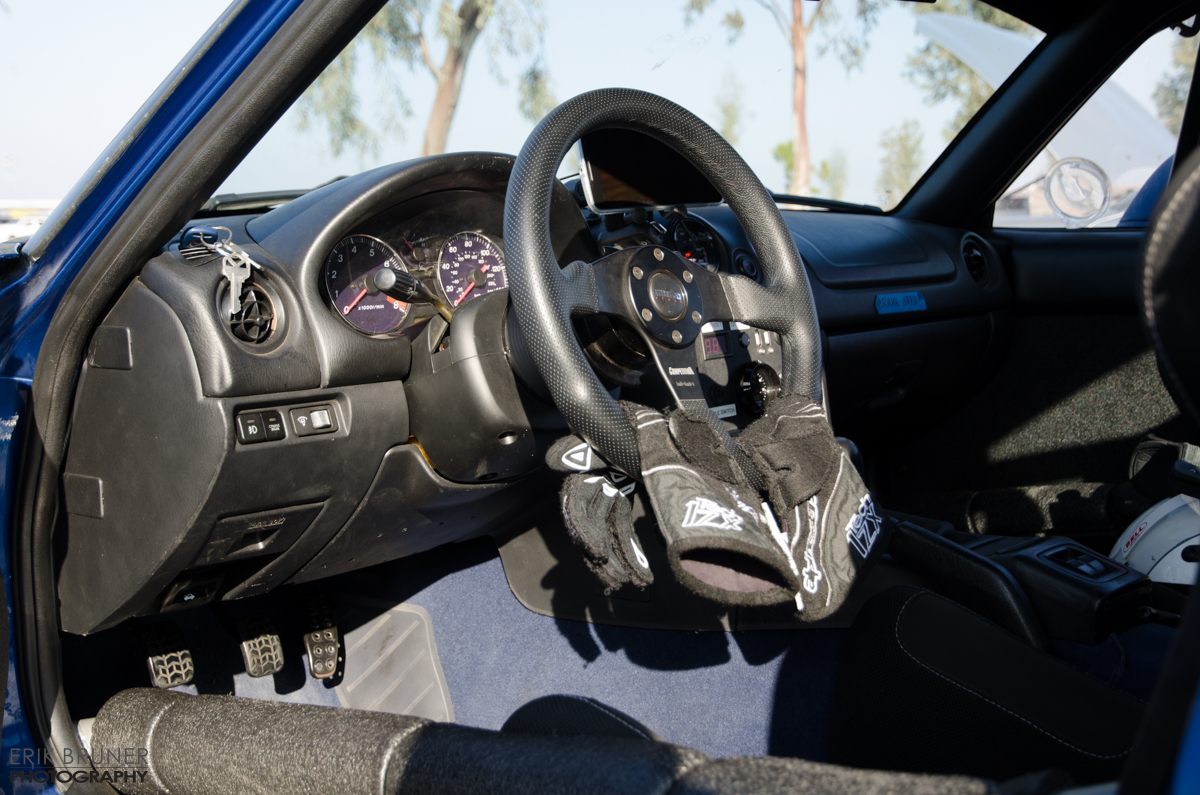

My setup. Momo Competition, Works Bell Hub, NRG 2.5 QR. I like the perforated leather for a dual use car and this wheel has a very thick rim which I also like. Combined with A* tech 1zx gloves the grip is excellent and the perforated leather helps with sweaty hands in socal heat on the street.

Once the car goes trailer queen i'll get a momo mod 78

Attached Thumbnails
Lets Discuss Steering: Wheels, Hubs, Quick release, ect... Also a race wheel DIY.-steering-wheel.jpg
EErockMiata is offline   Reply With Quote
Old 03-06-2015, 11:43 AM   #52
Senior Member

Join Date: Sep 2013
Posts: 903
Total Cats: 59
Default

Quote:
Originally Posted by ofspunk7 View Post
So I am still wheel shopping, hope to be picking something soon. Anyone run any of these MOMO wheels?

Jet


Trek Black or Trek R


Also I am planning on picking up a Nero QR 2.8 or 3.0 to keep my horn. Anyone have any likes or dislikes about either. (besides the crazy wings on the 3.0).
All of those wheels are dumb garbage. If you're looking at Momo, look at the Competition, Monte Carlo, or Mod 78 (or 80).
Dunning Kruger Affect is offline   Reply With Quote
Old 03-06-2015, 12:36 PM   #53
Junior Member
iTrader: (5)

Join Date: Oct 2014
Posts: 473
Total Cats: 23
Default

Why doesn't anyone use a Grant QR and wheel? I get that Grant makes some low quality stuff, but their price is pretty competitive and some of their more expensive wheels look to be decent quality.

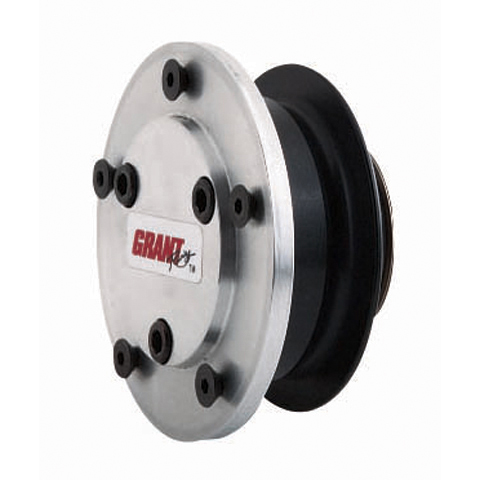

Grant Quick release

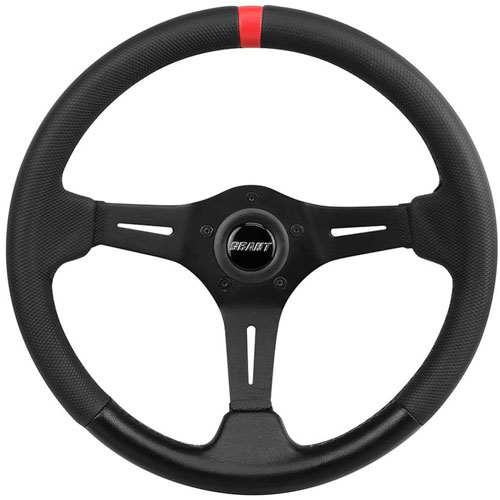

Decent Grant wheel



Right at $230 doesn't seem crazy for this setup.
Attached Thumbnails
Lets Discuss Steering: Wheels, Hubs, Quick release, ect... Also a race wheel DIY.-3021.jpg   Lets Discuss Steering: Wheels, Hubs, Quick release, ect... Also a race wheel DIY.-470-690.jpg
90civichhb is offline   Reply With Quote
Old 03-06-2015, 12:49 PM   #54
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

1, splined quick releases suck
2. no direct adapter from miata steering column to grant 5 bolt
3- I used a grant wheel for a bit, it was heavy as **** and their 3 bolt pattern has an annoying angular offset so my custom adapter was off
D: ****
Leafy is offline   Reply With Quote
Old 03-06-2015, 01:57 PM   #55
Junior Member
iTrader: (5)

Join Date: Oct 2014
Posts: 473
Total Cats: 23
Default

I currently have this Grant wheel in my car, and my only complaint is that at 5* of caster it is a bit small for autocross. I don't know anything about their 3 bolt wheels, but this one was substantially lighter than the stock wheel and is fairly robust in build. The grip material doesn't do well with sweaty palms though.



I would have thought a splined QR would provide a very solid connection with the steering column and the QR. I have been in a car with an NRG 2.0 and that thing had about a 1/4 inch side to side play in the wheel. It completely ruined the steering feel for me and didn't exactly inspire confidence.
90civichhb is offline   Reply With Quote
Old 03-06-2015, 02:03 PM   #56
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

You must have gotten a defective NGR QR. We've got a lot of them locally and none of them have any play.
Leafy is offline   Reply With Quote
Old 03-06-2015, 02:32 PM   #57
Senior Member
iTrader: (8)

Join Date: Jan 2012
Location: Azusa, CA
Posts: 1,376
Total Cats: 80
Default

Quote:
Originally Posted by 90civichhb View Post
I currently have this Grant wheel in my car, and my only complaint is that at 5* of caster it is a bit small for autocross.

just need more gym time.
cyotani is offline   Reply With Quote
Old 03-06-2015, 02:56 PM   #58
Junior Member
iTrader: (5)

Join Date: Oct 2014
Posts: 473
Total Cats: 23
Default

Right in the feels.
90civichhb is offline   Reply With Quote
Old 03-06-2015, 03:22 PM   #59
Supporting Vendor
Thread Starter
iTrader: (1)

OGRacing's Avatar

Join Date: May 2014
Posts: 1,764
Total Cats: 46
Default

Quote:
Originally Posted by 90civichhb View Post
Why doesn't anyone use a Grant QR and wheel? I get that Grant makes some low quality stuff, ....
The question and the answer.
OGRacing is offline   Reply With Quote
Old 03-06-2015, 03:24 PM   #60
Supporting Vendor
Thread Starter
iTrader: (1)

OGRacing's Avatar

Join Date: May 2014
Posts: 1,764
Total Cats: 46
Default

Quote:
Originally Posted by Leafy View Post
1, splined quick releases suck....
Depends on the brand. the sparco, Momo, and woodward splineed QR are very tight.
the Longacre, Joes's and anything from speedway motors does suck.
OGRacing is offline   Reply With Quote
