Old 06-05-2012, 03:50 AM   #21
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

Nope. Very little enters. Open your window on the freeway, not much comes in. Now imagine your car is hotter, you're in a helmet and safety gear, and you're working fairly hard to muscle your car around track. It all ads up to not enough air without vents.
curly is offline   Reply With Quote
Old 06-05-2012, 10:44 AM   #22
Senior Member

Join Date: Feb 2012
Location: chicago
Posts: 665
Total Cats: -35
Default

Quote:
Originally Posted by motormechanic View Post
I'm not sure if my logic is right, but wouldn't the high pressure air outside want to move towards the area of lower pressure inside the car?
it seems like the exact opposite, like the inside air gets pulled out. Ive never used these naca ducts but several track friends said they are very affective. personally the heat has never bothered me much inside the car
from experienceexecpt sitting in the paddock which kinda sucks.
psreynol is offline   Reply With Quote
Old 06-05-2012, 01:19 PM   #23
Senior Member
iTrader: (10)

Join Date: Jul 2009
Location: Oakdale, CA
Posts: 1,353
Total Cats: 66
Default

I think psrenyol is right, the windows open at high speeds great a vacuum pulling the air out of the car. Plus it's so damn loud. The NACA ducts work great. I have seen scoops that offer even more airflow from the NACA ducts
RyanRaduechel is offline   Reply With Quote
Old 06-05-2012, 07:45 PM   #24
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,479
Total Cats: 116
Default

Quote:
Originally Posted by skeeler View Post
I'm running the snap-out-flap kind on both sides. I'm really impressed with how well they direct air at my chest or face. I got them from MiataRoadster.com, I believe.
I have the snap out flap kind in one car and the NACA duct in the Spec. The NACA ducts pull in significantly more air. I could definitely see them sucking in flying track debris and directing it at your face. The airflow feels good though.

Bob
bbundy is offline   Reply With Quote
Old 06-05-2012, 08:29 PM   #25
Senior Member
iTrader: (4)

Join Date: Aug 2010
Location: Farmington Hills, MI
Posts: 510
Total Cats: 15
Default

You could put wire mesh in it if you're really worried about debris. I have a couple NACA ducts laying around that have it riveted in.
njn63 is offline   Reply With Quote
Old 06-06-2012, 01:57 AM   #26
Junior Member
iTrader: (1)

Join Date: Apr 2012
Posts: 187
Total Cats: 3
Default

I find those NACA tube ones obtrusive. The NACA ducts you use for headlight NACA ducts seem better in terms of being less obtrusive
motormechanic is offline   Reply With Quote
Old 06-06-2012, 01:22 PM   #27
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Quote:
Originally Posted by bbundy View Post
I have the snap out flap kind in one car and the NACA duct in the Spec. The NACA ducts pull in significantly more air. I could definitely see them sucking in flying track debris and directing it at your face. The airflow feels good though.

Bob
Thanks for the comparison. I am going to put a set of these NACA vent ducts in my track car. As far as the track debris, I could see that happening LOL. Freaking rubber bits flying everywhere sometimes. A piece of coarse wire mesh over the exit end of the duct would help with that.

Keep in mind for those reading this thread whether or not your racing and/or HPDE organization allows you to have the windows up. NASA, where I race, requires the front windows to be completely rolled down. Mine is actually removed from the car completely. So a venting solution that uses the rollup window will not work in my case. But the NACA vent windows will.
ZX-Tex is offline   Reply With Quote
Old 06-06-2012, 01:27 PM   #28
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

double post

Last edited by ZX-Tex; 06-07-2012 at 12:10 AM.
ZX-Tex is offline   Reply With Quote
Old 06-06-2012, 01:47 PM   #29
Junior Member

Join Date: Apr 2011
Location: Oregon
Posts: 278
Total Cats: 7
Default

do they leak?
gtred is offline   Reply With Quote
Old 06-06-2012, 01:55 PM   #30
Elite Member
Thread Starter
iTrader: (5)

pusha's Avatar

Join Date: Nov 2009
Location: Miami, FL
Posts: 7,363
Total Cats: -32
Default

Quote:
Originally Posted by gtred View Post
do they leak?
they probably won't if you put some sort of plug in them.

iirc, levnubhin had some in his red car (dd in s. florida, where it rains often)
pusha is offline   Reply With Quote
Old 06-06-2012, 02:02 PM   #31
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

Quote:
Originally Posted by bbundy View Post
I could definitely see them sucking in flying track debris and directing it at your face.
Bob u so dirty.
Braineack is online now   Reply With Quote
Old 06-06-2012, 02:10 PM   #32
Junior Member
iTrader: (1)

Join Date: Sep 2006
Posts: 201
Total Cats: 12
Default

The Weekend Racer NACA duct version looks huge. The ducts do not need to be that big to work.

There is a smaller clear lexan version available. I have one of these in place of each of the front quarter windows. They work awesome. The NACA duct is pop rivited to a piece of clear lexan, and installed like a normal quarter window. The NACA is installed at the base of the window, perfectly parallel with the bottom edge (and not tilted up as shown in the Weekend Racer photo).

The outlet points right toward my chest and feels GREAT at speed. As other said, it really does move a lot of air. I use caps from Rustoleum spray paint cans to seal off the duct when I'm towing the car. The caps also work great for track use to keep the rain or cold air out on wet / cold days. I push the caps in from the outside and have never lost one in transit or on-track. I have lost them around the garage or pits though, but luckily, they are cheap to replace.

I wouldn't want them on a street car, but love 'em on the track car.
wildo is offline   Reply With Quote
Old 06-06-2012, 02:13 PM   #33
Elite Member
Thread Starter
iTrader: (5)

pusha's Avatar

Join Date: Nov 2009
Location: Miami, FL
Posts: 7,363
Total Cats: -32
Default

I see it in your sig pic

do you do anything to direct the pass. side airflow?
pusha is offline   Reply With Quote
Old 06-06-2012, 04:00 PM   #34
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,703
Total Cats: 237
Default

So, what's the consensus on these for a street car? I like the idea, and now that i'm driving my car a ton it seems like a great idea for my non-ac car on those 80+deg days.
Fireindc is offline   Reply With Quote
Old 06-07-2012, 12:33 AM   #35
Junior Member
iTrader: (1)

Join Date: Sep 2006
Posts: 201
Total Cats: 12
Default

Quote:
Originally Posted by pusha View Post
I see it in your sig pic

do you do anything to direct the pass. side airflow?
Nope. As a track-day instructor, I have the passenger side vent for...passengers. The driver side puts out plenty of air for me. I sometimes run with it plugged on track (don't bother or forget to remove the plug). Either way, I've never noticed a difference in airflow from where I'm sitting.

On a street car, I wouldn't run them. Perhaps look into the "cool breeze scoop"? At one point they were making them to clip onto the side windows. A friend of mine was beta testing for them a year or so ago.
wildo is offline   Reply With Quote
Old 06-07-2012, 12:34 AM   #36
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

Quote:
Originally Posted by wildo View Post
I wouldn't want them on a street car, but love 'em on the track car.
I've done a lot of time with mine on the streets, the paint cap works great. If it's truly cold (less than 40) and I need to drive it on the streets for some reason, painters tape seals up the paint can cap rather well.

Quote:
Originally Posted by pusha View Post
do you do anything to direct the pass. side airflow?
It's good enough for me that it keeps the rest of the cockpit cool, just moving cool air in and pushing hot air out the window. Or at least that's the goal.

Last edited by curly; 06-07-2012 at 07:17 PM.
curly is offline   Reply With Quote
Old 06-07-2012, 05:49 PM   #37
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,479
Total Cats: 116
Default

Quote:
Originally Posted by Fireindc View Post
So, what's the consensus on these for a street car? I like the idea, and now that i'm driving my car a ton it seems like a great idea for my non-ac car on those 80+deg days.
I have the snap vent style ones in my street/track beast with no AC they flip out and you can close them and they are also adjustable some what for flow direction and volume so they are pretty cool. Lot less blasting your ear drums with the window down on a long freeway trip in the hot sun and you still have good flow. I would recommend them for a street car with no AC. Just don’t ever assume locking your doors does anything they snap out easily and you can reach the inside door lock with your arm through the hole. The NACA style ones simply flow a lot more air into the cockpit and you should have eye protection if you have them.

Bob
bbundy is offline   Reply With Quote
Old 06-07-2012, 09:14 PM   #38
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

I love mine on the street, as I wrote previously. Great for putting some air on your face in an AC-less car.

Attached Thumbnails
NACA Window Ducts-photo-4-.jpg
kotomile is offline   Reply With Quote
Old 06-08-2012, 08:00 AM   #39
I haz no trubo
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

Quote:
Originally Posted by bbundy View Post
Just donít ever assume locking your doors does anything they snap out easily and you can reach the inside door lock with your arm through the hole.

Bob

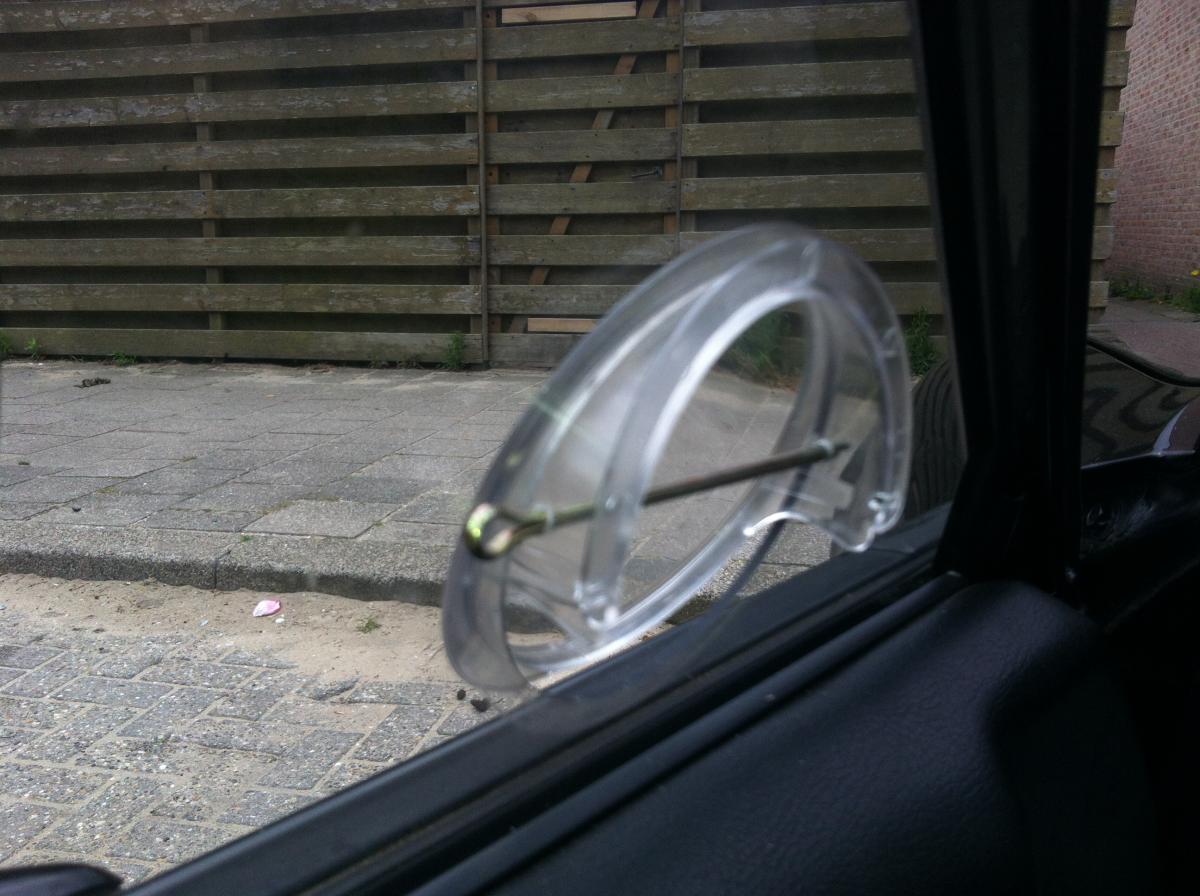

I know. That's why I did this. Used a wilwood cotterpin to keep them sort of locked in place when the car is parked.
Attached Thumbnails
NACA Window Ducts-img_0487.jpg   NACA Window Ducts-img_0488.jpg
Oscar is offline   Reply With Quote
Old 06-09-2012, 04:22 AM   #40
Elite Member
iTrader: (12)

Join Date: Apr 2008
Location: Springfield IL
Posts: 2,750
Total Cats: 24
Default

chpmnsws6 is offline   Reply With Quote
