Old 06-09-2012, 04:54 AM   #41
Elite Member
Thread Starter
iTrader: (5)

pusha's Avatar

Join Date: Nov 2009
Location: Miami, FL
Posts: 7,363
Total Cats: -32
Default

^ I sort of want to buy that to make an intake
pusha is offline   Reply With Quote
Old 06-09-2012, 11:15 AM   #42
Senior Member
iTrader: (4)

Join Date: Aug 2010
Location: Farmington Hills, MI
Posts: 510
Total Cats: 15
Default

Quote:
Originally Posted by bbundy View Post
Just don’t ever assume locking your doors does anything they snap out easily and you can reach the inside door lock with your arm through the hole. The NACA style ones simply flow a lot more air into the cockpit and you should have eye protection if you have them.
The NACA ones are too small to get your arm through unless you're a midget or child (at least mine is). Miatas aren't hard to break into though so I think it's better assumed that your car is never really locked.

I've been running mine for 2 years on the street/track now and have not had any debris come in through mine. I dunno, I think you guys are over analyzing this. Debris could come in through an open window or over the windshield too but it generally doesn't.

Mine from advanced autosports:
Attached Thumbnails
NACA Window Ducts-img_2429.jpg
njn63 is offline   Reply With Quote
Old 06-09-2012, 02:55 PM   #43
Elite Member
Thread Starter
iTrader: (5)

pusha's Avatar

Join Date: Nov 2009
Location: Miami, FL
Posts: 7,363
Total Cats: -32
Default

found a pic from a NASCAR:

Attached Thumbnails
NACA Window Ducts-bucik%2520skylark%2520and%2520race%2520car%2520013.jpg
pusha is offline   Reply With Quote
Old 06-10-2012, 08:03 PM   #44
Junior Member

Join Date: Jan 2012
Location: Charleston, SC
Posts: 52
Total Cats: 1
Default

I wish someone made a driver side quarter window with a wee little NACA duct on it like the bottom right one in the above picture so that there was enough room between it and the steering wheel to put a 90 degree bend on it pointing into the footwell for some ventilation down there.
Ciotti is offline   Reply With Quote
Old 06-10-2012, 09:48 PM   #45
Senior Member

Join Date: Dec 2010
Location: Auckland, NZ
Posts: 783
Total Cats: 23
Default

Anyone have a link to the round snap in ones?

I don't know if it's manopause or what but I get so hot while driving my car, these mx5's just seem to have NO airflow even with the windows open and the (non ac) fan on.....

As mine gets DD use the smaller ones with the cotter pin trick look perfect.
mx5-kiwi is offline   Reply With Quote
Old 06-10-2012, 09:55 PM   #46
Senior Member
iTrader: (4)

Join Date: Aug 2010
Location: Farmington Hills, MI
Posts: 510
Total Cats: 15
Default

Quote:
Originally Posted by mx5-kiwi View Post
Anyone have a link to the round snap in ones?

I don't know if it's manopause or what but I get so hot while driving my car, these mx5's just seem to have NO airflow even with the windows open and the (non ac) fan on.....

As mine gets DD use the smaller ones with the cotter pin trick look perfect.
http://www.advanced-autosports.com/i...roducts_id=127
njn63 is offline   Reply With Quote
Old 06-11-2012, 02:27 AM   #47
Junior Member
iTrader: (1)

Join Date: Apr 2012
Posts: 187
Total Cats: 3
Default

i want these but can't find them in the US...
Attached Thumbnails
NACA Window Ducts-naca_vents_2.jpg
motormechanic is offline   Reply With Quote
Old 06-11-2012, 02:36 PM   #48
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

I'm glad I found this thread as I was looking for cooling solutions for after I rip out my AC.

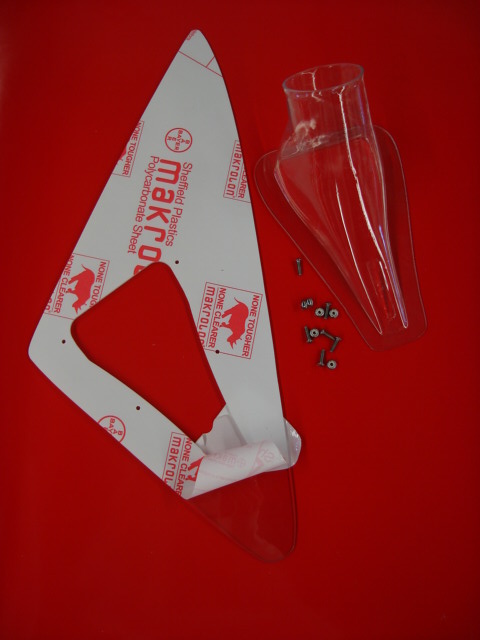

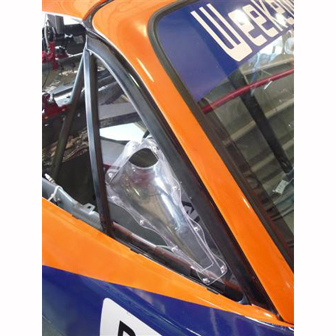

The Advance Autosports NACA units appear to be slightly smaller than the Weekend Racer version.

Advance:

http://www.advanced-autosports.com/i...roducts_id=126


Weekend:

http://www.weekend-racer.com/index.p...roducts_id=313

The Weekend one looks like its too big jammed in there at an angle. It looks like Curly, Wildo and Njn63 are all running the Advance version, and to my eye, its more aesthetically pleasing as its tucked down further into the available space. I'm sure they are both highly effective.

The ability to close the round ones is also attractive... How well do the round pop-out ones keep out the rain?
Attached Thumbnails
NACA Window Ducts-dsc02338.jpg   NACA Window Ducts-miata_vents.jpg
EO2K is offline   Reply With Quote
Old 06-11-2012, 04:08 PM   #49
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

Quote:
Originally Posted by motormechanic View Post
i want these but can't find them in the US...

http://secure.mckinneycorp.com/AMAZI...asp?Cc=NACA&Bc=

just not clear. those should be easy to source.
Braineack is offline   Reply With Quote
Old 06-11-2012, 06:02 PM   #50
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

God dammit, did my post not work earlier? Oh well.

Quote:
Originally Posted by EO2K View Post
It looks like Curly, Wildo and Njn63 are all running the Advance version
Custom actually. Use some left over Lexan from my hardtop window project. The ducts were $40 or 50 shipped off ebay, from some old NASCAR or similar.

Word of advice, if you do these on your own, practice drilling on a scrap piece first, like the piece you cut out for the duct. Do your drilling wrong and the swarf will scrape the Lexan as it spins around the bit.

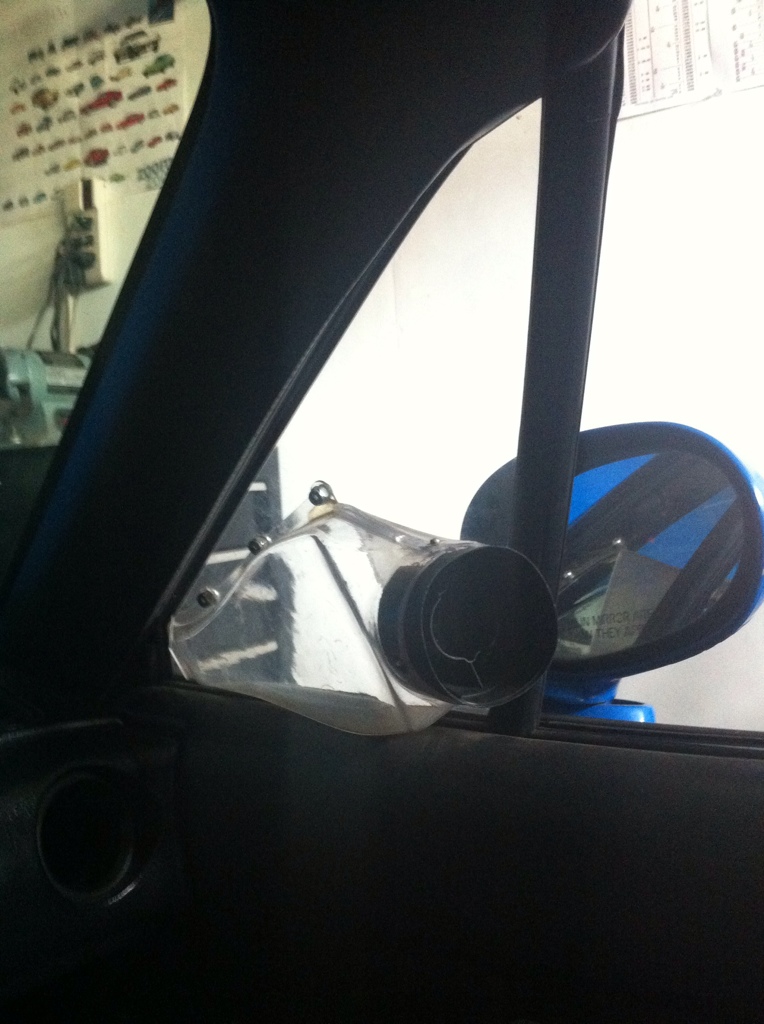

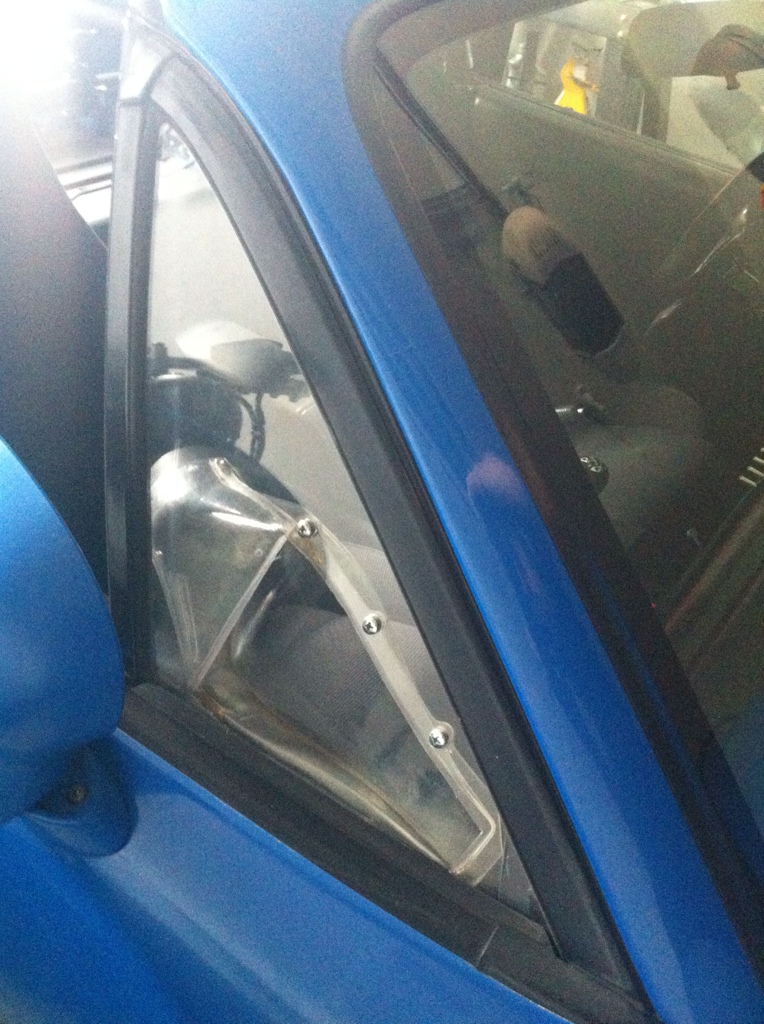

Passenger side:

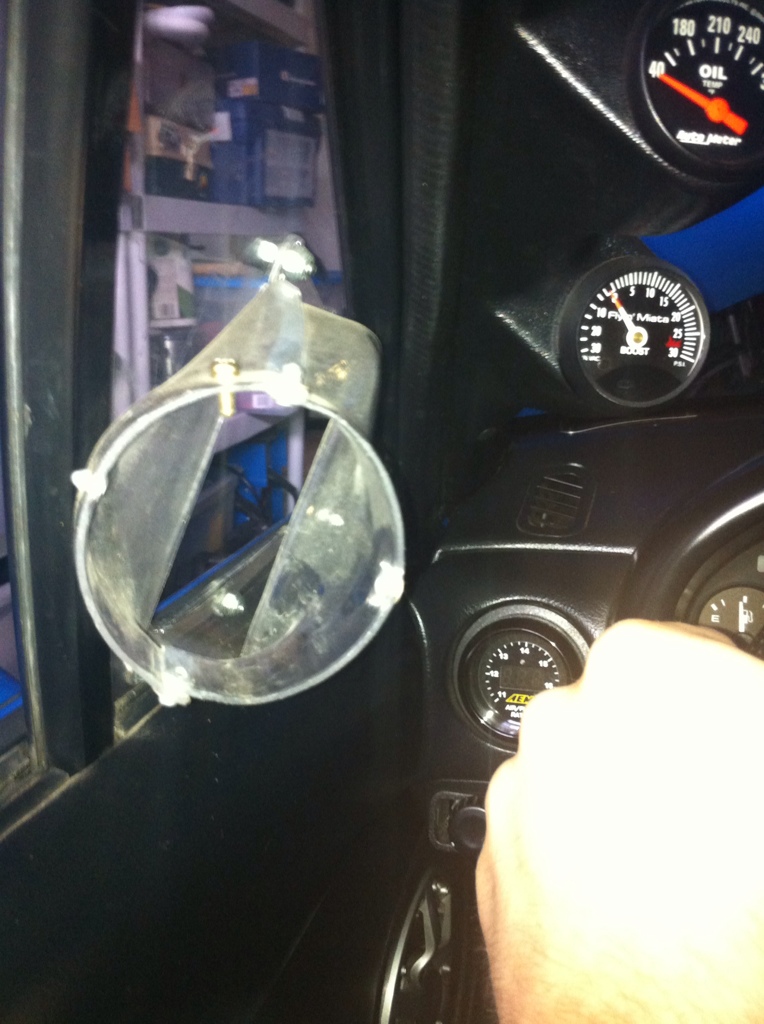

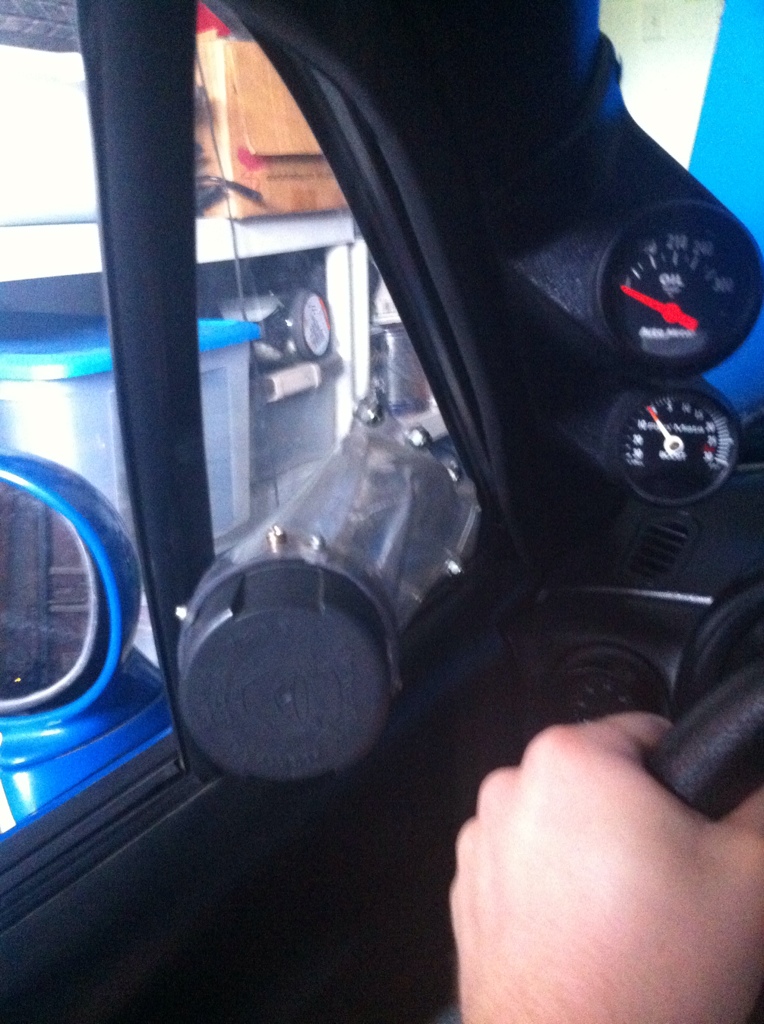

Driver's side, with no issues with hand/duct interference. And there's no way you're fitting your arm in there. A keen eye will notice I wasn't very accurate when measuring between sides.



Attached Thumbnails
NACA Window Ducts-5db03721.jpg   NACA Window Ducts-2f091dfb.jpg   NACA Window Ducts-2e5b26e6.jpg   NACA Window Ducts-db46c0c9.jpg   NACA Window Ducts-59e33eb6.jpg

curly is offline   Reply With Quote
Old 06-11-2012, 07:52 PM   #51
Senior Member
iTrader: (4)

Join Date: Aug 2010
Location: Farmington Hills, MI
Posts: 510
Total Cats: 15
Default

Better pictures of my one from advanced. I only ordered the passenger side one because I was worried it'd interfere with the area around the steering wheel. I think there would be enough room but I kind of want a lower profile one like Curly has on the driver's side.

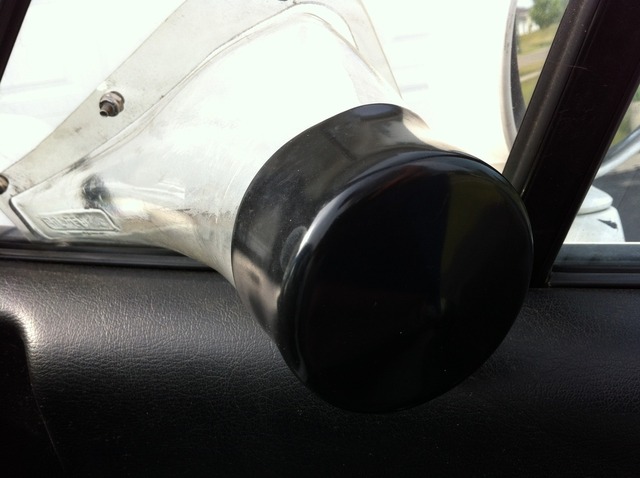

I use a cap from a shipping tube on mine. It has stayed on at over 100 mph and keeps most water out:
Attached Thumbnails
NACA Window Ducts-9f52a388.jpg   NACA Window Ducts-c9bf51ef.jpg   NACA Window Ducts-fc1da980.jpg   NACA Window Ducts-7df8235a.jpg   NACA Window Ducts-clear-mailing-tubes.jpg

njn63 is offline   Reply With Quote
Old 06-12-2012, 11:22 PM   #52
Junior Member

Join Date: Oct 2010
Location: Wake Forest, NC
Posts: 175
Total Cats: 0
Default

Quote:
Originally Posted by ZX-Tex View Post
Thanks for the comparison. I am going to put a set of these NACA vent ducts in my track car. As far as the track debris, I could see that happening LOL. Freaking rubber bits flying everywhere sometimes. A piece of coarse wire mesh over the exit end of the duct would help with that.

Keep in mind for those reading this thread whether or not your racing and/or HPDE organization allows you to have the windows up. NASA, where I race, requires the front windows to be completely rolled down. Mine is actually removed from the car completely. So a venting solution that uses the rollup window will not work in my case. But the NACA vent windows will.
I tend to get more garbage through the window. So much so that I think the NACA duct wont matter much. Problem is, I have a halo seat and I need to remove the quarter window to get out of the drivers side. Ill probably add one to the passenger side and aim it at me though.

Also, all you paint cap guys might try a different method. A rubber ball works perfectly and seals perfectly. No tape needed. It has worked extremely well for us in the past.
cucamelsmd15 is offline   Reply With Quote
Old 06-12-2012, 11:29 PM   #53
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

I've tried. I'd use one if I had the duct pictured above, but if you notice I have four rivets in mine. The ball barely goes in before it hits them, and just falls out. And with the rectangular opening, there's no putting the ***** in from the outside.
curly is offline   Reply With Quote
Old 06-13-2012, 02:51 PM   #54
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Quote:
Originally Posted by curly View Post
And with the rectangular opening, there's no putting the ***** in from the outside.
That's what she said.
ZX-Tex is offline   Reply With Quote
Old 06-14-2012, 04:57 PM   #55
Elite Member
Thread Starter
iTrader: (5)

pusha's Avatar

Join Date: Nov 2009
Location: Miami, FL
Posts: 7,363
Total Cats: -32
Default

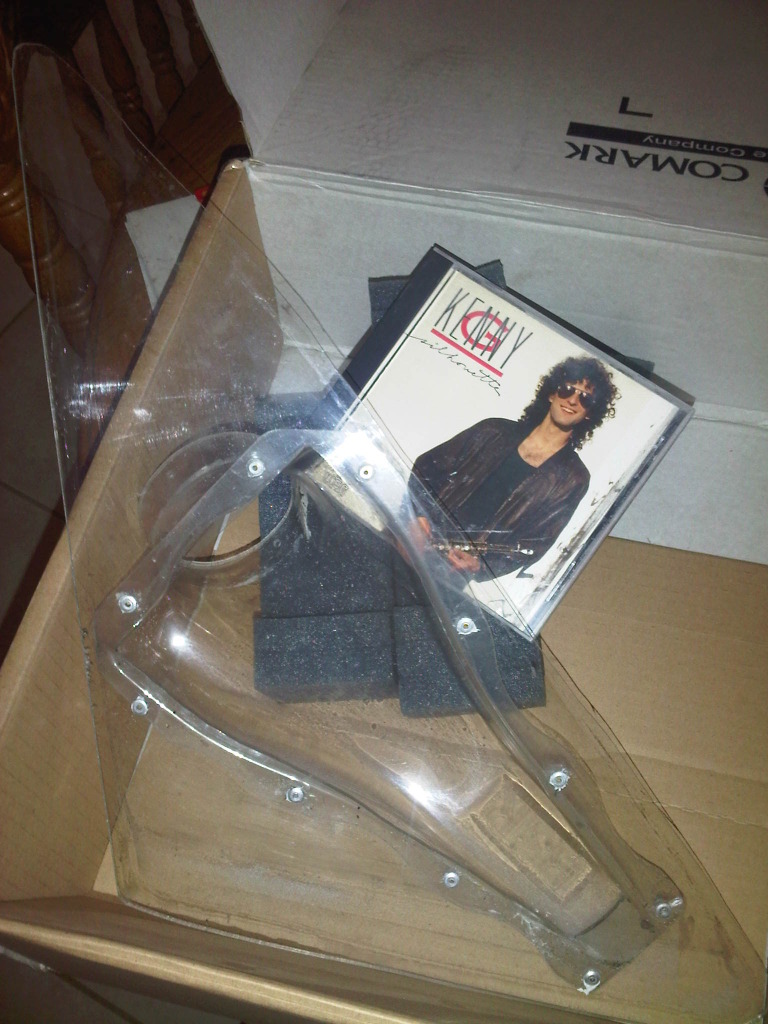

got some stuff in the mail today from GeneSplicer:

Attached Thumbnails
NACA Window Ducts-img-20120614-00975.jpg
pusha is offline   Reply With Quote
Old 06-14-2012, 08:24 PM   #56
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

Quote:
Originally Posted by EO2K View Post
The ability to close the round ones is also attractive... How well do the round pop-out ones keep out the rain?
No issues, the rain stays out fine if they're closed and pointed forward. Closed and aimed downward would be the most ideal to keep rain out, but I usually go for down and open. Still keeps rain out but allows a bit of airflow.
kotomile is offline   Reply With Quote
Old 06-17-2012, 10:26 AM   #57
Elite Member
iTrader: (12)

GeneSplicer's Avatar

Join Date: Sep 2009
Location: Birmingham, AL
Posts: 2,006
Total Cats: 147
Default

I'm gonna miss Kenny...
GeneSplicer is offline   Reply With Quote
Old 06-17-2012, 06:24 PM   #58
Elite Member
Thread Starter
iTrader: (5)

pusha's Avatar

Join Date: Nov 2009
Location: Miami, FL
Posts: 7,363
Total Cats: -32
Default

Quote:
Originally Posted by GeneSplicer View Post
I'm gonna miss Kenny...
bro I've been rocking out to this while working on my car. great tunes!
pusha is offline   Reply With Quote
Old 06-20-2012, 03:44 PM   #59
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,703
Total Cats: 237
Default

Here's a stupid question, how hard are these to install? Mainly do I need a new window seal, or is there a way to get the old one off without destroying it?
Fireindc is offline   Reply With Quote
Old 06-20-2012, 03:58 PM   #60
I haz no trubo
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

My seal came off perfectly fine. The biggest pain in the ******* was the black goop on the doors. Use lube of personal preference for installing the new seal and you'll be golden.
