Old 08-08-2014, 11:44 AM   #181
Elite Member
iTrader: (3)

Join Date: Feb 2008
Location: Huntsville, AL
Posts: 1,881
Total Cats: 45
Default

What are you using for loads in your analysis?

And:

Quote:
Originally Posted by guttedmiata View Post
Rear upper arm solution we did.

Cut the arm. Welded .50" steel "caps" on both halves then drilled and tapped for threaded rod with a hex center. Kinda ugly, but effective and practically free.

Not so much luck with the front lowers we made from 1.5x.120 that didn't make it two runs on 12" slicks. Upper fronts we made are holding fine, but of course the uppers don't see the load the lowers do.
Can we see a picture of your front lowers before and after failure? And a picture of your rear uppers? I think I'm understanding you correctly, but not 100% certain.
vehicular is offline   Reply With Quote
Old 08-08-2014, 11:58 AM   #182
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Quote:
Originally Posted by vehicular View Post
What are you using for loads in your analysis?
For the LBJ, experiencing a 3g bump while in a 2g corner with a 500lb corner weight.
Leafy is offline   Reply With Quote
Old 08-08-2014, 12:01 PM   #183
Elite Member
iTrader: (3)

Join Date: Feb 2008
Location: Huntsville, AL
Posts: 1,881
Total Cats: 45
Default

So you're root sum squaring the acceleration, and then calling it f=ma with m=500lbm? And you're calling that radial or axial load?
vehicular is offline   Reply With Quote
Old 08-08-2014, 12:05 PM   #184
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Quote:
Originally Posted by vehicular View Post
So you're root sum squaring the acceleration, and then calling it f=ma with m=500lbm? And you're calling that radial or axial load?
I calculated the the vertical load on the ball joint due to the corner load (from the spring resisting the roll) and the bump. What I didnt take into account was that the ball joint is actually angled and not vertical, but I didnt account for the the axial load added to the bearing from the lateral turning forces so it should work out about the same in the end. I ignored the radial load since the axial is much more important in this location.
Leafy is offline   Reply With Quote
Old 08-08-2014, 12:21 PM   #185
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

Not to dull your CAD work, but being that the joint is at an angle, a good part of the loading will become radial which allows to handle a lot more load in the joint.

you analysis seems skewed in this case. sorry brah.
shlammed is offline   Reply With Quote
Old 08-08-2014, 12:28 PM   #186
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Quote:
Originally Posted by shlammed View Post
Not to dull your CAD work, but being that the joint is at an angle, a good part of the loading will become radial which allows to handle a lot more load in the joint.

you analysis seems skewed in this case. sorry brah.
But also since the joint is angled the lateral forces I wasnt accounting for are included. I guess I could re-run the calculation more specifically but this was a lot easier and I'm lazy and I dont think its going to change the outcome much at all. Since the amount of force from the spring in the case that is still being transmitted axially is probably going to be pretty close to the lateral load thats transmitted axially.

But this whole angled LBJ discussion brings up another point. The rod end based arms that the OP posted dont have the LBJ rod end angled like the stock arms, so they're going to be very droop travel limited and will be putting all the load axially like I calculated.
Leafy is offline   Reply With Quote
Old 09-02-2014, 02:32 AM   #187
Senior Member
Thread Starter
iTrader: (2)

Join Date: Jan 2010
Location: Denver
Posts: 909
Total Cats: 14
Default

One month until I leave for the Runoffs at Laguna Seca, looking forward to driving this track as it is on my bucket list. Have been working my tail off on the car, and have all the crash damage repaired from last years shunt with the tire wall on the outside of Canada Corner. The new control arms are on the car as well, and I have a nice set of stock spares with new derlin bushings. I will be finishing the body tomorrow and plan on corner weighting and aligning the car on Wednesday and testing sometime next week.

It is a smallish field for this years championship not many guys from east of the Mississippi are making the tow all the way to the west coast. But there are some heavy hitters that will be in the field, it should be a great week!

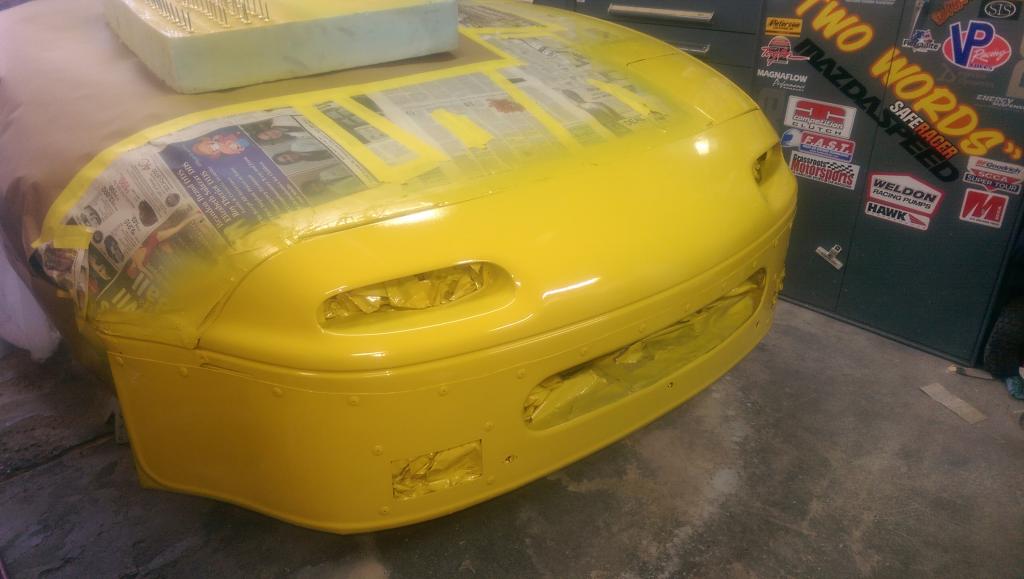

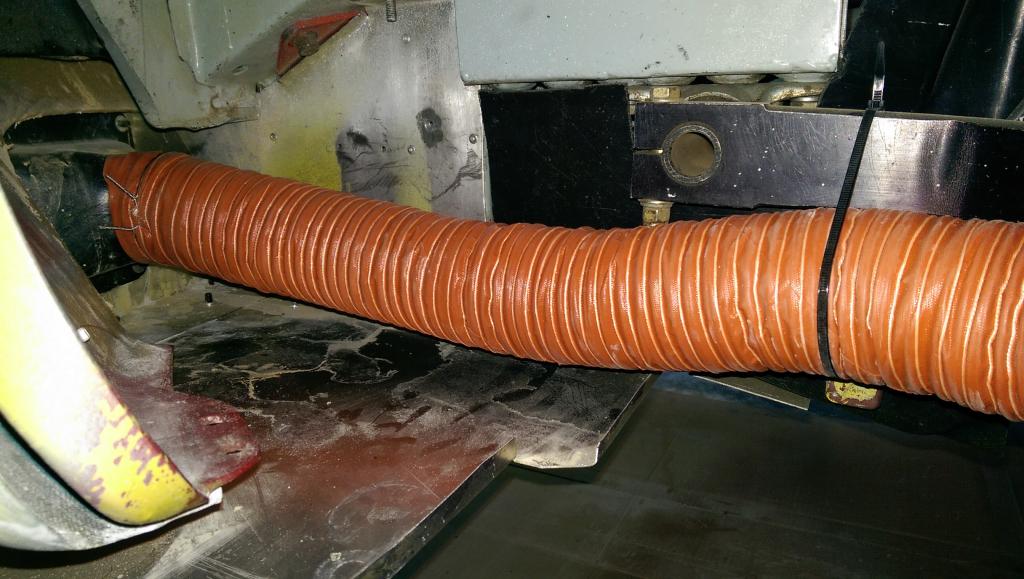

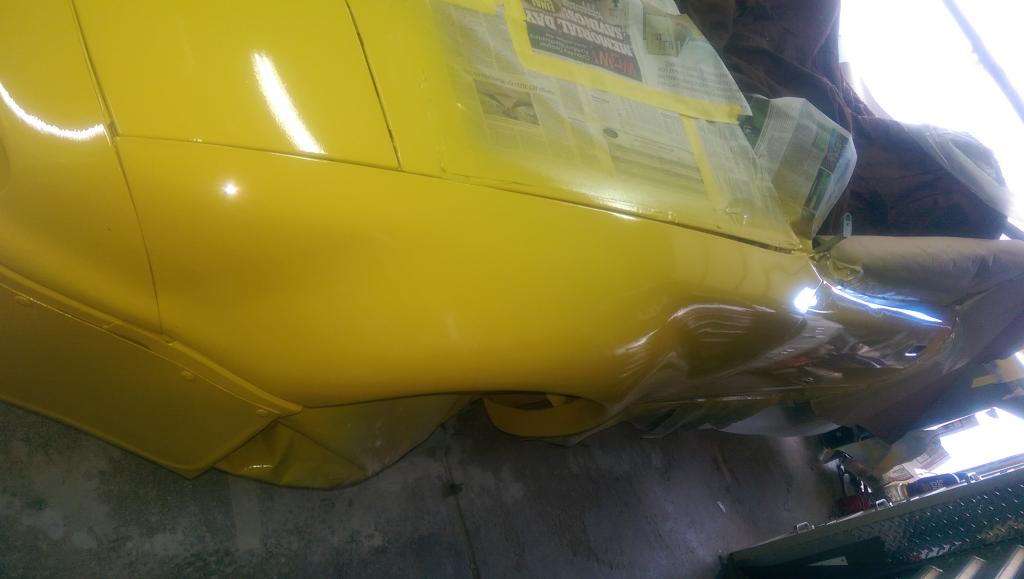

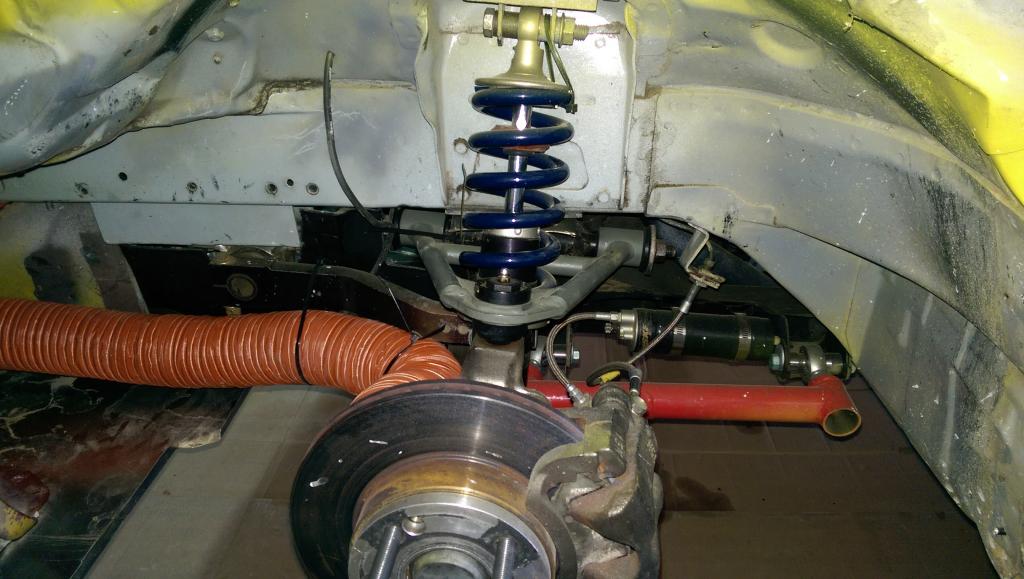

I included a few pics of my recent efforts. Looking forward to getting back in the car to test next week!!!

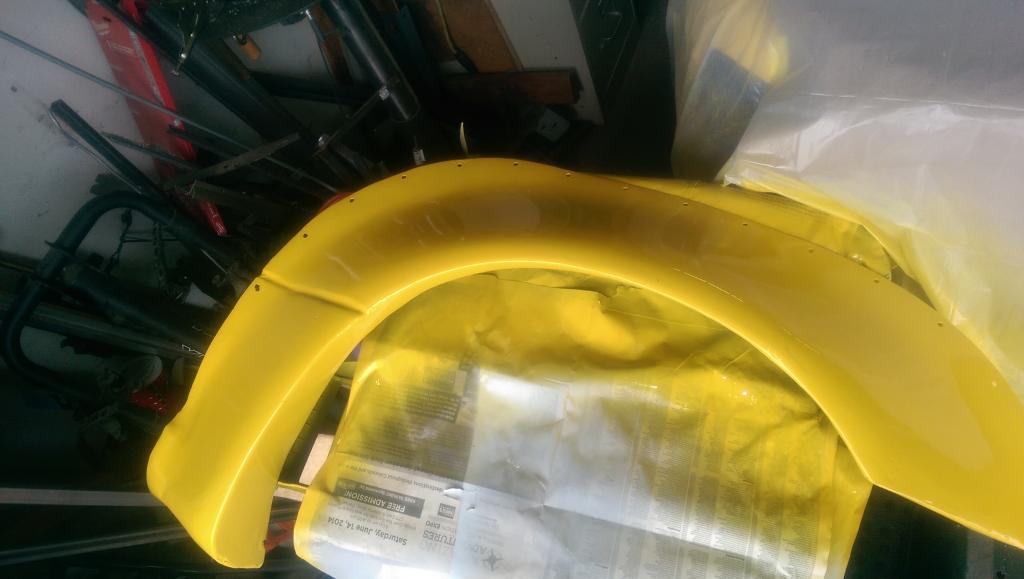

Since my last race at the end of May I have replaced the front sub frame, added new front control arms, laid up a new air dam, repaired the damage to the hood, replaced the drivers door, and front fender, repaired the rear flare and painted all the new and repaired parts. Time goes fast when your car is apart, hopefully, all the hard work pays off and the car will work well, and look decent.



[IMG]httpi408.photobucket.com/albums/pp170/hingstonwm/fp%20miata/IMAG1269_zpse30fa952.jpg[/IMG]







Attached Thumbnails
New FP miata-imag1270_zpsa7c92714.jpg   New FP miata-imag1271_zpsdfd06666.jpg   New FP miata-imag1276_zps028763a6.jpg   New FP miata-imag12771_zpse733c555.jpg   New FP miata-imag1269_zpse30fa952.jpg

hingstonwm is offline   Reply With Quote
Old 09-02-2014, 11:00 AM   #188
Elite Member
iTrader: (3)

Join Date: Feb 2008
Location: Huntsville, AL
Posts: 1,881
Total Cats: 45
Default

I dig the air dam. How did you make that?
vehicular is offline   Reply With Quote
Old 09-02-2014, 01:58 PM   #189
Senior Member
Thread Starter
iTrader: (2)

Join Date: Jan 2010
Location: Denver
Posts: 909
Total Cats: 14
Default

Wish I could take credit, I found a guy who makes them, Can't remember his name right now. The part was cheap enough, just a touch over $200 but shipping was another 200. So the first thing I did when I received the part was to make a mold so I can build my own. I make mine a little more flexible than the original, using 4 layers of 6# woven mat. The underside has a lip that I use as a mounting point for the aluminum under tray, it extends to the front wheel arch and is attached to the stock under tray, giving the bottom of the car a smooth surface to the front wheel openings.
hingstonwm is offline   Reply With Quote
Old 09-05-2014, 06:08 PM   #190
Senior Member
Thread Starter
iTrader: (2)

Join Date: Jan 2010
Location: Denver
Posts: 909
Total Cats: 14
Default

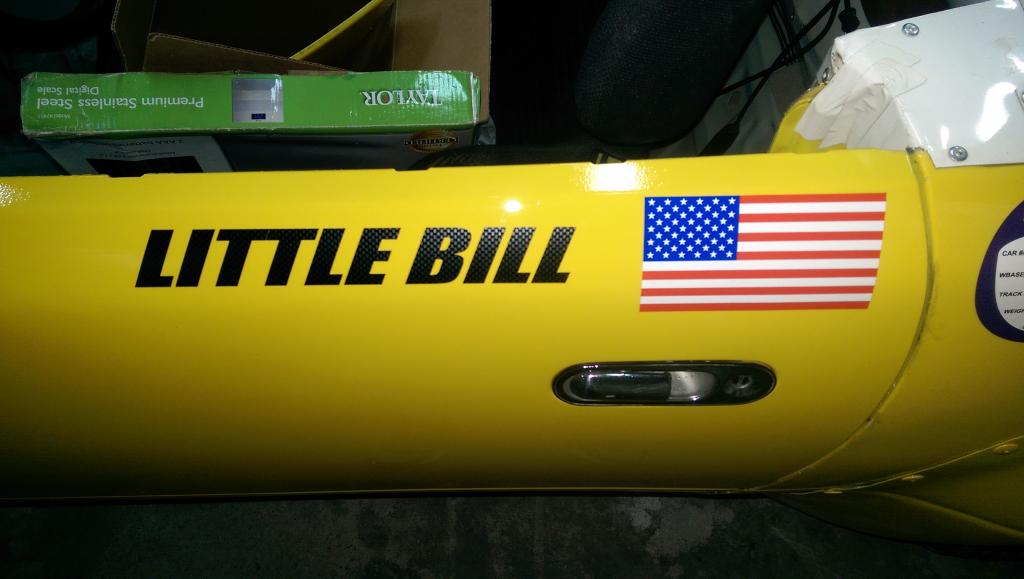

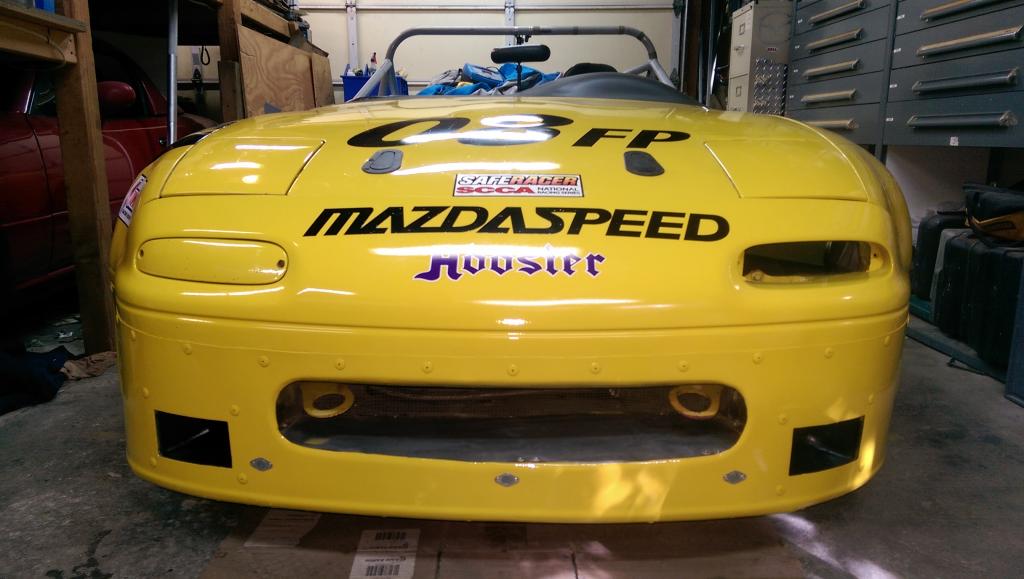

Just about done
Attached Thumbnails
New FP miata-imag1279_zps0eab465b.jpg   New FP miata-imag1281_zps19f18f33.jpg
hingstonwm is offline   Reply With Quote
Old 10-08-2014, 02:03 PM   #191
Elite Member
iTrader: (4)

Join Date: Sep 2006
Location: Charlotte, NC
Posts: 3,051
Total Cats: 7
Default

Mr. Hingston is currently sitting P3 after two of three rounds of qualifying at the Runoffs @ Laguna Seca.

Apparently he was P2 up until the last lap when he got pipped into third. Hopefully he can keep it up and fight for a podium spot in the race.
Efini~FC3S is offline   Reply With Quote
Old 10-08-2014, 06:18 PM   #192
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,926
Total Cats: 526
Default

Awesome! You'll be racing against a friend of mine, Patrick Crider in the #89 white car.

Good luck!
turbofan is online now   Reply With Quote
Old 10-14-2014, 11:39 AM   #193
Senior Member
Thread Starter
iTrader: (2)

Join Date: Jan 2010
Location: Denver
Posts: 909
Total Cats: 14
Default

Taken out in turn 2 of the the first lap. I had a good start but didn't want to force the issue in the first real corner of the first lap, wish a couple of my competitors had chosen to show the same restraint. You can't win a race in the first corner, but you can certainly loose it and ruin others race at the same time. Had qualified 5th, both the car and I had more left, I felt comfortable and knew that I was fast enough to compete for the podium. Left side of car is completely tore up and is going to need a tug from a frame machine as well.

Last edited by hingstonwm; 10-15-2014 at 11:21 AM.
hingstonwm is offline   Reply With Quote
Old 03-26-2015, 04:45 AM   #194
Senior Member
Thread Starter
iTrader: (2)

Join Date: Jan 2010
Location: Denver
Posts: 909
Total Cats: 14
Default

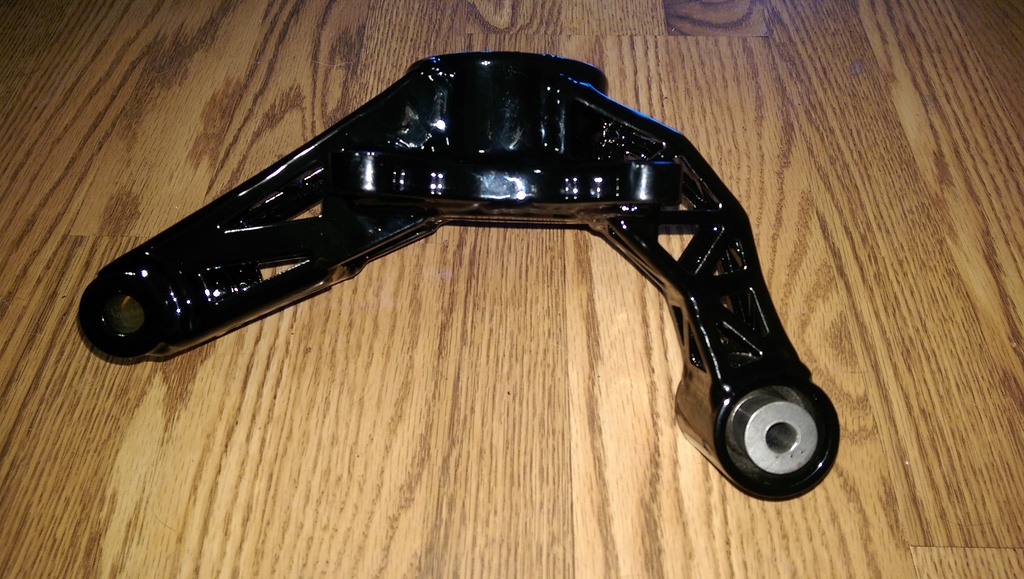

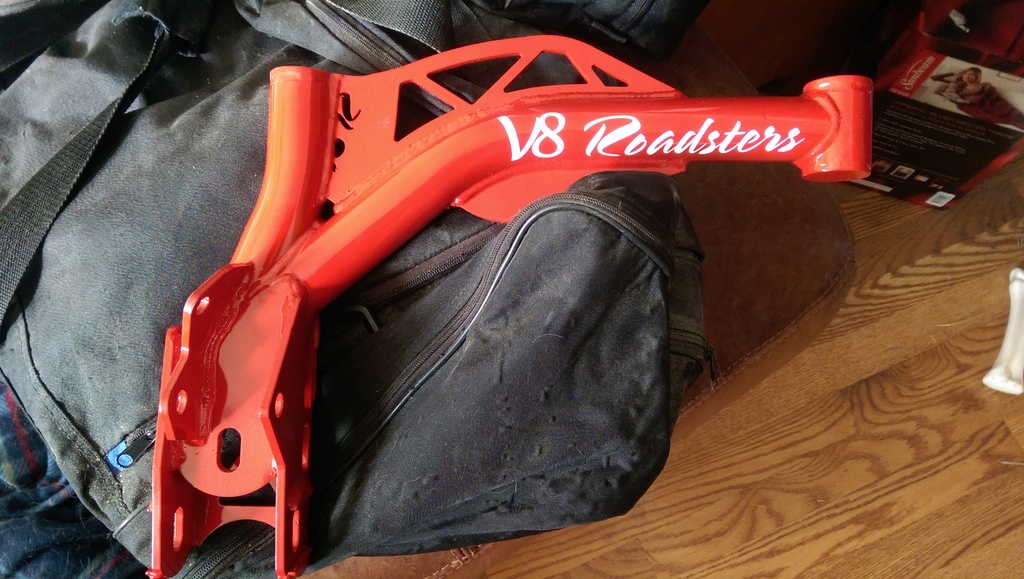

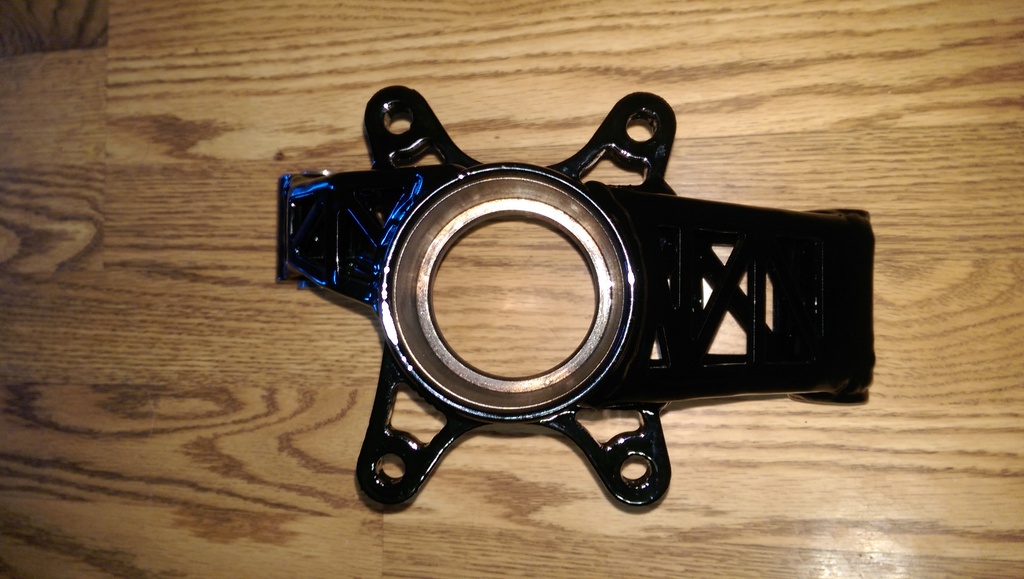

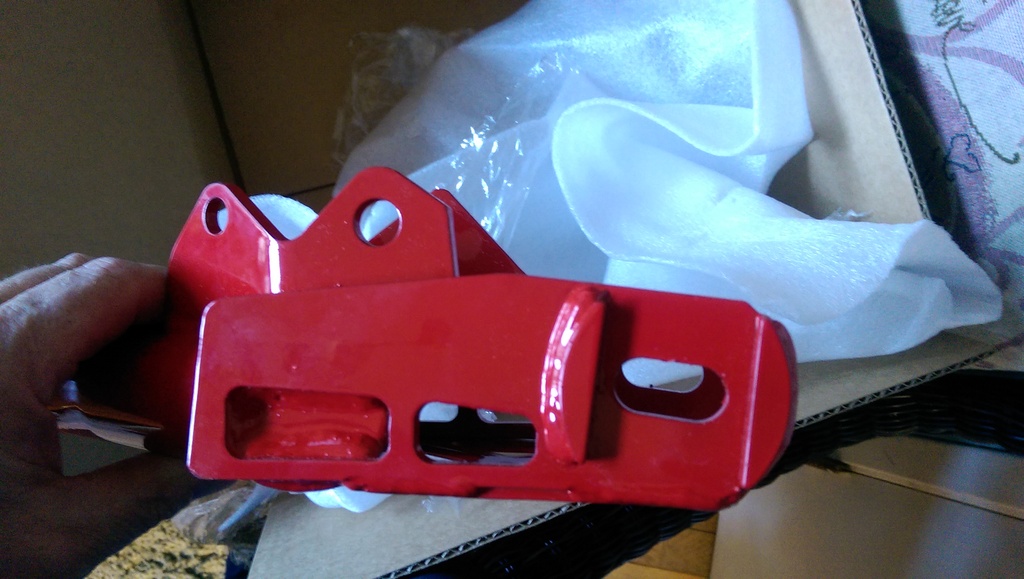

Runoffs damage is repaired, just need to get some paint on it. Making some huge changes to the car this off season, new shock package, going with a complete v8 roadster control arm set, drop uprights on the rear, and a fresh engine with newly allowed forged rods.









Attached Thumbnails
New FP miata-front%2520control%2520arm_zpszautcz3f.jpg   New FP miata-front%2520control%2520arm%25201_zpsyejsro4r.jpg   New FP miata-rear%2520upright_zpsvdmrftdj.jpg   New FP miata-rear%2520upright%25201_zpsfafglknf.jpg
hingstonwm is offline   Reply With Quote
Old 03-27-2015, 11:50 AM   #195
Elite Member
iTrader: (3)

Join Date: Feb 2008
Location: Huntsville, AL
Posts: 1,881
Total Cats: 45
Default

Who makes those uprights? Those are just precious...
vehicular is offline   Reply With Quote
Old 03-27-2015, 12:03 PM   #196
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Quote:
Originally Posted by vehicular View Post
Who makes those uprights? Those are just precious...
Look like Danny George uprights, he's a drifter hence the reason its setup for 2 brake calipers/upright.
Leafy is offline   Reply With Quote
Old 03-27-2015, 02:03 PM   #197
Junior Member

Join Date: Jan 2007
Posts: 218
Total Cats: 15
Default

Did the guy who crashed you out of the race at least apologize and buy you a beer?
freedomgli is offline   Reply With Quote
Old 03-31-2015, 01:36 PM   #198
Senior Member
Thread Starter
iTrader: (2)

Join Date: Jan 2010
Location: Denver
Posts: 909
Total Cats: 14
Default

Nope no beer, not even an apology. It's racin' and **** sometimes happens, it just sucks when it does.
hingstonwm is offline   Reply With Quote
Old 04-20-2015, 11:08 AM   #199
Junior Member
iTrader: (5)

Join Date: Oct 2014
Posts: 473
Total Cats: 23
Default

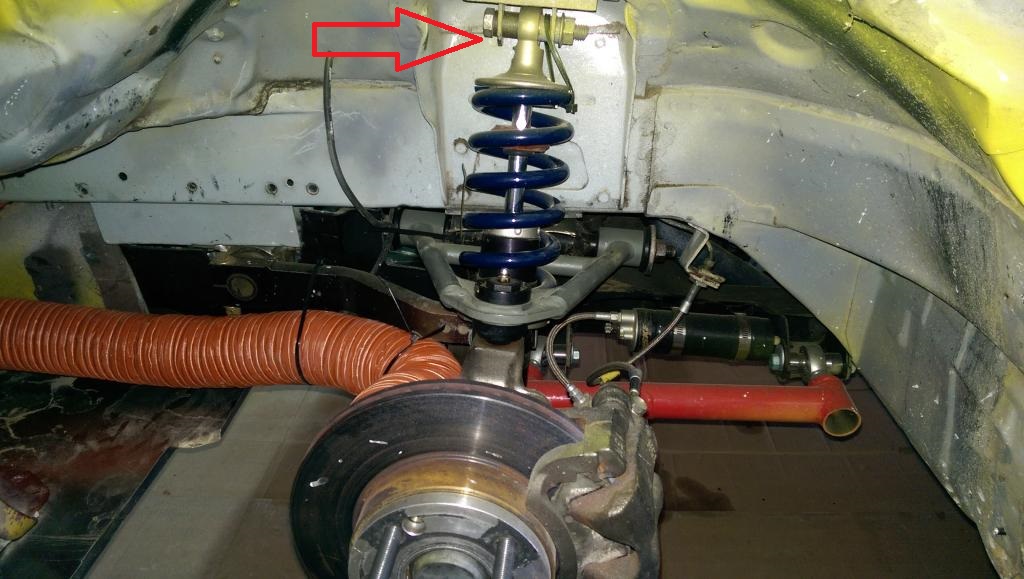

Can you give some insight into how you designed your shock perches? Where I am located we have tons of circle track guys and they are always upgrading their suspension, so I can get some decent used stuff for cheap, but I have yet to figure out a mounting solution. This plate you have made looks perfect. Very cool build. I really like watching your videos.

Attached Thumbnails
New FP miata-lhceqxo.jpg
90civichhb is offline   Reply With Quote
Old 04-22-2015, 10:11 PM   #200
Senior Member
Thread Starter
iTrader: (2)

Join Date: Jan 2010
Location: Denver
Posts: 909
Total Cats: 14
Default

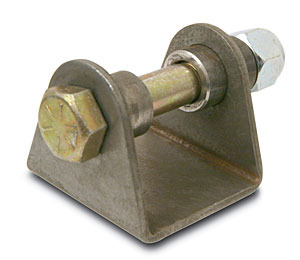

That is a standard circle track piece. 1/2 inch eye shock mount. It has a solid mounted spacer on one side and a floating spacer on the other side that is compressed into the shock by the mounting bolt. The mounting plate that it is welded to is just 3/16" flat bar cut into the shape of a top hat.

Attached Thumbnails
New FP miata-shock%2520mount_zpsdasp0dxn.jpg

Last edited by hingstonwm; 04-22-2015 at 10:42 PM.
hingstonwm is offline   Reply With Quote
