Old 11-17-2012, 10:21 PM   #41
Senior Member
iTrader: (1)

Join Date: Nov 2010
Posts: 951
Total Cats: -252
Default

What's the difference between EP and FP and do the cars have to be windshieldless and topless?
wannafbody is offline   Reply With Quote
Old 11-18-2012, 08:14 AM   #42
Junior Member

Join Date: Dec 2006
Posts: 192
Total Cats: 8
Default

Quote:
Originally Posted by wannafbody View Post
What's the difference between EP and FP and do the cars have to be windshieldless and topless?
Om not sure about the difference between fp and ep, but the windshield is not only heavy(40-50lbs between frame and glass) but it's elimination really cleans up the aero by removing a large chunk of frontal area and removing the big "ugly", area behind the windshield or hardtop.
tpwalsh is offline   Reply With Quote
Old 11-18-2012, 12:01 PM   #43
Junior Member
iTrader: (1)

Join Date: Feb 2011
Location: Richmond, VA
Posts: 325
Total Cats: 20
Default

On the helmet issue, I use a bell gtx 2 helmet made for open cockpit / karting GTX.2 | Racing Helmets | Bell Racing USA . Always use earplugs with open cockpit, same rule as motorcycles.
vtjballeng is offline   Reply With Quote
Old 11-18-2012, 05:04 PM   #44
Junior Member

Join Date: Jul 2012
Location: Campbell, CA
Posts: 65
Total Cats: 0
Default

Quote:
Originally Posted by rlogan View Post
I know, I have been looking at these fenders...a bit pricey though. Lets start our own super miata class.
These guys make that widebody kit, wish they made one for the NA. Pennon Composites
Ski_Lover is offline   Reply With Quote
Old 11-18-2012, 10:32 PM   #45
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Who makes this dog box?
Leafy is offline   Reply With Quote
Old 11-19-2012, 01:23 PM   #46
Senior Member
Thread Starter
iTrader: (2)

Join Date: Jan 2010
Location: Denver
Posts: 909
Total Cats: 14
Default

Quote:
Originally Posted by wannafbody View Post
What's the difference between EP and FP and do the cars have to be windshieldless and topless?
You can run the windshield and hard top if you like, most remove it to reduce frontal area. That being said, the cage creates drag so you need to make it as efficient as possible. You can see the difference in the cages in my car, it was redesigned to reduce drag. I could actually feel a difference when towing the car on an open trailer

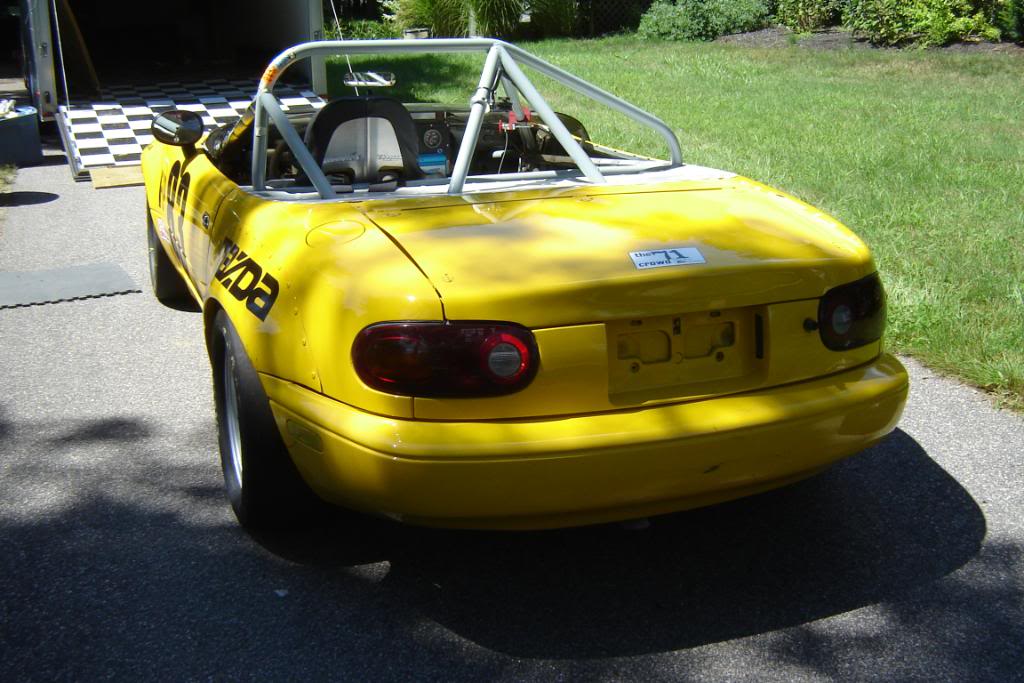

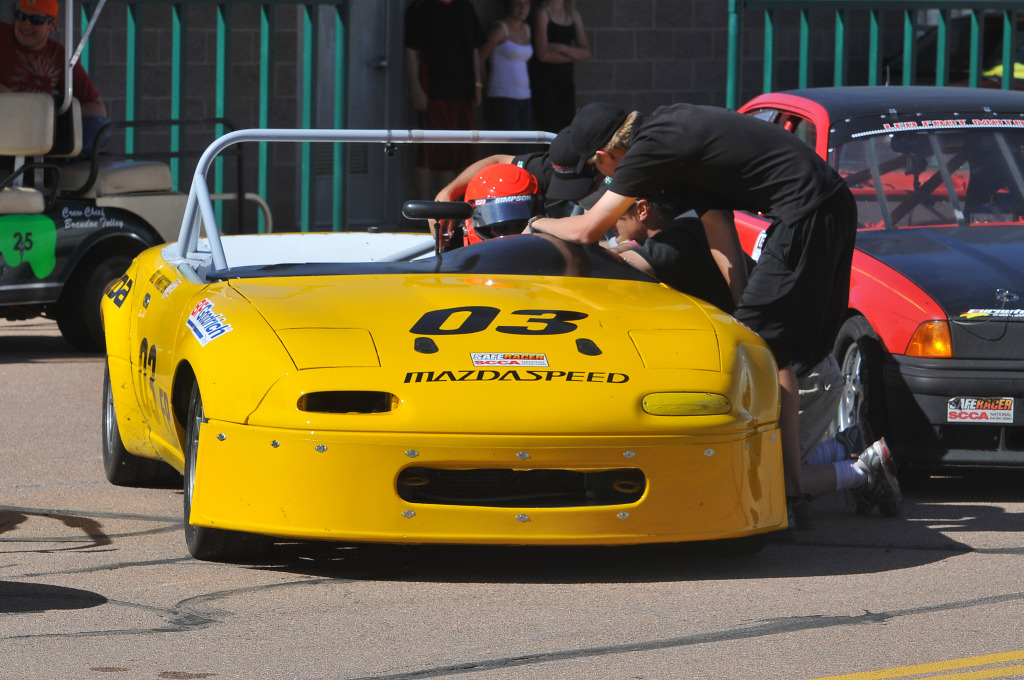

I think these pics offer a pretty good comparison of the old cage and the new one. Also in the last pic if you look closely you can see some of the aero features of my new helmet, it is a Simpson Speedway Shark it has eliminated the buffeting that I was experiencing with my old helmet. You can also see the difference in the old windshield and my new one. The new one is much easier to see over, in addition to being lower profile.

Quote:
Originally Posted by Leafy View Post
Who makes this dog box?
The transmission is made by Quaife, it is based on the Ford Seirra, there were adapter plates fabbed to mate it to a miata bell housing and engine.

.
Attached Thumbnails
New FP miata-011.jpg   New FP miata-010.jpg   New FP miata-0032012rberrington_01.jpg
hingstonwm is offline   Reply With Quote
Old 11-19-2012, 01:50 PM   #47
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

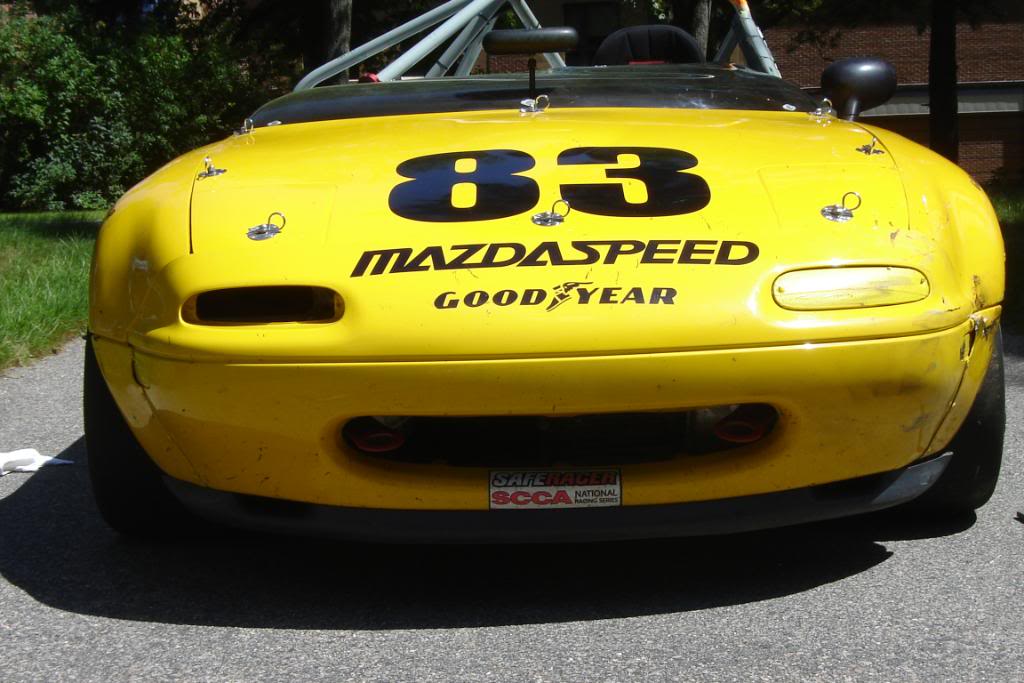

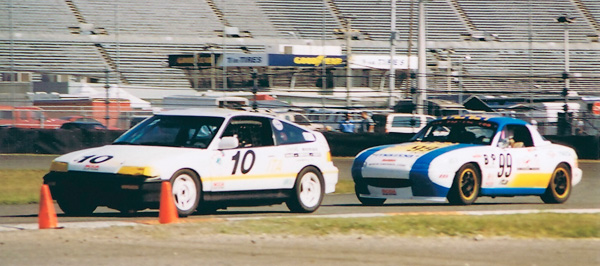

I also see a new front lip/nose spoiler. Very similar to what I did for the "first" Miata IT car.
Attached Thumbnails
New FP miata-itamiata.jpg
m2cupcar is offline   Reply With Quote
Old 11-19-2012, 01:57 PM   #48
Senior Member
Thread Starter
iTrader: (2)

Join Date: Jan 2010
Location: Denver
Posts: 909
Total Cats: 14
Default

^^^Yep, was working on aero for the Runoffs, In the works are 13" wheels for next season, I know I will have a slightly smaller footprint, but I am hopping that keeping suspension geometry unchanged and lowering the car will improve handling. Especially in long sweepers like the carousel at RA.
hingstonwm is offline   Reply With Quote
Old 12-06-2012, 06:32 PM   #49
Senior Member
Thread Starter
iTrader: (2)

Join Date: Jan 2010
Location: Denver
Posts: 909
Total Cats: 14
Default

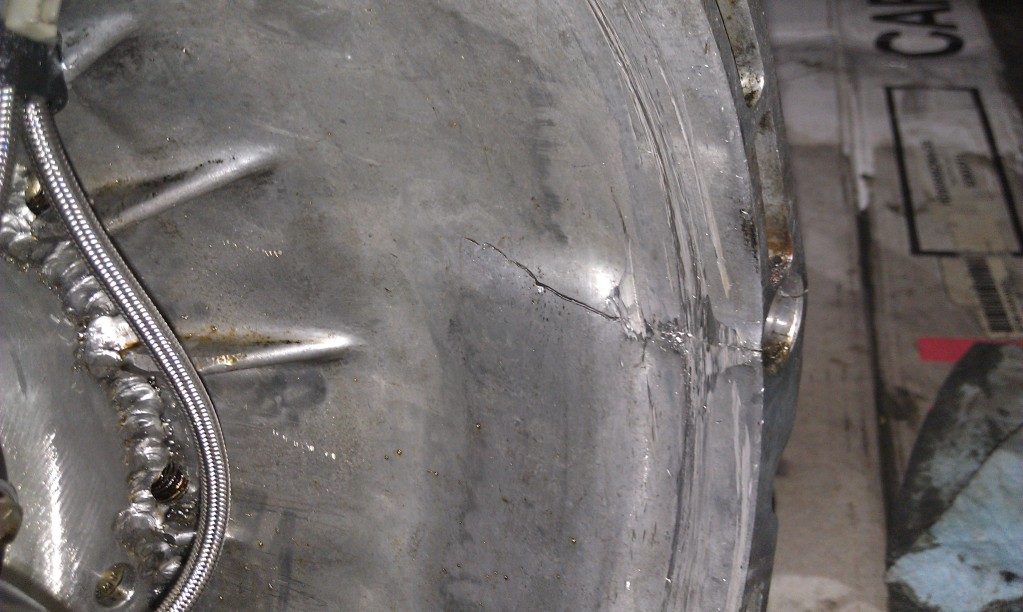

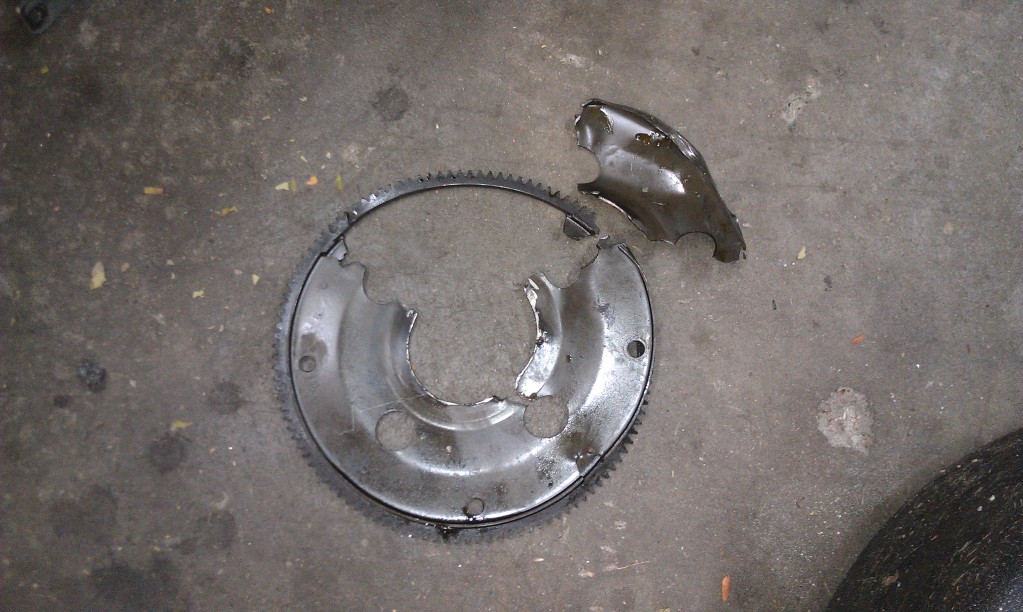

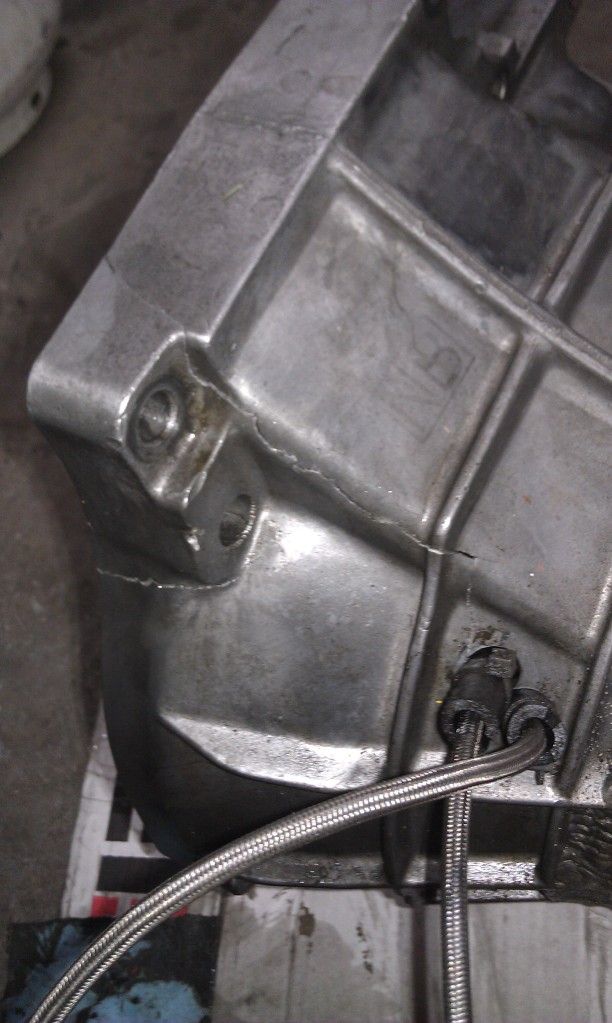

This is what I found after dropping the transmission. Broken flex plate, and a severely cracked bell housing. I decided that the bell housing could not be salvaged as the left upper ear was almost completely broken off and the hole for the location dowel was cracked and oblong.

The original bell housing was a 6 speed, I have a good 6 speed at home but decided that I didn't want to salvage the bell housing off a good 6 speed. So I made a call to a friend that has several 5 speed cases laying around and picked up a bell housing from him.

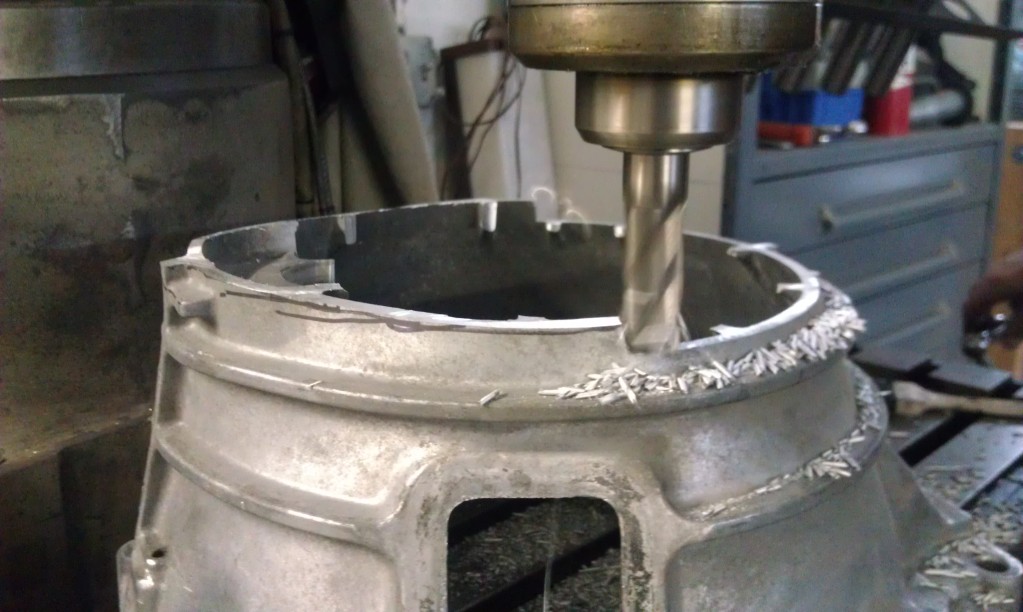

Prep work, I cant tell you how nice it is to have a friend with a bridgeport in his shop. Getting the bell housing to the right depth was a piece of cake.

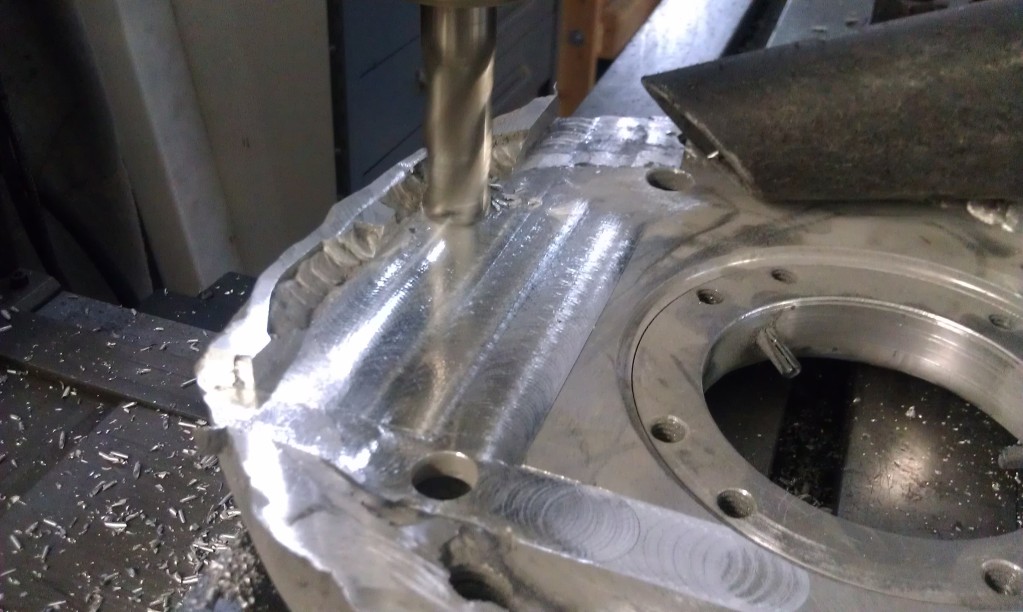

After cutting the old bell housing off I took a couple of thousandths off of the plate in order to clean up all the old weld. I compensated for the loss of depth by leaving the bell housing 2 thousandths taller.

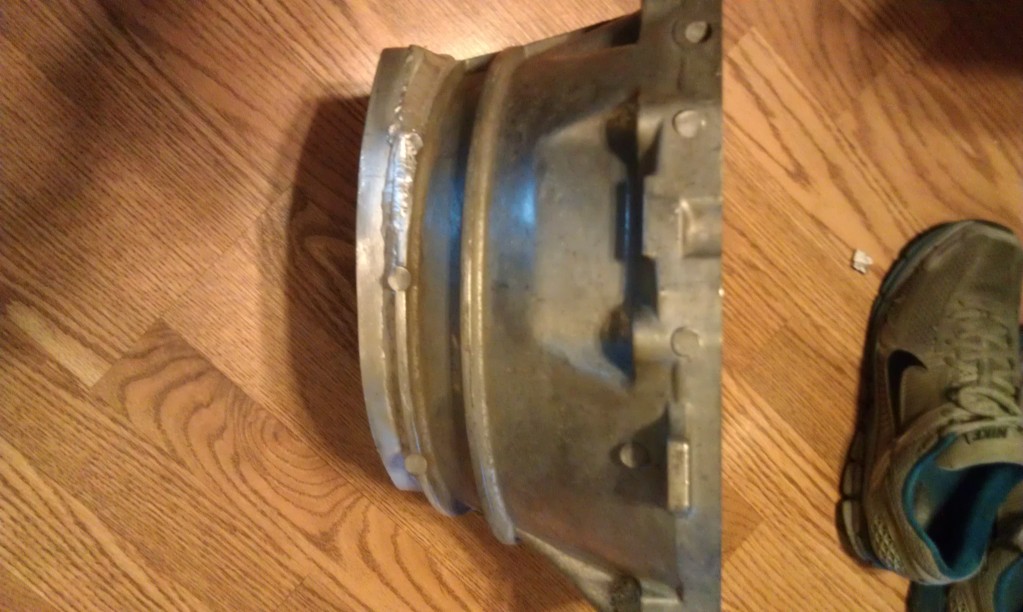

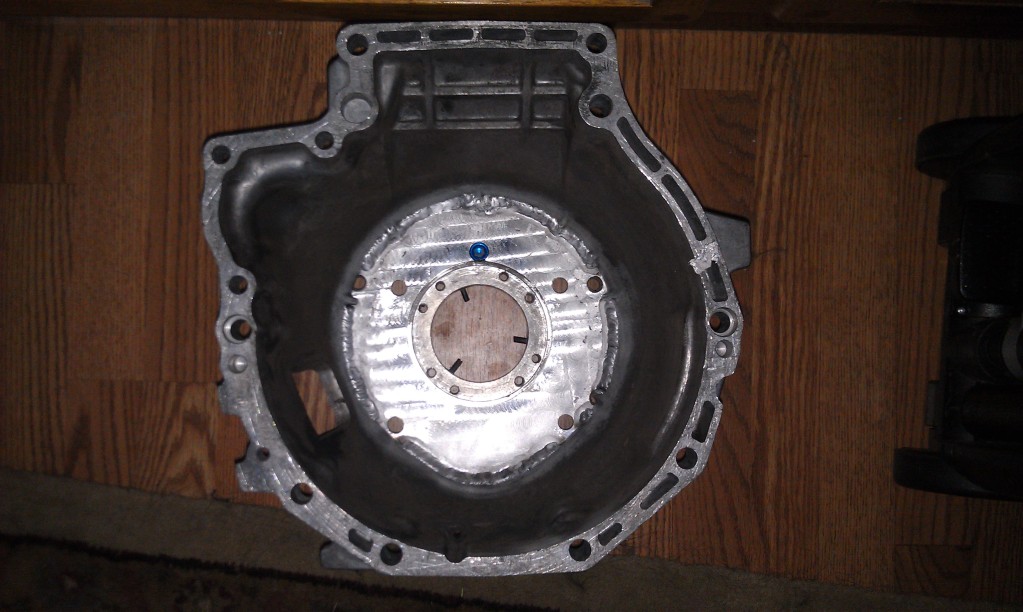

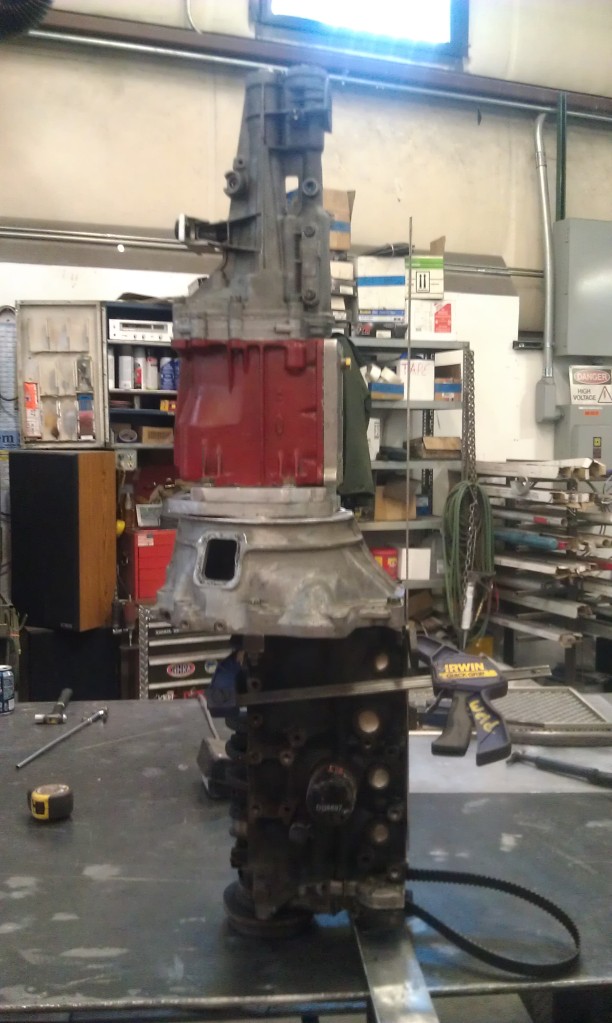

In order to index the transmission and bell housing I installed a clutch on an old block and crank. Then bolted the bell housing to the block and stabbed the transmission. The bell housing was the tacked to the adapter plate, and everything pulled apart for final welding.

Here are some pics.







Attached Thumbnails
New FP miata-imag0904.jpg   New FP miata-imag0906.jpg   New FP miata-imag0905.jpg   New FP miata-utf-8bsu1brzewmjeuanbn.jpg   New FP miata-utf-8bsu1brzewmjyuanbn.jpg

New FP miata-utf-8bsu1brzewmzauanbn.jpg   New FP miata-utf-8bsu1brzewmzquanbn.jpg   New FP miata-utf-8bsu1brzewmzguanbn.jpg
hingstonwm is offline   Reply With Quote
Old 12-06-2012, 10:54 PM   #50
Junior Member

Join Date: Dec 2006
Posts: 192
Total Cats: 8
Default

what the heck? Did you know you blew up the flexplate? or just dropped the bellhousing after replacing the dogs?
tpwalsh is offline   Reply With Quote
Old 12-10-2012, 03:39 AM   #51
Senior Member
Thread Starter
iTrader: (2)

Join Date: Jan 2010
Location: Denver
Posts: 909
Total Cats: 14
Default

I knew the flexplate was broken, I discovered it when I got home from the track and pulled the starter. I thought that I would document the bell housing work that was done. Quaife offers a miata bell housing but it is about $ 700 and I doubt that it would have put the transmission back in the same orientation that my current one off bell housing does.

After installing the transmission, I am going to work on getting the new electromotive installed and working. I plan on running new injectors too, I am thinking about DeatschWerks.
hingstonwm is offline   Reply With Quote
Old 12-10-2012, 03:45 AM   #52
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,197
Total Cats: 2,584
Default

I strongly urge you to re-consider the dw in favor of ID or FIC
18psi is offline   Reply With Quote
Old 12-10-2012, 04:15 AM   #53
Senior Member
Thread Starter
iTrader: (2)

Join Date: Jan 2010
Location: Denver
Posts: 909
Total Cats: 14
Default

I love the ID's I have in the turbo car, does ID make an injector small enough for a NA 1.6 engine? At the ID site the smallest they list are 725's
hingstonwm is offline   Reply With Quote
Old 12-10-2012, 04:17 AM   #54
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,197
Total Cats: 2,584
Default

hmm, didn't think of that. I think their smallest is 725
if you have ems should work just fine
18psi is offline   Reply With Quote
Old 12-10-2012, 11:15 AM   #55
Senior Member
Thread Starter
iTrader: (2)

Join Date: Jan 2010
Location: Denver
Posts: 909
Total Cats: 14
Default

I have na ems but not sure I want to run that big of an injector, on top of which from what I understand ID's like big pressures. Think I will take a look at FiC, what is it you don't like about DW's?
hingstonwm is offline   Reply With Quote
Old 12-10-2012, 12:36 PM   #56
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

DWs are EV6, ID and FIC are EV14. Newer technology, better atomization.
thenuge26 is offline   Reply With Quote
Old 12-10-2012, 02:13 PM   #57
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,485
Total Cats: 248
Default

Quote:
Originally Posted by hingstonwm View Post
Nice. This is the same thing BEGI did to do their recent BP to T5 bellhousing.

Quote:
Originally Posted by thenuge26 View Post
DWs are EV6, ID and FIC are EV14. Newer technology, better atomization.
huh?

I'm running Deatschwerks compact EV14's in my V6. Got 'em a year ago.
Bosch EV14 Universal Line | DeatschWerks
TurboTim is offline   Reply With Quote
Old 12-10-2012, 02:30 PM   #58
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

Quote:
Originally Posted by TurboTim View Post
I'm running Deatschwerks compact EV14's in my V6. Got 'em a year ago.
Bosch EV14 Universal Line | DeatschWerks
My bad, I didn't know DW had a line of EV14's.

Don't believe everything you read on the internet.
thenuge26 is offline   Reply With Quote
Old 12-10-2012, 05:18 PM   #59
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,197
Total Cats: 2,584
Default

Me either. wow. that's cool. learn something new every day.
18psi is offline   Reply With Quote
Old 12-10-2012, 07:14 PM   #60
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

Our black-and-white world has been turned upside down. Now we just have to be sure to specify Bosch-type DW injectors vs the EV6 Denso ones.
thenuge26 is offline   Reply With Quote
