Old 12-10-2012, 10:56 PM   #61
Junior Member
iTrader: (1)

Join Date: Feb 2011
Location: Richmond, VA
Posts: 325
Total Cats: 20
Default

Quote:
Originally Posted by thenuge26 View Post
DWs are EV6, ID and FIC are EV14. Newer technology, better atomization.
There are multiple funny things about that. First, as others have pointed out, ID and DW have EV14 lines. Second, there are many EV6 injectors that atomize better than EV14 injectors. Why? Due to the spray pattern choice, orifice design, pintle design, etc etc. The ID injectors are actually not a multi-orifice wide spray cone designed for atomization. There are EV6 injectors that fit this design criteria. Then there are issues of open time, pintle opening spray pattern vs full on pattern, transient delivery issues, etc. I run ID 725s as I was testing a set when they first came out. I have run DW700s and ID1000 and they are all great especially compared to older generation options. I haven't tried FIC because I don't sell them.

My only point here is that generalizations don't necessarily apply. There are still good EV6 injectors just like there are still good SD IV injectors. Heck, there are some new SD V injectors out (80lb/hr shorties) that are great even though the newest series for port injection is SD VII.
vtjballeng is offline   Reply With Quote
Old 04-04-2013, 02:50 AM   #62
Senior Member
Thread Starter
iTrader: (2)

Join Date: Jan 2010
Location: Denver
Posts: 909
Total Cats: 14
Default

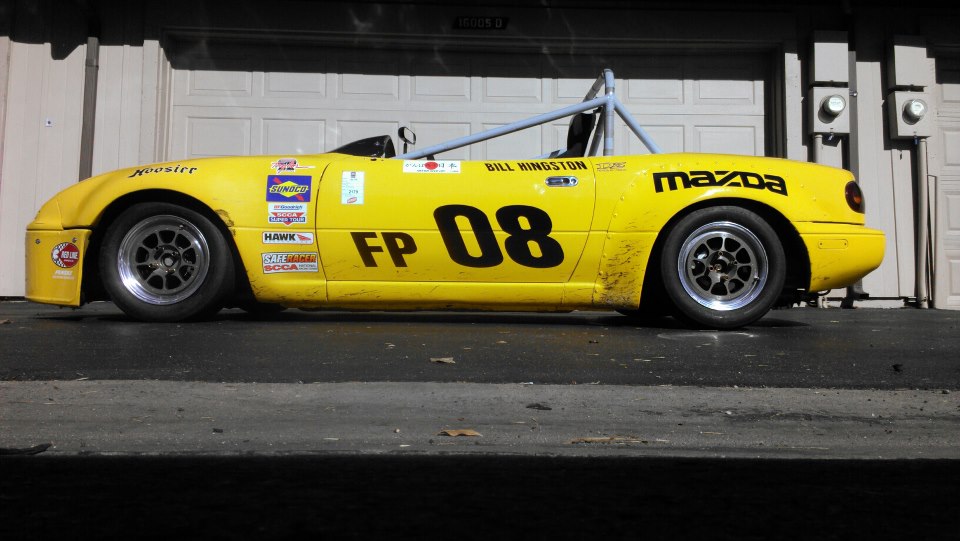

Will be testing this new wheel and tire package next week. Plan is to test this vs my 15" setup. I have a second diff built with proper gearing for 13's. I plan to run the 15" setup then swap diffs and wheels and run again. I know the 15's will take more abuse, but Im thinking that the lower center of gravity may improve handling and be a little easier on the tires.
Attached Thumbnails
New FP miata-523565_627776697239048_1464486378_n_zpsfcaa544b.jpg
hingstonwm is offline   Reply With Quote
Old 04-04-2013, 10:00 AM   #63
Elite Member
iTrader: (2)

miata2fast's Avatar

Join Date: Aug 2009
Location: Dover, FL
Posts: 2,897
Total Cats: 109
Default

I am looking forward to see your results.

For curiosity's sake, will you be testing the two set ups on the same day?
miata2fast is offline   Reply With Quote
Old 04-04-2013, 10:05 AM   #64
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

I forget, what tires are you running? Are you going to the non-cantilevered special sauce?
Leafy is offline   Reply With Quote
Old 04-04-2013, 04:00 PM   #65
Senior Member
Thread Starter
iTrader: (2)

Join Date: Jan 2010
Location: Denver
Posts: 909
Total Cats: 14
Default

Yes, I will be testing both setups the same day. Hoping to do the test with about 1.5 hours between runs. Planning on 10 lap runs. I have full race length data from last season on the 15's. If the 13's prove faster in the short test then I will use them on my first race weekend. The only way to know if they will last and not fall off is to run them in a national length race, they should be good as there are several guys running 13's on their miatas now.

My 15" setup is Enkei RPF1 and Hoosier 215/580R15 in the 80 compound they are a radial slick. The 13" setup is Jongblode 330's and Hoosier 215/530R15 in the 80 compound, also radial slicks. The 13's are 20.8" diameter while the 15"s are 22.9

The car is 2 7/8" at the front pinch weld on the 13" wheels, it will be essential to keep of course excursions to a minimum.
hingstonwm is offline   Reply With Quote
Old 04-04-2013, 07:23 PM   #66
Junior Member
iTrader: (1)

Join Date: Aug 2008
Location: Austin, TX
Posts: 239
Total Cats: 4
Default

Nice. After moving to 20" diameter slicks for the XP car, I find it very hard to want to move to a something bigger.

How is the rear pinch seam height? I'm at 3 1/8" all around and am dragging the FM frame rails all over the place. Part of the reason I left them on the car. They make nice skid plates.
mcfandango is offline   Reply With Quote
Old 04-05-2013, 05:11 PM   #67
Elite Member
iTrader: (2)

miata2fast's Avatar

Join Date: Aug 2009
Location: Dover, FL
Posts: 2,897
Total Cats: 109
Default

Quote:
Originally Posted by hingstonwm View Post
Yes, I will be testing both setups the same day. Hoping to do the test with about 1.5 hours between runs. Planning on 10 lap runs.
I am so glad to see a test like this in a more controlled environment.
miata2fast is offline   Reply With Quote
Old 04-14-2013, 01:41 PM   #68
Senior Member
Thread Starter
iTrader: (2)

Join Date: Jan 2010
Location: Denver
Posts: 909
Total Cats: 14
Default

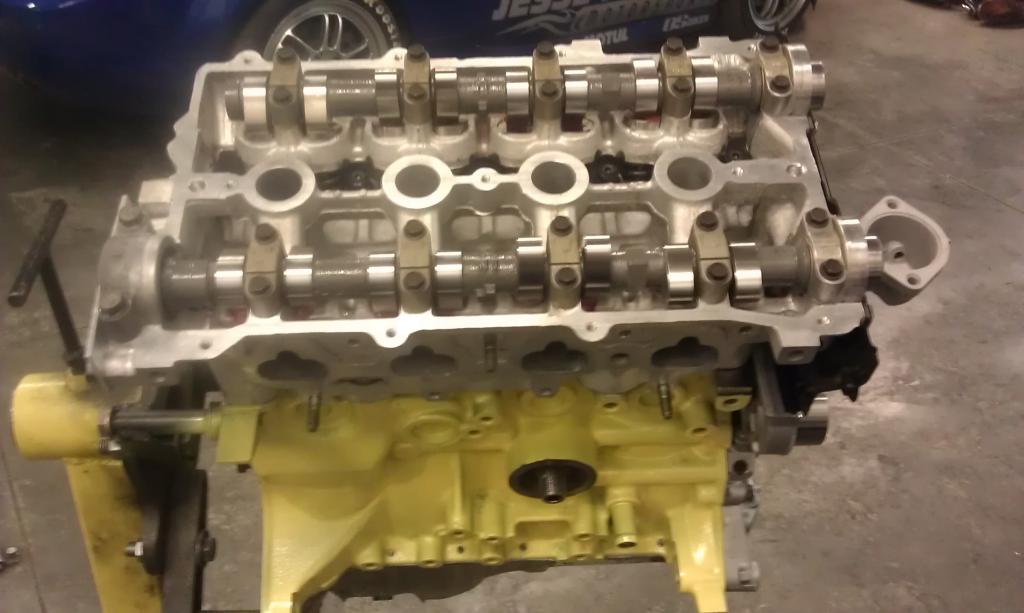

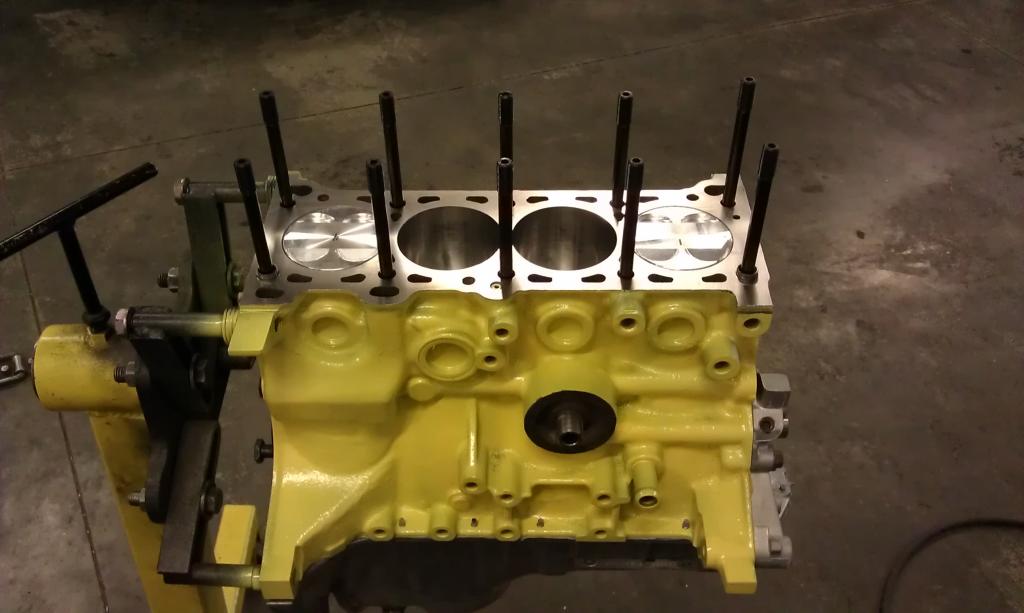

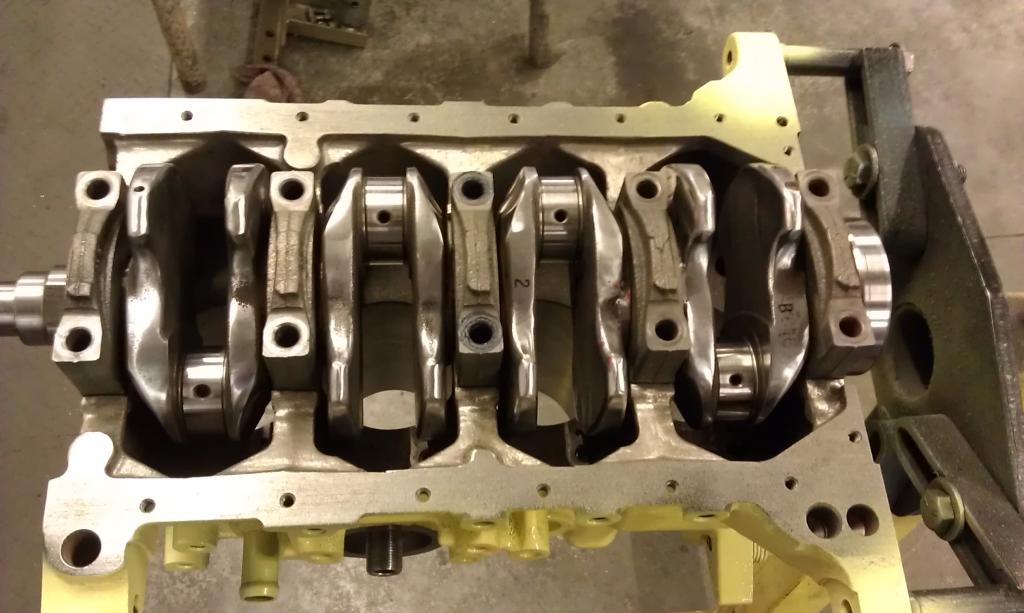

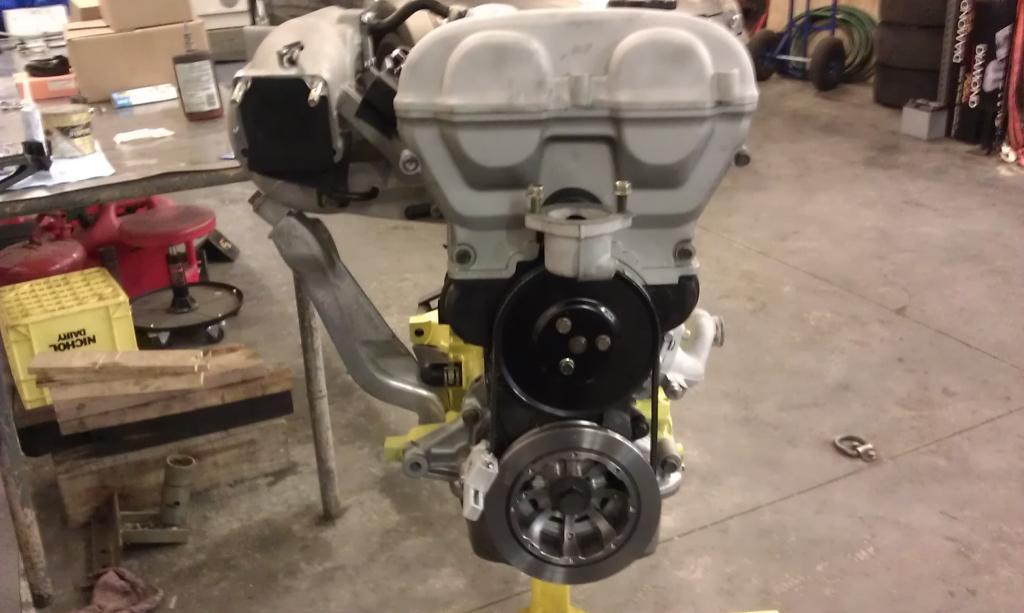

Update: Weather and work have been against me, and I only have Tuesday and Wednesday this next week, and the forecast is rain and snow....colorado in the spring time. Its looking like I will get to test the week of the 22nd. Will provide updates as they become available. I do have a few shots of the new engine though.








Attached Thumbnails
New FP miata-jpmengine9_zps386a9943.jpg   New FP miata-jpmengine8_zps76a36df6.jpg   New FP miata-jpmengine6_zpsd61d4828.jpg   New FP miata-jpmengine5_zpsdad6b37e.jpg   New FP miata-jpmengine_zps11845089.jpg

hingstonwm is offline   Reply With Quote
Old 04-15-2013, 11:01 AM   #69
Junior Member

Join Date: Dec 2006
Posts: 192
Total Cats: 8
Default

Interesting. What CR are you shooting for?(with which/whose pistons?)
tpwalsh is offline   Reply With Quote
Old 04-15-2013, 02:22 PM   #70
Senior Member
Thread Starter
iTrader: (2)

Join Date: Jan 2010
Location: Denver
Posts: 909
Total Cats: 14
Default

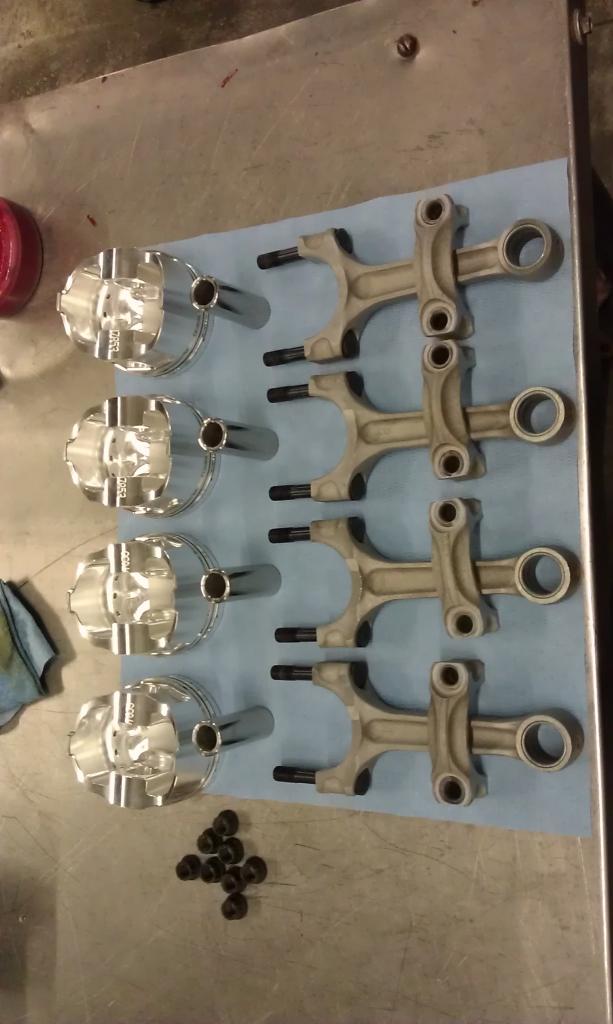

Custom order from Wiesco, will be 10:1, that is the limited compression ratio for FP miata in the scca.
hingstonwm is offline   Reply With Quote
Old 04-15-2013, 02:49 PM   #71
Junior Member

Join Date: Dec 2006
Posts: 192
Total Cats: 8
Default

Quote:
Originally Posted by hingstonwm View Post
Custom order from Wiesco, will be 10:1, that is the limited compression ratio for FP miata in the scca.
Interesting, I didn't realize there was a CR limit in FP. I assume there's a lift limit as well?
tpwalsh is offline   Reply With Quote
Old 04-15-2013, 04:49 PM   #72
Junior Member

Join Date: Dec 2006
Posts: 192
Total Cats: 8
Default

Quote:
Originally Posted by tpwalsh View Post
Interesting, I didn't realize there was a CR limit in FP. I assume there's a lift limit as well?
Since I wanted to see what the rest of FP's rules looks liek I'll answer my own question." Valve lift limited to .390."
tpwalsh is offline   Reply With Quote
Old 04-15-2013, 04:57 PM   #73
Senior Member
Thread Starter
iTrader: (2)

Join Date: Jan 2010
Location: Denver
Posts: 909
Total Cats: 14
Default

Quote:
Originally Posted by tpwalsh View Post
Interesting, I didn't realize there was a CR limit in FP. I assume there's a lift limit as well?
Yep lift is limited to .390. We have to use stock rods as well, though rod bolts are free. The rods are a weak point, prone to breaking through mechanical over revs from missed shifts. I will have to see if I can find a pic of one of my rod beams, they are polished, like the crank, this takes away focal stress points and will allow the rods to bend quite a bit before breaking. We are pushing for alternate rods but the comp board has resisted so far. So the plan for this engine is to time the rods out as end of service life after each season.
Shift point is 7800-8k with an 8400 rev limit just in case.
hingstonwm is offline   Reply With Quote
Old 04-15-2013, 06:55 PM   #74
Elite Member
iTrader: (2)

miata2fast's Avatar

Join Date: Aug 2009
Location: Dover, FL
Posts: 2,897
Total Cats: 109
Default

Interesting you mention polishing your stock rods. In my build thread, I have a pic of the polished stock rods in my previous motor.

I think polishing both the crank and rods makes some power too. I have been thinking of polishing the crank on the next motor, but damn that is a lot of work.
miata2fast is offline   Reply With Quote
Old 04-20-2013, 02:03 AM   #75
Senior Member
Thread Starter
iTrader: (2)

Join Date: Jan 2010
Location: Denver
Posts: 909
Total Cats: 14
Default

Some more ****...pics for those inclined to look. Weather is still beating me up out here, looks like next Tuesday and Wednesday are out too for
testing

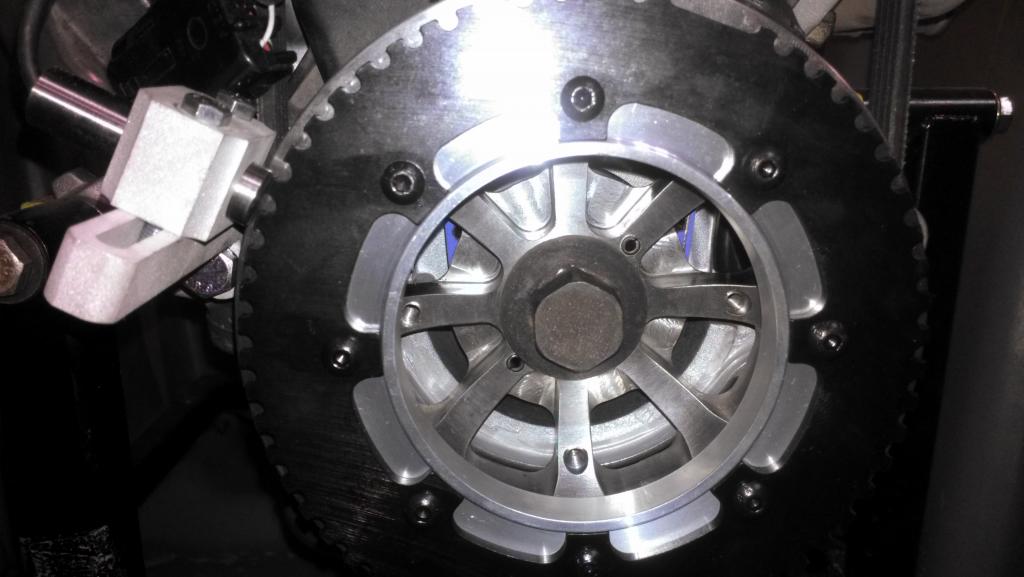

Harmonic balencer, crank fire trigger wheel and pickup

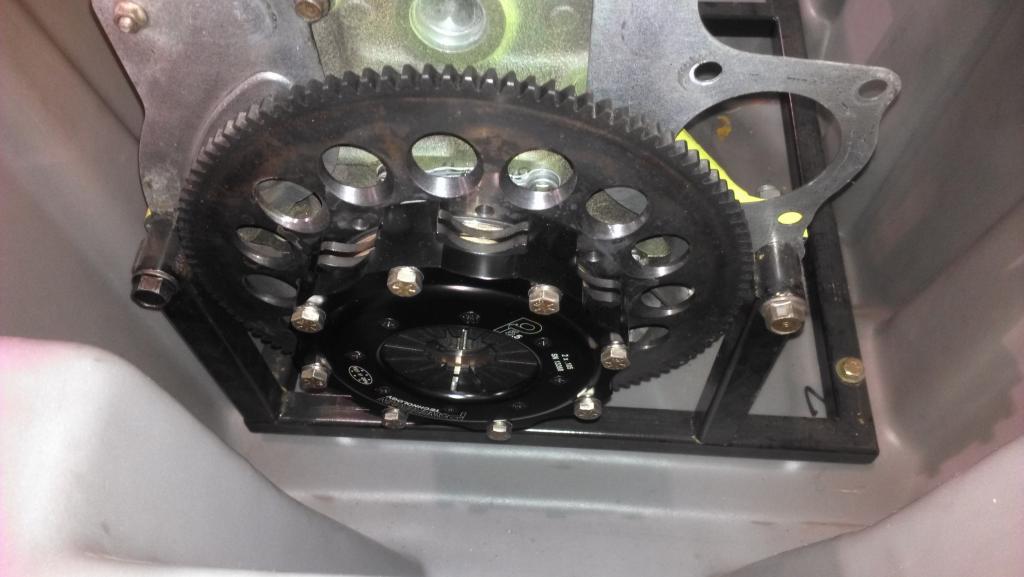

7.5# steel flywheel and 5.5" clutch, nice upgrade from my flexplate and 4.5" setup

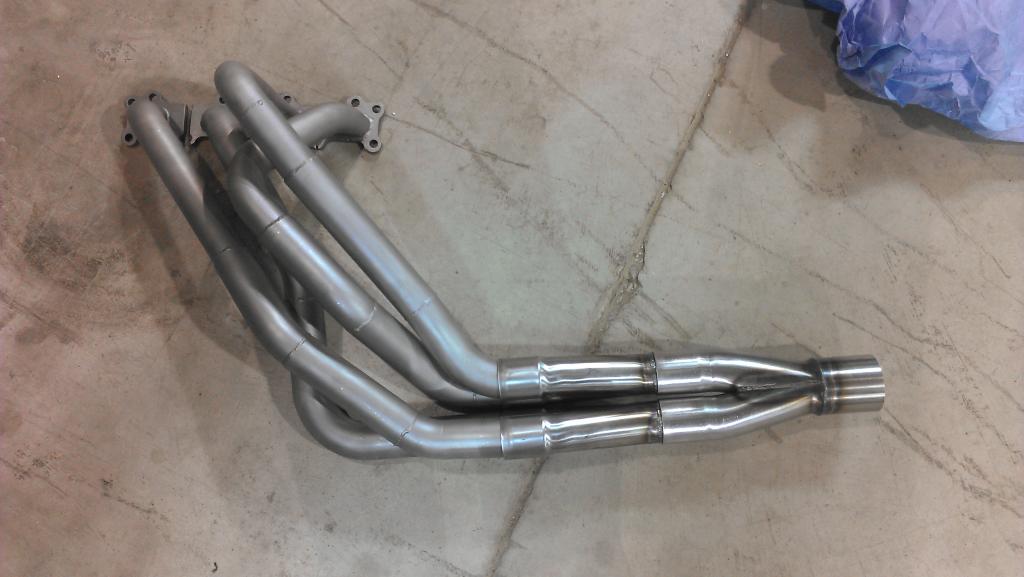

New stepped header

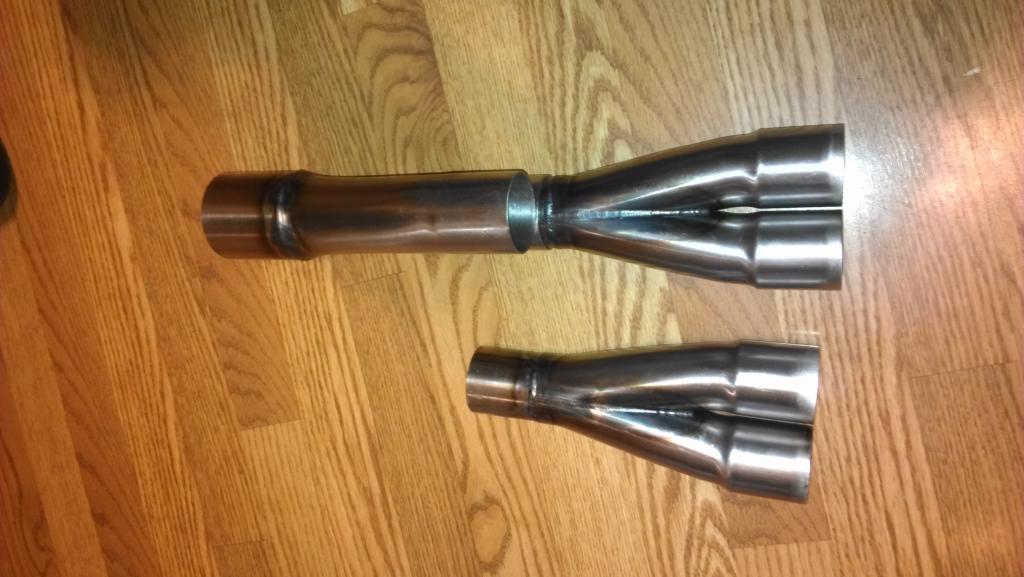

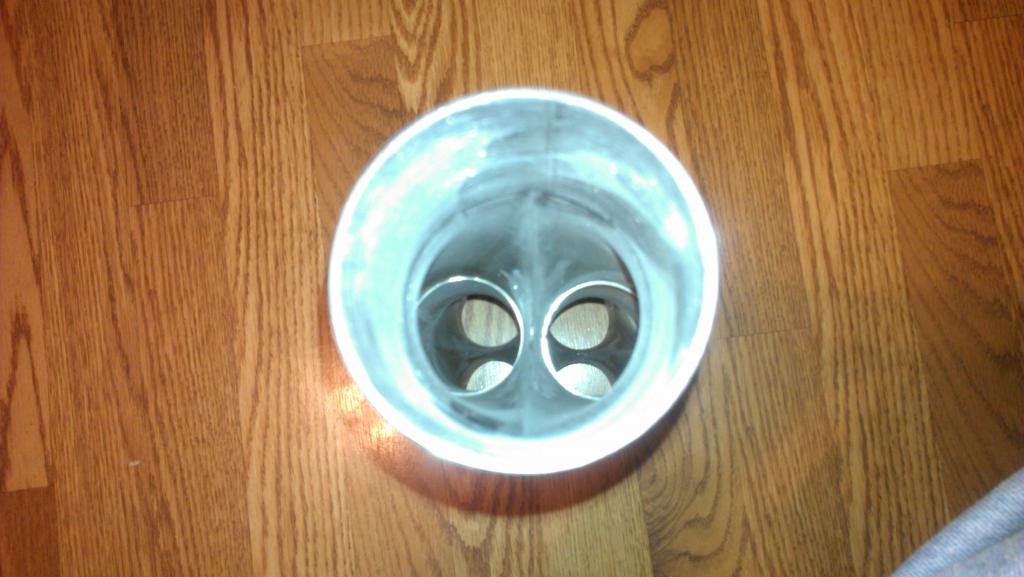

Nice looking collector

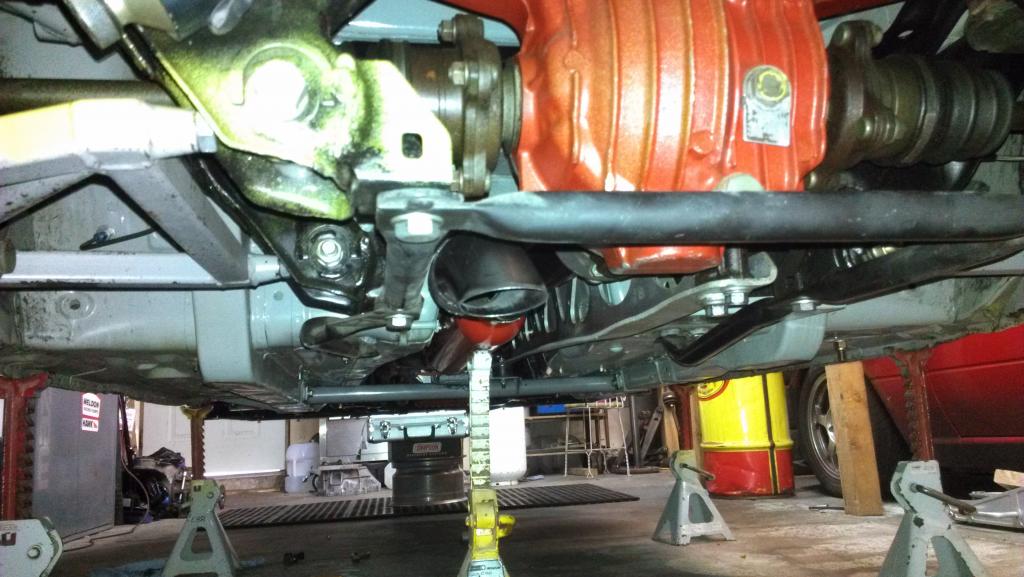

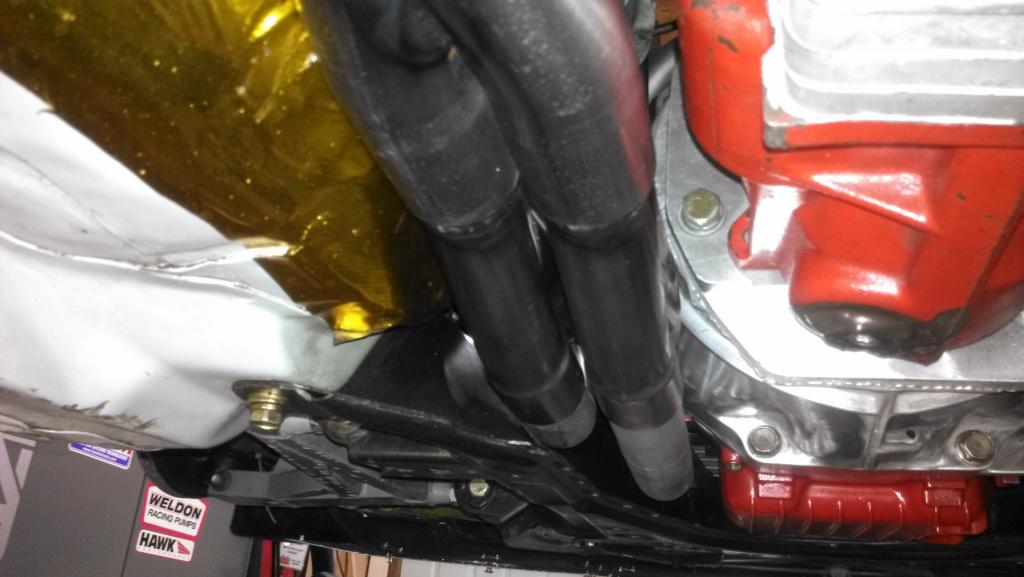

how it looks under the car, need to move the trannsmission tunnel a little bit

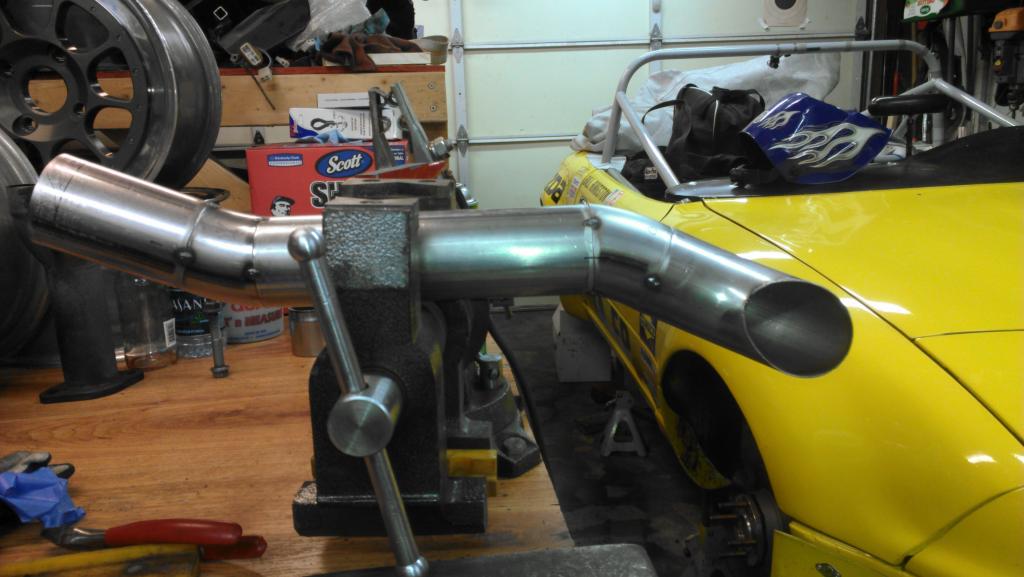

new tailpipe, this will dump next to the differential.
Attached Thumbnails
New FP miata-fpcrankfire_zps5e4e94ef.jpg   New FP miata-fpfltwheel-copy_zpsff191148.jpg   New FP miata-fpheader-copy_zps4f531add.jpg   New FP miata-fpcollector1-copy_zps11849e7f.jpg   New FP miata-fpcollector-copy_zps739b81b9.jpg

New FP miata-fpcollectorundercar-copy_zps3e06e807.jpg   New FP miata-fptailpipe_zpsa8fe4fb7.jpg

Last edited by hingstonwm; 04-20-2013 at 07:57 AM.
hingstonwm is offline   Reply With Quote
Old 04-21-2013, 06:57 PM   #76
Elite Member
iTrader: (3)

Join Date: Feb 2008
Location: Huntsville, AL
Posts: 1,881
Total Cats: 45
Default

No mooflers?
vehicular is offline   Reply With Quote
Old 04-22-2013, 12:03 AM   #77
Senior Member
Thread Starter
iTrader: (2)

Join Date: Jan 2010
Location: Denver
Posts: 909
Total Cats: 14
Default

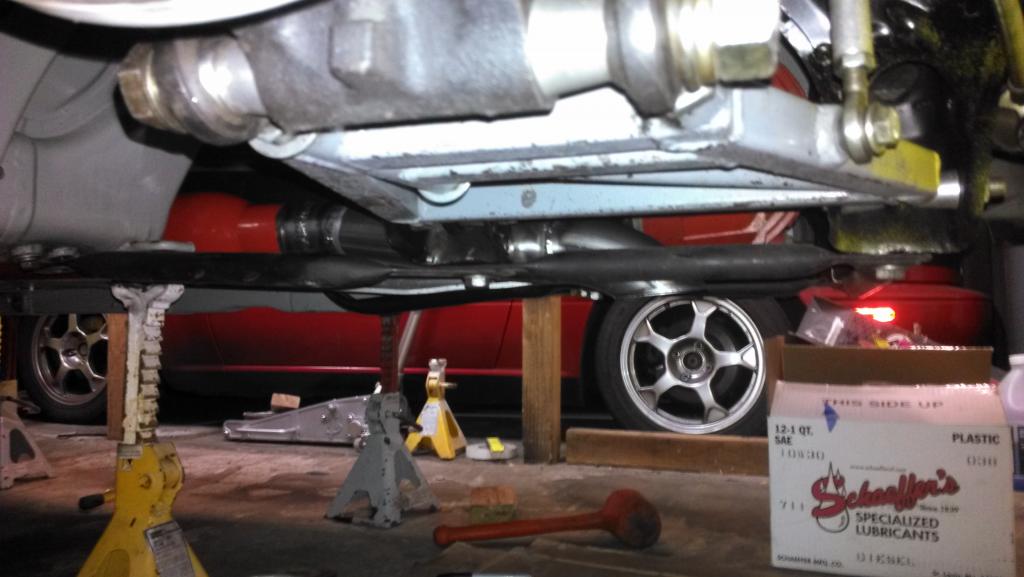

^^^ Nope, just the glass pack, sound level is 103db at the tracks that I run at, the Runoffs are 103 db too.



Attached Thumbnails
New FP miata-fpexhaust1_zpsf0a36a6d.jpg   New FP miata-fpexhust_zpsb8c04e51.jpg
hingstonwm is offline   Reply With Quote
Old 08-25-2013, 02:06 PM   #78
Senior Member
Thread Starter
iTrader: (2)

Join Date: Jan 2010
Location: Denver
Posts: 909
Total Cats: 14
Default

Been a while since I posted, finally have some information on th13-15 comparison The short and sweet answer when going from 15's to 13's is you ruin the handling. Even though the control arms don't change angle, roll center is changed due to the entire suspension being moved closer to the ground. The result is a big push and slower lap times. You can tune around the push some by dialing in a bunch of compression in the front shocks and stiffening the rear bar but it is still noticeable.

I have not given up on the 13's yet and plan on making a spring rate change to see if I can help the car. Have also been prepping for the Runoffs, this will be the last year at Road America, it is the 50th anniversary and there are just short of 700 entries, it should be a great event. Next year the Runoffs are at Laguna and the year after that at Daytona.
hingstonwm is offline   Reply With Quote
Old 08-25-2013, 02:50 PM   #79
NB/VVT Connoisseur
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,072
Total Cats: 253
Default

Amazing car, man. Can you provide some details on the balancer/crank-trigger setup when you have some time? Thanks.
viperormiata is offline   Reply With Quote
Old 08-25-2013, 04:39 PM   #80
Junior Member
iTrader: (1)

Join Date: Aug 2013
Posts: 224
Total Cats: 13
Default

Looks like the same balancer/ trigger wheel setup that Jesse Prather uses. It's is from BHJ dynamics, same manufacturer as The Unit Emilio sells

Last edited by circuitmstr74; 08-26-2013 at 03:10 AM.
circuitmstr74 is offline   Reply With Quote
