Old 11-22-2012, 01:19 AM   #41
Senior Member
iTrader: (1)

Join Date: Sep 2006
Posts: 738
Total Cats: 86
Default

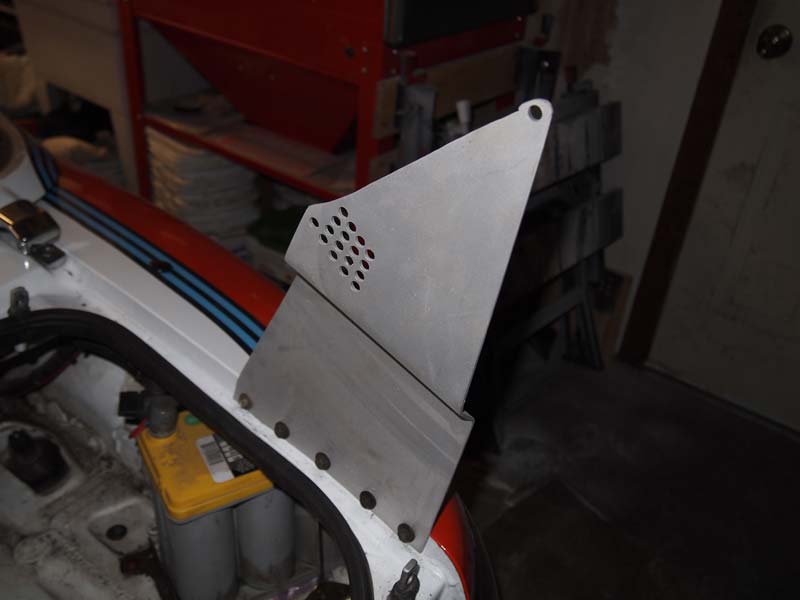

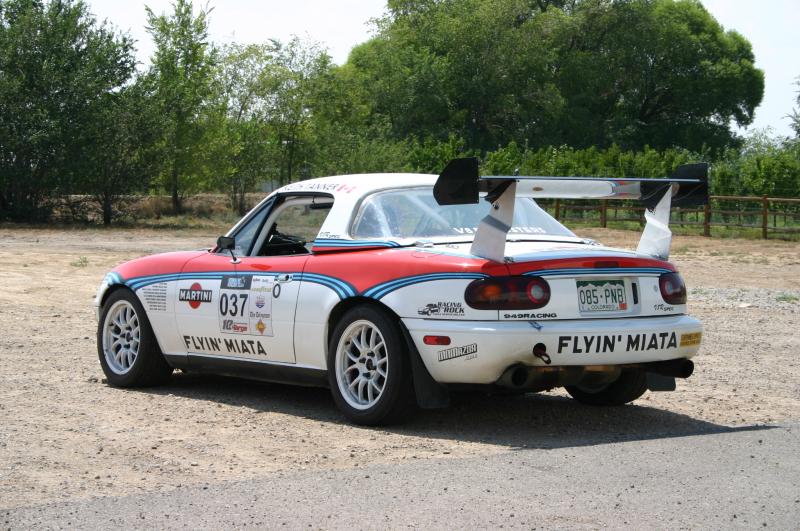

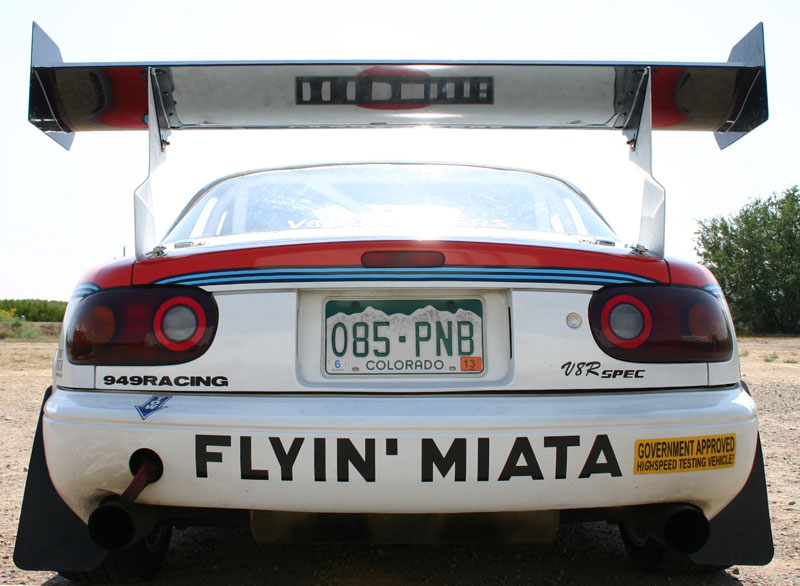

Late to the party here, but I just found this thread. I'm running a COT wing as well. Pooface and I have had a few conversations via PM on another forum, but have come up with some pretty similar solutions to mounting. Here's mine, made at home with hand tools.

I put rivnuts inside the trunk lip so it's easy to R&R. I left the mounts solid to cut down on drag. The tethers are really easy to remove, they just pull out when you remove the anchor. Interestingly, they actually cross inside the wing so the left anchor is attached to the right end plate.






I've had a chance to do one track test with it. Our local track usually has a peak speed of just over 70 mph with an average of 50, so it's not a high speed track. Still, that peak speed takes place on a long sweeper and I'm very much limited by grip instead of power. Short version: 2 seconds per lap and a gain of nearly 5 mph in the sweeper. A very definite change from oversteer to understeer in the sweeper, even with a 3" splitter.

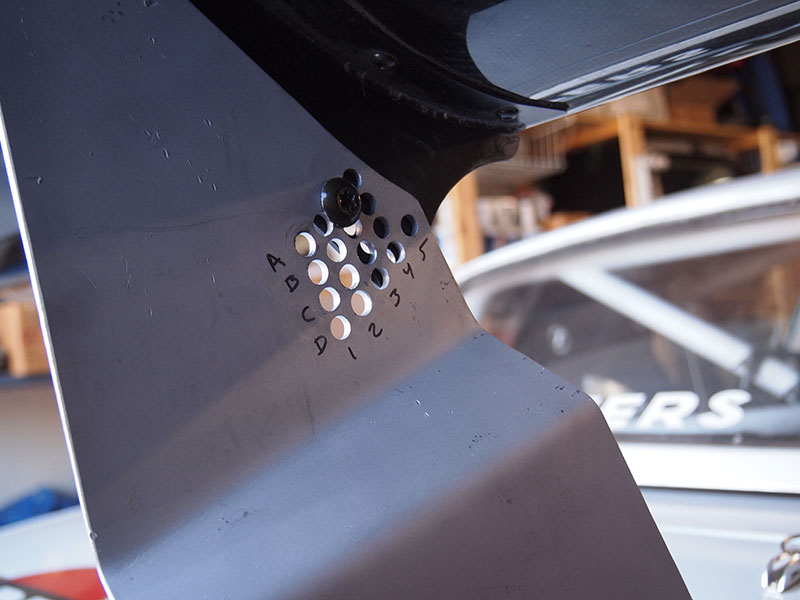

Since the angle is adjusted by moving the front mounting bolt to different holes, it's completely repeatable. So I've just been monitoring the holes used, as it's a lot quicker and easier than ensuring I'm on a level surface and measuring with a level. IIRC, each hole is good for about 1/4 degree, so if I change the rake of the car I can just offset my notes about holes by the same amount. With a 1 degree nose-down change, I'd just change from hole B2 to B3 for the same wing angle.

If there's interest out there, I could probably get Mark at Paco Motorsports to duplicate these. Even better, I could get him to angle the bent section differently so you can open a normal trunk at least partway.
Attached Thumbnails
New Wing to Test-p8192134.jpg   New Wing to Test-img_1016.jpg   New Wing to Test-img_1023.jpg   New Wing to Test-p9092275.jpg
Keith@FM is offline   Reply With Quote
Old 11-22-2012, 09:45 AM   #42
Junior Member

Join Date: Jun 2011
Location: Houston
Posts: 409
Total Cats: 17
Default

Awesome bumper sticker
Handy Man is offline   Reply With Quote
Old 11-22-2012, 11:25 AM   #43
Senior Member
Thread Starter
iTrader: (21)

Join Date: May 2008
Location: San Antonio
Posts: 712
Total Cats: 16
Default

Yes, please check into that...thanks Keith!
rlogan is offline   Reply With Quote
Old 11-22-2012, 12:58 PM   #44
Junior Member
iTrader: (1)

Join Date: Jun 2011
Posts: 54
Total Cats: -2
Default

In for mounts.
Time for wing shopping!
Trboboost91 is offline   Reply With Quote
Old 11-22-2012, 03:27 PM   #45
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,367
Total Cats: 1,331
Default

Anybody have L/D data for the COT wing? Curious to see how it stacks up to the Kognition wing we have in development.
Savington is offline   Reply With Quote
Old 11-22-2012, 06:03 PM   #46
Supporting Vendor
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 5,323
Total Cats: 1,343
Default

Quote:
Originally Posted by Savington View Post
Anybody have L/D data for the COT wing? Curious to see how it stacks up to the Kognition wing we have in development.
Do you have L/D or CFD data for the Kognition?
emilio700 is offline   Reply With Quote
Old 11-25-2012, 07:18 AM   #47
Supporting Vendor
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,865
Total Cats: 492
Default

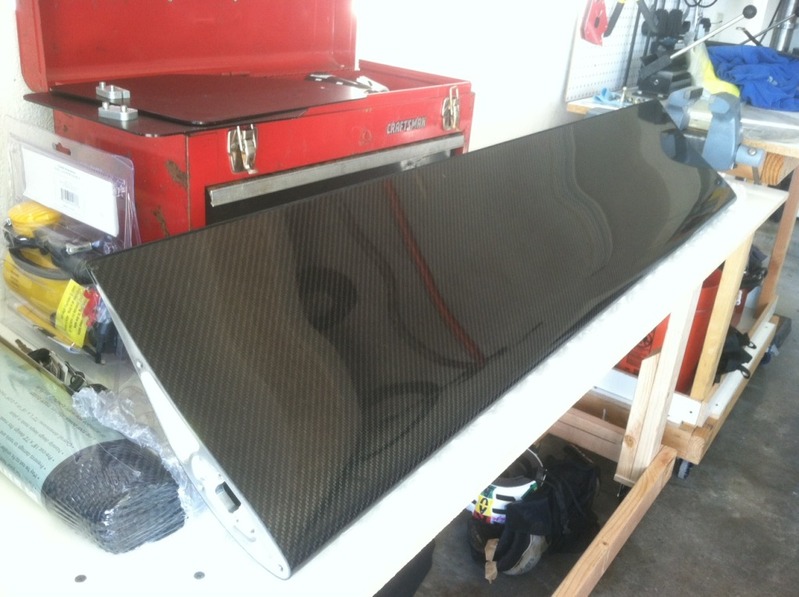

Just received mine and disassembled it. Mounts, new endplates, etc. will be a couple weeks from now.

Attached Thumbnails
New Wing to Test-cotwing1.jpg
ThePass is offline   Reply With Quote
Old 11-25-2012, 04:21 PM   #48
Junior Member
iTrader: (1)

Join Date: Jun 2011
Posts: 54
Total Cats: -2
Default

So I know not to buy a "replica" or "show car" wing, but it should be ok
To buy one labeled "practice", correct?
Any one found good deals on these?
You're gonna spend at least $500 on eBay w/shipping.
At that price how much more efficient are they over the super miata/APR Frp wing?
I'm guessing the weight savings is decent.
Trboboost91 is offline   Reply With Quote
Old 11-25-2012, 05:15 PM   #49
Supporting Vendor
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,865
Total Cats: 492
Default

I scored mine for $400 including shipping.

It's the legit version - Carbon fiber gurney flap, etc. This one was actually used at the 2010 Daytona race. I don't know if the "practice"one is the same. From what I have read, the ones without gurney flaps should be avoided - those are the show ones. The gurney is actually a carbon fiber L shape that slides into a notch in the wing - so there aren't any fasteners holding it to the wing and disrupting the air. It's pretty trick. I can see why the show wings would have left that feature out to make construction of the airfoil itself cheaper.

Building my own struts and new endplates will cost me less than $100. So total cost still puts me well below even the cost of the non-carbon Supermiata wing. ($599)

I like making my own stuff, so this is right up my alley instead of buying a bolt-on solution. For someone who isn't into fabricating stuff or who doesn't have the proper tools, it's probably worth saving the time to just spend the extra money and get a wing that comes ready to bolt to a miata.

In terms of effectiveness compared to other wings, it may be hard to find answers - most people get one wing and stick with it, they don't buy a few and try them all out back to back. One benefit of the Supermiata wing is the 3-D shape which lends itself to working better at lower heights on the trunk in relation to the roof. A 2-D airfoil like this needs to be properly mounted high up. I can say though that there are definitely good things about the design of this wing. I guess there should be since it's a $3,000+ wing

-Ryan
ThePass is offline   Reply With Quote
Old 11-25-2012, 06:31 PM   #50
Senior Member
iTrader: (4)

Join Date: Aug 2010
Location: Farmington Hills, MI
Posts: 510
Total Cats: 15
Default

Kind of off topic but did the 2D wing that APR was working on (and 949 was testing) ever get released?
njn63 is offline   Reply With Quote
Old 11-25-2012, 09:51 PM   #51
Supporting Vendor
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 5,323
Total Cats: 1,343
Default

We should have proto 2D APR foil and Miata specific frame mounts by Spring 2013. It will have a performance feature that no other wing on the market has.
emilio700 is offline   Reply With Quote
Old 11-26-2012, 01:03 AM   #52
Senior Member
iTrader: (4)

mr_hyde's Avatar

Join Date: Jul 2009
Location: Seattle
Posts: 799
Total Cats: 25
Default

Quote:
Originally Posted by emilio700 View Post
It will have a performance feature that no other wing on the market has.
Active DRS?
mr_hyde is offline   Reply With Quote
Old 11-26-2012, 09:29 AM   #53
Junior Member

Join Date: Jun 2011
Location: Houston
Posts: 409
Total Cats: 17
Default

No, it will make your car look like Crusher and therefore scare your enemies into submission.
Handy Man is offline   Reply With Quote
Old 11-26-2012, 11:44 AM   #54
Senior Member
Thread Starter
iTrader: (21)

Join Date: May 2008
Location: San Antonio
Posts: 712
Total Cats: 16
Default

Quote:
Originally Posted by Savington View Post
Anybody have L/D data for the COT wing? Curious to see how it stacks up to the Kognition wing we have in development.
Here is more info than you would ever want to know on the Liebeck (M06-13-128) and many others:

http://www.ae.illinois.edu/m-selig/u...il-Data-V2.pdf

I am glad you asked this question because the above database has been offline for some time now...glad to see it's back.

While searching, I did find this interesting paper which has some discussion about how gurney flaps work:

http://oa.upm.es/7427/1/PFC_SARA_BRUSCOLI.pdf
rlogan is offline   Reply With Quote
Old 11-26-2012, 12:40 PM   #55
Senior Member
iTrader: (1)

Join Date: Sep 2006
Posts: 738
Total Cats: 86
Default

I don't see anything wrong with using a practice wing. If they've got tethers, they're the real thing regardless of provenance. I think there's a sticker on the wing as well showing that it's race-legal. Great deal, Ryan. Does your source have more?

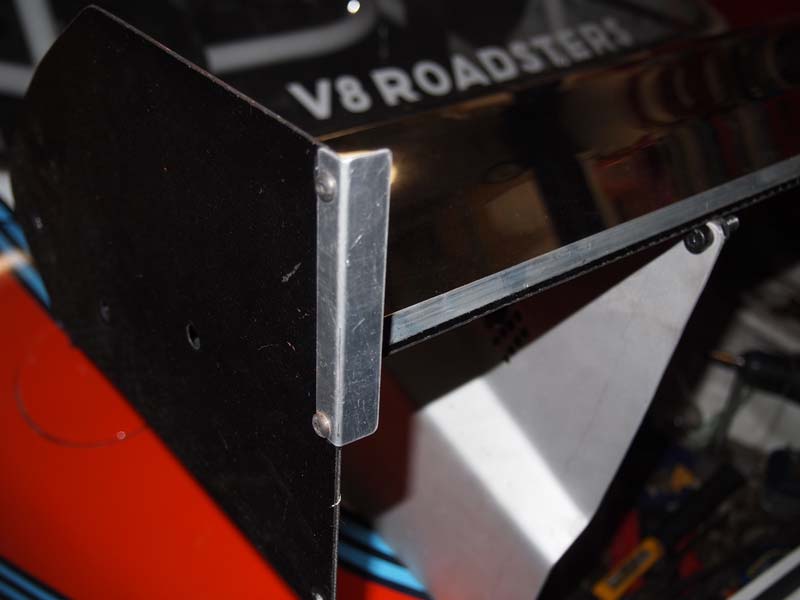

About the Gurney flaps (aka wickerbills) on the COT wing - you can use standard aluminum angle. I forget what size, but I had one that slipped right in. My wing came with the flap removed.

Some of the end plates are actually aerofoil shaped. Obviously not the best choice for someone who wants to turn right. It wouldn't be hard to build your own flat end plates although you'll give up about two inches of span that way. One interesting note on mine was this little wickerbill on one end plate.
Attached Thumbnails
New Wing to Test-p8192135.jpg
Keith@FM is offline   Reply With Quote
Old 11-26-2012, 01:47 PM   #56
Senior Member
iTrader: (1)

Join Date: Sep 2006
Posts: 738
Total Cats: 86
Default

BTW, I just heard from Mark at Paco Motorsports. I'm going to send him some wing mounts to duplicate. We'll see what they cost once he's got a set in hand.
Keith@FM is offline   Reply With Quote
Old 11-26-2012, 03:57 PM   #57
Senior Member
iTrader: (4)

mr_hyde's Avatar

Join Date: Jul 2009
Location: Seattle
Posts: 799
Total Cats: 25
Default

Quote:
Originally Posted by [email protected] View Post
Some of the end plates are actually aerofoil shaped. Obviously not the best choice for someone who wants to turn right.
What would be the purpose of having the end plates shaped as aerofoils vs. a flat piece? Are they symmetrical or are they they reversed on one side to 'push' the rear of the car towards the center of the track on a tri-oval?
mr_hyde is offline   Reply With Quote
Old 11-26-2012, 04:16 PM   #58
Senior Member
iTrader: (1)

Join Date: Sep 2006
Posts: 738
Total Cats: 86
Default

They're asymmetrical, designed to push to the left. Which makes sense if you're looking for a little more cornering power on a big oval.
Keith@FM is offline   Reply With Quote
Old 11-26-2012, 06:31 PM   #59
Senior Member

Join Date: Dec 2010
Location: Auckland, NZ
Posts: 783
Total Cats: 23
Default

With all this talk of the new wings being developed and the COTA wing being better (more downforce, less drag) etc.

Is the 3d wing currently available a bad wing?

Or a good wing but better available ?

I thought it was "optimised" for the miata...?
mx5-kiwi is offline   Reply With Quote
Old 11-26-2012, 08:04 PM   #60
Senior Member
iTrader: (4)

mr_hyde's Avatar

Join Date: Jul 2009
Location: Seattle
Posts: 799
Total Cats: 25
Default

Quote:
Originally Posted by [email protected] View Post
They're asymmetrical, designed to push to the left. Which makes sense if you're looking for a little more cornering power on a big oval.
Thinking out of the box, would there be an advantage to the aero at the back of the car if they pushed or pulled air together or apart by reversing one of the airfoils? I know they are formed CF so a mold 'negative' would need to be made. Would you want to increase the pressure to fill the void back there or pull more air out?
mr_hyde is offline   Reply With Quote
