Old 08-03-2012, 12:18 PM   #21
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,476
Total Cats: 114
Default

I used 2 layers of 5mm Chinese Imported underlayment plywood from Home Depot (looks and feels like birch) laminated together. The part that sticks out forward is and where it is attached is 2 layers thick the part under the car is one layer thick.

Light, Stiff, Cheap to make spares.

I had the car roll forward on the trailer and dropped it on the tong of the trailer. The splitter held the car up and it just damaged it a little.

Bob
bbundy is offline   Reply With Quote
Old 08-03-2012, 12:24 PM   #22
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,359
Total Cats: 1,323
Default

Quote:
Originally Posted by rccote View Post
It was gay until I saw thepass' car.
Pretty much.

We have real splitters on this forum:

Attached Thumbnails

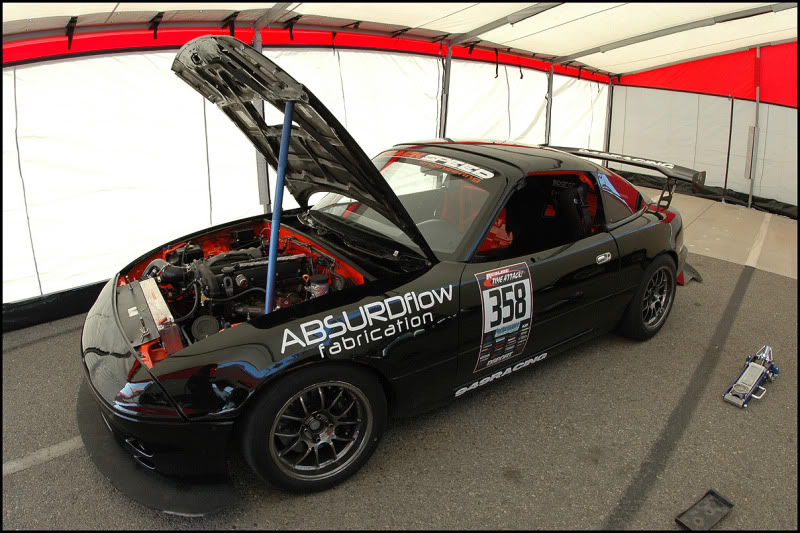

Splitter material--what do you use?-dsc_9494.jpg
Savington is offline   Reply With Quote
Old 08-04-2012, 03:00 PM   #23
Junior Member

Join Date: Mar 2010
Location: onion city,ca
Posts: 428
Total Cats: 1
Default

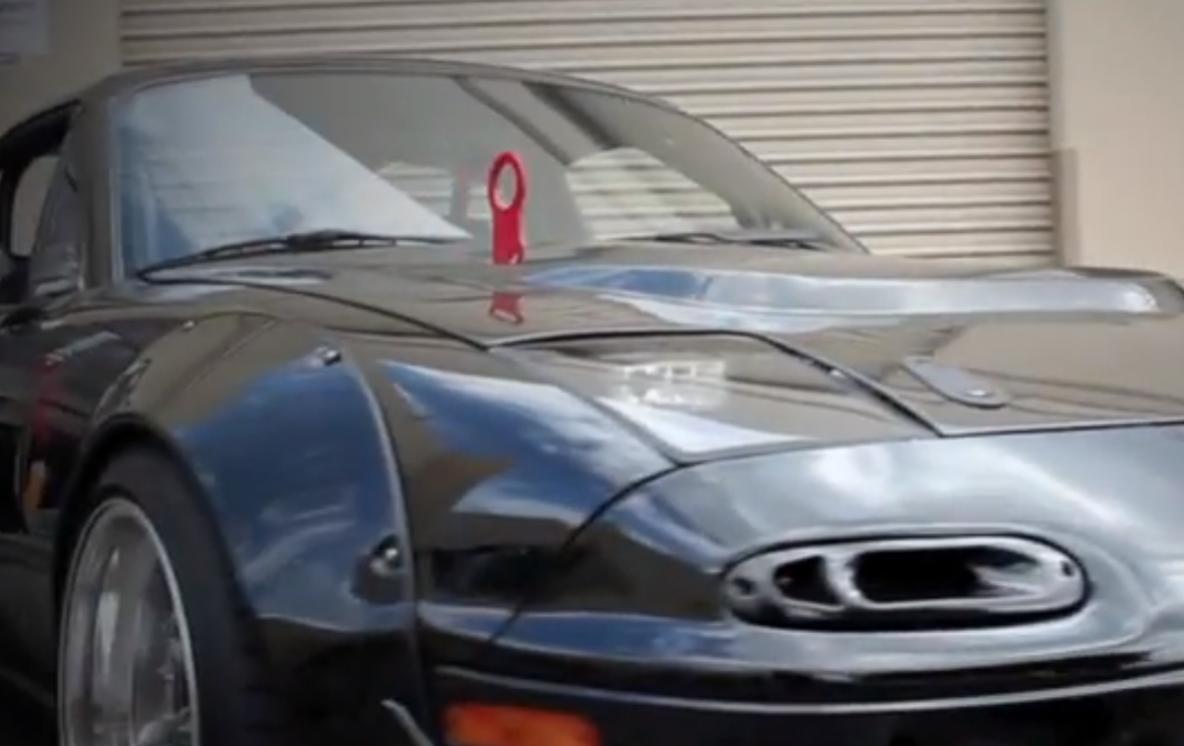

can u guys help me out here. that red thing is there so if you stuff it in the sand trap they can pull the motor and put the rest in the trash?

Splitter material--what do you use?-screen-shot-2012-08-04-10.56.14-am.jpg
jasonb is offline   Reply With Quote
Old 08-04-2012, 03:37 PM   #24
Senior Member
iTrader: (2)

dc2696's Avatar

Join Date: May 2005
Location: Edmonton Ab, Canada
Posts: 1,176
Total Cats: 13
Default

Quote:
Originally Posted by jasonb View Post
can u guys help me out here. that red thing is there so if you stuff it in the sand trap they can pull the motor and put the rest in the trash?

Attachment 51230
Just don't get towed by a truck with a low tie point :/

As for the splitters,



Fiberglass fail, time for something much stronger.
dc2696 is offline   Reply With Quote
Old 08-05-2012, 06:39 PM   #25
Junior Member

Join Date: Jun 2011
Location: Houston
Posts: 409
Total Cats: 17
Default

well, my new 1/4" birch version survived a full weekend of hill climbing. There wasn't any curbing to rub it on, but it did bottom out plenty of times on the rough public road without damage. It is pretty flimsy, but I only have 7 mounting points. 2 more might make it stiff enough to give me more confidence in it... or maybe I'll just find some 3/8" to make another one out of and keep the 1/4" one as a spare.

I haven't even tried standing on it yet... I think I would break it, lol
Handy Man is offline   Reply With Quote
Old 08-05-2012, 07:33 PM   #26
Junior Member

Join Date: May 2010
Location: AZ
Posts: 53
Total Cats: 0
Default

I've been using a 1/2" birch splitter with a single layer of fiberglass for 7 weekends. The fiberglass has scrapped off a little on the bottom edges, but just touching it up with paint and no issues.

I wanted to do a 3/8" based on others here, but couldn't find any locally. I'll also be trying out the 1/4" next time, maybe with a few layers of fiberglass.
Zefiris is offline   Reply With Quote
Old 08-05-2012, 07:48 PM   #27
Elite Member
iTrader: (12)

Join Date: Apr 2008
Location: Springfield IL
Posts: 2,750
Total Cats: 24
Default

I used an 1/8th aluminum sheet but had to reinforce it with a piece of aluminum C channel as a spine down the center. It also only sticks out 3 inches from the Tougerun lip.

It touches the ground daily and its lasted all summer so far with no real significant battle scars.
chpmnsws6 is offline   Reply With Quote
Old 08-05-2012, 09:33 PM   #28
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,359
Total Cats: 1,323
Default

Quote:
Originally Posted by chpmnsws6 View Post
I used an 1/8th aluminum sheet but had to reinforce it with a piece of aluminum C channel as a spine down the center. It also only sticks out 3 inches from the Tougerun lip.

It touches the ground daily and its lasted all summer so far with no real significant battle scars.
FYI, a piece of 12mm Birch in the same shape would have been ~13% lighter.
Savington is offline   Reply With Quote
Old 08-06-2012, 12:02 AM   #29
Elite Member
iTrader: (12)

Join Date: Apr 2008
Location: Springfield IL
Posts: 2,750
Total Cats: 24
Default

If I had a track rat that never saw water, never tagged curbs, never sat in a parking lot with a-holes, and had 50 dollars to throw at the splitter I'd probably follow you're setup.

I just couldn't pass free, plus I felt it better for a street car. It extends back to the transmission and doubles as a skid for the aluminum oil pan that's already been messaged by the road.

NTM I don't have the sac to take corners like ya'll do on a daily basis

Last edited by chpmnsws6; 08-06-2012 at 12:13 AM.
chpmnsws6 is offline   Reply With Quote
Old 08-06-2012, 01:15 AM   #30
Junior Member

Join Date: Jul 2012
Location: Campbell, CA
Posts: 65
Total Cats: 0
Default

Andrew,

Where do you get your Birch? Nevermind, IJFG'd it and found Home Depot, Duh

Craig
Ski_Lover is offline   Reply With Quote
Old 08-06-2012, 03:18 AM   #31
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,359
Total Cats: 1,323
Default

Quote:
Originally Posted by Ski_Lover View Post
Andrew,

Where do you get your Birch? Nevermind, IJFG'd it and found Home Depot, Duh

Craig
If you're clever a single 4x8 sheet from Home Depot Motorsports will build you two splitters - not that you'd ever need the second one, since they are so sturdy.
Savington is offline   Reply With Quote
Old 08-06-2012, 08:40 AM   #32
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

Quote:
Originally Posted by Handy Man View Post

I haven't even tried standing on it yet... I think I would break it, lol
You wont break it, you'd be more likely to rip the fasteners through or tear the bumper off if its connected to only the bumper.

As a reference for how well a splitter needs to be mounted, a CSP splitter built to the limit of the rules produces enough downforce at auto-x speed that if its connected by the air dam to the bumper and just 2 front supports to the baby teeth it will stretch the bumper and you will see stretch marks in the bumper paint.
Leafy is offline   Reply With Quote
Old 08-06-2012, 02:46 PM   #33
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,359
Total Cats: 1,323
Default

If you are attaching your splitter to the bumper, you're doing it way wrong. There are absolutely no fasteners between my bumper and my splitter.
Savington is offline   Reply With Quote
Old 08-06-2012, 04:04 PM   #34
Elite Member
iTrader: (12)

Join Date: Apr 2008
Location: Springfield IL
Posts: 2,750
Total Cats: 24
Default

We need pictures of your setup. Most on here have not been around many track cars. Living where I do, if its not done on dirt, its not done at all.
chpmnsws6 is offline   Reply With Quote
Old 08-06-2012, 04:30 PM   #35
Junior Member

Join Date: Jun 2011
Location: Houston
Posts: 409
Total Cats: 17
Default

Quote:
Originally Posted by Savington View Post
If you are attaching your splitter to the bumper, you're doing it way wrong. There are absolutely no fasteners between my bumper and my splitter.
Mine has fasteners to the air-dam to keep the two from separating under load and to support the air dam. The splitter has it's own separate supports.
Handy Man is offline   Reply With Quote
Old 08-06-2012, 05:15 PM   #36
Junior Member

Join Date: Jul 2012
Location: Campbell, CA
Posts: 65
Total Cats: 0
Default

Andrew, I need to swing by your new shop and take a closer look, this gives me anouther good excuse (other than just to say hi and congrats on the new shop
Ski_Lover is offline   Reply With Quote
Old 08-06-2012, 08:40 PM   #37
Junior Member

Join Date: May 2010
Location: AZ
Posts: 53
Total Cats: 0
Default

Quote:
Originally Posted by Handy Man View Post
Mine has fasteners to the air-dam to keep the two from separating under load and to support the air dam. The splitter has it's own separate supports.
Same here. I have little L brackets on the splitter for Dzus fasteners just to seal up the bumper to the splitter. The splitter itself is held up by larger L brackets connected to the frame and the steering rack.
Zefiris is offline   Reply With Quote
Old 08-06-2012, 11:57 PM   #38
Senior Member
iTrader: (4)

mr_hyde's Avatar

Join Date: Jul 2009
Location: Seattle
Posts: 799
Total Cats: 25
Default

Quote:
Originally Posted by chpmnsws6 View Post
We need pictures of your setup. Most on here have not been around many track cars. Living where I do, if its not done on dirt, its not done at all.
Take a look at the DIY aero thread for more details on splitters.
mr_hyde is offline   Reply With Quote
Old 08-07-2012, 10:52 AM   #39
Elite Member
iTrader: (12)

Join Date: Apr 2008
Location: Springfield IL
Posts: 2,750
Total Cats: 24
Default

Quote:
Originally Posted by mr_hyde View Post
Take a look at the DIY aero thread for more details on splitters.
I have, but didn't see much in the way of brackets from savington
chpmnsws6 is offline   Reply With Quote
Old 08-07-2012, 12:22 PM   #40
Elite Member
iTrader: (3)

Join Date: Feb 2008
Location: Huntsville, AL
Posts: 1,881
Total Cats: 45
Default











6 plies of 3k carbon twill over 1/4" Luan (3 plies each, top and bottom). Made with cheap US Composites epoxy and a hood rat vacuum pump made from a refrigerator compressor. Stiff enough not to deflect at 100mph, but really needs a couple of front supports. He's really busy with work and a new baby, though, and I just haven't dragged him down to the shop to fabricate them.


Diffuser and wing to come... one day.
Attached Thumbnails

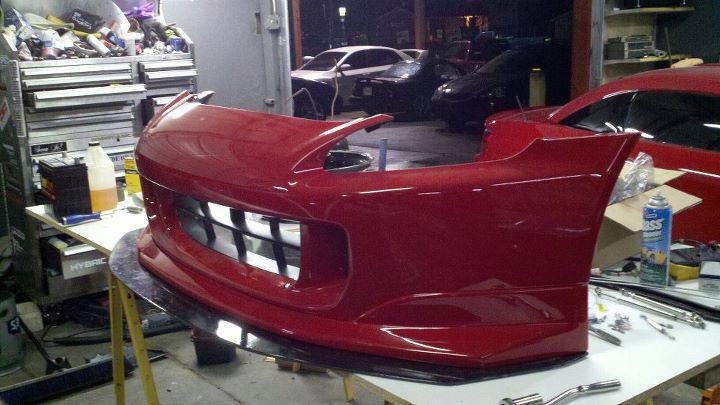

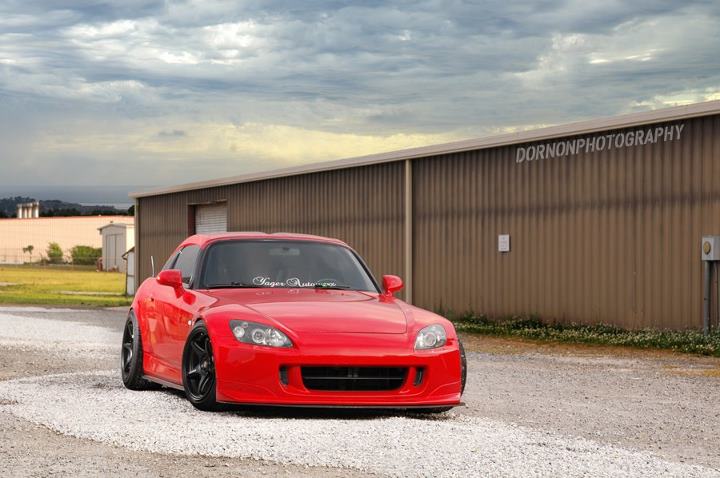

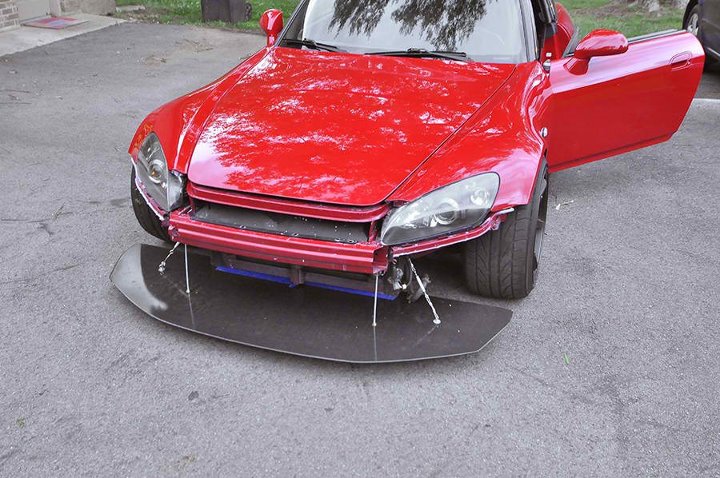

Splitter material--what do you use?-429228_663574170663_711541107_n.jpg   Splitter material--what do you use?-581236_673991404443_55692233_n.jpg   Splitter material--what do you use?-399000_685232746703_1644985933_n.jpg
vehicular is offline   Reply With Quote
