Old 09-29-2012, 01:22 PM   #1
Junior Member
Thread Starter

Join Date: Jun 2005
Posts: 166
Total Cats: 11
Angry Afco's puking oil.. what next

My afco coilovers (right front for now) have puked oil all over.. A buddy's miata with afco's did the same thing.. not sure if i want to continue using these. and getting them fixed, with shipment to/from the us is expensive too.. ( i live in norway)

thinking of getting xida's.. or is there anything else i should get instead?

The car is lightweight, stripped down, gt200 wing, splitter, 9x15 on r comps tires, osgiken diff and roughly 400whp. setup has to be mostly for track use, and i am used to running 650/400lb springs now.

Are the double adjustable ones wort the extra cost ?

any input would be appreciated
hf-mx5t is offline   Reply With Quote
Old 09-29-2012, 03:00 PM   #2
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,192
Total Cats: 2,583
Default

I'm sure 99.99% of the posts to follow will be "oh hell yes get xidas", and I'm sure they'll be right
18psi is offline   Reply With Quote
Old 09-29-2012, 03:10 PM   #3
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,703
Total Cats: 237
Default

Yeah, I don't have them.. but i spend enough time on this forum to know they are the cats meow, especially for a track car.
Fireindc is offline   Reply With Quote
Old 09-29-2012, 04:03 PM   #4
NB/VVT Connoisseur
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,072
Total Cats: 253
Default

All the fast track miatas in the USA are running Xidas and I'm sure there is a good reason for that.
viperormiata is offline   Reply With Quote
Old 09-29-2012, 11:04 PM   #5
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

A little oil mist is normal in a montube, but "covered in oil" is bad. I don't know if this applies to twin-tube.
hustler is offline   Reply With Quote
Old 10-01-2012, 11:42 PM   #6
Supporting Vendor
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 5,313
Total Cats: 1,335
Default

hf-mx5t, for your car 800/500
emilio700 is offline   Reply With Quote
Old 10-02-2012, 02:28 AM   #7
Senior Member
iTrader: (3)

Join Date: Jan 2008
Location: Plano,TX
Posts: 674
Total Cats: 3
Default

No one in Norway, England or the netherlands can service your afco's?
johnwag is offline   Reply With Quote
Old 10-02-2012, 02:38 AM   #8
Senior Member

Join Date: May 2008
Location: Canada
Posts: 512
Total Cats: 110
Default

There was a design flaw in early versions of the AFCO (released 3-4 years ago), where the large nut at the top of the shaft would eventually break through the aluminum "protector" washer (when bottoming out - a frequent occurence in Miatas, even with high spring rates) and punch through the top seal. My shocks failed in this way within a year. FM had them rebuilt and they've since updated the design with more suspension travel and a large steel washer, making a similar failure nigh on impossible.

If this is your problem, you'll have to send them back for a rebuild and update, I'm afraid.
DeerHunter is offline   Reply With Quote
Old 10-02-2012, 10:36 AM   #9
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

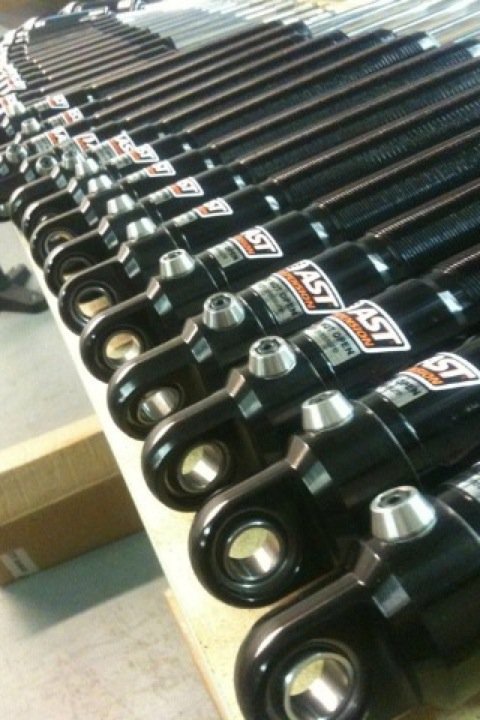

Attached Thumbnails
Afco's puking oil.. what next-164135_923265157300_4146066_n.jpg
hustler is offline   Reply With Quote
Old 10-04-2012, 11:51 PM   #10
Senior Member
iTrader: (6)

Join Date: Jun 2010
Location: San Rafael, CA
Posts: 1,125
Total Cats: 41
Default

I would not give up on my high end suspension just cause it was leaking oil. I have to believe they can be serviced in your area.

On the other hand Xida club sports are an amazing coil over for the money. You won't regret that setup.
k24madness is offline   Reply With Quote
Old 10-16-2012, 12:44 PM   #11
Junior Member
iTrader: (4)

Join Date: May 2011
Posts: 132
Total Cats: -11
Default

Pictures speak volumes

Assuming u purchased from FM...what was their suggestion

Put them for sale...oil puking and all ....I'm sure that someone here will find value in them..real quick!
1FastMx5 is offline   Reply With Quote
Old 10-16-2012, 02:47 PM   #12
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,476
Total Cats: 114
Default

Quote:
Originally Posted by emilio700 View Post
hf-mx5t, for your car 800/500
Yes even with 800/500 I still have smashed the plastic pieces on the top of my shocks from bottoming out suspension travel hard. with Grippy tires on 9" wheels and aero. My tires rub all over the inside of my rear fenders at full compression so I know I am using all the bump travel I can.

I suspect the afco's don't like the bump rubber smashing the top of the gland nut that hard, might of damaged the seal.

I am loving my XIDA Doubles 800/500

Bob
bbundy is offline   Reply With Quote
