Old 10-24-2017, 05:11 PM   #1241
Junior Member

Join Date: Jul 2014
Location: Kensington, MD
Posts: 324
Total Cats: -26
Default

Quote:
Originally Posted by bahurd View Post
Allstar sleeve thread OD = 2.350" so NO. I doubt other sleeves would be any smaller.
Also, it depends on the shocks—if you can find a shock that's narrower, you can probably find a sleeve that's narrower. Not sure why you'd want to though. Is the extra 1/8" tire clearance you'd get really worth the hassle?
huesmann is offline   Reply With Quote
Old 10-25-2017, 05:37 PM   #1242
Newb

Join Date: Oct 2009
Location: A2 Michigan (UofM!)
Posts: 32
Total Cats: 0
Default

Here's mine (in progress)

Hard S
550/350 summit - 7" f&b
summit isolaters
Trick NB extended top hats f7/8" r1 3/8"
5x sleeves 5X Racing 2.5" Coilover Kits for Bilstein Shocks
Civic bumpstops

This is for a '90 with 1.8 swap and lots of lightness.

Ive got Cal Boprey doing the revalve [email protected] at RE Suspension

I need a dyno graph to give Cal as a target. Someone had a Xida line that'll work?



Last edited by BAHKACK; 10-25-2017 at 05:51 PM.
BAHKACK is offline   Reply With Quote
Old 10-25-2017, 07:46 PM   #1243
Elite Member
iTrader: (1)

Join Date: Aug 2016
Location: Woostuh, MA
Posts: 2,924
Total Cats: 81
Default

Quote:
Originally Posted by portabull View Post
i think 450/300 is just fine. "spirited" street driving.
Yeah, definitely.

Quote:
Originally Posted by 2slow View Post
I had 450/325 and it was OK on the street, not terrible, but also not super comfy on bad roads. On smooth roads they are as good as any other suspension and on track it was great if not a little soft. I wished i had more spring on the front at Laguna as they would compress to a point where 15x9 would rub in turn 6 and bottom of corkscrew.
But also this. I've felt myself wishing that things were a bit stiffer. I think the low speed damping is a bit off because it feels way better on bumpy roads at higher speeds than lower speeds.
Obviously not expecting this to act like $2000 suspension but...
ridethecliche is offline   Reply With Quote
Old 10-26-2017, 11:35 AM   #1244
Newb

Join Date: Oct 2009
Location: A2 Michigan (UofM!)
Posts: 32
Total Cats: 0
Default

um, help.

Yep found a dyno chart for xida. Btw I have a car with Gen1's.

Couple more questions.

1. What do I want to tell this tech doing the revalve? What do I want with regard to high/low speed dampening? They should try to match what area of xida adjustment range (which line?)?
2. I'll be running street tires. 550/350 is more spring than I need for those tires. I'm thinking of doing 550/350 anyway just to help keep me off bumpstops. My xida's ride great with 550/350 R-S4's. But is there a point of diminishing returns on that? 195/50 Comp2's. Would 500/300 be better?
3. Using 5x spec miata sleeves (same as advance autosport). Do I need to cut another c-clip groove lower like when using ebay sleeves? Or is the Advance Autosport sleeve get you low enough at stock clip location?
4. I want to be down around 11.5f and 12ish at rear. Will 7" springs get me there without coilbind? Shoudl I use 6" spring at front?

Thanks in advance.

For your enjoyment here's another pic of my top hat fabrication.

Last edited by BAHKACK; 10-26-2017 at 02:49 PM. Reason: bordom
BAHKACK is offline   Reply With Quote
Old 10-26-2017, 03:53 PM   #1245
Junior Member

Join Date: Jul 2016
Posts: 232
Total Cats: 6
Default

I believe Advanced Auto sleeves sit just fine. I got mine as a part of the Spec Kit and i believe they used these sleeves - i didn't need to move the c-clip, did it in stock location.
2slow is offline   Reply With Quote
Old 10-26-2017, 10:43 PM   #1246
Junior Member

Join Date: Jan 2015
Posts: 118
Total Cats: 10
Default

Quote:
Originally Posted by BAHKACK View Post
um, help.

Yep found a dyno chart for xida. Btw I have a car with Gen1's.
The xida's esp gen 2's have a pretty large damping sweep from soft to hard, I guess you could pick a middle setting to copy, but it's a bit of a stab in the dark as to how that's going to work with your chosen spring rates. If you're just trying to improve the comfort level/ride quality (given the 550/350 spring rates this is what I'm assuming) you'd be running xidas near full soft. To simulate that on the bilstein you'd probably just increase the bleed amount which would reduce the amount of 'nose' on dyno curves.

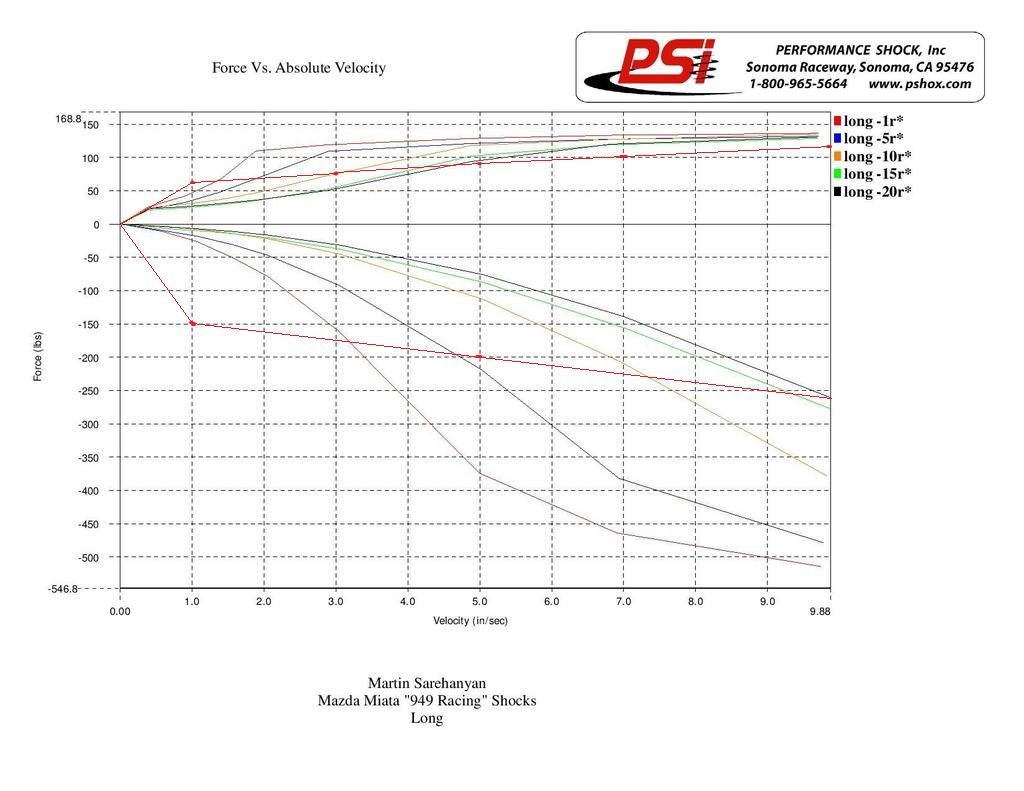

Xida dynos also seem to vary quite a bit front to rear - the front's are considerably softer at low shaft speeds. Here's the Front MSM OEM bilstein vs xida gen 2 dyno (I drew in the MSM in red):

and Rear (MSM orange line):

Last edited by Junkwhale; 10-26-2017 at 10:53 PM.
Junkwhale is offline   Reply With Quote
Old 10-26-2017, 10:51 PM   #1247
Junior Member

Join Date: Jan 2015
Posts: 118
Total Cats: 10
Default

I kind of think it's not really worth revolving if you're just wanting to run 550/350 spring rates, it's only when you want to up the spring rates much higher that the BBB approach + revalve will be worth it for a good budget race/competition suspension if you already have a lot of the parts.

While revalving for 550/350 could improve the ride quality, there's probably a lot that contributes to that that's not only going to be solved by re-valving- amount of compression / droop travel, gas pressure, amount of stiction/response to small movements (think piston seals, internal body surface/coating or lack there of), bump stop lengths and the transition on to them / bottoming behaviour (lol).

Last edited by Junkwhale; 10-27-2017 at 05:31 PM.
Junkwhale is offline   Reply With Quote
Old 10-30-2017, 12:10 AM   #1248
Junior Member

Join Date: Aug 2014
Location: Mitchygan
Posts: 127
Total Cats: 10
Default

I decided to cut into one of mine that was damaged in an accident. Thankfully, I've got another one with a scored shaft to to cut into, because this one was a huge pain to get apart and I basically destroyed every single piece.



I'm going to try to revalve on my own at some point for the experience, so I picked these up for less than the price of a single new Bilstein. In the meantime, Michigan roads suck so I'll probably stick with the stock Mazdaspeed springs or find some FM ones used.

[/img]
OptionXIII is offline   Reply With Quote
Old 10-30-2017, 12:14 AM   #1249
Junior Member

Join Date: Aug 2014
Location: Mitchygan
Posts: 127
Total Cats: 10
Default

BAHKAK, those top hats are beautiful!

Also, if/when I do this coilover conversion again, I will definitely cut additional grooves into the shock and lower the spring seat. Even if you don't need it to reach your target ride height, it will reduce the likelihood of your springs hitting the sleeves.
OptionXIII is offline   Reply With Quote
Old 10-30-2017, 12:14 PM   #1250
Newb

Join Date: Oct 2009
Location: A2 Michigan (UofM!)
Posts: 32
Total Cats: 0
Default

Quote:
Originally Posted by OptionXIII View Post
BAHKAK, those top hats are beautiful!

Also, if/when I do this coilover conversion again, I will definitely cut additional grooves into the shock and lower the spring seat. Even if you don't need it to reach your target ride height, it will reduce the likelihood of your springs hitting the sleeves.
Thanks on the top hats. I can't claim the welding skills. I had the fab shop at work do it (Ford Motor Compay Design Center!). The top hats are now "OEM" ;p

Yeah I think cutting a lower groove is good insurance.

I've rethought some things. I'm going to still run 550/350 in 7" but I've found some zero weight helper/tender springs. The helpers coilbind at rest just like Xida and that adds to the stack so I need to be sure that I've got enough room. Going to cut 1" lower groove. THANKS

Last edited by BAHKACK; 10-30-2017 at 12:56 PM.
BAHKACK is offline   Reply With Quote
Old 12-05-2017, 11:45 PM   #1251
Junior Member

Join Date: Jan 2015
Posts: 118
Total Cats: 10
Default

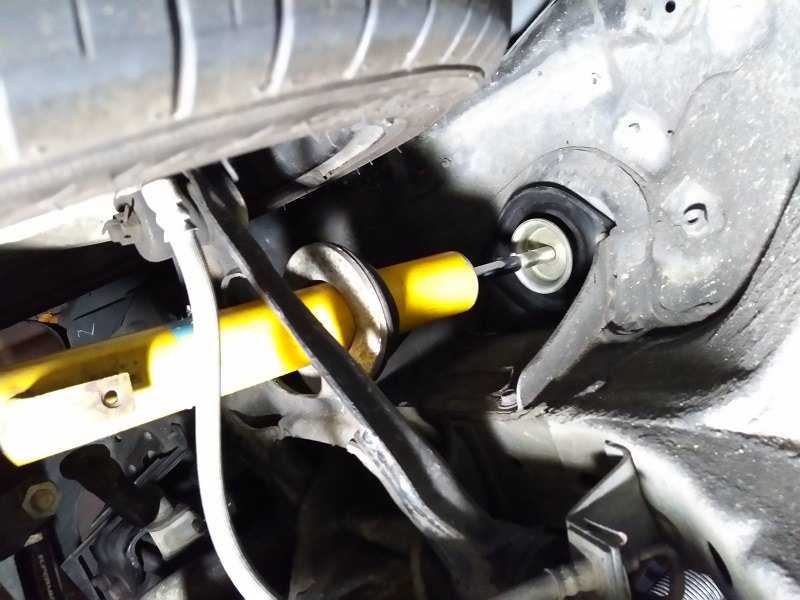

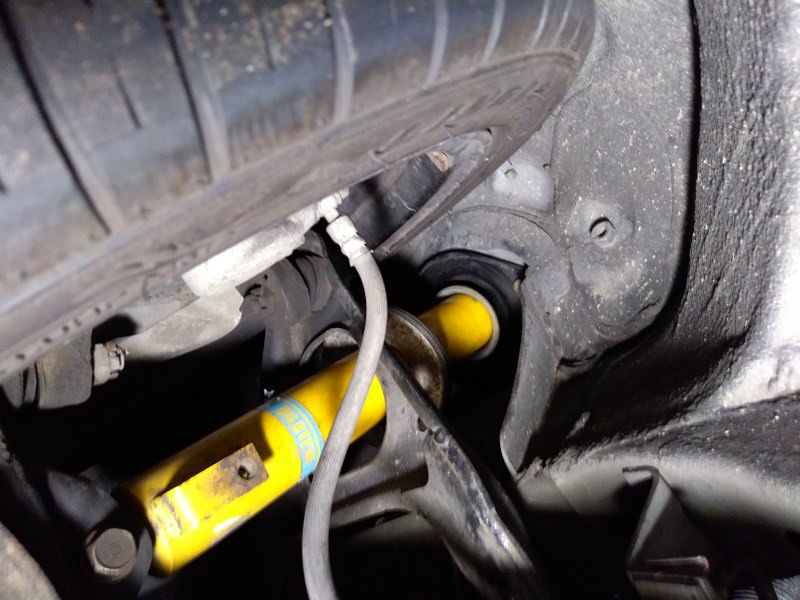

Doing another suspension swap at the moment and am taking the opportunity to measure bump/droop travel and sort out bump stop lengths and optimal extended tophat lengths. Car is a JDM NB1 - doing fronts first, will measure rear next. Pics:




Notes:
- fender liner removed
- wheel is 205/45/16 - this is about 7mm taller than a 225/45/15.
- with this tire fully compressed with a stock length NB Bilstein shock the tire is just making contact with the chassis before the shock bottoms out. With the 15" tire i'm not sure if shock or tire would bottom first, either way it's so close we're at max compression without a bumpstop that it's within what I can easily measure.

Conclusion: Optimal tophat extension for using stock length nb bilsteins on a bilstein chassis is about the block-height of your bumpstops in the front. After that you're losing droop travel with no gain of compression travel possible (as you're tire's into the tub at that point).

Last edited by Junkwhale; 12-05-2017 at 11:56 PM.
Junkwhale is offline   Reply With Quote
Old 12-06-2017, 12:01 AM   #1252
Junior Member

Join Date: Jan 2015
Posts: 118
Total Cats: 10
Default

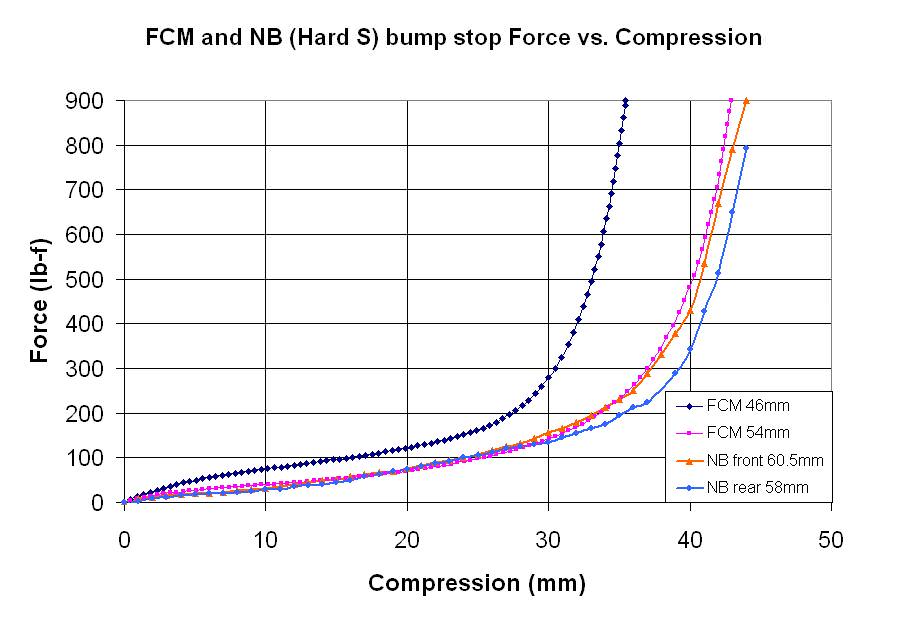

Blockheight looks to be around ~10mm for long the 46mm bumpstop. Shorter stops will have shorter block heights but probably only marginally so. There's not a lot of benefit in front extended tophats and lots of potential to lose droop travel and use your chassis as the bumpstop (bad).
Junkwhale is offline   Reply With Quote
Old 12-06-2017, 12:03 AM   #1253
Junior Member

Join Date: Aug 2014
Location: Mitchygan
Posts: 127
Total Cats: 10
Default

I see you still have the OE spring perches on. We should compare the height of the spring perches between your NB Billies and my Mazdaspeed Billies since the overall length argument has been put to rest. I'll do some measuring tomorrow.
OptionXIII is offline   Reply With Quote
Old 12-06-2017, 12:11 AM   #1254
Junior Member

Join Date: Jan 2015
Posts: 118
Total Cats: 10
Default

Cirlip location do you mean? I have both MSMs and OEM Hard-S shocks - can measure/compare if you want.
Junkwhale is offline   Reply With Quote
Old 12-06-2017, 09:21 AM   #1255
Junior Member

Join Date: Jul 2015
Posts: 151
Total Cats: 4
Default

Interesting info point, thanks! For the rears, the limiting factor is top a-arm/chassis contact if I recall correctly. Do you plan on verifying that as well?
HarryB is offline   Reply With Quote
Old 12-06-2017, 02:48 PM   #1256
Senior Member
iTrader: (1)

Join Date: Feb 2015
Posts: 588
Total Cats: 80
Default

I think it's worth mentioning that we have way more droop travel then needed. Unless you're running tender springs the spring can rattle loose. The main benefit to an extended top hat is being able to run a 50 to 60mm bump stop and still use all the available bump travel. The softer engagement of a full height bump stop vs. a cut down stop is significant for how harshly the transition from spring to bump stop happens.
Bronson M is offline   Reply With Quote
Old 12-06-2017, 05:37 PM   #1257
Junior Member

Join Date: Jan 2015
Posts: 118
Total Cats: 10
Default

Quote:
Originally Posted by HarryB View Post
Interesting info point, thanks! For the rears, the limiting factor is top a-arm/chassis contact if I recall correctly. Do you plan on verifying that as well?
Yep will do rear next. Have NB OEM, 1" and 1.5" extended hats to try. Might not get out to the garage again till the weekend though. Edit: Will try with a 15x9 / 225/45 tire too.

Last edited by Junkwhale; 12-06-2017 at 05:53 PM.
Junkwhale is offline   Reply With Quote
Old 12-06-2017, 05:50 PM   #1258
Junior Member

Join Date: Jan 2015
Posts: 118
Total Cats: 10
Default

Quote:
Originally Posted by Bronson M View Post
I think it's worth mentioning that we have way more droop travel then needed. Unless you're running tender springs the spring can rattle loose. The main benefit to an extended top hat is being able to run a 50 to 60mm bump stop and still use all the available bump travel. The softer engagement of a full height bump stop vs. a cut down stop is significant for how harshly the transition from spring to bump stop happens.
You're gonna want to measure carefully doing that. With a (say) 60mm bump you can still only use about 10-15mm of the extended travel's length in the front, then you're using your chassis the real bumpstop- there is no more available bump travel. Also worth noting that with the plastic fender liners still in it's even less.
Junkwhale is offline   Reply With Quote
Old 12-07-2017, 08:39 AM   #1259
Senior Member
iTrader: (1)

Join Date: Feb 2015
Posts: 588
Total Cats: 80
Default

Absolutely, you have to custom tailor your bump stop length for your combo. No way you can just slap on off the shelf bump stops.
Bronson M is offline   Reply With Quote
