Thumbs up First I was like this...

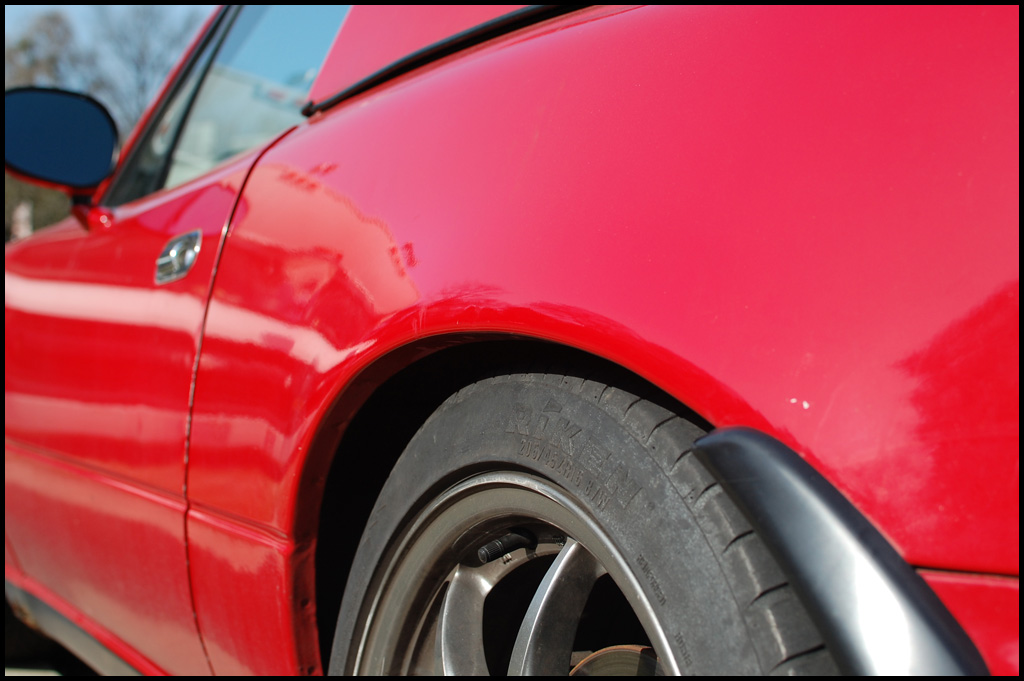

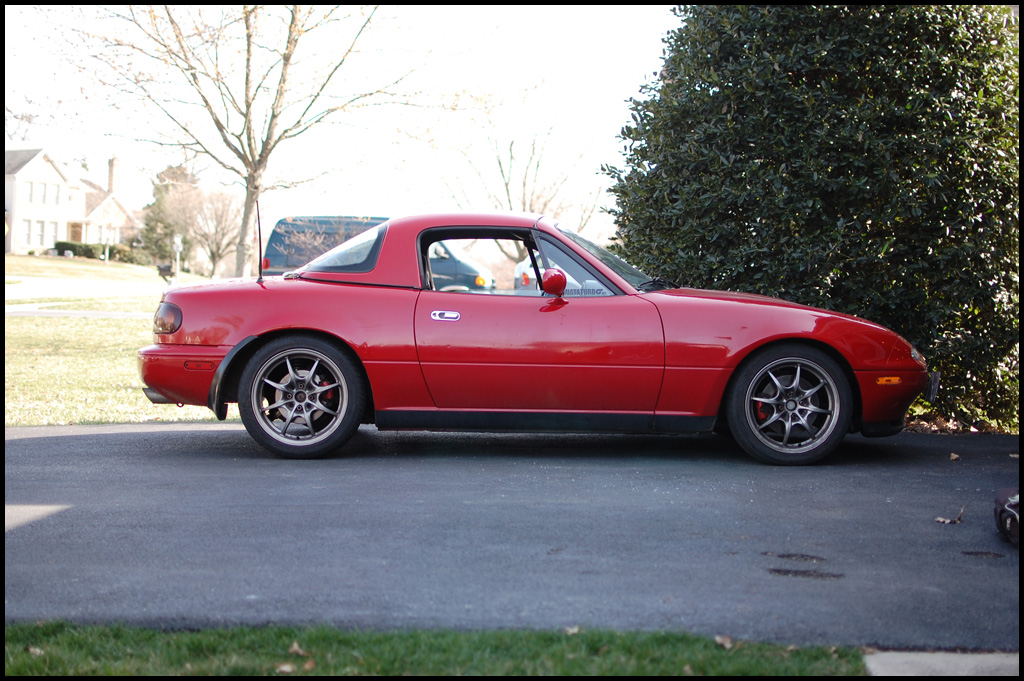

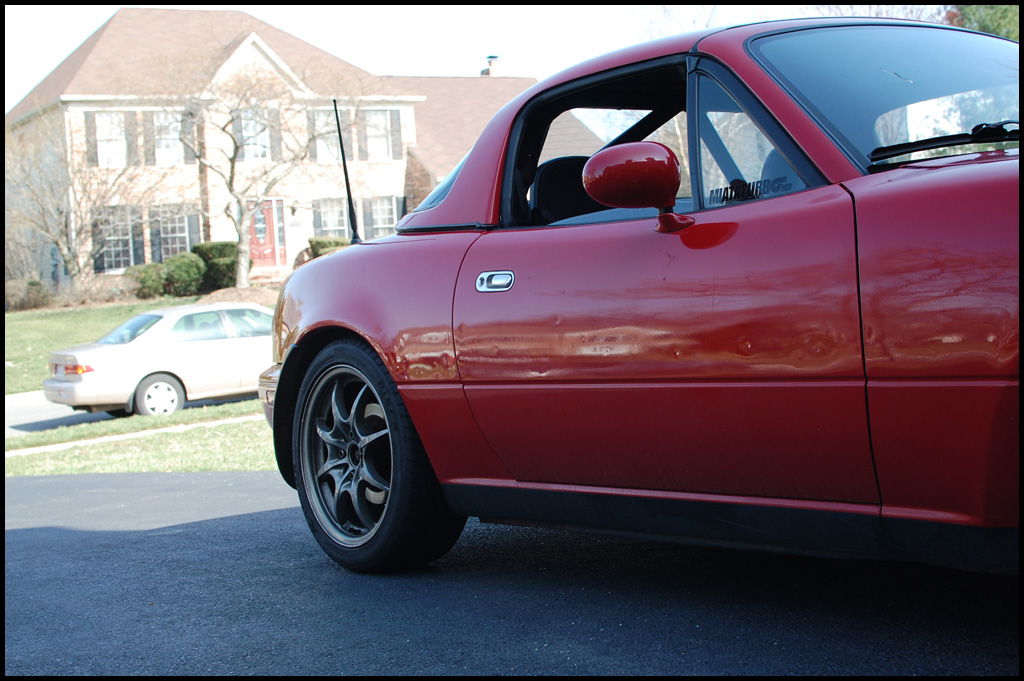

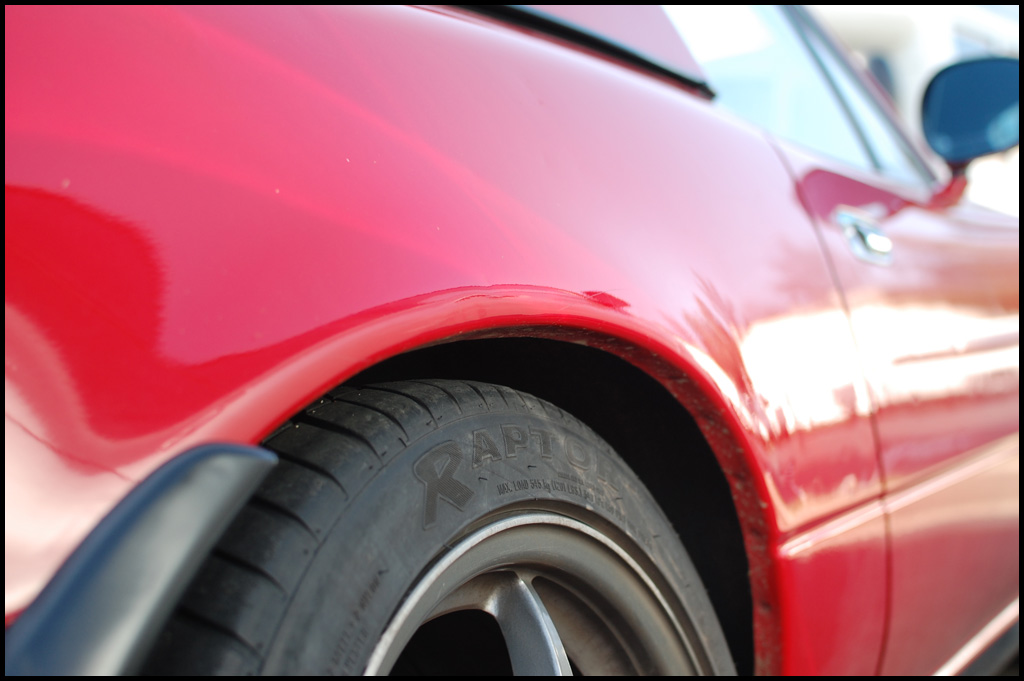

Took forever to get them at 12.5"F and 12.75"R



I drove home 25 miles; l then I was like this

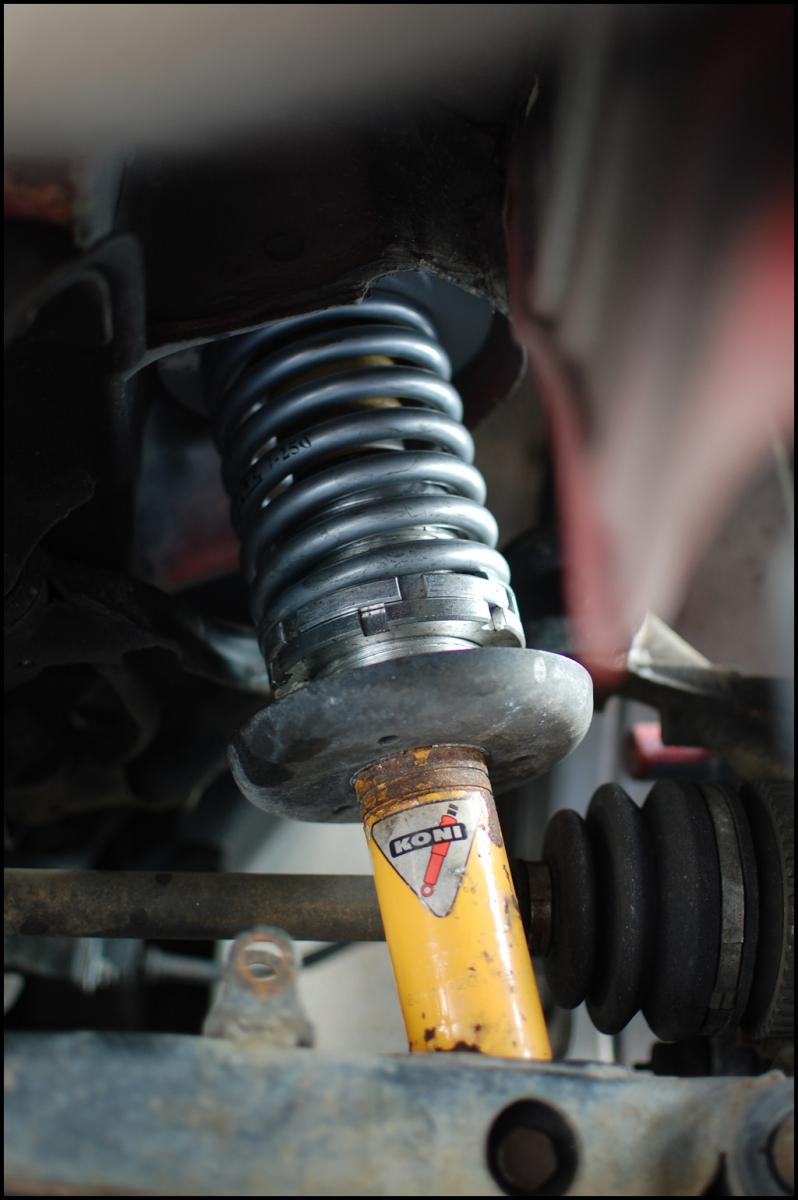

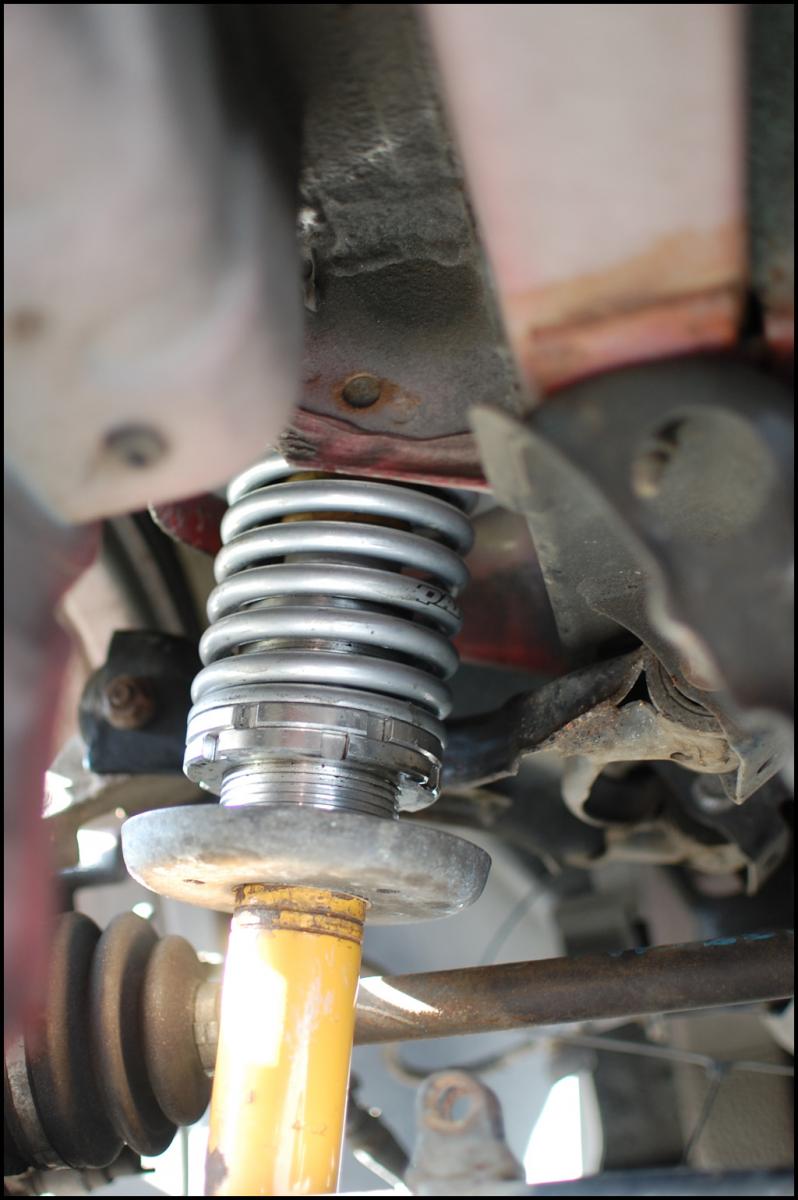

I started feeling like I was hitting the bumps on some large potholes and dips in the road....looks like it's actually coil bind and the left rear spring settled like crazy compared to the right....FML

The fronts were fine.

Of course the 8" 250 lb/in springs are $79 each vs. $38.77 each
Attached Thumbnails
First I was like this...-dsc_0064.jpg   First I was like this...-dsc_0070.jpg   First I was like this...-dsc_0072.jpg   First I was like this...-dsc_0075.jpg   First I was like this...-dsc_0077.jpg

First I was like this...-dsc_0078.jpg
Braineack is offline   Reply With Quote
Old 03-19-2010, 06:21 PM   #2
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,780
Total Cats: 1,107
Default

BAN!!!

Looks like you need to be on clubroadster.
shuiend is offline   Reply With Quote
Old 03-19-2010, 06:23 PM   #3
Crumple Zone Tester
iTrader: (7)

mgeoffriau's Avatar

Join Date: Jul 2009
Location: Jackson, MS
Posts: 7,656
Total Cats: 447
Default

Damn, your car looks as low as mine. Except I can't adjust my ride height (for now).
mgeoffriau is offline   Reply With Quote
Old 03-19-2010, 06:23 PM   #4
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

now who is laughing at my 10 inch 250 lb springs?
y8s is offline   Reply With Quote
Old 03-19-2010, 06:34 PM   #5
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,793
Default

Quote:
Originally Posted by mgeoffriau View Post
Damn, your car looks as low as mine. Except I can't adjust my ride height (for now).
is your front higher than your rear? front is still around 12.5"...that left rear is probably under 12" starting at 12.75"


really it seems my options are: get new longer springs -$60-140, get FCM spring risers -$88, go back to the NA mounts & lose travel but increase height then sell ISCs +80, or slammage ...
Braineack is offline   Reply With Quote
Old 03-19-2010, 06:39 PM   #6
Crumple Zone Tester
iTrader: (7)

mgeoffriau's Avatar

Join Date: Jul 2009
Location: Jackson, MS
Posts: 7,656
Total Cats: 447
Default

Mine is pretty close to level.
mgeoffriau is offline   Reply With Quote
Old 03-19-2010, 06:41 PM   #7
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,780
Total Cats: 1,107
Default

So when you switching back to the NA mounts? Since we all know since you can make moeny you will do it.
shuiend is offline   Reply With Quote
Old 03-19-2010, 06:47 PM   #8
Senior Member
iTrader: (14)

Join Date: Aug 2007
Location: Buffalo, NY
Posts: 734
Total Cats: 1
Default

I have 7" 250lbs springs in the rear.

And yeah, I have coil bind over big bumps too.


Buy these for $60 each and, as thanks for my saving you $30, you can post again to tell me if they solve the problem.
H&R Race Springs 8" x 2.5" x 250lbs Spring ProParts USA

Last edited by deliverator; 03-19-2010 at 08:35 PM.
deliverator is offline   Reply With Quote
Old 03-19-2010, 06:49 PM   #9
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,793
Default

Quote:
Originally Posted by deliverator View Post
I have 7" 250lbs springs in the rear.

They're as low as they can go on the collars with the perches turned all the way down.

And yeah, I have coil bind over big bumps too.


Buy these for $60 each and, in as thanks for my saving you $30, you can post again to tell me if they solve the problem.
H&R Race Springs 8" x 2.5" x 250lbs Spring ProParts USA

so you must be like hella slammed...are you on the iscracing tophats?

better springs at better price (thank to my friend y8s): www.pitstopusa.com - Detail


the worst part of this is that i wanted a better ride quality from my 550/300...turns out the insulators were preventing the bumps from traveling all the wya up and i was missing out on about 1.5" of shock travel. I left the 550s on and put the 250s in the rear and drove around and it was so improved. i think if i had just kept the 550/300 combo and installed them correctly I wouldn't have even be in this situation.

ordering new springs as we speak.

(2) 250# lb. 7" QA1s for sale - $55 shipped.
(2) 391# lb. 8" STANCE springs for sale - $55 shipped.
Braineack is offline   Reply With Quote
Old 03-19-2010, 06:55 PM   #10
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,793
Default

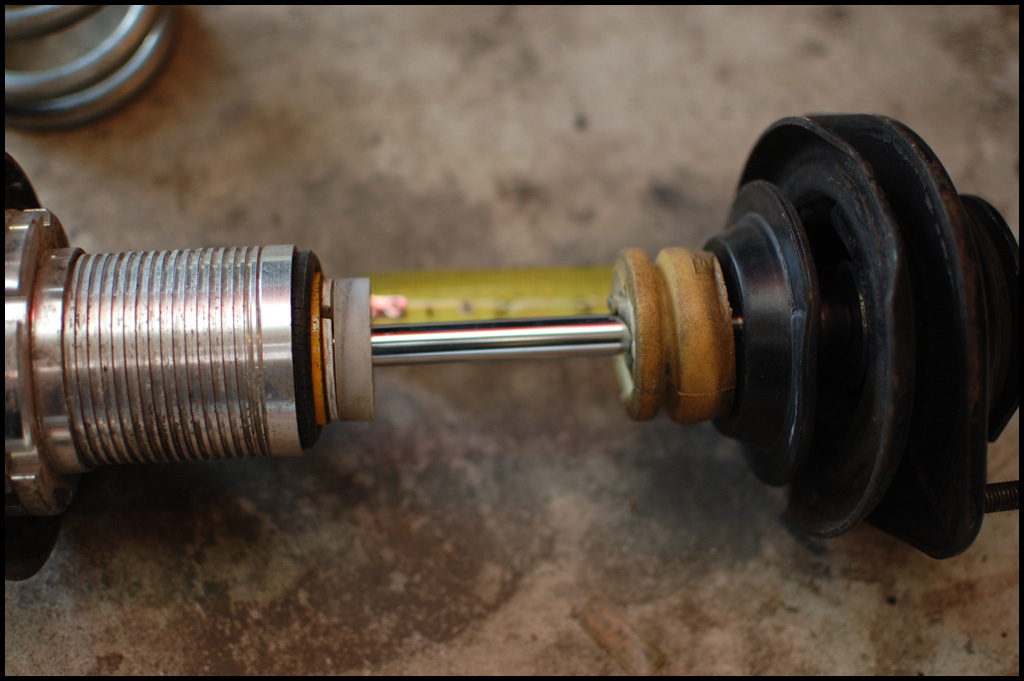

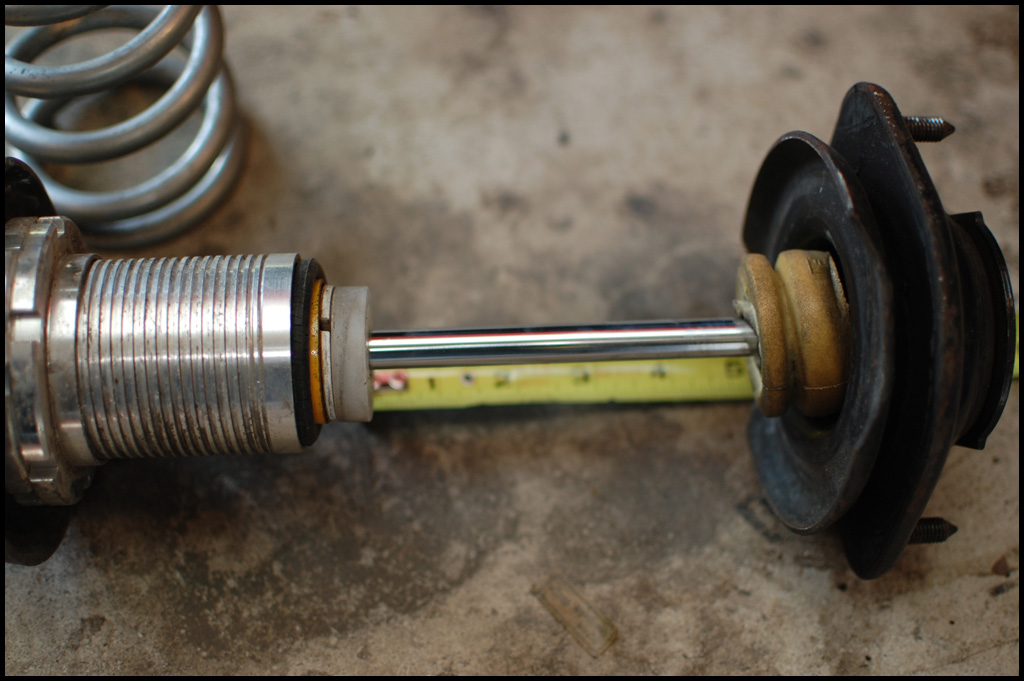

now check this stupid **** out. im so fail.





for some reason i thought those insulators were hollow and the bump would travel through them...dunno why i assumed that...look how much travel is lost.
Attached Thumbnails
First I was like this...-dsc_0037.jpg   First I was like this...-dsc_0039.jpg
Braineack is offline   Reply With Quote
Old 03-19-2010, 07:05 PM   #11
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

250 lb springs?

Must ride like a Cadillac.
kotomile is offline   Reply With Quote
Old 03-19-2010, 07:21 PM   #12
Junior Member
iTrader: (2)

Join Date: Feb 2007
Location: Santa Clarita, CA
Posts: 158
Total Cats: 0
Default

So you are going to run 400(7") /250(8") now? I can't believe there would be such a difference in the settling of the sides.

The isolator plus those little internal bottoming shock protector things must have been terrible! With just the weight of the car you must have been on the bumpstops in the rear.

You gained a ****-ton of travel with those isc hats! Probably like 2 1/2"(at least)!
Chapman is offline   Reply With Quote
Old 03-19-2010, 07:25 PM   #13
Senior Member
iTrader: (14)

Join Date: Aug 2007
Location: Buffalo, NY
Posts: 734
Total Cats: 1
Default

Quote:
Originally Posted by Braineack View Post
so you must be like hella slammed...are you on the iscracing tophats?
Lower than I want to be, that's for sure. Not ISC hats... oem NB hats. Using fatcat spring isolators (because the ebay isolators were way too bulky and cheesy. FCM's isolators weren't cheap, but IMO they're worth it.

I'll wait to order taller springs until your report back as to success or failure at regaining travel with a particular length. :-D
deliverator is offline   Reply With Quote
Old 03-19-2010, 07:39 PM   #14
Junior Member
iTrader: (2)

Join Date: Feb 2007
Location: Santa Clarita, CA
Posts: 158
Total Cats: 0
Default

Something must be wrong with that spring to sink so low. Confused. BTW I've seen people use cutting boards (the plastic ones) as spring spacers. It sounds a little ghetto, but does hold up.
Chapman is offline   Reply With Quote
Old 03-19-2010, 08:29 PM   #15
Senior Member
iTrader: (4)

Join Date: Nov 2009
Location: Toronto, ON
Posts: 1,479
Total Cats: 6
Default

fak, I must be a ricer. I think my springs settled a lot over the winter.
dgmorr is offline   Reply With Quote
Old 03-19-2010, 08:35 PM   #16
Elite Member
iTrader: (13)

Join Date: Nov 2006
Location: Tigard, Oregon
Posts: 3,908
Total Cats: 0
Default

Quote:
Originally Posted by y8s View Post
now who is laughing at my 10 inch 250 lb springs?

Nobody's laughing at your big 10 inch!
cueball1 is offline   Reply With Quote
Old 03-19-2010, 09:39 PM   #17
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

Quote:
Originally Posted by cueball1 View Post
Nobody's laughing at your big 10 inch!
2.5 inch diameter. 250 lb/in stiff!

(yours at the right price)
y8s is offline   Reply With Quote
Old 03-19-2010, 10:58 PM   #18
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,793
Default

Quote:
Originally Posted by Chapman View Post
Something must be wrong with that spring to sink so low. Confused. BTW I've seen people use cutting boards (the plastic ones) as spring spacers. It sounds a little ghetto, but does hold up.

I think it's where/how it's parked looking again, but i do think it settled more. They were slightly used springs, but I've always had an issue with the drive side being .25" lower.

Quote:
The isolator plus those little internal bottoming shock protector things must have been terrible! With just the weight of the car you must have been on the bumpstops in the rear.
Yeah I had like no travel, I kinda wish I kept the 550/300 combo and had just known how dumb I was, I had never hit the bumps before until I fit those 7" 300s and it didn't make sense since I was actually sitting higher than with my 218# FM springs.

It did drive very nice, other than the bind...
Braineack is offline   Reply With Quote
Old 03-19-2010, 11:11 PM   #19
Senior Member

Join Date: Jul 2008
Location: Phoenix
Posts: 657
Total Cats: 12
Default

Quote:
Originally Posted by Braineack View Post
now check this stupid **** out. im so fail.





for some reason i thought those insulators were hollow and the bump would travel through them...dunno why i assumed that...look how much travel is lost.
wut.

Seriously, whata tha ***** is goinz on here? What rear springs do you have? They look like they say 7-250, but you are ordering qa1 7" 250lb, won't you have the same problem? And did you really put a big rubber chonky thing on one shock but not both? Either way, from both of the spring pics it looks like coil bind is imminent.

esplain preas.
oilstain is offline   Reply With Quote
Old 03-19-2010, 11:29 PM   #20
Junior Member
iTrader: (2)

Join Date: Feb 2007
Location: Santa Clarita, CA
Posts: 158
Total Cats: 0
Default

Quote:
Originally Posted by oilstain View Post
wut.

Seriously, whata tha ***** is goinz on here? What rear springs do you have? They look like they say 7-250, but you are ordering qa1 7" 250lb, won't you have the same problem? And did you really put a big rubber chonky thing on one shock but not both? Either way, from both of the spring pics it looks like coil bind is imminent.

esplain preas.
I believe this is a before/after comparison... He had all that other shiz on there and removed it to find...TRAVEL!
He linked an 8" 250lb spring in the rear.

Braineak,
The 400/250 should be a very good setup for the street with performance in mind. As long as your shocks a valved well and you work out the travel/ bind issue, it will me a mean canyon setup. Lots of grip on crappy surfaces.
Chapman is offline   Reply With Quote
