Goodwin V3 friction ring replacement - Miata Turbo Forum - Boost cars, acquire cats.

Welcome to Miataturbo.net   Members



Suspension, Brakes, Drivetrain discuss the wondrous effects of boost and your miata...

Reply



LinkBack Thread Tools Search this Thread
Old 05-11-2015, 02:08 PM   #1
Newb
Thread Starter

Join Date: Jan 2013
Posts: 9
Total Cats: 0
Default Goodwin V3 friction ring replacement

Hi all,

I'm looking for replacement friction ring for my goodwin V3 kit.
Does anyone know if coleman has done some before and would have the part#?
I don't have any ring now has I bought the kit used, so I can't send them the used part to get new ones.

Goodwin racing and RacingBrakes both discontinued the product so I'm looking for an alternative.

Thanks a lot
dravas is offline   Reply With Quote
Old 05-11-2015, 05:56 PM   #2
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,357
Total Cats: 1,322
Default

Savington is offline   Reply With Quote
Old 05-11-2015, 06:21 PM   #3
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

You laugh but I'm in the same boat and was considering the 11.75's... 'cept I'd also need a new set of 6UL 15x8's and tires... It never ends.

Last edited by JasonC SBB; 05-11-2015 at 06:32 PM.
JasonC SBB is offline   Reply With Quote
Old 05-11-2015, 06:50 PM   #4
Supporting Vendor
iTrader: (1)

Join Date: May 2010
Location: San Diego
Posts: 491
Total Cats: 39
Default

Hey Dravas V3 front friction rings have been superseded by the V4 front friction rings. Order the V4 rings HERE and you'll be sent new hats free of charge to complete the upgrade, let us know in your order notes you have a V3 kit.

V3 rear rotors are still available HERE and they are also compatible with Sport rear brakes. Nice way to upgrade your rear sport package to a two piece rotor.
Lincoln Logs is offline   Reply With Quote
Old 05-11-2015, 06:50 PM   #5
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,357
Total Cats: 1,322
Default

Quote:
Originally Posted by JasonC SBB View Post
You laugh but I'm in the same boat and was considering the 11.75's... 'cept I'd also need a new set of 6UL 15x8's and tires... It never ends.
It makes sense to upgrade to something where the rotors are going to be obtainable easily and inexpensively, IMO.
Savington is offline   Reply With Quote
Old 05-11-2015, 07:06 PM   #6
Supporting Vendor
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,862
Total Cats: 484
Default

Quote:
Originally Posted by Savington View Post
It makes sense to upgrade to something where the rotors are going to be obtainable easily and inexpensively, IMO.
Apples to oranges.

The following is of course all things that you know, but for clarity purposes for those following along...

The wilwood standard rotors are straight-vane, made in China, low-cost rotors. Easy to acquire, easy on the wallet. Not comparable to a high-grade motorsports rotor though.

The approach with the GWR BBK was to offer the most bitchin' rotor possible - hence, on Version 4 of the rotor now (10 attachment points, kangaroo paw "vanes", ideal iron composition), and most owners get many, many years out of one set of rotors and we've had zero reports of rotor coning, premature failures, etc. that are far more possible with budget rotors.

There IS a high-quality replacement for the wilwood 8-bolt 11.75" friction ring. It's from PFC and it's ~$200 per ring. That is an apples to apples comparison with the V4 friction rings from DBA. Obviously, rotor diameter differences apply.

-Ryan

Last edited by ThePass; 05-11-2015 at 09:11 PM.
ThePass is offline   Reply With Quote
Old 05-11-2015, 08:24 PM   #7
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Quote:
Originally Posted by Savington View Post
It makes sense to upgrade to something where the rotors are going to be obtainable easily and inexpensively, IMO.
It does, but if one would need to buy 2 sets of 6ULs (and sell 1), it changes the cost calculations.
JasonC SBB is offline   Reply With Quote
Old 05-11-2015, 08:55 PM   #8
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,357
Total Cats: 1,322
Default

Quote:
Originally Posted by ThePass View Post
The wilwood HD rotors are straight-vane, made in China, low-cost rotors. Easy to acquire, easy on the wallet. Not comparable to a high-grade motorsports rotor though.
You're referring to the UL32, not the HD36. Yes, the UL32 is a low-cost rotor, which is perfectly adequate for most people. I made them work on my 350whp track car. If you want a better rotor, the HD36 is still around $100, because Wilwood makes a lot of them. The low cost of 11.75" rotors is due to high sales - UL32s in other sizes are $80+, and the HD36 in other sizes creeps over $200 very quickly.

Do not assume that a rotor is crap because it doesn't cost $200.
Savington is offline   Reply With Quote
Old 05-11-2015, 09:09 PM   #9
Supporting Vendor
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,862
Total Cats: 484
Default

Ah yes, I'm referring to the UL32, not the HD36 rotor. Will edit above post.
Agreed, the price to performance ratio of the standard wilwood 11.75" rotor is unbeatable, and a large factor in that is production quantity.

I wonder what applications that rotor is so widely used in as opposed to the 11" rotor for example which is approx. double the cost...

-Ryan
ThePass is offline   Reply With Quote
Old 05-11-2015, 09:16 PM   #10
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,357
Total Cats: 1,322
Default

Quote:
Originally Posted by ThePass View Post
I wonder what applications that rotor is so widely used in as opposed to the 11" rotor for example which is approx. double the cost...
Late-model stock cars IIRC
Savington is offline   Reply With Quote
Old 05-11-2015, 09:30 PM   #11
Supporting Vendor
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,862
Total Cats: 484
Default

That makes sense. Much of the Wilwood line is aimed at stock/dirt/oval racing, and successfully re-purposed to sports car uses.

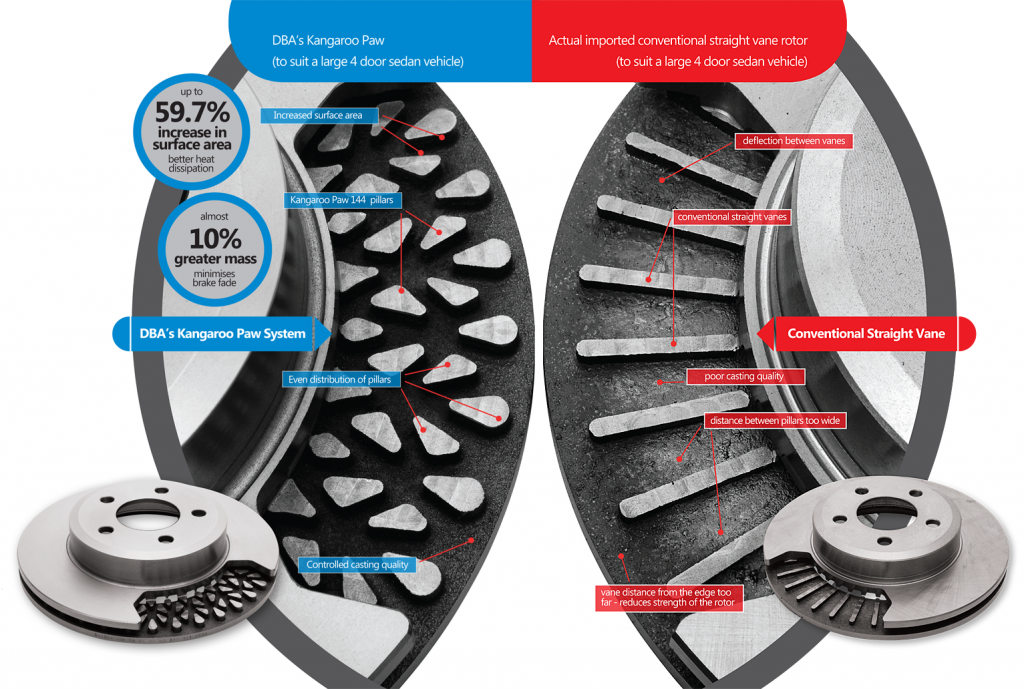

DBA's kangaroo paw vanes are something I recently looked into because I was curious about them myself. Pretty cool:

Attached Thumbnails
Goodwin V3 friction ring replacement-kp_straight-1024x689.png
ThePass is offline   Reply With Quote
Old 05-11-2015, 09:50 PM   #12
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,357
Total Cats: 1,322
Default

That's a cherry-picked straight vane, but yes, the DBA rotors are very good
Savington is offline   Reply With Quote
Old 05-11-2015, 10:20 PM   #13
Newb
Thread Starter

Join Date: Jan 2013
Posts: 9
Total Cats: 0
Default

If I don't find a cheap way to get rotor I might consider an upgrade to 11.75 as it is the same price as replacement dba rotors.
Still unsure because dba rotors look fabulous and I'm only doing week-end track days with a 2100lbs N/A 1.8 miata so those seems to live longer than wilwood ones. I don't think I need the extra size and weight of the 11,75... but in long term it may become better in term of cost.

Will have to sleep (and read) on that one.
dravas is offline   Reply With Quote
Old 05-11-2015, 10:53 PM   #14
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

If only someone (me) had a 11.75" upgrade kit for sale (cheap) in the classifieds...
curly is online now   Reply With Quote
Old 05-13-2015, 04:20 PM   #15
Newb
Thread Starter

Join Date: Jan 2013
Posts: 9
Total Cats: 0
Default

What about 15" wheel fitment over the 11.75"
Can I assume all wheels that fit over the 11" will fit over the 11.75" ?
dravas is offline   Reply With Quote
Old 05-13-2015, 07:16 PM   #16
Supporting Vendor
iTrader: (1)

OGRacing's Avatar

Join Date: May 2014
Posts: 1,762
Total Cats: 47
Default

Quote:
Originally Posted by curly View Post
If only someone (me) had a 11.75" upgrade kit for sale (cheap) in the classifieds...
Attached Thumbnails
Goodwin V3 friction ring replacement-i-see-what-you-did-there.jpg
OGRacing is offline   Reply With Quote
Old 05-13-2015, 08:19 PM   #17
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Quote:
Originally Posted by dravas View Post
What about 15" wheel fitment over the 11.75"
Can I assume all wheels that fit over the 11" will fit over the 11.75" ?
Absolutely not. Almost all wheels fit over the 11" kits. Very few fit over the 11.75" kits, and they're listed on 949's and TSE's site. Even 6uls need 5mm spacers.

Which are also for sale with the 11.75" kit...
curly is online now   Reply With Quote
Old 05-13-2015, 08:36 PM   #18
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

What about the requisite longer studs?
JasonC SBB is offline   Reply With Quote
Old 05-13-2015, 09:09 PM   #19
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,357
Total Cats: 1,322
Default

I've done lots and lots of track days with our gen1 11.75" kit, 5mm spacers, and stock studs. The Gen2 rotor hat adds a bit more thread engagement over the gen1 + 5mm setup. If you want longer studs, those are available too.
Savington is offline   Reply With Quote
Old 05-14-2015, 10:45 AM   #20
Newb
Thread Starter

Join Date: Jan 2013
Posts: 9
Total Cats: 0
Default

Is there a template available for the 11.75" to see if they would fit my wheel?

I understand that you offer a 50$ rebate if you check that for me but I'm from Canada so it would not be a hell of a deal haha!
dravas is offline   Reply With Quote
