Default Lowering the cup that the shock sits in

Great title, I know. Like this:

Name:  20110513142232.jpg
Views: 1
Size:  43.8 KB

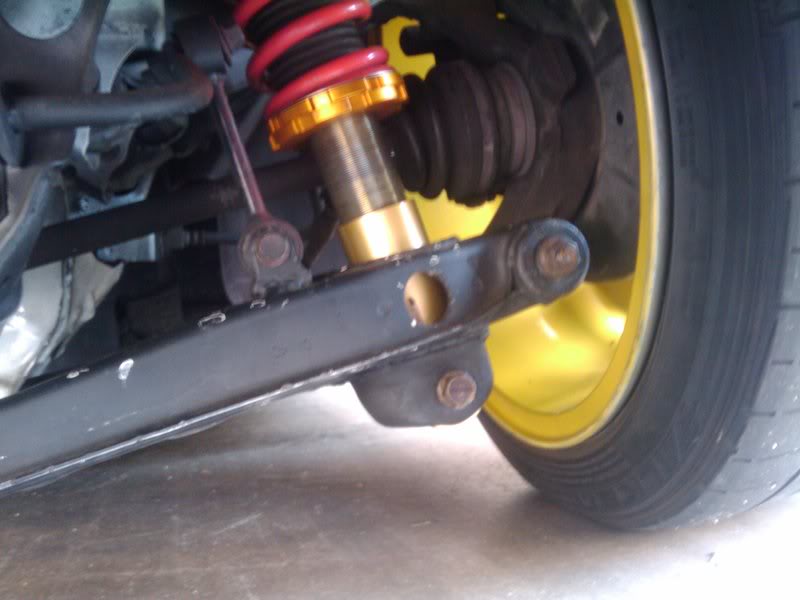

Some guy over at clubroadster did it, probably to achieve moar slam, but it could also be used to add some suspension travel. Thoughts?
rider384 is offline   Reply With Quote
Old 06-09-2011, 01:24 PM   #2
Elite Member
iTrader: (2)

Join Date: Jun 2006
Location: ABQ, NM
Posts: 1,850
Total Cats: -8
Default

Great if you're building a rally car and need more stroke than tophats alone can provide.
BenR is offline   Reply With Quote
Old 06-09-2011, 01:26 PM   #3
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

/\ This. Basically fail/fail.
18psi is offline   Reply With Quote
Old 06-09-2011, 01:48 PM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,833
Total Cats: 1,786
Default

Quote:
Originally Posted by rider384 View Post
but it could also be used to add some suspension travel. Thoughts?

If you increase the overall length, you will increase droop travel at the expensive of bump, since the tire is now further away from the top mount.

If you shorten the length, you risk putting the tire through the fender. This does not increase your shock's bump stroke.

Your upper articulation (full bump) should always be limited by the shock travel into the bumpstop. This is set by the length of the shock.



EDIT: oh wait I see what you're saying. let me mull it over.
Braineack is offline   Reply With Quote
Old 06-09-2011, 01:54 PM   #5
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,833
Total Cats: 1,786
Default

this would be exactly the same thing if the shock was mounted in the oem location and the shock was shorted the exact distance between the two mounting points.


the best way to add travel would be to remove fenders, install NC rear top mounts and really longer springs/shocks.
Braineack is offline   Reply With Quote
Old 06-09-2011, 02:08 PM   #6
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

Also, this would not work AT ALL up front.
shlammed is offline   Reply With Quote
Old 06-10-2011, 10:33 AM   #7
Junior Member

Join Date: May 2011
Location: Blacksburg VA
Posts: 115
Total Cats: 0
Default

it would add some travel to the bump stop but that low i don't think there is any travel from the tire to the fender
Cookiesoup is offline   Reply With Quote
Old 06-10-2011, 10:38 AM   #8
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,833
Total Cats: 1,786
Default

it would only increase bump travel if the shock body length was kept the same lenght. Problem is that will put the tire through the fender.

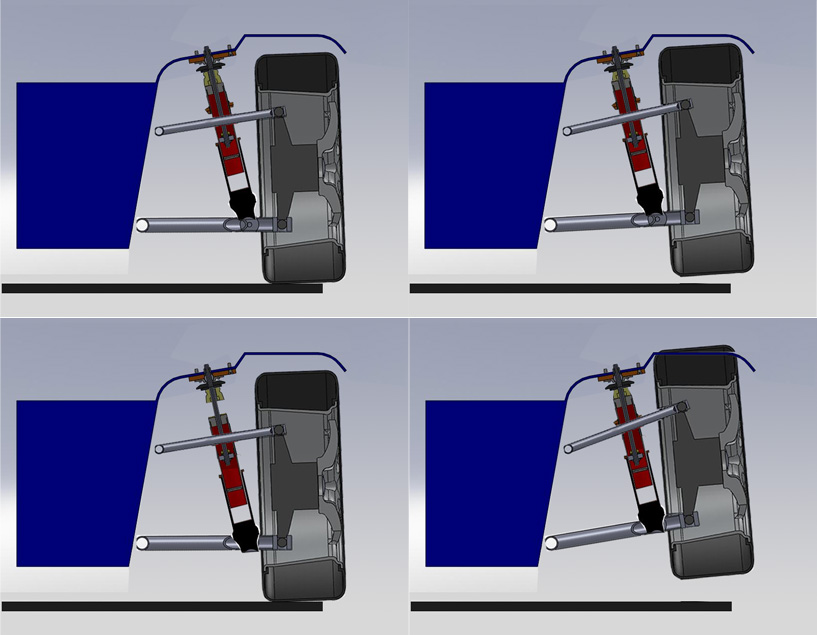

This shows the bump travel of the scenario of lowered shock mounts vs. oem, all others things being equal. You can see the bump travel does increase, but at the risk of sending the tire through the fender.
Attached Thumbnails
Lowering the cup that the shock sits in-lowering_mount.jpg
Braineack is offline   Reply With Quote
Old 06-10-2011, 10:40 AM   #9
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

In for positive camber gain in the rear, that should drive well.
hustler is offline   Reply With Quote
Old 06-10-2011, 10:52 AM   #10
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

Quote:
Originally Posted by hustler View Post
In for positive camber gain in the rear, that should drive well.
Yellow rimz bro, he dont care.
shlammed is offline   Reply With Quote
Old 06-10-2011, 10:54 AM   #11
Elite Member
iTrader: (10)

Join Date: Oct 2008
Location: Seattle, Wa
Posts: 1,780
Total Cats: 30
Default

Quote:
Originally Posted by shlammed View Post
Yellow rimz bro, he dont care.
+1. Who gives a **** how it drives. Its mad herrafrush.
Jeff_Ciesielski is offline   Reply With Quote
Old 06-10-2011, 11:19 AM   #12
Elite Member
iTrader: (5)

pusha's Avatar

Join Date: Nov 2009
Location: Miami, FL
Posts: 7,363
Total Cats: -32
Default

lol @ the haterz
pusha is offline   Reply With Quote
Old 06-12-2011, 07:14 AM   #13
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,357
Total Cats: 1,322
Default

It would let you lengthen the shock body and the rod the same amount as you lowered the mounting cup. Obviously bump travel is limited by the top of the tire touching the top of the wheel well, but you could significantly increase droop travel if you were to have custom-length shocks made for the application.

On one hand, it would help a lot on exit, since it would help the IR maintain contact with the ground (and thus limit IR wheelspin). On the other hand, the sway bar kind of dictates IR droop, so there's definitely some diminishing returns.
Savington is offline   Reply With Quote
