Old 12-01-2010, 10:31 AM   #101
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by greeenteeee View Post
hustler's has 1.5" travel AFTER total sag w/ 500lbs/in springs. It'd take 1500 lbs of force on that corner for him to bottom out.
...but the ratio is closer to 3:1, I runn 700lb front springs, and people who know more about suspension tuning than me influenced my suspension, and it works. It uses the bump-stops a lot, and the tire rubs in the fender...but it works.
hustler is offline   Reply With Quote
Old 12-01-2010, 02:03 PM   #102
Junior Member

Join Date: Aug 2009
Posts: 186
Total Cats: 1
Default

Quote:
Originally Posted by hustler View Post
...but the ratio is closer to 3:1, I runn 700lb front springs, and people who know more about suspension tuning than me influenced my suspension, and it works. It uses the bump-stops a lot, and the tire rubs in the fender...but it works.
You're right, I neglected to consider that. But I've read a few times the wheel motion ratio is more like 1.6:1. I doubt it is 3:1 unless you are running a super low offset. The wheel motion ratio on my other car is around 2:1 in the rear, which explains why I can use a 16kg/mm spring rate on the rear of a FWD car.

Only reason I mentioned your setup along w/ fooger's is that your setups are superior due to having more travel than chricto's and my setup w/ dual adjustable shocks. I am not sure why he took it the way he did, I just did not think longer bumpstops would do anything to solve his case. I'd rather trim the bumpstop (after checking how much travel is available) than putting in longer bumpstops for the shock to contact against.
greeenteeee is offline   Reply With Quote
Old 12-01-2010, 03:47 PM   #103
Junior Member
Thread Starter
iTrader: (1)

Join Date: Dec 2007
Location: Austin, Tx
Posts: 152
Total Cats: 0
Default

Quote:
Originally Posted by greeenteeee View Post

Longer bumpstops will make you hit them more. I just don't think making it bottom out against a softer bumpstop or longer bumpstop is the solution. You shouldn't be hitting the bumpstops at all.
Quote:
Originally Posted by greeenteeee View Post
If you only ordered longer bumpstops, you will have the same problem in my opinion.

Quote:
Originally Posted by greeenteeee View Post
I just did not think longer bumpstops would do anything to solve his case. I'd rather trim the bumpstop (after checking how much travel is available) than putting in longer bumpstops for the shock to contact against.
So, what a minute. What you are saying is that bump stops won't help me, in your opinion?

Quote:
Originally Posted by greeenteeee View Post
Only reason I mentioned your setup along w/ fooger's is that your setups are superior due to having more travel than chricto's and my setup w/ dual adjustable shocks. I am not sure why he took it the way he did, I just did not think longer bumpstops would do anything to solve his case. I'd rather trim the bumpstop (after checking how much travel is available) than putting in longer bumpstops for the shock to contact against.
Look dude, I know you are just trying to help, but you are annoying the **** out of me. Maybe I wasn't clear enough with my intentions, or maybe you aren't reading all of the posts in this thread. Either way, here is some paraphrasing that will hopefully clear things up...

My rear suspension ride quality is harsh. Spring length and coil bind have been ruled out as potential problems.

Quote:
Originally Posted by chricto View Post

I spoke with one of the suspension techs at Stance again, yesterday. He suggested that I should maybe consider stiffer rear springs if hitting the bumpstops was bothering me that much...

...I haven't decided if I just want to get better rear springs (i.e. Swift) with the same rates or increase the stiffness all around with something like a 10k/7k (560lbs/392 lbs) setup.
I initially was just going to get stiffer springs all around. Then other people started recommending better bump stops as a partial solution...

Quote:
Originally Posted by SignOfZeta View Post

You can have a really jank set-up and still have decent ride if your stops are nice and smooshy. It makes a ENORMOUS difference in ride. Obviously a lot of people like Fat Cat Motorsports, but I'm running fairly run of the mill Super Pros with no issues. I'm as low as you are, I'm on 200/300 springs with Illumina shocks, and most of my ride harshness is actually from having 949 end links that wear out every 6 weeks or so.
So I said...

Quote:
Originally Posted by chricto View Post
My Miata is my only car, so I'm just trying to find a compromise between performance and drivability.
Quote:
Originally Posted by chricto View Post
I'm probably going to get larger bumpstops, better springs (haven't decided if I want to go a little stiffer or not), and put the dampening in the rear to the max; I'm at 12/15 right now.
Quote:
Originally Posted by chricto View Post
I want better bump stops so the ride is less harsh on bad roads; so when the bump stops engage, the impact isn't as hard
Quote:
Originally Posted by chricto View Post
I've ordered the bumpstops and will report on those when they are on the car. The Stance bumpstops are tiny, so I'm sure anything will help the ride quality right now.
Quote:
Originally Posted by chricto View Post
I'm not on the bump stops under hard cornering. The suspension is great over smooth roads and performs well in the corners. I'm only trying to lessen the harshness over shitty roads. For what I'm trying to accomplish, better bump stops should be a step in the right direction. I still want to get some better springs in the rear, too, but I've got more important things to spend money on right now.

Ride quality has always been the issue. This car sees 30-60 miles daily and I need a little better of a ride until I can get a second car. After Brain suggested some $5.00 bumpstops, I decided I'd try them out. I still intend on getting new springs, but as I stated before, it's not in the budget right now. I'd rather spend $10-$15 first than spend $150-$300 on new springs.
chricto is offline   Reply With Quote
Old 12-24-2010, 04:32 PM   #104
Junior Member

Join Date: Aug 2009
Posts: 186
Total Cats: 1
Default

chricto, I know you've been annoyed by me, but I've done some work on mine recently with success as far as ride height. As much as you want to deny my advice, I strongly believe this will solve your issues so I am posting regardless you want my help or not LOL. As I mentioned, my zipties pushed up the bumpstops all the way up which makes me think they are bottoming (again it doesn't feel like it's bottoming, so maybe the poly stops my coilovers come with are soft and progressive). The ziptie in the rear shocks were even worse and chewed away some of the bumpstop material and it was pressed into the bumpstop.

This is my front, with 3" of bump travel, my tire bottoms the fender as the the shock uses up the 3" of travel. The included bumpstops were the perfect length up front but the same 35mm bumpstop in the rear bottoms out the shock prior to the tire.



Again, that is the front. Testing the shock without spring, jacking up F-LCA to the point where the tire bottoms out, is where the black 15mm bumpstop ends up. I replaced my 35mm bumpstops all around with shorter ones (as well as raised the height a little as I had spring sag to reach my old 4.125"F 4.375" pinch weld heights). I used 20mm front stops and 15mm rear stops. After the new bumpstops, ride quality is improved. It probably still hits the bumpstops on really bad potholes and what not, I won't know for sure til I check where the zipties end up.

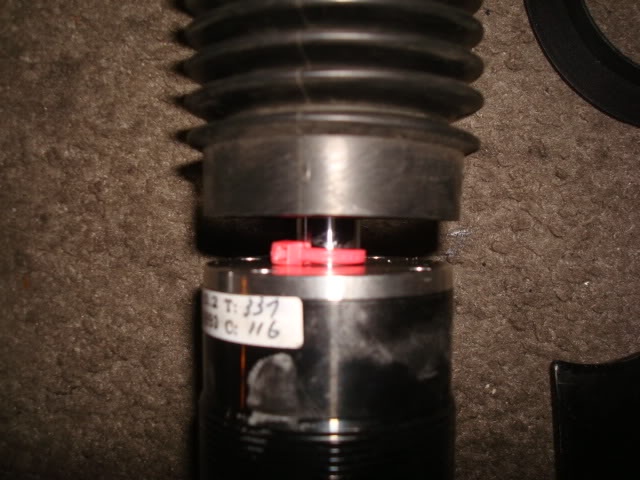

Name:  DSC01514.jpg
Views: 3
Size:  50.8 KB

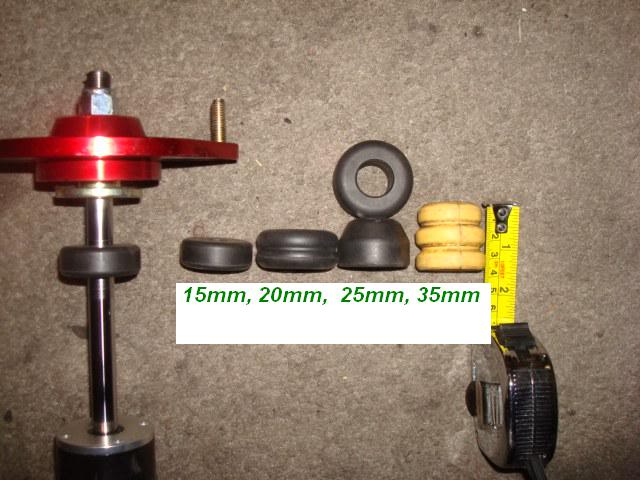

Name:  DSC01502.jpg
Views: 3
Size:  49.8 KB

Those longer bumpstops will just make it worse in my opinion if you are hitting them all the time.
greeenteeee is offline   Reply With Quote
Old 01-11-2011, 01:09 PM   #105
Junior Member
Thread Starter
iTrader: (1)

Join Date: Dec 2007
Location: Austin, Tx
Posts: 152
Total Cats: 0
Default

Sorry for the late response, errbody. Sorry for the minor freak out, too, Green. I know you are just trying to help. I'm not hitting the bump stops all the time; just over large bumps. There is a **** ton of road construction going on in my area, and it's like I'm literally taking a rally stage to work every morning. My suspension problems are only so prevalent right now because of all of the shitty roads in my area. The bump stops have helped so far, but better, slightly stiffer springs are still in my future plans. I've got a long line of maintenance issues to take care of before I even think about getting new springs, though. Thanks for the help folks.
chricto is offline   Reply With Quote
