Gen2 11.75" Big Brake Kit @ Trackspeed - Only $599!

Old 05-04-2015, 03:02 PM
  #1
Supporting Vendor
Thread Starter
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,865
Total Cats: 1,702
Default Gen2 11.75" Big Brake Kit @ Trackspeed - Only $599!

Order today for early July 2015 shipment.

Trackspeed's 11.75" Gen2 BBK retains the legendary performance of our original Gen1 11.75" BBK while adding additional wheel clearance. Our all-new proprietary 6061-T6 aluminum hat is Miata-specific, which allows us to place the rotor ideally within the space provided to maximize wheel clearance. Our hats continue to be the only option that allows for the use of safety wired rotor hat hardware. Our Gen2 brackets are tweaked slightly to ensure compatibility with Keisler aftermarket drop spindles as well. The world-class pedal feel and inexpensive running costs are unchanged from our Gen1 kit.

Pair our 11.75" BBK with a factory Sport 10.9" rear rotor and 1.8L (with adapter bracket) or Sport rear calipers. Add a Trackspeed proportioning valve kit (with proprietary ultra-robust steel adapter fittings) to give your Miata incredible braking performance in any situation.

Compare our 11.75" BBK to our competitors' 11.75" and 11" offerings. We feel that the value of this kit is unparalleled in the marketplace today.

Includes the following ($599):
  • Wilwood Dynalite forged 4-piston calipers (6-piston calipers are available)
  • Trackspeed Gen2 11.75" Wilwood brackets
  • Trackspeed 11.75" rotor hats
  • Two Wilwood 11.75" rotor rings (directional vanes optional)
  • Trackspeed Stainless Steel Wilwood-specific brake lines
  • Brake rotor hardware, pre-drilled for safety wire (pre-assembled rotors optional)
  • Caliper bracket hardware
  • 1L of ATE Typ200 Racing Brake Fluid

Upgrade kit ($374):
    Full kit, less Wilwood calipers and Trackspeed brake lines

    Pre-assembled/wired brake rotors: add $50
    Directional rotors: add $150

    Kit ships without pads to accomodate both street and track users.

    Fits under these wheels:
    -15x7 +25 Team Dynamics Pro Race 1.2
    -15x8 +20 TRMotorsport C1
    -15x8 +40 949Racing 6UL (4mm spacer required)
    -15x8 +36 949Racing 6UL
    -15x9 +36 949Racing 6UL
    -15x10 +25 949Racing 6UL

    Don't see your wheel listed? Ship it to us for a test fit and receive a $50 credit on your BBK. Contact us for details.

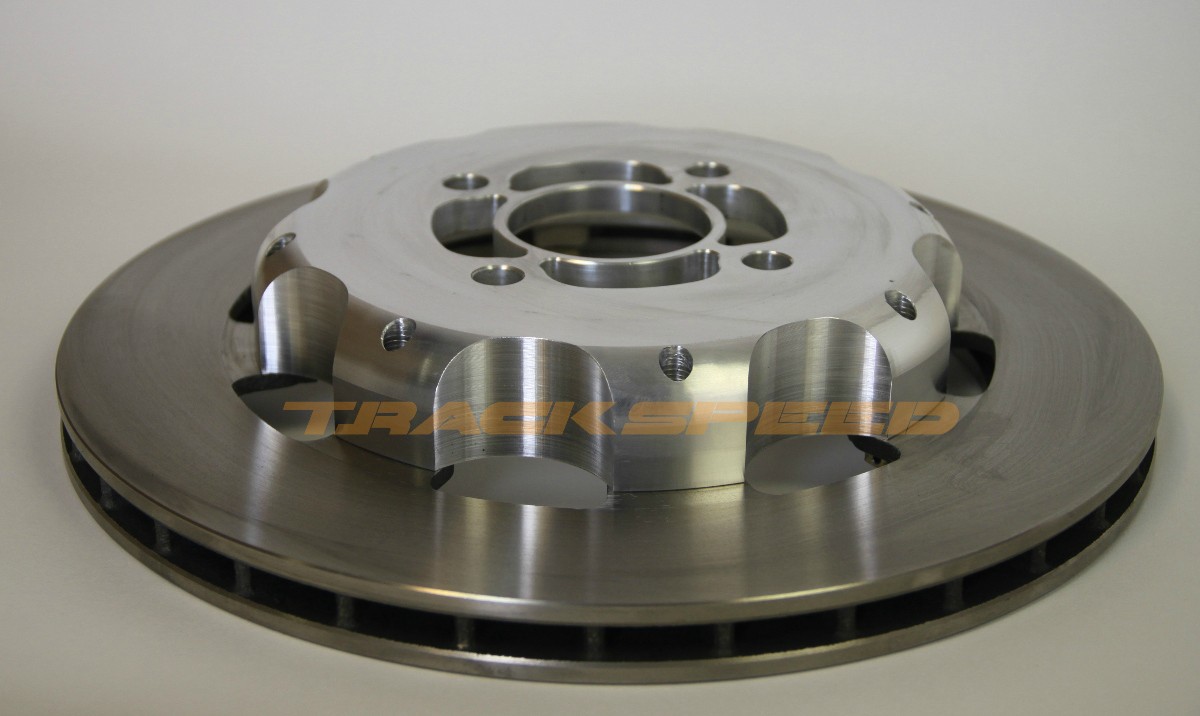

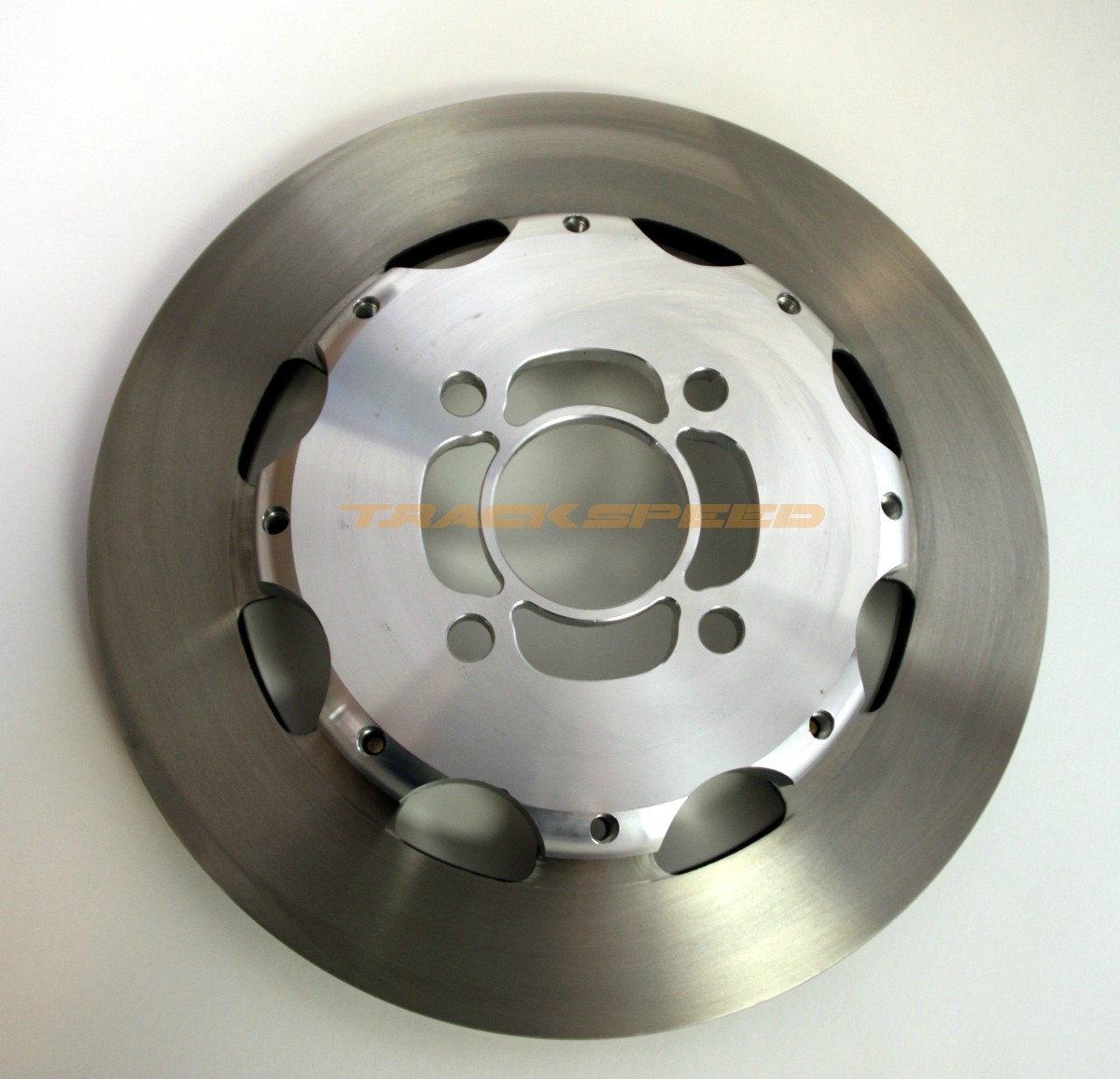

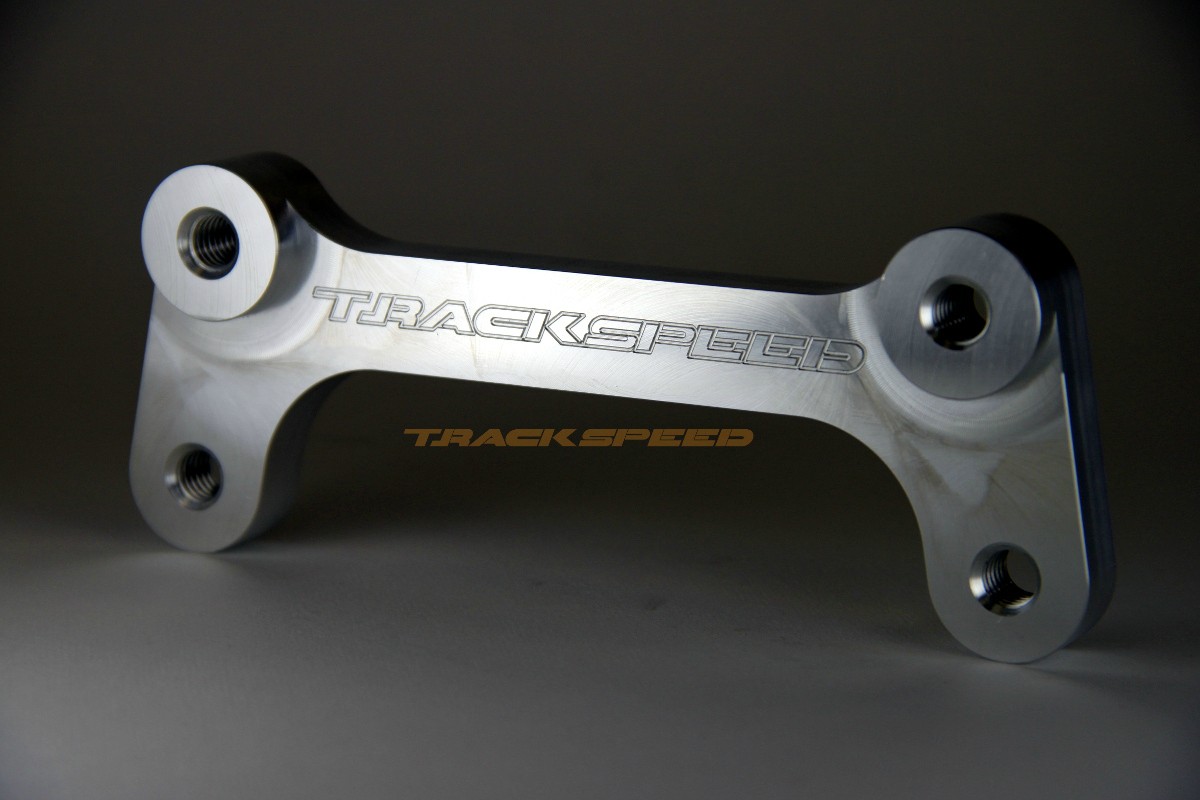

    The brackets shown are production pieces. The rotor is a pre-production item without any coating. The rotors will be black hard-ano'd with etched logos.







    Model of production rotor:

    Attached Thumbnails Gen2 11.75" Big Brake Kit @ Trackspeed - Only 9!-wj53iea.jpg   Gen2 11.75" Big Brake Kit @ Trackspeed - Only 9!-wsdght7.jpg   Gen2 11.75" Big Brake Kit @ Trackspeed - Only 9!-2zhkx0t.jpg   Gen2 11.75" Big Brake Kit @ Trackspeed - Only 9!-dmzhidl.png
    __________________
    Trackspeed Engineering
    High-Performance Turbo Specialists - Sunnyvale, CA - 650-701-7223 - Email us!
    Originally Posted by codrus View Post
    Basically I've come over to the camp of "If something is a reliability problem on the track, just ask Andrew and do what he says".
    Savington is offline
    Old 05-04-2015, 03:18 PM
      #2
    Elite Member
    iTrader: (1)

    Chiburbian's Avatar

    Join Date: Feb 2008
    Location: Gilberts, IL
    Posts: 2,296
    Total Cats: 175
    Default

    Could you create a package that includes rear brake lines or find a way to separately order ONLY rear lines? The front big brake package comes with brake lines but your goodridge brake line package is only available for four wheels.
    Chiburbian is offline
    Old 05-04-2015, 03:24 PM
      #3
    Supporting Vendor
    Thread Starter
    iTrader: (31)

    Savington's Avatar

    Join Date: Nov 2006
    Location: Sunnyvale, CA
    Posts: 14,865
    Total Cats: 1,702
    Default

    Option added, thanks.
    __________________
    Trackspeed Engineering
    High-Performance Turbo Specialists - Sunnyvale, CA - 650-701-7223 - Email us!
    Originally Posted by codrus View Post
    Basically I've come over to the camp of "If something is a reliability problem on the track, just ask Andrew and do what he says".
    Savington is offline
    Old 05-04-2015, 03:49 PM
      #4
    SADFab Destructive Testing Engineer
    iTrader: (5)

    aidandj's Avatar

    Join Date: Apr 2014
    Location: Beaverton, USA
    Posts: 18,409
    Total Cats: 1,605
    Default

    Sexy! Is the 599 an introductory price or will it be that price when I finally have the money next winter to upgrade?

    Also, 15x8 Konig Dial in user here if you need a test wheel.
    aidandj is offline
    Old 05-05-2015, 06:41 AM
      #5
    Junior Member

    Join Date: Oct 2011
    Location: New Hampshire
    Posts: 324
    Total Cats: 68
    Default

    Really wish I'd known about this a month ago, before I picked up my 11" kit.
    adamiata is offline
    Old 05-05-2015, 12:47 PM
      #6
    Elite Member

    Join Date: Jul 2005
    Posts: 6,455
    Total Cats: 81
    Default

    I take it this kit meets the requirement that the disc is centered between the front wheel bearings?
    JasonC SBB is offline
    Old 05-05-2015, 01:12 PM
      #7
    Goin Innnnn!!!
    iTrader: (7)

    Chooofoojoo's Avatar

    Join Date: May 2014
    Location: Denver, Co.
    Posts: 458
    Total Cats: 40
    Default

    Well done Andrew.

    You will be hearing from me!
    Chooofoojoo is offline
    Old 05-05-2015, 03:06 PM
      #8
    Supporting Vendor
    Thread Starter
    iTrader: (31)

    Savington's Avatar

    Join Date: Nov 2006
    Location: Sunnyvale, CA
    Posts: 14,865
    Total Cats: 1,702
    Default

    Originally Posted by aidandj View Post
    Sexy! Is the 599 an introductory price or will it be that price when I finally have the money next winter to upgrade?

    Also, 15x8 Konig Dial in user here if you need a test wheel.
    $599 is MSRP. No intro pricing on this one.

    Originally Posted by JasonC SBB View Post
    I take it this kit meets the requirement that the disc is centered between the front wheel bearings?
    Not sure who says that's a requirement. The brake rotor is a bit further inboard than the factory brake rotor is. I'm sure that having the rotor perfectly centered on the bearings is a nice thing to do, but in reality, it's more important that the rotor and caliper not hit immovable metal objects like the tie rods or wheels.
    __________________
    Trackspeed Engineering
    High-Performance Turbo Specialists - Sunnyvale, CA - 650-701-7223 - Email us!
    Originally Posted by codrus View Post
    Basically I've come over to the camp of "If something is a reliability problem on the track, just ask Andrew and do what he says".

    Last edited by Savington; 05-05-2015 at 03:40 PM.
    Savington is offline
    Old 05-05-2015, 03:10 PM
      #9
    SADFab Destructive Testing Engineer
    iTrader: (5)

    aidandj's Avatar

    Join Date: Apr 2014
    Location: Beaverton, USA
    Posts: 18,409
    Total Cats: 1,605
    Default

    I believe he is referencing this post.

    Edit: to be clear I have no horse in this race, just passing on the link

    Last edited by aidandj; 05-05-2015 at 03:43 PM.
    aidandj is offline
    Old 05-05-2015, 03:38 PM
      #10
    Supporting Vendor
    Thread Starter
    iTrader: (31)

    Savington's Avatar

    Join Date: Nov 2006
    Location: Sunnyvale, CA
    Posts: 14,865
    Total Cats: 1,702
    Default

    Do you ensure that your wheel is centrally located over the hub bearings too? No. Nobody does. Fitment within the chassis dictates wheel placement, just as it dictates brake rotor placement. Unless you are substantially altering the moment being applied to the wheel bearing, it's a non-issue. We put the rotor in a spot where it hits the least amount of **** possible.
    __________________
    Trackspeed Engineering
    High-Performance Turbo Specialists - Sunnyvale, CA - 650-701-7223 - Email us!
    Originally Posted by codrus View Post
    Basically I've come over to the camp of "If something is a reliability problem on the track, just ask Andrew and do what he says".
    Savington is offline
    Old 05-05-2015, 04:31 PM
      #11
    Supporting Vendor
    Thread Starter
    iTrader: (31)

    Savington's Avatar

    Join Date: Nov 2006
    Location: Sunnyvale, CA
    Posts: 14,865
    Total Cats: 1,702
    Default

    To satiate my own curiosity, I took some measurements off a stock NTN hub, an OEM Sport rotor, and our new Gen2 rotor.

    Bearing races: ~0.900" thick each
    Distance from hub flange face to center of bearing: ~1.200"

    Sport rotor offset: ~1.085" (center of rotor to hub flange face)
    Trackspeed Gen2 rotor offset: ~1.215"

    In closing:
    • I don't think there's any merit to the idea that rotor offset alters bearing life in any way
    • Mazda doesn't think there's any merit to the idea either
    • If there is any merit to the idea, our rotor will improve bearing life over a factory Mazda Sport rotor

    Hopefully that puts this silly issue to rest.
    __________________
    Trackspeed Engineering
    High-Performance Turbo Specialists - Sunnyvale, CA - 650-701-7223 - Email us!
    Originally Posted by codrus View Post
    Basically I've come over to the camp of "If something is a reliability problem on the track, just ask Andrew and do what he says".
    Savington is offline
    Old 05-05-2015, 04:32 PM
      #12
    Elite Member
    iTrader: (3)

    concealer404's Avatar

    Join Date: Aug 2011
    Posts: 9,615
    Total Cats: 1,210
    Default

    Originally Posted by Savington View Post
    To satiate my own curiosity, I took some measurements off a stock NTN hub, an OEM Sport rotor, and our new Gen2 rotor.

    Bearing races: ~0.900" thick each
    Distance from hub flange face to center of bearing: ~1.200"

    Sport rotor offset: ~1.085" (center of rotor to hub flange face)
    Trackspeed Gen2 rotor offset: ~1.215"

    In closing:
    -I don't think there's any merit to the idea that rotor offset alters bearing life in any way
    -Mazda clearly doesn't think there's any merit to the idea either
    -If there is any merit to the idea, our rotor will improve bearing life over a factory Mazda Sport rotor

    Hopefully that puts this silly issue to rest.
    Please put this in your ad copy on M.net.
    concealer404 is offline
    Old 05-05-2015, 07:41 PM
      #13
    SADFab Destructive Testing Engineer
    iTrader: (5)

    aidandj's Avatar

    Join Date: Apr 2014
    Location: Beaverton, USA
    Posts: 18,409
    Total Cats: 1,605
    Default

    But then we won't be able to ever buy them because Andrew got lynched by the mob.
    aidandj is offline
    Old 05-05-2015, 08:21 PM
      #14
    Junior Member
    iTrader: (4)

    Join Date: May 2012
    Location: Mayport, FL
    Posts: 490
    Total Cats: 39
    Default

    Does the added wheel clearance create any compatibility issues with your 2" brake duct baking plates?
    FrankB is offline
    Old 05-05-2015, 09:36 PM
      #15
    Supporting Vendor
    Thread Starter
    iTrader: (31)

    Savington's Avatar

    Join Date: Nov 2006
    Location: Sunnyvale, CA
    Posts: 14,865
    Total Cats: 1,702
    Default

    No, and it shouldn't cause any issues with Singular's 2.5" or 3" ducts either. All the mockup was done on cars with brake ducts to ensure it wouldn't be an issue. It is very close, though.
    __________________
    Trackspeed Engineering
    High-Performance Turbo Specialists - Sunnyvale, CA - 650-701-7223 - Email us!
    Originally Posted by codrus View Post
    Basically I've come over to the camp of "If something is a reliability problem on the track, just ask Andrew and do what he says".
    Savington is offline
    Old 05-06-2015, 12:15 AM
      #16
    Senior Member
    iTrader: (1)

    Join Date: Dec 2010
    Location: Farmington Hills, MI
    Posts: 1,113
    Total Cats: 146
    Default

    What's the reasoning for using the dynalite caliper over the dynapro? Cost?
    acedeuce802 is offline
    Old 05-06-2015, 07:32 AM
      #17
    Junior Member
    iTrader: (4)

    Join Date: May 2012
    Location: Mayport, FL
    Posts: 490
    Total Cats: 39
    Default

    Is there any reason to upgrade from your original kit aside from the added wheel clearance? Do the DP6's clear 15x9 +36 6UL's with without spacers now too?
    FrankB is offline
    Old 05-06-2015, 08:43 AM
      #18
    SADFab Destructive Testing Engineer
    iTrader: (5)

    aidandj's Avatar

    Join Date: Apr 2014
    Location: Beaverton, USA
    Posts: 18,409
    Total Cats: 1,605
    Default

    *flamesuit on*
    Is there an option for red calipers?
    aidandj is offline
    Old 05-06-2015, 09:58 AM
      #19
    Elite Member
    iTrader: (9)

    TurboTim's Avatar

    Join Date: Jun 2006
    Location: Chesterfield, NJ
    Posts: 6,539
    Total Cats: 268
    Default

    I'd rather have Trackspeed Orange calipers.
    TurboTim is offline
    Old 05-06-2015, 10:01 AM
      #20
    Junior Member
    iTrader: (4)

    Join Date: May 2012
    Location: Mayport, FL
    Posts: 490
    Total Cats: 39
    Default

    Originally Posted by TurboTim View Post
    I'd rather have Trackspeed Orange calipers.
    Orange calipers with Trackspeed written on then would be a sweet option
    FrankB is offline
