Old 11-04-2011, 03:45 PM   #121
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,370
Total Cats: 1,332
Default

In case the stock-body NA crew was wondering:

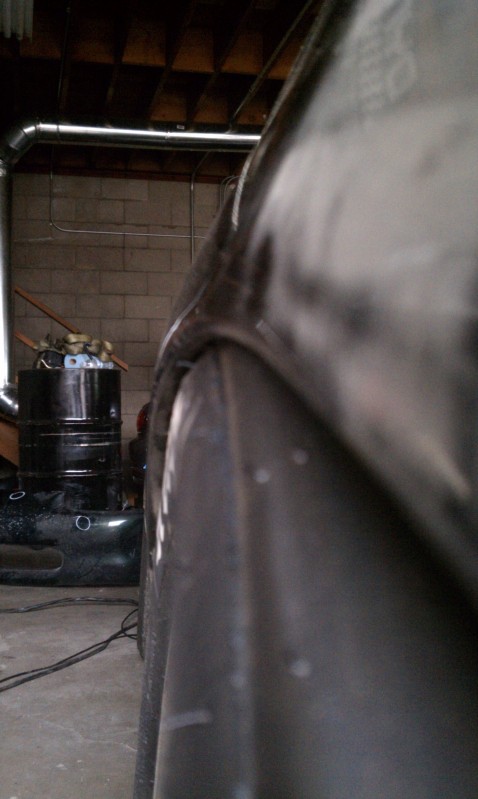

15x9 +36, NB spindle (5mm wider than stock), 245/580R15 Hoosier R80 radial. No workie. Fender is fully rolled, but I would need to pull it at least another 5-10mm to get clearance.

I'm going to do a grafted sheetmetal flare when the 10s show up, so this is as far as I got with the fitment.
Attached Thumbnails
15x10 6UL @ 949 Racing-imag0052.jpg
Savington is offline   Reply With Quote
Old 11-04-2011, 04:21 PM   #122
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Damn it... I was afraid of that. I'm going to have to put flares on the car before I consider the 15x10. 23x9.5xR15 Hoosiers on 15x9 6ULs, with 5mm spacers in the front, fit on my NA with aggressively rolled and pulled fenders, but just barely. There may have been some light rubbing on the very outside edge of the tread, but I am not certain. Ride height is set at 12.25"~12.5" in the front.

It is worth noting that Hoosier shows a section width of 10.7" with the 23x9.5xR15, versus a 10" section width with the 245/580-R15. So the sidewall is slightly narrower with the metric slick. The tread width for both is the same, 9.4"

It looks like that is a picture of the front. There is less clearance in the front than in the rear. That's what she said.
ZX-Tex is offline   Reply With Quote
Old 11-04-2011, 04:40 PM   #123
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,370
Total Cats: 1,332
Default

Quote:
Originally Posted by ZX-Tex View Post
Damn it... I was afraid of that. I'm going to have to put flares on the car before I consider the 15x10. 23x9.5xR15 Hoosiers on 15x9 6ULs, with 5mm spacers in the front, fit on my NA with aggressively rolled and pulled fenders, but just barely. There may have been some light rubbing on the very outside edge of the tread, but I am not certain. Ride height is set at 12.25"~12.5" in the front.

It is worth noting that Hoosier shows a section width of 10.7" with the 23x9.5xR15, versus a 10" section width with the 245/580-R15. So the sidewall is slightly narrower with the metric slick. The tread width for both is the same, 9.4"

It looks like that is a picture of the front. There is less clearance in the front than in the rear. That's what she said.
I wish. That's a picture of the rear. There was no doubt that I would be doing more than a roll+pull to fit the 15x10s, but I was hoping the 245s would fit on a 9 without a ton of work. Sadly, not so.
Savington is offline   Reply With Quote
Old 11-04-2011, 04:49 PM   #124
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Depending on your ride height I think you can make the 245s fit with the 15x9 with heavy rolling and pulling. On the rear I was able to 'pull' the rear fenders out well past stock by applying a lot of load (gradually) with the fender roller. There is plenty of clearance on mine.

On the front it is harder to pull out the fenders because the fenders are not nearly as stiff and do not yield as much as the rears do when pulled on. I would like more clearance in the front since they will rub with enough suspension compression, but it takes a lot, like less than 10" ride height with the wheels straight.

If you have a fender roller, go for it. You have nothing to lose if you are going to install flares anyway. That being said, I am still going to add flares to mine anyway.
ZX-Tex is offline   Reply With Quote
Old 11-04-2011, 05:10 PM   #125
Junior Member
iTrader: (1)

Join Date: Jan 2009
Location: raleigh nc
Posts: 140
Total Cats: 1
Default

aw hell jsut break out the tape and grinder and then get some flares, it will be just fine
tzdevill is offline   Reply With Quote
Old 11-04-2011, 05:37 PM   #126
Elite Member
iTrader: (12)

Join Date: Apr 2008
Location: Springfield IL
Posts: 2,750
Total Cats: 24
Default

Quote:
Originally Posted by tzdevill View Post
aw hell jsut break out the tape and grinder and then get some flares, it will be just fine
I think flares made my car look like butt. Once out of school and I'm baller enough to street R6's, then the front flares might look okay with the 15x10's. On 9's and 225's I just couldn't do it, even with a spacer.
chpmnsws6 is offline   Reply With Quote
Old 11-04-2011, 07:21 PM   #127
Senior Member
iTrader: (22)

Join Date: Oct 2007
Location: bay area, ca
Posts: 551
Total Cats: 19
Default

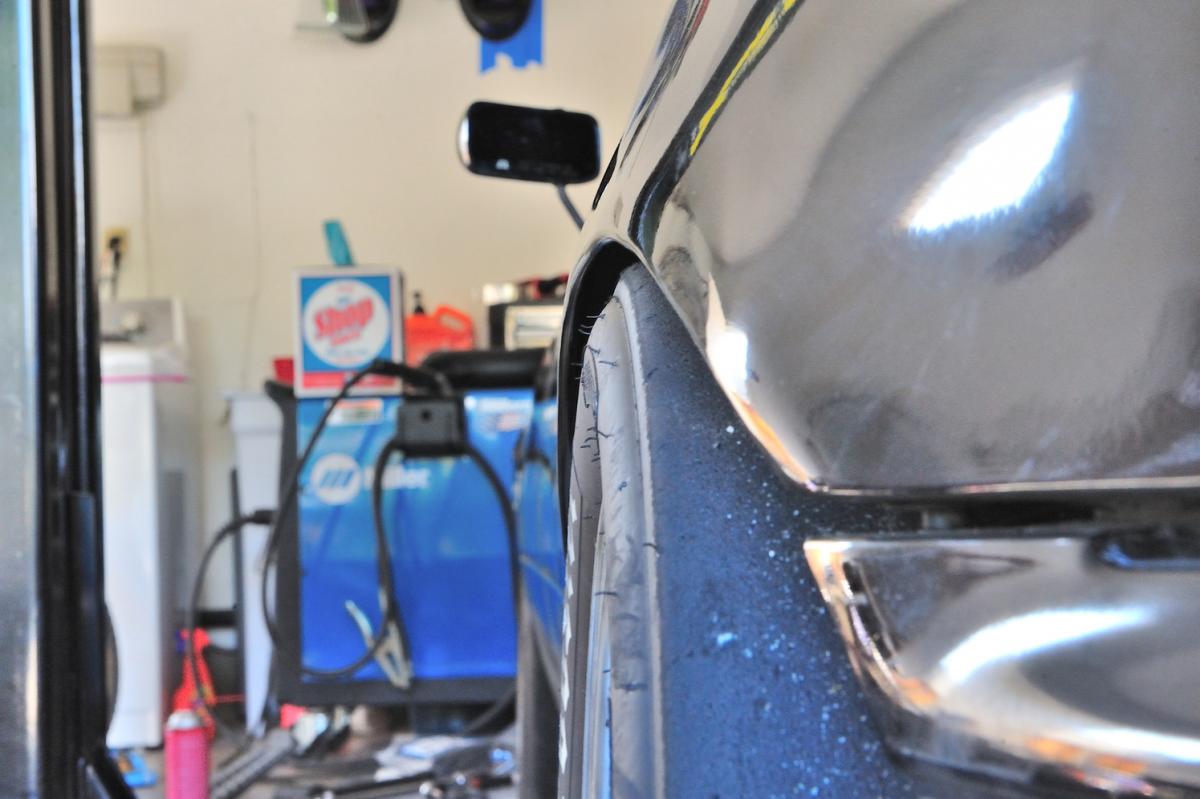

I have a little more clearance. V8R hubs (not sure how far they go out) and no spacer with same tire on a 15x9. My ride height needs adjustment since I just installed new shocks and have a reverse rake 4.5/4.

Attached Thumbnails
15x10 6UL @ 949 Racing-24ee98d7.jpg
orion4096 is offline   Reply With Quote
Old 11-04-2011, 11:57 PM   #128
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

^^^ That is about what mine looks like on the front.
ZX-Tex is offline   Reply With Quote
Old 11-05-2011, 02:23 AM   #129
Senior Member
iTrader: (6)

Join Date: Jun 2010
Location: San Rafael, CA
Posts: 1,125
Total Cats: 41
Default

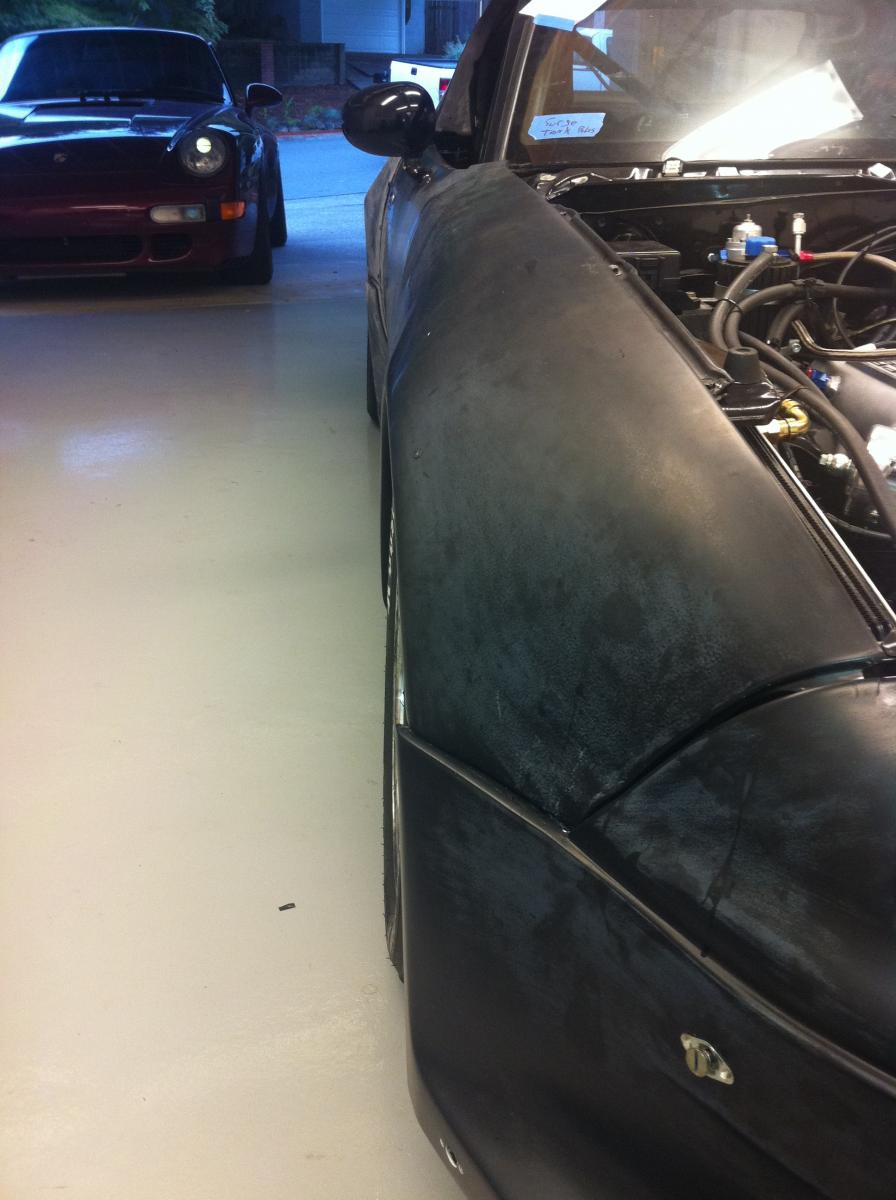

The 245's look lost on mine with 9" 6UL & 8mm spacer.

I am going to try the 10"s.
Attached Thumbnails
15x10 6UL @ 949 Racing-image.jpg

Last edited by k24madness; 11-05-2011 at 02:34 AM.
k24madness is offline   Reply With Quote
Old 11-08-2011, 03:38 PM   #130
Elite Member
iTrader: (3)

Join Date: Feb 2008
Location: Huntsville, AL
Posts: 1,882
Total Cats: 45
Default

^Is that Mazdaspeed E/F Production bodywork?
vehicular is offline   Reply With Quote
Old 11-08-2011, 08:35 PM   #131
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,479
Total Cats: 116
Default

Quote:
Originally Posted by Kanz17 View Post
First post! My question is... clearance aside, what tire size would you need to keep the same outer diameter as the stock tires?
Something around 22.7~23" OD. not really room to go bigger diameter without limiting bump travel or taking more drastic measures moving more metal out of the way than just fixing the fender lip.

Bob
bbundy is offline   Reply With Quote
Old 11-08-2011, 08:57 PM   #132
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

When will the Tire Rack copies be here?
hustler is offline   Reply With Quote
Old 11-09-2011, 12:09 AM   #133
Senior Member
iTrader: (6)

Join Date: Jun 2010
Location: San Rafael, CA
Posts: 1,125
Total Cats: 41
Default

Quote:
Originally Posted by vehicular View Post
^Is that Mazdaspeed E/F Production bodywork?
Autokonexion wide body kit with full overlay rear quarters.
k24madness is offline   Reply With Quote
Old 11-10-2011, 12:15 AM   #134
Supporting Vendor
Thread Starter
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 5,324
Total Cats: 1,344
Default 15x10's here

Container arrives at our shop tomorrow it looks like. Resist the temptation to call/email Thursday for an up to the second update as I won't answer anyway. Job 1 when a ctr arrives is shipping wheels out. We have the labels made and Fedex notified to bring a big truck. The pre-ordered wheels don't even go inside the building. I personally deliver Goodwin's that evening, Phil's ships the next day.

Local pick ups can show up after 3:30pm. Bring a copy of your order and ID.

I will post a pic of a nickel though. Really anxious to see how they look, all crazy wide and stuff.
emilio700 is offline   Reply With Quote
Old 11-10-2011, 12:44 AM   #135
Senior Member
iTrader: (1)

Join Date: Jun 2007
Posts: 669
Total Cats: 29
Default

Quote:
Originally Posted by emilio700 View Post
Container arrives at our shop tomorrow it looks like. Resist the temptation to call/email Thursday for an up to the second update as I won't answer anyway. Job 1 when a ctr arrives is shipping wheels out. We have the labels made and Fedex notified to bring a big truck. The pre-ordered wheels don't even go inside the building. I personally deliver Goodwin's that evening, Phil's ships the next day.

Local pick ups can show up after 3:30pm. Bring a copy of your order and ID.

I will post a pic of a nickel though. Really anxious to see how they look, all crazy wide and stuff.
Communication and service. Awesome stuff Emilio.
yank is offline   Reply With Quote
Old 11-10-2011, 06:34 PM   #136
Junior Member
iTrader: (6)

Join Date: Aug 2007
Location: Houston, TX / Lafayette, LA
Posts: 269
Total Cats: 2
Default

Just got my tracking number! Now to get the car put back together...
tann3r is offline   Reply With Quote
Old 11-11-2011, 10:46 AM   #137
Junior Member
iTrader: (1)

Join Date: Jan 2009
Location: raleigh nc
Posts: 140
Total Cats: 1
Default

got my tracking number also. cant wait for the to show up at the shop for a good "weight" picture with our shipping scale
tzdevill is offline   Reply With Quote
Old 11-14-2011, 01:47 PM   #138
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,370
Total Cats: 1,332
Default

Picked up my set at 949 on Friday. They are way sexy. I'll snap some photos once they actually fit on the car - flares are, um, required.

The 245/580R15 Hoosier on a 15x10 wheel is 0.8lbs lighter than a 225/45R15 NT-01 on a 15x9 wheel, too.
Savington is offline   Reply With Quote
Old 11-14-2011, 01:48 PM   #139
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,780
Total Cats: 1,106
Default

Quote:
Originally Posted by Savington View Post
Picked up my set at 949 on Friday. They are way sexy. I'll snap some photos once they actually fit on the car - flares are, um, required.

The 245/580R15 Hoosier on a 15x10 wheel is 0.8lbs lighter than a 225/45R15 NT-01 on a 15x9 wheel, too.
So how do they fit on an NA? How much work needs to be done to make them fit?
shuiend is offline   Reply With Quote
Old 11-14-2011, 02:31 PM   #140
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,370
Total Cats: 1,332
Default

Quote:
Originally Posted by shuiend View Post
So how do they fit on an NA? How much work needs to be done to make them fit?
Stock un-rolled fenders will work, assuming you are at stock ride height and do not ever intend on driving the car
Savington is offline   Reply With Quote
